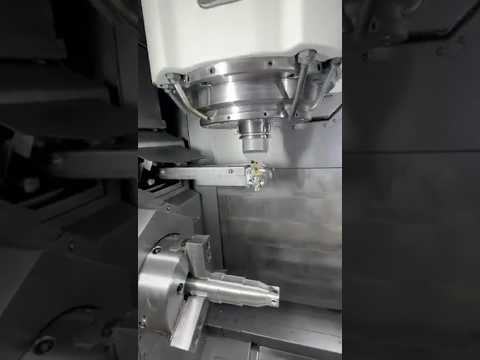

CNC turning and milling centre

Mazak Integrex i-100H S

Condition: good (used), Year of construction: 2022, operating hours: 2,200 h, functionality: fully functional, machine/vehicle number: 328827, turning length: 900 mm, turning diameter: 600 mm, spindle motor power: 11,000 W, spindle speed (max.): 6,000 rpm, spindle bore: 61 mm, travel distance X-axis: 535 mm, travel distance Y-axis: 210 mm, travel distance Z-axis: 900 mm, mount diameter: 600 mm, rapid traverse X-axis: 48 m/min, rapid traverse Y-axis: 40 m/min, rapid traverse Z-axis: 40 m/min, milling spindle length: 300 mm, rotational speed (max.): 20,000 rpm, type of input current: three-phase, torque: 184 Nm, bar passage: 61 mm, feed rate X-axis: 48 m/min, feed rate Y-axis: 40 m/min, feed rate Z-axis: 40 m/min, bar diameter (max.): 61 mm, overall weight: 12,000 kg, spindle diameter: 152 mm, Equipment: documentation/manual, The machine is equipped with the latest Mazatrol SmoothAi control, fitted as standard. The ease of conversational program creation in Mazatrol mode is ensured by the intuitive layout of auxiliary functions, supported by graphical and, above all, clear prompts and comments. TOOL HOLDERS SHOWN IN THE PHOTOS ARE INCLUDED IN THE PRICE. STANDARD TECHNICAL SPECIFICATION Working area Main spindle chuck size 6" Second spindle chuck size 6" Max. turning length 600 mm Standard machining diameter (from upper head) 600 mm Standard machining diameter (from lower head) 400 mm Bar machining capacity in main spindle 51 mm Bar machining capacity in sub-spindle 51 mm Main spindle Maximum spindle speed 6,000 rpm Minimum spindle speed 35 rpm Through-hole diameter 61 mm Motor power (40% duty) 11.0 kW Motor power (continuous) 7.5 kW Max. torque (15% duty) 184 Nm Max. torque (25% duty) 161 Nm Max. torque (40% duty) 143 Nm Maximum torque (continuous operation) 105 Nm Second spindle Maximum spindle speed 6,000 rpm Minimum spindle speed 35 rpm Through-hole diameter 61 mm Motor power (40% duty) 11.0 kW Motor power (continuous) 7.5 kW Max. torque (15% duty) 184 Nm Max. torque (40% duty) 143 Nm Maximum torque (continuous operation) 105 Nm Milling head Type Single spindle with automatic tool changer Tool holder HSK-A63 / HSK-T63 Tool size (external diameter machining) 25 mm Tool size (internal diameter machining) 40 mm Tool size (max. milling tool diameter) 130 mm Tool size (max. milling tool length) 300 mm Motor power (40% duty) 24.0 kW Motor power (continuous operation) 14.0 kW Max. torque (15% duty) 59.7 Nm Torque (40% duty) 57.3 Nm Torque (continuous operation) 46.1 Nm Max. milling spindle speed 20,000 rpm Min. milling spindle speed 35 rpm Feed axes Rapid traverse X 48 m/min Rapid traverse Z 40 m/min Rapid traverse Y 40 m/min Rapid feed rate B 44.4 m/min Rapid traverse W 30 m/min Travel X 535 mm 535 mm (+485 mm / -50 mm) Travel Z 900 mm Travel Y 210 mm B-axis travel range 240° (-30° ~ +210°) Travel W 900 mm 0850U INTEGREX I-100H S 850U MR406 Milling spindle 20,000 rpm SI098 Sub-spindle synchronization AS080 Overload detection system CS503 Through-spindle coolant 15 bar / flushing CS664 Preparation for extraction unit (Gx500) Ffodjxzk Swjpfx Aa Eew MB255 B-axis measuring probe (RMP60) MB650 Calibration sphere + magnetic base MB624 Smooth Set And Inspect (Multi-Tasking) CV041 Side chip conveyor (hinged belt) TE810 Preparation for Multi&Flash system NO056 Y-1 MAZAK API NO059 MTConnect adapter NO066 Smooth synchronous tapping (with milling spindle) NO072 Automatic peck drilling cycle with load monitoring NO116 Smooth 5-axis control (EIA/ISO) NO123 Tool radius compensation in 5-axis machining NO134 Simultaneous 5-axis machining on the second spindle NO442 Slope Constant (G00 motion optimization) NO482 Thread re-entry NO599 Cylindrical (G07) and polar (G12) interpolation

Condition: good (used), Year of construction: 2007, 1 used CNC tool grinding machine Make: Schneeberger Model: Corvus GDS 650 Year of manufacture: 2007 CNC Control: FANUC 160i Software: Quinto 4.3 Activated software options (option numbers): 1, 2, 19, 21, 22, 30, 31, 32, 35 - Fanuc loading robot - Coolant system Travel: X-axis: 650 mm Y-axis: 300 mm Z-axis: 300 mm C-axis swivel range: +150°/ -60° C’-axis swivel range: +/- 180° Grinding spindle: Wheel diameter up to 250 mm Speed: 0 – 10,000 rpm Max spindle power: 26 kW HSK 80 interface Max. number of wheels: 6 Workpiece spindle head: Vmax: 180°/s Drive power: 1.6 kW ISO 50 interface Ffjdpfxju A Dn Ns Aa Eew Precision (resolution): Linear axis resolution: 0.001 mm C-axis: 0.001° Dimensions: Length: 3,100 mm Width: 1,915 mm Height: 2,190 mm Weight: 8,500 kg U-axis is integrated with steady rest, clamping cylinder, and tailstock 6-pallet loader (diameter 3 to 32 mm) 64 plastic collets Technical data subject to change without notice

Condition: excellent (used), Year of construction: 2009, CNC control : FANUC 160i - Accessories available. - Fanuc loading robot - Coolant system (Edge 2 tower from ARO-Technologies) - Oil mist separator (ELBARON SA) Travels: X-axis 650 mm Y-axis 300 mm Z-axis 300 mm C-axis swivel angle +150°/ -60° C' axis swivel angle +/- 180° Grinding spindle: Wheel dimensions up to 250 mm Speed 0 - 10,000 rpm. Max. spindle power 26 kW HSK 80 holder Max. Number of disks 6 Workpiece headstock Vmax 180°/s Drive power 1.6 kW ISO 50 mounting Precision (resolution) Resolution linear axes 0.001 mm C-axis 0.001° Dimensions: Length 3100 mm Width 1915 mm height 2190 mm Weight 8'500 kg Fodpfxor Ha Dvj Aa Esfw

Condition: good (used), Year of construction: 2020, 5-Axis CNC Machining Center - Universal - Manufacturer: MAZAK Machine Model: Variaxis J-500 Control Unit: Mazatrol SmoothG Year of Manufacture: 2020 Number of Controlled Axes: 5 TECHNICAL DATA Travel Ffjdpsyabu Ijfx Aa Eow - X-Axis (mm): 350 - Y-Axis (mm): 550 - Z-Axis (mm): 510 - Swivel Range A-Axis (degrees): -120 / +30 - C-Axis (rotary axis, rotary and tilt table): (degrees): 360 Feed Rate X/Y/Z (mm/min): 8,000 Rapid Traverse - X-Axis (mm/min): 30,000 - A-/C-Axis: 10,800 degrees/min. Spindle - Max. Spindle Speed (rpm): 12,000 - Drive Power (ED) 100 / 40 (kW): 7.5 / 11.0 Tool Magazine - Tool Holder: BT40/CAT40 - Pull Stud: Yamazaki ANSI Type - Number of Tool Positions: 30 - Tool Diameter (mm): 90 - Tool Length (mm): 300 Machine Table: Swivel rotary table Pallet System - Pallet Changer: 2-position - Clamping Table Dimensions (mm): 500 x 400 Swivel Rotary Table - Rotary Table Diameter (mm): 500 x 400 - Max. Workpiece Weight (kg): 200 FEATURES + Through-spindle coolant 70 bar + Hinged belt chip conveyor + Oil mist extractor + Tool length measurement and breakage control + Additional interior lighting + Signal tower (3-color) Subject to change and errors in technical details and specifications.

Condition: as good as new (ex-display), Year of construction: 2025, Ultrasonic Cleaning System ULTRA200 Platform dimensions: 850 x 450 mm Max. usable height: 400 mm Max. load weight: 100 kg Volume: 380 liters + 55 liters (oil separator) Heating: 2 x 4 kW Made entirely of stainless steel Heat and sound insulated External dimensions approx.: L 1,500 x W 950 x H 1,750 mm Control system: Fatek, HMI: Weintek Electrical power: 10.55 kW Includes: - Automatic pneumatic goods lift - Surface washing/oil separator for bath maintenance - Ultrasonic immersion transducer with 2-way sound Ffjdpfx Aev U A Izea Esw - Power: 2,000 watts eff. / 4,000 watts peak - Multifrequency: 20 kHz / 40 kHz - Manual blow-off gun Demonstration system from the Glogar Technology Center, available immediately

Condition: used, Year of construction: 2014, max. turning diameter 160 mm max. turning height 150 mm max. workpiece diameter 100 mm max. workpiece height 150 mm max. turning speeds 6.000 U/min travel -x axis 700 mm travel -z axis 375 mm c-axis 360 ° control FANUC Vertical Turning Machine | EMAG - VL2 Fodpfoqvd Iqsx Aa Esfw equipped with a workpiece conveyor belt. The machine is in very good condition. Please note that the technical details were added from comparable machines. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: VL-2 | VL 2

Condition: excellent (used), Year of construction: 2015, functionality: fully functional, CNC Tool Grinding Machine Walter Helitronic Power FH, Year of manufacture: 2015 Fanuc control system with cylindrical pallet loader, pallets from 4 mm to 25 mm 8-position disc changer, electrostatic mist collector fire extinguishing system, Software: Walter Window Mode and Toolstudio, Software packages: 001, 002, 003, 016, 017, 026, 090, 091, 098, 099, 032, Helicone, Helidrill, Heliflute, NC-Mode, Power-IMS, Toolstudio_Standard, with preparation for hydraulic unit (steady rest), Fodpfx Aeyh Dl Noa Ejfw The grinding spindle (single spindle) is directly driven and equipped with an oil cooler. The hollow shaft motor for the A-axis operates at a speed of 0-750 rpm. The C, X, Z, and A axes were overhauled in 2022.

Condition: like new (used), Year of construction: 2012, 12 station, Siemens Sinumerik 840D control, load / unload, VAS air cleaning unit, (2012) Technical Data - Grinding Spindles (With Two spindle ends) Interface - Cone ø 31.75mm Performance 100% / 40 % ED - 11.5 / 14.5kW Standard rotation speed - 8,000rpm Option: One spindle end Fedpfx Ajv Igghoa Eofw Interface - HSK 50E Performance - 100% / 40% ED - 11.5/ 14.5 kW Standard rotation speed - 8,000rpm Option: One spindle end Interface - HSK 50E Performance 100% / 40% ED - 11 / 12 kW Standard rotation speed - 18,000rpm Option: One spindle end Interface - HSK 80E Performance 100% / 40% ED - 30/30 kW Standard rotation speed - 8,000 rpm Option: High Frequency spindle - On request Machine Table Clamping surface - 1000 x 500mm Number, distance and width of the T slots - 9 / 50 / 12H7mm Work Range X- Axis - 700mm (optional) 1000mm (optional) 1200mm Y Axis - 410mm Z Axis - 500mm C Axis angle of rotation - 320° Option: X3 - auxilliary axis Work range - 400mm Probing system and feed Resolution of linear axes - 0.0005mm Rapid feed of linear axes - 30,000mm/min Resolution of rotary axes - 0.001° Rotation speed of C Axis - 400rpm Rotary axis ( A axis) Standard tip height - 175mm Rotation speed as spindle - 2600rpm Standard interface - ISO SK 50 / centering 70H5 Optional - HSK 100 / 80 / 63 / 50 Tool Changer option HSK50E Number of tools / Diameter of tools Inner wheel - 5 / 300mm to 9 / 100mm Outer wheel - 7 / 300mm to 16 / 100mm HSK80E Number of tools / Diameter of tools Inner wheel - 5 / 300mm to 8 / 100mm Outer wheel - 7 / 300mm to 14 / 100mm Workpiece size Diameter 340mm Length 550mm Length between tips 500mm Electrical supply Operating voltage 400V / 50Hz fused to 80 A Controller Siemens contouring control - Sinumerik 840 DSL Pneumatics Operating pressure - 6 - 10bar Weight Total weight depending on equipment 10,000kg or more Floor space requirement Length x width (standard) 3227 x 2700mm Height during operation 3550mm Height with option of coolant nozzles 3810mm (min hall height 4100mm)

Condition: used, Year of construction: 2014, Technical details: grinding diameter max.: 3-220 mm regulating wheel width: 500 mm max. width of grinding wheel: 500 mm weight of the machine ca.: 16 t. dimensions of the machine ca.: 12 x 10 x 8 m. grinding wheel diam. min/max.: 420-610 grinding wheel diameter - width-internal grin: 304,8 x 500 mm Regulatin wheel diameter min/max.: 300-350 mm The machine is currently designed for plunge grinding JUPITER's Centerless grinding, also available with CBN. Junker this circular grinding method with CBN grinding wheels, which opens up significant productivity benefits from the long service life of the grinding wheel, especially at high volumes. In addition, the simultaneous removal takes on the entire Schleswig-Holstein, which provides both in mass production and in small batches for significantly reduced processing times. The grinding process with JUPITER When centerless grinding, there are two grinding processes: the through grinding and plunge. Both methods are possible with the JUPITER. Applications through grinding: Pin and Bushings Body, rings, smaller rings, piston parts (eg compressors), waves with constant diameter piston rods (eg shock), Small piston for hydraulic and fuel injection, precision wires and rods, piston pins. Ffsdot Uw Avepfx Aa Eew Applications Plunge: Rotor shafts, transmission parts, bearing surfaces of camshafts, tube and pipe fittings for composite camshafts, universal joints, parts for needle injection, valve stems, barrel rolls. *

Condition: good (used), Distance between centers: 1000 mm Height of centers: 175 mm Grinding length: 500 mm Maximum grinding diameter: 300 mm Working wheel dimensions (OD x ID x W): 500 x 203 x 80/100 mm Internal Morse taper: 5 Working wheel motor power: 7.5 kW Total power: 17 kW Fjdpfx Aaott Rawo Eefw Longitudinal travel of the carriage (X-axis): 267 mm Transverse travel of the carriage (Z-axis): 650 mm CNC brand: FANUC CNC model: 16-T Rotating range: +/- 8.5º Dimensions: 2600 mm x 2300 mm x 2100 mm Approximate weight: 4200 kg
