Used Worm Gear for sale (6,762)

Condition: used, Year of construction: 2000, Technical details: max. wheel diameter: 275 mm gear width: 55 mm max. module: 6,5 min. module: 1,5 Face Hobbing-Continious Process Continuous process: The workpiece and tool (usually Spiron) rotate at the same time, and all teeth are created in one operation at the same time. Knife head has several knife groups (not arranged in a circle) Parallel tooth Conical tooth tip surface Single Item procedure: The workpiece is stationary and the tool (usually Arcon) rotates and cuts a tooth by immersing the tool. Once a tooth is cut, the tool moves out of the tooth again, the workpiece divides by one tooth width and the next tooth is cut until all teeth are finished. Knife head has arranged all knives in a circular path. Conical tooth height Parallel tooth head surface C28 can do both, wheel + pinion. However, a C28 must be “prepared” for the individual part procedure. I.e. direct measuring system + part gear brake, workpiece axis + license file for the production of individual parts. * Ledpfev N Hilox Abvsri

Condition: used, Year of construction: 2005, Technical details: weight of the machine ca.: 8 t dimensions of the machine ca.: 2,95 x 1,6 x 2,36 m Ljdpfxeizlh Hj Abvsri chucking diameter: 250 mm swing diameter: 265 mm x-travel: 170 mm z-travel: 200 mm spindle turning speed range: 1.500 U/min spindle bearing diameter: 100 mm Pick-up machine *

Condition: excellent (used), Year of construction: 2020, Servo motor, electric motor, DC motor, servo geared motor, synchronous motor Lredpexr A Niefx Abvei -Manufacturer: Siemens Wittenstein, servo geared motor -Synchronous motor: Siemens type 1FK7101-2AF71-1RG0 -Voltage: 278 V -Gearbox: Wittenstein SP 140S-MC1-10 -1K1-2K i= 10 -Shaft: Ø 40 x 80 mm -Number: 2x geared motors available -Price: per piece -Dimensions: 490/190/H260 mm -Weight: 41.2 kg/pc.

Condition: good (used), Year of construction: 2021, Gearboxes, spur gears, bevel gears, worm gears -Manufacturer: Nord, Gearbox type SK 1SI40F -Translation: i = 15.00 -Hollow shaft: Ø 18 x 83 mm -M2 max: 49 Nm -Dimensions: 150/120/H150 mm Lsdjyh E E Repfx Abvjri -Weight: 2.7 kg

Condition: good (used), Year of construction: 2021, DC motor, servo motor, geared motor, electric motor, DC geared motor, DC shunt-wound geared motor Ledoyh Ai Tjpfx Abveri -Manufacturer of gearbox: Nord., type 1SI50F F i =15 -Speed: 200 rpm -Engine manufacturer: B&R Type 8LVA23.R0030D100-0 -Voltage: 57 V -Shaft: Ø 25 x 50 mm -Dimensions: 275/200/H170 mm -Weight: 7.5 kg

Condition: excellent (used), Maximum wheel diameter: Min. module: 1 Max. module: 6 Lodeyr Tatjpfx Abvsri Table diameter: Maximum wheel diameter: -with counter support: -without counter support:

Condition: used, High-speed milling spindle HENNINGER type 814 / 5131 / 1:5 / 15000 Ledpfxjf Axn Ue Abvjri Speed max. 15000 rpm at 70% ED Gear ratio 1:5 Power transmission up to approx. 2.5 kW Front dimension 110 mm (machine spindle to clamping nut) Tool holder MK4 with M16 tightening thread Collets type OZ16 Ø 6 / 8 / 9 / 10 / 11 / 12 / 12.5 / 13 / 14 mm dead weight 6.5 kg good condition

Condition: used, High-speed milling spindle HENNINGER Type 801 - N 503 Maximum speed: 6,000 rpm at 70% duty cycle Gear ratio: 1:6 Ledpefxg T Usfx Abvjri Power transmission: up to 2.5 kW Projection: 110 mm (from machine spindle to clamping nut) Tool holder: SK 40- S20x2 Collets Ø 2 / 2.5 / 3 / 3.5 / 4 / 4.5 / 5 / 7 / 8 / 9 / 10 / 11 / 12 / 13 / 14 / 15 / 16 mm Supplied in a wooden storage case The head is equipped with bronze gears for high torque. Net weight: 5 kg Total weight: 9.4 kg Good condition

Condition: used, Straightening machine, strip straightening device with adjustable LENZE geared motor Straightening machine, strip tensioner was used for cardboard approx. 350 x 1.5 mm Not suitable for use as a classical straightening machine Type 11.712.02.10 Output speed of geared motor: 12 to 72 rpm, stepless Torque: 80 to 40 Nm Straightening roller speed: 19 to 115 rpm Straightening roller width: 520 mm Straightening roller diameter: 90 mm Total number of straightening rollers: 4 pcs Lrjdpfx Ajdzp U Ajbvsi Motor power: 0.37 kW Power supply: 380 Volt, 50 Hz - Pull roller pair, drive of the lower rubber-coated roller via open gear drive - Speed infinitely adjustable via handwheel on the geared motor - Upper part of the straightening rollers mechanically adjustable - Straightening unit with 3 rollers, one of the rollers is missing (rollers of the straightening unit not driven) - On a sturdy metal base - Straightening machine was used for cardboard approx. 350 x 1.5 mm Space requirement (L x W x H): 630 x 460 x 1060 mm Weight: approx. 160 kg Good condition

Condition: used, Year of construction: 2006, functionality: fully functional, workpiece weight (max.): 25,000 kg, wheel width: 3,000 mm, feed length X-axis: 1,000 mm, LIEBHERR L3002 CNC Internal and External Gear Hobber Built 1982, Modernized 2006 CNC SIEMENS 840 D. Max Wheel diameter 3,000 mm. Ljdpswdmy Eefx Abvori Max helical angle 45° Internal and external Head. 44/50 kW.

Condition: used, Year of construction: 1963, Technical details: max. wheel diameter: 900 mm max. module: 10 weight of the machine ca.: 8200 kos. hob dia. - max.: 190 mm cutter length max.: 320 mm milling spindle speeds (infinitely variable): 13-80 U/min workpiece length - max.: 750 mm max. workpiece diameter: 150 mm Counter holder milling mandrel is missing Lodpfx Abjvkpu Hjvori *

Condition: used, Year of construction: 2000, Technical details: max. wheel diameter: 180 mm gear width: * mm max. module: 4 total power requirement: 14 kW weight of the machine ca.: 8 t slide travel axial ( Z-axis ): 300 mm work piece - max.: 490-640 mm Lsdpjyk Ur Uefx Abveri

Condition: excellent (used), Year of construction: 2002, max. wheel diameter 130 mm gear width 72 mm max. module 6 Control Siemens 840 D swing diameter 350 mm dia. of shaper cutter 125 mm x-axis 230 mm y-axis +/- 25 mm z-axis 250 mm stroke length max. 80 mm column swivelling 0 - 12 Grad no. of strokes 80 - 800 Hub/min Lredpsymqw Sofx Abvji total power requirement 44 kW weight of the machine ca. 11,5 t dimensions of the machine ca. 4,2 x 4,0 x 3,3 m Very nice condition!

Condition: used, Year of construction: 1976, cone distance min./max. 0/108 mm Pitch angle min/max 5°/84° Pitch diameter (1:1 ratio) 152 mm pitch diameter (10:1 ratio) 216 mm Diametral pitch (finest/coarsest) 1.3/8.5 Mod. Face width gear wheel max. 35 mm speeds: 98-286 weight of the machine ca. 6577 kg dimensions of the machine ca. 1560 x 2140 x 2200 mm Equipment/accessories: Lsdpfxoyh Rmte Abvjri -Cutting tools -Spacer angle -Technical documentation

Condition: used, cone distance min./max. 0-108 mm Pitch angle min/max 5°/84° Control GE Fanuc Series 0-GC Pitch diameter (1:1 ratio) 152 mm pitch diameter (10:1 ratio) 216 mm Diametral pitch (finest/coarsest) 1.3/8.5 Mod. Face width gear wheel max. 35 mm Knife spindle - Speed range 41-121 U/min Ljdpsyh Rmmefx Abvori working spindle speed range 0-33.33 U/min weight 9025 kg dimensions of the machine ca. 2707 x 2720 x 2200 mmxmmxmm Equipment/accessories: -Knife -Chip conveyor -Technical documentation

Condition: used, functionality: fully functional, For sale is an Oerlikon bevel/worm gear unit of the E 37 EX 2 series, serial number 828499L01.1. The unit comes from a fully functional installation and is suitable for test benches, special purpose machines, and industrial drive applications. Technical specifications (general): Manufacturer: Oerlikon Type: E 37 EX 2 Design: Bevel/worm gear unit Application: Test bench technology, mechanical engineering, industrial drives Lodoypb Iyjpfx Abvjri Condition: used, functional

Condition: used, Year of construction: 2002, Technical details: max. wheel diameter: 130 mm gear width: 170 mm max. module: 3 min. module: 0,5 total power requirement: 48 kVA weight of the machine ca.: 9 t dimensions of the machine ca.: 7,64 x 3,14 x 3,25 m Lrjdpfx Aowdyx Uebvsi For technical data, see PDF-File enclosed *

Condition: used, Year of construction: 2008, max. wheel diameter 700 mm max. module 8 (10) min. module 1 table diameter 530 mm Table speed max. 350 1/min Distance of shafts 50 - 680 0 workpiece weight 4.000 kg Axial travel 1.000 mm tangential adjustment 300 mm Lodeyv Ipfopfx Abvsri pivoting angle + / - 45 Grad power capacity 32 kW spindle turning speed range 3.500 - 12.000 U/min tool diameter 320 mm total power requirement 80 kW weight of the machine ca. 25,00 t

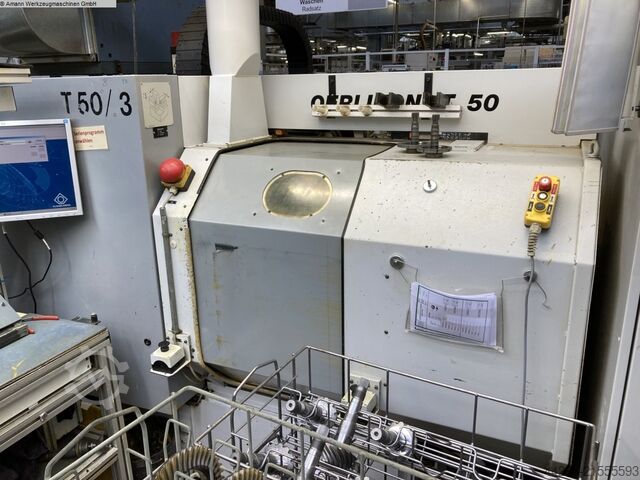

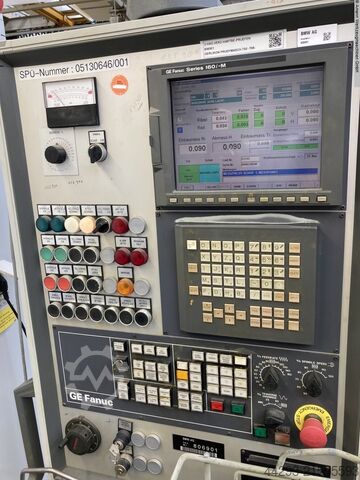

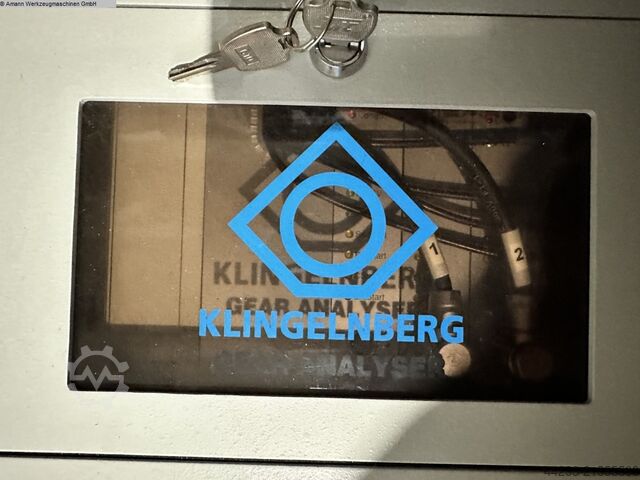

Condition: used, Year of construction: 2001, max. wheel diameter 400/500 mm CNC-Control GE FANUC Series 160i-M pinion diameter - max. 400 mm crown gear diamter max. 500 mm x-axis +/- 70 mm y-axis 200 mm z-axis 200 mm axis angle 90 Grad speeds: R T min rated current 30 kVA Ledpfx Ajyv Iplobvjri weight of the machine ca. 6,2 t dimensions of the machine ca. 3,2 x 2,5 x 2,3 m The Oerlikon T50 is a 3-axis CNC testing machine for fully automatic hard and soft testing of spiral and hypoid bevel gears with an axle angle of 90° Bevel gear analysis ROTEC T50 GA2 Color unit company Binks

Condition: like new (used), Lot includes: Approx. 500 metres of chains Approx. 650 sprockets Approx. 270 conveyor rollers Approx. 40 geared motors Some items are in sealed packaging (new parts) Full inventory available upon request Additional photos available Total footprint: approx. 13 pallets (800 x 1200 mm format) For more information, please feel free to contact us. Visible near Burnaupt le Haut Ledpsyt E S Rsfx Abvjri Delivery + unloading by MID possible at extra cost Contact: Christian LEMBLE 06 80 05 35 75 Price excl. VAT Industrial gear reducer / Gearbox / Drive shaft / Mechanical component / Drive part / Drive motor / Gear housing / SEW-Eurodrive / USOCOME / Nord Drivesystems / Bonfiglioli / Siemens / Flender / Sumitomo Drive Technologies / ABB / Baldor / Lenze / STM Team / Motovario / Renold / David Brown Santasalo / Hansen Industrial Transmissions / Manufacturing industry / Conveyor drives / Presses / Machine tools / Mining and quarrying / Crusher feed / Material handling systems / Power generation / Turbine drives / Generators / Pumping systems / Marine industry / Power transmission for propulsion and handling systems / Construction and heavy equipment / Integration in cranes / Drilling rigs / Other construction machinery / Spare parts / CNC machine tools / Lathes / Milling machines / Machining centers / Heavy industrial equipment / Presses / Conveyors / Production machinery / Railway / Material handling / Speed and torque adaptation to specific machine requirements / Enhanced mechanical component service life / Optimized energy consumption / Turbines and Archimedean screws / Winches / Lifting systems / Industrial mixers / Stone / cement / waste crushers / Belt conveyors / Quarries / Mines / Factories / HBM / CORMAK / HOLZMANN / Conveyor / Dual sprocket conveyor roller / Mechanical equipment roller / Gravity roller / Handling roller / Chain / Belt / Geared motor / Screw conveyor / Agriculture / Food industry / Pharmaceutical sector / Construction / Inclined conveying / Easy maintenance / Material conveying / Helical drive in tube or trough / Fine materials, powders, granules, cereals / Flour / Helical screw / Rotation / Helix / Grain / Sugar / Cement / Pellets / Salt / Sieve / Screen / Tube / Trough / Gear motor / Bearings and supports / Hopper / Powder products / Grain auger

Condition: used, Year of construction: 2007, max. dia. of teeth cutting 2000 mm workpiece dia. 2700 mm Diameter of the table 1500 mm max. module 22 Control 840D turning speeds 3,5 U/min table load capacity 20000 KG Distance of shafts 70...1220 mm Stroke length 30...330 mm no. of strokes 10...200 Hub/min total power requirement 138 kW weight of the machine ca. 38 t dimensions of the machine ca. 11x5 m machine: Full CNC machine with electronic rolling coupling for C- and D-axes and digital INDRAMAT drive technology. Stiff machine bed in welded construction. Radial axis (X-axis) with hardened guideways, sliding guide with wraparound, longitudinal guide with roller recirculating shoes. Ground preloaded ball screw with play-free preloaded nut. Digital AC drive technology with play-free gearbox. Linear measurement system for radial positioning. Freestanding machine table with electrohydraulically play-free preloaded double worm gear, part wheel diameter 1365 mm, hydrostatic axial and radial bearings, automatic compensation of the workpiece weight. Table hole with a diameter of 500 mm through and open at the bottom. Water-cooled digital AC servo motors. The machine is to be installed on a foundation. Lsdpfex R U Hmex Abvjri Machine stand: as a highly rigid cast construction for axial travel of 1200 mm. Axial axis (Z-axis) with hardened guideways, slide-guided, longitudinal guide and wraparound with roller recirculating shoes. Ground ball screw with play-free preloaded nut. Digital AC drive technology. Encoder for axial positioning. Shapping head: SK 4.1 with hydraulic NC servo drive for impact spindle movement and cutting wheel lifting, stroke length 330 mm, impact spindle diameter 160 mm. Hydrostatically supported impact spindle, linear guide and lateral guide for the lifting mechanism. Maximum tool diameter 300 mm. Drive motor power 30 kW. Stroke rates from 10 - 200 DH/min, stroke speed from 5 - 45 m/min. Impact spindle speed for working and return stroke independently programmable. In the cutting area, the spindle speed remains constant. Maximum cutting wheel speed 10 rpm, digital AC drive technology. Cutting wheel lifting correction for internal and external gearing manually reversible. Lateral offset of the impact spindle axis up to 50 mm from the machine center to prevent return stroke collision of the cutting wheel, manually adjustable.

Condition: used, Year of construction: 2006, workpiece diameter 5 - 1.000 mm module range 0,2 - 25 helix angle < 90 ° Control Wenzel GearTec faceplate diameter 750 mm x-axis 1.200 mm y-axis 550 mm z-axis 1.000 mm Lrsdpfoyvvlbjx Abvoi total power requirement 6,5 kW weight of the machine ca. 11 t dimensions of the machine ca. 3,30 x 3,15 x 2,70 m Software: BMain, FPDFPPostAction, GrafTool, TAlign, TAnalyse, TApplication, TCali, TCut_INPUT, TCut_MEAS_EVAL, TGear_INPUT, TGear_MEAS_EVAL, THob_INPUT, THob_MEAS_EVAL, TMesblatt, TPlot, TRoot_INPUT, TShaft_INPUT, TShaft_MEAS_EVAL, TStat, TStylus, WMI, wingeco.

Condition: used, Cnc gear hobber GLEASON PFAUTER P60 Lrsdpfxsyuzggj Abvei

Condition: used, Cnc gear hobber GLEASON PFAUTER P60 Lrodpfoyuzgaox Abvei

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2002, operating hours: 25,769 h, machine/vehicle number: 159687, laser power: 2,500 W, travel distance X-axis: 3,335 mm, travel distance Y-axis: 1,545 mm, travel distance Z-axis: 420 mm, swivel angle A-axis (max.): 360 °, No reserve price - guaranteed sale to the highest bidder! TECHNICAL DETAILS Lodjymfmbopfx Abvsri Travel X-axis: 3335 mm Travel Y-axis: 1545 mm Travel Z-axis: 420 mm A-axis: ±360 ° B-axis: ±135 ° Maximum workpiece dimensions: 3050 x 1525 x 22 mm Maximum table load: 810 kgf MACHINE DETAILS Laser power: 2500 W Laser model: YB-L250A8M NC control: Mazak & Fanuc L-64 Dimensions & Weight Machine dimensions: 7,525 x 2,875 x 2,300 mm Chiller dimensions: 920 x 1,600 x 1,780 mm Extraction unit dimensions: 850 x 850 x 930 mm Machine weight: 14.6 t Operating hours: 25,769 h EQUIPMENT Chiller Extraction unit
