Turning automatic lathe

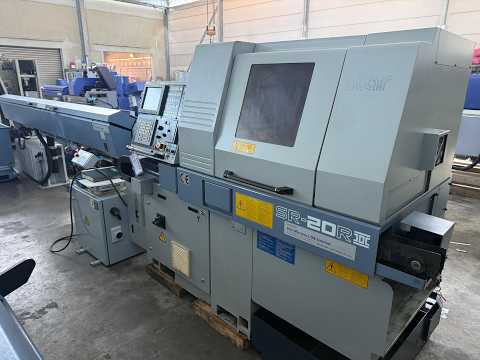

STAR Micronics SR-20 RII

Condition: used, TECHNICAL DETAILS - Number of axes : 6 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 20 [mm] - Max. machining length : 205 [mm] - Spindle speeds : 10000 [rpm] - Spindle power : 3.7 [kW] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Max. bar diameter : 20 [mm] - Spindle speeds : 8000 [rpm] - Spindle power : 2.2 [kW] - C axis indexing precision : 1 [°] - Number of guide bush holders : 1 GUIDE BUSH HOLDER 1 - Number of positions : 6 END ATTACHMENT - Number of positions : 8 - Number of motorized positions : 4 Kedpfxsy Dimzj Al Nslu - Live tools speed : 8000 [rpm] SECONDARY OPERATION - Number of positions : 4 - Number of motorized positions : 4 - Live tools speed : 8000 [rpm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 7 [kW] WEIGHT & DIMENSIONS - Machine floor space : 2200 x 1102 [mm] - Machine height : 1700 [mm] - Machine weight : 2200 [kg] MACHINE HOURS - Number of hours under power : 94549 [h] - Number of working hours : 76096 [h] - Number of spindle hours : 57727 [h] EQUIPMENT - CNC : Fanuc 18i- TB - Rotating guide bush - Parts catcher - Parts conveying strip - Ejection of workpiece - Coolant tank * with high-pressure pump - Bar loader : FMB TURBO2-20/3200A - Electric transformer

Condition: good (used), TECHNICAL DATA AXLE Rapid feed X,Y: 15000 mm/min Rapid feed A,B: 15000 mm/min Rapid feed Z1,Z2,E: 18000 mm/min Rapid feed C: 90000°/min Smallest input unit: 0.001 mm Smallest input unit, C-axis: 0.001° MACHINING PERFORMANCE Max. turning diameter: 20 mm Max. Headstock stroke: 205 mm Max. Drilling capacity: Stationary: 14 mm; Driven: 8 mm Max. Tapping capacity: Stationary: M10 x P1.5; Driven: M6 X P1.0 MAIN SPINDLE Spindle speed: 500 - 10000 rpm Drive: Spindle drive Main spindle motor: 3.7 / 5.5 kW Main spindle bore: 26 mm WHEELING SPINDLE Max. Clamping diameter: 20 mm Max. Part length for ejection to the front: 150 mm Max. Clamping length: 75 mm Kjdpfsu Uic Tox Al Nslu Spindle speed: 500 - 10000 rpm Pick-up spindle motor: 2.2 / 3.7 kW Indexing angle: 1°, 15° CONFIGURATION Operation mode: Right-handed Dimensions: 2700 x 1400 x 2400 mm Weight: 3400 kg SCOPE OF OFFER U.A: (list not exhaustive) Control system: Fanuc Fire extinguishing system: Siemens Oil mist separator: Donaldson Transformer Hydraulic unit Parts conveyor Chip conveyor Bar feeder: LNS Tool holder Exact scope of supply according to photo gallery We assume no liability for the correctness, completeness and up-to-dateness of the information.

Condition: used, Year of construction: 1963, Technical details: max. wheel diameter: 900 mm max. module: 10 weight of the machine ca.: 8200 kos. hob dia. - max.: 190 mm cutter length max.: 320 mm Klodpfx Asvkpu Hel Nju milling spindle speeds (infinitely variable): 13-80 U/min workpiece length - max.: 750 mm max. workpiece diameter: 150 mm Counter holder milling mandrel is missing *

Condition: ready for operation (used), Year of construction: 2020, Control Unit Brand HAAS Model NGC Main Drive Number of axis 3 Movement X-Axis Movement 1270 mm Z-Axis Movement 635 mm Y-Axis Movement 508 mm Klodpjx Enh Tefx Al Nou This 3-axis HAAS VF-4 vertical machining center was manufactured in 2020. It features a 1270 mm X-axis, 508 mm Y-axis, and 635 mm Z-axis travel, supporting a table load up to 1588 kg. Equipped with a 20-station tool magazine, chip auger extractor, and a Renishaw OTS tool probe. Consider the opportunity to buy this HAAS VF-4 vertical machining center. Contact us for more information about this machine. Application Types Milling

Condition: new, Year of construction: 2025, operating hours: 1 h, functionality: fully functional, travel distance X-axis: 4,000 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 1,000 mm, controller manufacturer: STYLE CNC Machines, number of slots in tool magazine: 24, motor manufacturer: FANUC, Delivery after consultation Ref: 24F048 Year of construction: 2025 Condition: Showroom Kodpfew Ty S Sox Al Nelu Specifications: - X-axis: 4000 mm - Y-axis: 1000 mm - Z-axis: 1000 mm - 26 kW (S6) main motor - 8000 rpm - BT-40 - Automatic tool changer (24 positions) - Remote service (IXON) + network connection - Stronger coolant pump incl. spray gun - Upgraded to the latest STYLE software available

Condition: ready for operation (used), Year of construction: 2007, travel distance X-axis: 510 mm, travel distance Y-axis: 510 mm, travel distance Z-axis: 460 mm, controller manufacturer: MAZATROL, controller model: Matrix, table width: 400 mm, table length: 500 mm, spindle speed (max.): 12,000 rpm, spindle motor power: 22,000 W, number of slots in tool magazine: 40, number of axes: 5, This 5-axis Mazak Variaxis 500-5X II was manufactured in 2007. Ideal for complex and precise machining tasks, this vertical machining center offers versatility and reliability. If you are looking to get high-quality milling capabilities, consider the Mazak Variaxis 500-5X II machine we have for sale. Contact us for more information. Additional equipment • Swarf Conveyor Kjdpfx Aoyalk Hsl Nslu Machine Benefits Technical Machine Benefits • A-axis: -120° / +30° • C-axis: 360° Extra Information Machine still under power

Condition: used, grinding length 1000 mm grinding width 750 mm workpiece height 700 mm Control SIEMENS, SIMATIC S 7-1500 table surface area 1050 x 640 mm table height over floor 1000 mm table speeds 3.000 - 30.000 mm/min cross feed of table continual 5 - 5.000 mm/min cross feed of table intermittent 0,1 - 65,0 mm vertical adjustment, 1 graduation 0,002 mm rapid traverse vertical 0,25 m/min grinding spindle speed 50 - 2.500 U/min grinding wheel size ø 400 x 50 x ø 127 mm workpiece weight max. 1.000 kg table load max. 1600 kg total power requirement 33,2 kW weight of the machine ca. 9,3 t dimensions of machine L x W x H 4,50 x 2,37 x 2,65 m Klsdexukqyopfx Al Nju - complete electronic / electric renewed in 2018 Accessories: magnetic plate 1000 x 650 mm, grinding wheel with flange, wheel trueing attachment, extraction

Condition: used, TECHNICAL DETAILS - Number of spindles : 6 - Max. bar diameter : 22 [mm] - Spindle speed : 10,000 [rpm] - Spindle power : 8.7/15 [kW] - Torque : 10/18 [Nm] - Number of counter-spindles : 2 - Spindle speed : 10,000 [rpm] - Number of slides : 10 - Travels : X x Z = 62 x 85 [mm] - Number of counter-operation slides : 2 - Travel : X = 62 [mm] - Dimensions : 3330 x 1830 x 2860 [mm] - Weight : 5700 [kg] - Connected power : 75 [kVA] - Production hours : 20,000 [h] EQUIPMENT - CN Siemens 840D SL Klsdpfx Alew Ah R Ne Nsu - 2 NCU - TRANSMIT / TRACYL function - ARTIS - 2 additional electronic shaft preparations - 2 SCARA counter-spindles - 2 parts catchers with conveyor belt - Bar scrap recuperator - Index bar guide - Bar feeder predisposition - Fire protection system

Condition: used, Year of construction: 1990, grinding length 1500 mm grinding width 550 mm workpiece height 400/450 mm table-size 1900 x 450 mm mm table speeds 1 - 25 m/min cross feed autom. 0 - 60 mm/Hub grinding wheel size 400 x 100 x 127 mm grinding spindle speed 1400/2800 U/min total power requirement 15 kW voltage 380 V weight of the machine ca. 5 t Machine was reconditioned and modernized in 2015 with modern control. Machine has cooling arrangement, auto. vert. feed, dressing arrangement and wheel flanges. Kledpfxswlvire Al Nsu

Condition: like new (used), Year of construction: 2006, functionality: fully functional, Progressive Press SACMA SP260 5 Dies – Like new – Perfect working condition Available for any test at HBR srl. Completely overhauled Technical information: Number of dies: 5 Heading tonnage: 800 kN Max cutoff diameter at 500N/mm²: 11.5 mm Max cutoff length: 85 mm Max kickout stroke (die): 65 mm Max kickout stroke (punch): 20 mm Kodowar Efjpfx Al Njlu Speed: 275 pcs/min Power of main motor: 30 kW Die diameter: 54 mm Die length: 90 mm Punch diameter: 45 mm Net weight: 11,300 kg Gross weight: 13,000 kg We look forward to welcoming you at HBR srl in Calolziocorte (LC)
