Used jig boring machines for sale (29)

Condition: used, machine/vehicle number: 52 / 519, spindle diameter:90 mm x-travel:700 mm distance between columns:900 mm size of table:770 x 900 mm x-Travel:700 mm y-travel:500 mm z-travel:1100 mm feed range - table:15 - 280 mm/min rapid traverse Z-axis:530 m/min spindle bore diameter / taper:MT4 (Morse) mm Fodpfxoh Ra Sto Ag Hspf spindle bore diameter:max. 230 mm spindle stroke - max.:170 mm spindle speeds low range:10 U/min spindle speed high range:2000 U/min vertical feeds of spindle head::0.02 - 0,2 mm/r feed steps:6 Main spindle capacity:3 kW total power requirement:4,2 kW weight of the machine ca.:4 t dimensions of the machine ca.:1,9 x 2,2 x 2,4 m Hauser (SIP) High Precision Co-ordinated Jig Boring Machine, Model - M5 Douple Column Design Boring machine Large table (900 x 770 mm) for bulky Objects. All Axis are equipped with Fine Dial for High Presion Boring. A Complete Accesseries and tools are Avilable with the machine ( Drill Bits, Drill Chucks, Multiple Boring heads, Boring Inserts and Bits, Small and large rotary index table for small and big loads).

Condition: new, Year of construction: 2024, functionality: fully functional, travel distance X-axis: 1,200 mm, travel distance Y-axis: 160 mm, table width: 1,850 mm, table load: 75 kg, 2-axis coordinate table KT1200 for professional use with pillar drilling machines - can be used with all common makes of pillar drilling machines using the adapter plates included in the scope of delivery. Travels: x-axis 1200 mm y-axis 160 mm Fsdpfxeuzkdne Ag Hspf With the KT1200, you achieve maximum time savings because the time-consuming measuring, scribing, center punching and manual positioning with high tolerances is no longer necessary. Precise positioning and repeat accuracy is made possible. including 2 vices can be freely positioned over the entire travel range, the coordinate table can be moved in x and y directions using the handwheels; a clamp guarantees that the coordinates approached are fixed, 8 pcs. Position stops for the x-axis, one position indicator each for x- and y-axis Clamping width max. 158 mm, Clamping width 140 mm Space requirement LxWxH 1850 x 560 x 285 mm; Electronic position indicators for x- and y-axis; Repeat accuracy +/- 0.2 mm Weight: 75 kg Max. Workpiece dimensions 120 x 120 x 1200 mm Max. Workpiece weight: 60 kg Mounting support for drilling machine at least 520 x 225 mm Drilling unit optionally available. Now at a special price for stock clearance!

Year of construction: 2018, condition: excellent (used), Drilling machine with coordinate deduction system, little use, fully programmable. Specification: Model: APOLLO TRAP + SPEEDY Serial no: T6104130618 Year: 2018 Force: 3.4 KN Weight: 620 kg Made in: Italy Fpsdpfx Agopcgybj Hof If you have more questions, we will be happy to answer them.

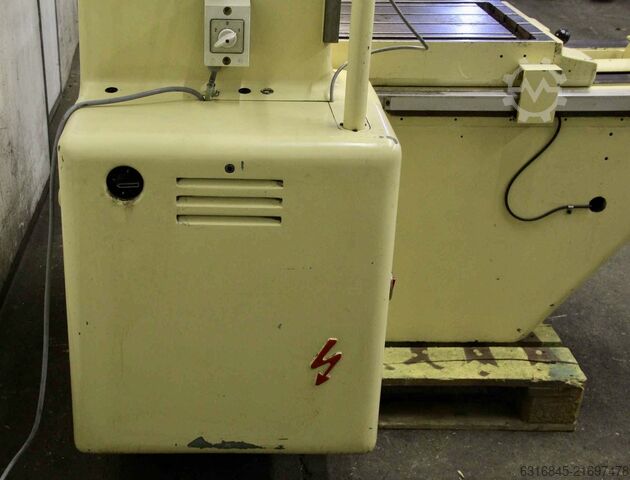

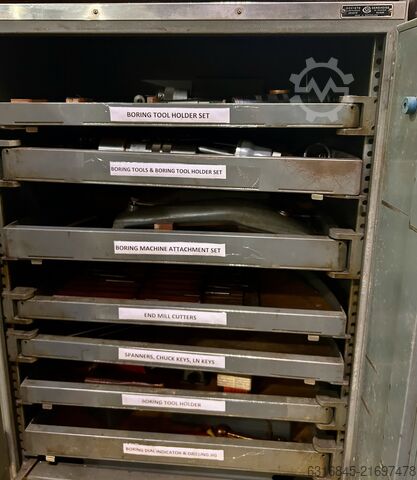

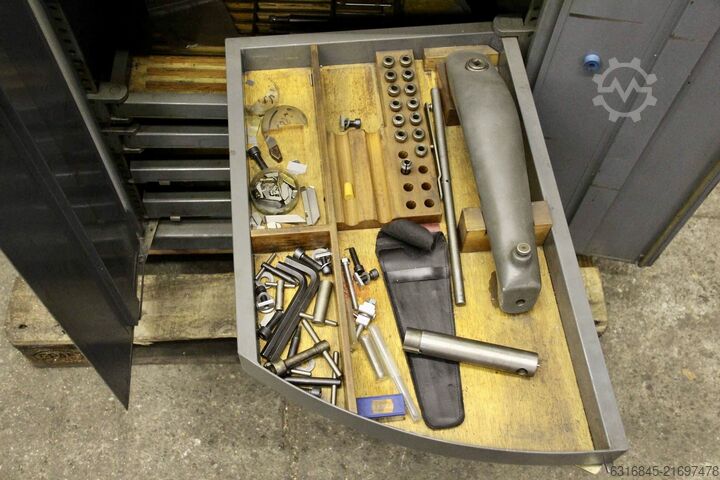

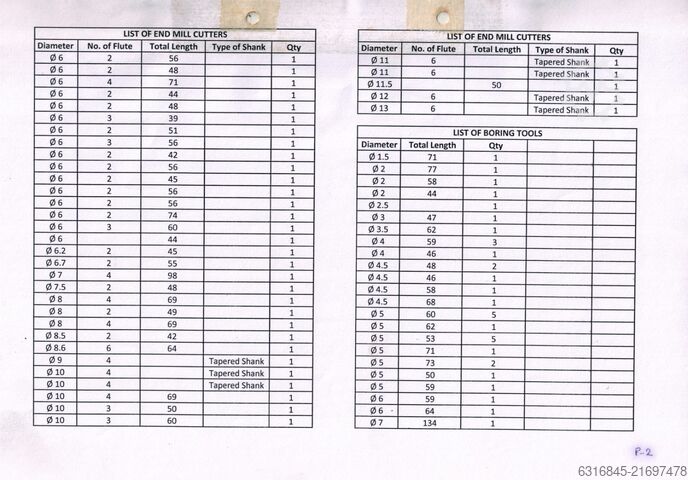

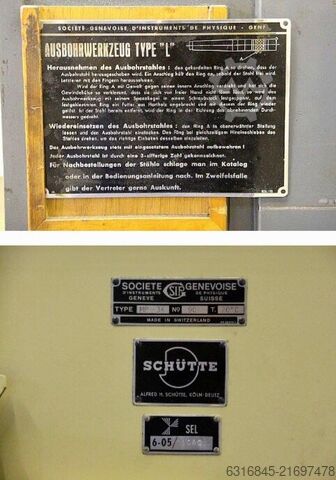

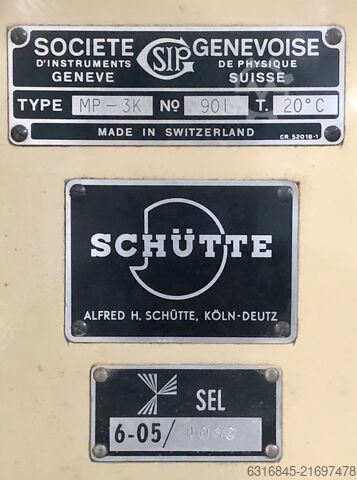

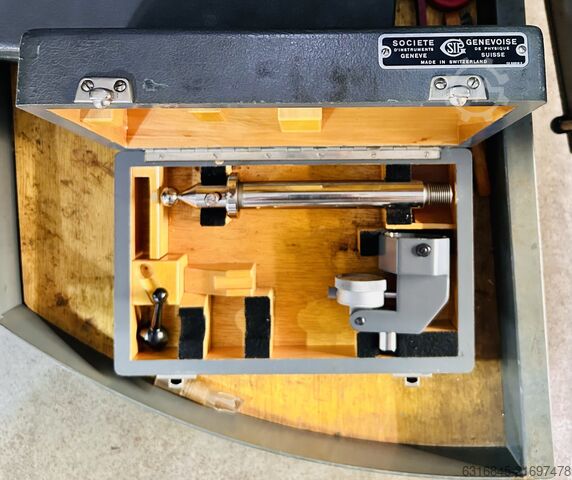

Condition: good (used), functionality: fully functional, machine/vehicle number: 901, travel distance X-axis: 370 mm, travel distance Y-axis: 470 mm, travel distance Z-axis: 405 mm, spindle speed (max.): 2,000 rpm, spindle speed (min.): 75 rpm, table length: 500 mm, table width: 380 mm, spindle mount: MK 2, total height: 2,000 mm, total length: 1,590 mm, total width: 1,290 mm, quill stroke: 155 mm, Jig boring mill, fine boring mill, plate boring mill, table boring mill, boring mill. -Jig boring machine: including tool cabinet with various tools -Table dimensions 380 x 500 mm Fpedpfx Aoy Af Thjg Hof -Travel: Z 405 mm/Y 470 mm/X 370 mm -Quill stroke: 155 mm -Take: MK2 (plus outer cone for spindle tool) -Speeds: 75 - 2000 rpm -Machine dimensions: 1590/1290/H2000 mm -Machine weight: 1774 kg -Cabinet dimensions: 720/460/H1000 mm -Cabinet weight: 158 kg Price negotiable Rotary table shown in one of the pictures not included Worldwide shipping can be arranged at additional charges
