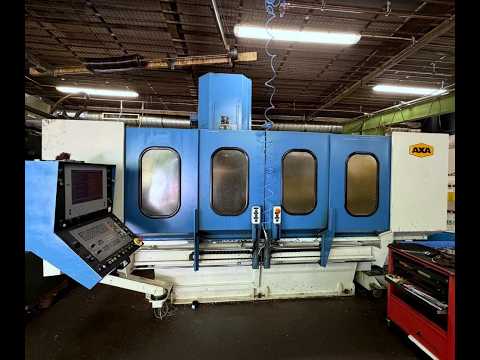

AXA VSC-1-M C – Vertical Machining Centre (1999)

AXA VSC-1-M C

Condition: excellent (used), Year of construction: 2011, operating hours: 7,000 h, functionality: fully functional, travel distance X-axis: 1,100 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 560 mm, rapid traverse X-axis: 42 m/min, rapid traverse Y-axis: 42 m/min, rapid traverse Z-axis: 42 m/min, controller model: FANUC 21iMB, overall weight: 7,500 kg, spindle speed (max.): 12,000 rpm, spindle nose: BT-40, number of slots in tool magazine: 30, Equipment: documentation/manual, rotational speed infinitely variable, The used VICTOR A110 vertical machining center is a small/medium-sized 3-axis continuous CNC machining center; table size 1350×600 mm, X travel 1,100 mm, Y 600 mm, Z 560 mm, year of manufacture 2011 (installed in 2013), CE-compliant, equipped with FANUC 21i-MB CNC with Manual Guide i, rapid feed of 42 m/min, axis acceleration of 0.75G, working feed of 12 m/min, weight 7,400 kg. It is equipped with a BT-40 milling spindle, 12,000 rpm, 15 kW, cooled by dedicated chiller, belt-type chip conveyor, double internal auger, tank washing system, high-pressure through-spindle coolant, 32-position random tool changer, door, memory card slot, Ethernet RJ 45 port, and RS 232 serial port. Only just over 13,000 power-on hours and 7,000 spindle hours (original). PERFECT WORKING CONDITION! Fedpfx Ansx Hap Eelepk

Condition: excellent (used), MAZAK INTEGREX 400-3S is a CNC Turning-Milling-Drilling Center designed for precision, high accuracy and reliability. Capacities: distance between centres 1500 mm, swing 760 mm, max turning length 1524 mm, bar passage 102/77 mm, tool magazine 40 stations (Ø max 90 mm, L 400 mm). Main specs: main spindle A2-8 stepless 35–3300 t/min 30 kW 1200 Nm; back spindle A2-8 35–4000 t/min 26/22 kW 500 Nm; milling spindle CAPTO C6 15–12000 t/min 18.5 kW 120 Nm. Travels X630 Y±115 Z1585 mm; feeds 0–8000 mm/min; rapid X/Z 38 m/min Y26 m/min; weight ~13300 kg; footprint 5110x2196 mm; height 2798 mm. Equipment: coolant 444 l (15 bar through milling spindle), Forkhardt 3-jaw chucks Ø400/315 mm, linear scale for X, RS232, PCMCIA, spindle sync, chip conveyor, synchronized tapping, foot pedal. Enables tight tolerances; typical applications: automotive, aerospace, medical, machine tools, watchmaking. Fpedsyxn H Njpfx Anlok

Condition: excellent (used), Year of construction: 2014, x-travel 2500 mm y-travel 3000 mm z-travel 1250 mm Control HEIDENHAIN iTNC530 spindle turning speed - stepless 22000 U/min c-axis +-300° milling-head swivable +/- +-110° tool taper HSK 63 A tool change unit 50 Pos. total power requirement 130 kW weight of the machine ca. 53,5 t dimensions of the machine ca. 7,6 x 7,3 x 5,7 m This ZIMMERMANN FZ33c is available immediately and in good condition. - NEW spindle received 6 months ago Description: Technical specifications of the machine and working ranges X-axis 2500 mm Y-axis 3000 mm Z-axis 1250 mm A-axis ± 110 ° C-axis ± 300 ° Includes vibration sensor Includes bearing temperature sensor Includes rotary joint for internal tool magazine feed (IKZ) 5-axis path control: Heidenhain iTNC 530/handwheel HR520, 15” TFT colour display Extraction system LTA Industrial Air Cleaning Machine room canopy 50-position tool changer, chain magazine, behind the machine Chip conveyor, ejection 60° to the left, front-facing No probe available!!! Blum Laser tool measurement ‘Control NT-Micro’ Clamping table Length x width x height 2500 x 3250 x 400 mm Table load 8000 kg/m² (max. 16000 kg) T-slots, arranged longitudinally 18H12 T-slot spacing 250 mm Dimensions, weights Footprint (excluding peripheral equipment) approx. 7600 x 7300 x 5650 mm Total weight approx. 53500 kg Electrical connection data Voltage (three-phase) 400 V Frequency 50 Hz Compressed air connection (to be provided by customer) Required air pressure 6 bar Average air consumption approx. 15 m³/h (depending on machine configuration) Linear axis drives Feed rate X, Y, Z axes 60 m/min Axis acceleration X, Y, Z axes up to 5 m/s² Rotary axis drives – VH30 Feed rate A- and C-axis 360 °/s Axis acceleration A- and C-axis 700 °/s² Resolution A- and C-axis 0.0001 Accuracies of linear axes – in accordance with VDI / DGQ 3441 Positioning accuracy X-axis P= 0.026 mm Y-axis P= 0.028 mm Z-axis P= 0.020 mm Repeatability X-axis Ps= 0.015 mm Y-axis Ps= 0.016 mm Z-axis Ps= 0.010 mm Resolution of measuring systems (interpol) A-, C-axis 0.0001° Accuracy of rotary axes – VH30 Positioning accuracy A- and C-axis P= 12" = 0.0033° Repeatability A- and C-axis Ps= 8" = 0.0022° VH30 milling head 2-axis milling head: VH30, Siemens Weiss milling spindle Fjdpezak Hgjfx Anlepk Spindle power S1 (100% duty cycle) 60 kW, Spindle speed 22,000 rpm, 95 Nm, HSK-A63 External dimensions of fork head L x W approx. 500 x 600 mm Nominal torque of rotary axes Control loop A: min. 1,200 Nm C: min. 1,047 Nm Clamped A and C axes: 3,000 Nm (Continuous grease lubrication with automatic relubrication system) Swivel axis – spindle nose 326 mm Tool holder HSK 63 A Tool clamping Spring clamp Tool unclamping Hydraulic Permissible tool weight 4.5 kg (manufacturer’s specification) Coolant supply External and internal Coolant/lubricant supply (emulsion) at the front of the milling spindle with belt filter system Volume 1500 l Pump 1: 40 l/min at 20 bar Pump 2: 20 l/min at 40 bar, Air blow at the front of the milling spindle

Condition: excellent (used), Year of construction: 2016, functionality: fully functional, travel distance X-axis: 800 mm, travel distance Y-axis: 450 mm, travel distance Z-axis: 510 mm, rapid traverse X-axis: 40 m/min, rapid traverse Y-axis: 40 m/min, rapid traverse Z-axis: 40 m/min, controller manufacturer: HEIDENHAIN, controller model: HEIDENHAIN TNC-620, total height: 2,500 mm, total length: 3,600 mm, total width: 2,500 mm, table width: 1,000 mm, table length: 450 mm, table load: 600 kg, overall weight: 5,000 kg, spindle speed (min.): 80 rpm, spindle speed (max.): 12,000 rpm, coolant supply: 20 bar, spindle nose: ISO 40, number of spindles: 1, number of slots in tool magazine: 30, tool length: 300 mm, tool diameter: 80 mm, tool weight: 8 g, input voltage: 380 V, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, USED "DOOSAN DNM 4500" vertical machining center with Heidenhain TNC-620 CNC Fedpfx Answ D Dy Nsljpk

Condition: good (used), travel distance X-axis: 3,500 mm, travel distance Y-axis: 2,000 mm, travel distance Z-axis: 800 mm, table load: 12,000 kg, total height: 3,900 mm, total length: 7,200 mm, total width: 5,200 mm, table length: 1,800 mm, table width: 1,600 mm, feed rate X-axis: 8,000 m/min, feed rate Y-axis: 8,000 m/min, feed rate Z-axis: 8,000 m/min, rotational speed (max.): 2,000 rpm, Table type boring mill TOS VARNSDORF - WHN 13 CNC MACH-ID 9612 Fodpfxjy H Dahj Anljpk Make: TOS VARNSDORF Type: WHN 13 CNC Control: Heidenhain TNC415 X - Travel: 3500mm Y - Travel: 2000mm Z - Travel: 800mm W - Travel: 1000mm Table Length: 1800mm Table Width: 1600mm Table load: 12 Speeds / ranges:2000Rpm Power: 37kW Spindle Taper: ISO50ISO/Bt/Mk Feed rate X-Axis:8000mm/min. Feed rate Y-Axis:8000mm/min. Feed rate Z-Axis:8000mm/min. Feed rate W-Axis:8000mm/min. Length: 7200mm Width: 5200mm Height: 3900mm Weight: 34500kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: excellent (used), Year of construction: 1997, Romanian Lathe SARO SPS 1250x9000, Manufacturer: Saro Targoviste, Year of Manufacture: 1997. Chuck diameter: 1250 mm, Maximum swing over bed: 1250 mm, Spindle diameter: 250 mm, Distance between centers: 9000 mm, Maximum swing over slide: 920 mm, Maximum workpiece weight between centers: 15,000 kg. Grinding attachment available! Video of the machine under power available. Weight approximately 25 tons. Fsdpfsy Icbaox Anlepk

Condition: good (used), Year of construction: 1995, roller (top) diameter: 330 mm, sheet thickness (max.): 23 mm, Manufacturer: IMCAR Type: SIHR Year of manufacture: 1995 Extended end for profile bending rolls (Pipe & T-Angle) Central lubrication Digital readout position side rolls Fully hydraulic machine Fodpswpku Dofx Anljpk Hydraulic drop end Hardened rolls Specifications Metric US Standard Roll width: 3100 mm Sheet thickness at 3 x top roll Ø: 18 mm Sheet thickness at 5 x top roll Ø: 23 mm Sheet thickness for initial bending: 20 mm Top roll Ø: 330 mm Side roll Ø: 310 mm Number of rolls: 3 Bending speed: 0 - 5 Side roll adjustment: 200 mm/min. Number of driven rolls: 2 Power: 15 kW Dimensions (estimated) Length: 5250 mm Width: 1700 mm Height: 1700 mm Weight: 11900 kg Please note: The information on this page has been provided to the best of our knowledge, and wherever possible, from the manufacturer. The information is given in good faith, but accuracy cannot be guaranteed. Accordingly, it does not constitute representation or contractual terms. We recommend you check all critical details.

Condition: used, Year of construction: 2010, Technical details: x-travel: 800 mm y-travel: 685 mm Fpodpfxjytcf Us Anlek z-travel: 630 mm c-axis: 360° (Planscheibe-Tisch) control: Siemens 840D Power Line spindle speed:: 10.500 - 20.000 U/min max. torque on the spindle: 180 Nm tool taper: HSK -A63 DIN 69893 tool changer with: 40 places no. of tables: 2 table swivelabel +/-: je 120 (a-Achse) ° table surface area: 280 x 275 mm table load capacity: 320 kg interface: RS232 spindle hours: 38.700 h Total power requirement: 37 kW dimension machine xH: 4,0 x 4,4 x 3,0 m dimensions LxWxH: Späneförderer: 2,1 x 1,05 x 1,5 m dimensions L x W x H: Kühlschmieranlage: 1,3 x 1.6 x 1,95 m 5 - axis machining center CNC machining center Clamping table for 4th and 5th axis (swivel 120° right/left/speed 50 rpm and turn with faceplate Ø 280mm/200 rpm) max. workpiece size 940 x 650mm for/on table with chip conveyor make Knoll, 750 K-1/150; year of manufacture 2009 Bürener coolant system with paper belt filter belt width 700mm; year of manufacture 2009 for both control cabinets with cooler Rittal Accessories exclusive i.D. *

Condition: used, Year of construction: 2008, turning length: 978 mm, turning diameter: 560 mm, spindle bore: 117 mm, spindle speed (max.): 2,000 rpm, Doosan Puma 400MB 3-axis CNC lathe C-axis driven tooling Year: 2008 Fodpfx Anozk Hikelopk Fanuc 21iTB with Manual Guide Max turning diameter: 560mm Max turning length: 980mm Z-axis travel: -1100mm Chuck diameter: 380mm Spindle bore: 116.5mm Max spindle speed: 2000 rpm Spindle gearbox: low gear, high gear 12-tool turret, BMT 75 Measuring probe Tailstock Chip conveyor with sump and pump Documentation

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, input voltage: 400 V, travel distance X-axis: 3,220 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 600 mm, number of slots in tool magazine: 55, total height: 3,600 mm, total length: 7,500 mm, total width: 4,200 mm, overall weight: 15,500 kg, table length: 3,900 mm, table width: 750 mm, controller model: Heidenhain, distance table center to spindle nose: 720 mm, spindle motor power: 35 W, rapid traverse Z-axis: 40 m/min, rapid traverse X-axis: 40 m/min, rapid traverse Y-axis: 40 m/min, spindle speed (max.): 18,000 rpm, spindle speed (min.): 30 rpm, table load: 3,500 kg, tool diameter: 80 mm, tool length: 330 mm, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, Vertical machining center with traveling column "HEDELIUS mod. CB80 MAGNUM" with Heidenhain TNC-530 Fpedpfx Anjv Sdc Ujlsk
