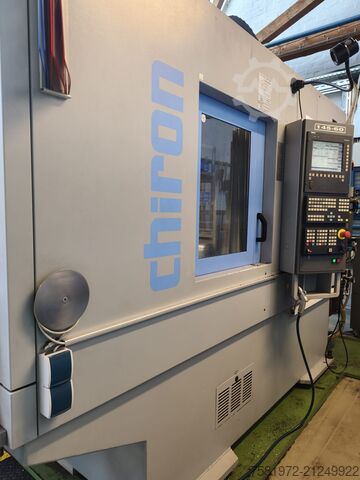

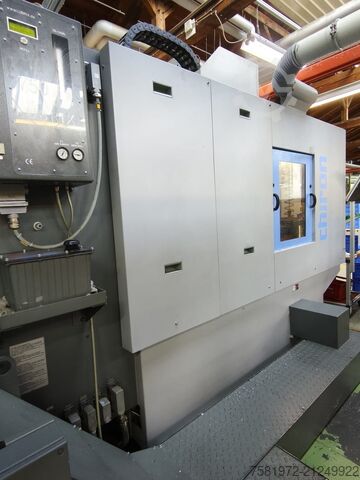

Vertical machining center

CHIRON FZ

Condition: defective spare-parts repository (used), Year of construction: 1999, operating hours: 20,151 h, functionality: not functional, machine/vehicle number: 490-43, travel distance X-axis: 750 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 425 mm, table width: 460 mm, table length: 1,150 mm, overall weight: 5,500 kg, spindle speed (min.): 7,200 rpm, number of slots in tool magazine: 20, The hydraulics are faulty and therefore the machine is no longer operational. The machine features a Siemens Sinumerik 840 M control unit and an SK 40 tool holder. The mineral cast machine bed ensures high thermal stability and damping. Possibly suitable for spare parts. Bodpfx Ahsx Rdyij Uect

Condition: like new (used), Year of construction: 2022, functionality: fully functional, travel distance X-axis: 610 mm, travel distance Y-axis: 406 mm, travel distance Z-axis: 406 mm, workpiece weight (max.): 200 kg, table width: 500 mm, spindle speed (min.): 10,000 rpm, Equipment: chip conveyor, For sale: HAAS UMC-500 5-Axis Universal Machining Center Condition: Absolutely brand new machine. Only one part was produced for test machining. The equipment has been unused and stored for 2 years. Main technical specifications Travel: X-axis: 610 mm Y-axis: 406 mm Z-axis: 406 mm Table: Diameter: 500 mm Maximum workpiece weight: 200 kg 5-axis rotary/trunnion table (trunnion type) Spindle: Inline direct-drive 10,000 rpm Bcjdpfoxg Nd Nsx Ah Uot 30 HP (22.4 kW) CAT 40 taper (40T) Through-spindle coolant: 300 psi (21 bar) Tool changer: 30 tool positions Side-mount, high speed Precision and compensation: Temperature compensation DWO/TCPC – Dynamic Work Offset and Tool Center Point Control Rigid Tapping Equipment and features: Haas NGC CNC control (FANUC compatible) 1 GB memory Ethernet connection, WiFi connectivity USB port, color 15” LCD display Early power-failure detection module Memory lock (keyswitch) Spindle coolant system Protective enclosure with doors Internal lighting Centralized lubrication system Top cover Measurement and calibration equipment: Renishaw WIPS wireless intuitive probing system (Haas Visual Programming System, macros, spindle orientation, coordinate rotation and scaling) Rotary-Axis calibration tool RJH remote jog handle with color display Chip and coolant systems: Coolant tank – 95 gallons (360 L) Initial fill with Blaser coolant emulsion Chip conveyor (belt type – CONVEYOR-H) High-pressure air system Documentation: Original machine documentation (in English) Application Haas UMC-500 is a compact yet powerful universal 5-axis machining center designed for the production of complex, multi-sided, and free-form surface parts. Suitable for simultaneous 5-axis machining as well as 3+2 machining, significantly reducing setup operations and ensuring high accuracy. If you have further questions, we are happy to assist.

Condition: ready for operation (used), Year of construction: 2012, Main Drive Spindle speed range 12000 Tool taper HSK-A 50 Number of axis 3 Max payload Up to 5 kg Movement X-Axis Movement 550 mm X-Axis Rapid Traverse 40 m/min Y-Axis Movement 320 mm Y-Axis Rapid Traverse 40 m/min Z-Axis Movement 360 mm Z-Axis Rapid Traverse 60 m/min Table Table load 500 kg Tools Max weight 5 kg Bcedjx Nr I Eopfx Ah Uot The system consists of: 2 x CHIRON FZ 12 KW (2012) + 2 x Fanuc LR Mate 200iC (2011) + 2 x Fanuc M - 20iA (2011) + Waschstraße. It features a high-speed spindle with a maximum speed of 12,000 rpm and a rapid traverse speed of up to 60 m/min on the Z-axis. Each machine includes a 24-slot automatic tool changer and can handle a table load of up to 500 kg. Ideal for precision machining tasks. Contact us for more information about this machine. Application Types Milling

Condition: repair required (used), Year of construction: 2007, functionality: not functional, machine/vehicle number: 191-89, Technical characteristics: - Machining workspace: X 550 mm; Y 400 mm; Z 360 mm - Axis configuration: 3 linear axes (X, Y, Z) + 1 rotary table axis A and 2 rotary divider head axes B, equipped with direct angular measuring system, max rotation speed 50 rpm, accuracy +/- 5" - Axis A swivel range: +/- 110° - Max. clamping/part dimensions: Ø 247 x 830 mm; max. weight 360 kg - Rapid traverse rate: X/Y/Z 40/40/40 m/min - Distance between divider heads B1/B2: 250 mm - Spindle speed: 1–10,000 rpm - Spindle interface: DIN69893-HSK-A63 (with internal coolant supply) - Automatic tool changer: 1x48 positions / chip-to-chip average 2.5 sec - Max. tool diameter: 82 mm / max. tool length: 250 mm / max. tool weight: 5 kg Electrical specifications: - Supply voltage: 3x400V/50Hz - Installed power: approx. 45 kVA / 80A Dimensions: - Installation space: approx. 4.4 x 2.3 x 3.1 m - Weight: approx. 8,500 kg Equipment includes: - CNC control: Siemens 840D Power Line - Chip conveyor: Spring Knoll - Oil cooling system - High-pressure oil filtration system (max. 80 bar): Knoll HL 450/1200 Bcodpfjxxi Rmex Ah Ust - Shaft cooling system, guideways and control cabinet - 2 oil lubrication units - Oil mist extraction/recovery: LTA - Fire protection: Kraft & Bauer - Part presence P/Y detection: with low-pressure air sensors - In-process inspection: Marposs T25 - Tool holder presence detection in spindle - Documentation: incomplete Machine status: NOT OPERATIONAL: Hydraulic power unit motor burned out.

Condition: used, TECHNICAL DETAILS - Number of axes : 5 MILLING SPINDLE - Tool holder type : BT40 - Spindle power : 24/32 [kW] - Spindle speeds : 12000 [rpm] Bsdpfx Ajuhbz Uoh Uect - Number of spindle hours : 9122 [h] LINEAR AXES - Travels on X/Y/Z axes : 650/765/520 [mm] - Rapid traverses rates (X/Y/Z) : 40/40/36 [m/min] - Cutting feed rates (X/Y/Z) : 18/18/18 [m/min] A ROTARY AXIS - Travel : 150 [°] (+/-) - Rapid traverse rate : 20 [rpm] - Cutting feed rate : 7200 [mm/min] B ROTARY AXIS - Travel : 360 [°] (+/-) - Indexing precision : 0.001 [°] - Rapid traverse rate : 30 [rpm] - Cutting feed rate : 7200 [mm/min] TOOL CHANGER - Auto. Tool Changer type : Bras chargeur - Tool magazine capacity : 120 - Tool exchange time : 1 [sec] TABLE - Table dimensions : 500 X 500 [mm] - Maximum weight upon table : 500 [kg] - Distance table / spindle nose (min./max.) : 160/680 [mm] PALLET CHANGER - Pallet size : 500 x 500 [mm] - Pallets number : 2 - Pallet exchange time : 30 [sec] POWER SUPPLY - Total installed power : 54 [kW] MACHINE HOURS - Number of hours under power : 24226 [h] - Number of working hours : 9122 [h] EQUIPMENT - CNC : Heidenhain TNC530 - Interface : RS232 / USB / PCMCIA - Electronic handwheel - 3 colors status lamp - Coolant tank * with high-pressure pump : 20 [bars] - Coolant through spindle - Chips conveyor - Spindle cooling unit - Tool probe : Renishaw - Electric transformer

Condition: good (used), Year of construction: 2006, operating hours: 9,911 h, functionality: fully functional, travel distance X-axis: 450 mm, travel distance Y-axis: 270 mm, travel distance Z-axis: 310 mm, rapid traverse X-axis: 75 m/min, rapid traverse Y-axis: 75 m/min, rapid traverse Z-axis: 75 m/min, nominal power (apparent): 17 kVA, total height: 2,300 mm, total length: 1,500 mm, total width: 2,600 mm, overall weight: 3,400 kg, spindle speed (max.): 30,000 rpm, spindle nose: HSK40, number of slots in tool magazine: 40, input voltage: 400 V, Equipment: documentation/manual, CNC machining center CHIRON FZ08 KS Magnum High Speed Plus (HSP) TECHNICAL CHARACTERISTICS: Year of manufacturing: 2006 CNC control : FANUC 18i-MB5 Number of axes : 7 Stroke X axis : 450 [mm] Stroke Y axis : 270 [mm] Stroke Z axis : 310 [mm] Traversing feeds X, Y and Z axes : 75000 [mm/min] Max. bar diameter in turning spindle : 32 [mm] Main spindle max. speed : 8000 [rpm] Main spindle max. power : 12 [kW] Angular A axis stroke : 360 [°] A axis indexing precision : 0.001 [°] B axis swivelling stroke : -20° / +115 [°] B axis indexing precision : 0.001 [°] Spindle type : HSK40 Max. spindle speed : 30000 [rpm] Tool changer magazin number of stations : 40 Bcedpfex Iiw Iox Ah Uot Part turnaround by robot (6th side machining) : Yes RS232 Interface : Yes Total power required : 17 [kVA] Supply voltage : 400 [V] Number of running hours : 9911 [h] Dimensions : 1500 x 2600 x 2300 [mm] Weight : 3400 [Kg] EQUIPMENT INCLUDED: x1 RENISHAW TS27R tool probe x1 spindle cooling unit x1 parts catcher x1 coolant tank x1 unit for 6th face machining (gripping system not included) x29 tool holders type HSK40 BIG KAISER x10 collets type F37 SCHAUBLIN x1 washing gun x1 3-color status light x1 maintenance manual x1 electrical diagrams manual x1 operator's manual x1 programming manual Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed Machine similar to brands such as Okamoto, ELB, GER, Tacchella, Karstens, Jones & Shipman, Jung, Favretto, Blohm. Internal and external grinding (ID/OD) also to be considered. Surface grinder, lathe, machining center, milling machine.

Condition: excellent (used), Year of construction: 2006, operating hours: 14,300 h, functionality: fully functional, machine/vehicle number: 414-46, Year 2006 with Fanuc Series 18i-MB5 Bcodpfxsxqmwbs Ah Ust Country of manufacture: CE - Germany Net machine weight: 3,400 kg Dimensions: 185x259x250 cm TECHNICAL SPECIFICATIONS Travel X / Y / Z: 450 / 270 / 310 mm Acceleration X / Y / Z: 0.7 / 0.7 / 1.0 g Rapid traverse X / Y / Z: 40 / 40 / 60 m/min Spindle speed max.: 15,000 rpm Tool interface: HSK A 40 Milling capacity in St 60: max 60 cm3/min Drilling capacity in St 60: max Ø 16 mm Threading: up to M12 Tool magazine / positions: 24 – special version with 40 on this machine Tool change time: approx. 0.8 sec Chip-to-chip time: approx. 2.2 sec 5-axis version NC rotary tilting table: +/- 100° Rotary plate diameter: 100 mm Grid drill pattern: M6 x 50 mm 4th axis speed: 40 rpm 5th axis speed: 60 rpm Direct measuring system for 4th and 5th axes: +/-20’’ / +/-20’’ Distance spindle nose – table surface: 170 – 450 mm Maximum workpiece weight: 6 kg Technical information is provided without engagement and subject to errors or omissions.

Condition: excellent (used), Year of construction: 2020, Two machines of the same type with automation (linked) HAAS control system Travel paths X/Y/Z: 711 / 406 / 394 mm Spindle speed 12,000 rpm Tool magazine for 20 tools, BT 30 4th axis HRT 210 with counter bearing Bedpfjv Iypcsx Ah Uoct Spiral conveyor Schusta automation with YASKAWA robot

Condition: used, Year of construction: 2001, x-travel 305 mm Bcjdpfswth Snsx Ah Uet y-travel 610 mm z-travel 100 mm Control Fanuc 21-M spindle tunring speed 12.000 U/min tool taper SK 40 number of tool places 12 Pos. In our opinion, the machine is in good used condition and can be inspected under power by appointment. Accessories, tools, and clamping devices shown are only included in the scope of delivery if noted in the additional information. Subject to changes and errors in the technical data and information, as well as subject to prior sale!

Condition: ready for operation (used), Year of construction: 2006, operating hours: 976 h, General Data Machine weight 7000 kg Bcsdjx E Eatopfx Ah Uet Main Drive Number of axis 4 Spindle motor power 28 kW This 4-axis CHIRON FZ 18 L was manufactured in 2006, featuring a robust 2000x520x600mm working area and a powerful 28 kVA system. With only 976 hours since control system replacement, it's a reliable choice for precision machining. Consider the opportunity to buy this CHIRON FZ 18 L vertical machining centre. Contact us for more information about this machine. Application Types Milling

Condition: used, Year of construction: 2010, 2 Number of axles 4 St. tool taper HSK 63 toll turrets 60 Bjdpfeqn A Rkox Ah Ujct weight 9600 kg

Condition: repair required (used), Year of construction: 2009, functionality: not functional, machine/vehicle number: 281-06, Technical Specifications: # Machining Workspace: X 550 mm; Y 400 mm; Z 360 mm # Axis Description: 3 linear axes (X, Y, Z) + 1 rotary axis (rotary table A) and 2 rotary axes (B, indexer head) with direct angular measuring system, maximum 50 rpm, accuracy +/- 5 seconds # A axis swivel: +/-110˚ # Max. clamping/part dimensions: Ø 247 x 830 mm; max. weight 360 kg # Rapid traverse rate: X/Y/Z 40/40/40 m/min # Distance between divider heads B1/B2: 250 mm # Spindle speed: 1–10,000 rpm # Spindle taper: DIN69893-HSK-A63 (with internal coolant) # Automatic tool changer: 1x48 tools / chip-to-chip time approx. 2.5 sec # Max tool diameter: Ø82 mm / max. length 250 mm / 5 kg Electrical connection: # Voltage: 3x400V/50Hz # Installed power: approx. 45 kVA / 80A Dimensions: # Installation area: approx. 4.4 x 2.3 x 3.1 m # Weight: approx. 8,500 kg Equipment includes: # CNC control: Siemens 840D Powerline # Chip conveyor: Spring Knoll Bcodpfx Ahjxxivce Uet # Oil cooling system # High-pressure oil filtration system, max. 80 bar: Knoll HL 450/1200 # Shaft, guideways, and electrical cabinet cooling system # 2 oil lubrication systems # Oil mist extraction/recovery: LTA AC3002 # Fire protection: Kraft & Bauer # Presence detection: with low pressure air sensors (part present) # In-process control: Marposs T25 # Tool breakage monitoring: Blum Novotech # Tool presence detection system in spindle # Documentation: incomplete Machine condition: NOT OPERATIONAL # Cover for tool magazine # Tool magazine presence sensor (BERU)

Condition: excellent (used), Year of construction: 2005, operating hours: 9,100 h, functionality: fully functional, machine/vehicle number: 414-38, TECHNICAL DATA Travels  ; X / Y / Z 450 / 270 / 310 mm. Acceleration ; X / Y / Z 0,7 / 0,7 / 1,0 g Fast speeds ; X / Y / Z 40 / 40 / 60 m/min Spindle speeds max. 15’000 min-1 Tool connection HSK A 40 Milling cap. in St 60 max 60 cm3/min Drilling cap. In St 60 max dia. 16 mm Threading up to M12 Magazine / tool posts 24 – special on this one 40 Tool changing time abt. 0,8 sec. Time clamp-to-clamp abt. 2,2 sec. 5 axes execution NC Table tilting rotating +/- 100° Circular plates 100 mm « Rasterbohrbild » M6 x 50 mm Rotations 4th. axis 40 min-1 Rotations 5th. axis 60 min-1 Direct measuring system for 4th. And 5th. axis +/-20’’ / +/-20’’ Distance spindle nose – table surface 170 – 450 mm Max transportable weight 6 kg errors and omissions excepted-data given without obligation Bjdpfx Aekx Ek Toh Usct

Condition: like new (used), Year of construction: 2021, operating hours: 1,200 h, X 800 mm H 460 mm Z 510 mm Bjdpfxov Th E As Ah Ujct Control FANUC Chip Conveyor Including 4-axis Rotary table.

Condition: repair required (used), Year of construction: 2007, functionality: not functional, machine/vehicle number: 191-88, Technical specifications: # Working area: X 550 mm; Y 400 mm; Z 360 mm # Axis configuration: 3 linear axes (X, Y, Z) + 1 rotary table axis A and 2 rotary axes B with indexing head, direct angular measuring system, max. speed 50 rpm, accuracy +/- 5" # A-axis swivel: +/-110˚ # Max. clamping/part size: Ø247 x 830 mm; max. weight 360 kg # Rapid traverse rate: X/Y/Z 40/40/40 m/min # Distance between dividing heads B1/B2: 250 mm # Spindle speed: 1-10,000 rpm # Spindle interface: DIN69893-HSK-A63 (with internal coolant supply) Bsdpjxw Uplsfx Ah Uoct # Automatic tool changer: 1x48 tools, tool-to-tool average 2.5 sec # Max. tool diameter: Ø82 mm / max. tool length: 250 mm / max. tool weight: 5 kg Electrical system: # Voltage: 3x400V/50Hz # Installed power: approx. 45 kVA / 80A Dimensions: # Installation footprint: approx. 4.4 x 2.3 x 3.1 m # Weight: approx. 8,500 kg Equipment includes: # CNC control: Siemens 840D Power Line # Chip conveyor: Spring Knoll # Oil cooling unit # Oil filtration system up to 80 bar: Knoll HL 450/1200 # Shaft, linear guide and electrical cabinet cooling system # 2 oil lubrication systems # Oil mist extraction/recovery unit: LTA AC3002 # Fire suppression: Kraft & Bauer # Part presence check with low-pressure air sensors # In-process control: Marposs T25 # Tool support monitoring system at spindle # Documentation: incomplete Machine condition: NOT OPERATIONAL # Operator protection screen damaged – operator panel functional # Tool magazine chain # Ballbar X # Ballbar Y # Pullbar spindle # Axis drive power supply X # Axis drive power supply Y # Main drive power supply # Complete hydraulic unit defective
