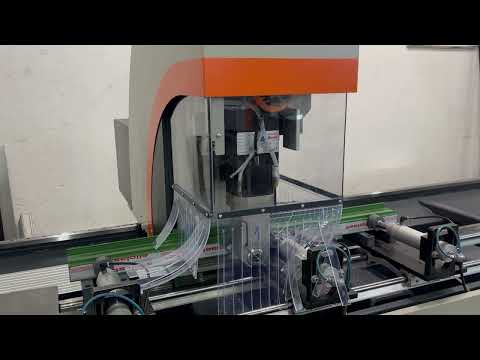

Profile machining center

elumatec SBZ 122/20

Rational machining of aluminum, plastic and steel profiles
3-axis control
- Working length 3500 mm Continuous clamping area allowing for clamping of profiles up to 7 meters long with roller conveyor support.
- Simple graphic operator guidance.
- Automatic control of clamping position.
- Automatic measurement of profile length
- 1-circuit clamping system.
- Continuous bed surface.
- Complete machining of profiles that are
in a stationary state prevents damage to the
profiles.
- Fast positioning of the machining
unit (up to 50 m/min.) in the x-axis ensures
a robust drive with minimal wear
- Highly dynamic servo drives
with measuring device
and digital servo controller.
- Electronic 3-axis industrial PC
control, color screen
and floppy disk drive for online connection,
barcode scanner.
Network connection R3 45 10/100 Mbit
Rcsdpfxjw Tm Rhj Ab Rsh
- Machine number: 1222021152, year of manufacture 2007

Machining length: standard 3500 mm
Milling range X-axis: 3500 mm
without end face machining
Milling range Y-axis: 350 mm
Milling range Z-axis: 280 mm
Rapid traverse Y-Z: max. 30 m/min.
Rapid traverse X-axis: max. 50 m/min.
Positioning accuracy: +/- 0.1 mm
Milling speed: 1 – 21000 1/min.
Milling power: 6.0 kW S6
Tool changer

We can offer professional assembly and operator training
