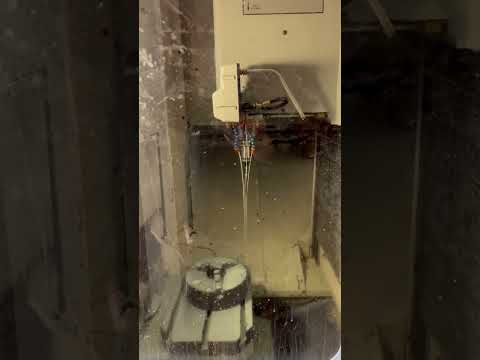

VERTICAL MACHINING CENTER

HAAS MDC 500

Condition: used, Year of construction: 2010, x-travel 508 mm Gijdpfjxyafwjx Abdol y-travel 356 mm z-travel 508 mm table dimensions 508 x 324 mm spindle tunring speed 10.000 U/min Tool cone CAT 40 spindle drive 15 kW tool magazine 24 Stationen rapid traverse 25,4 m/min feed 18,03 m/min weight 6,5 t In our opinion, the machine is in good used condition and can be inspected condition and can be inspected under power by appointment. Operating hours approx. 20,851 hours Accessories, illustrated tools and clamping devices are only included in the scope of delivery if this is noted in the additional information . Changes and errors in the technical data and information as well as prior sale reserved. subject to prior sale

Condition: used, Year of construction: 1998, turning diameter max. 250 mm turning length max. 900 mm control FANUC SERIE 0-T turning spindle Durchlass 75mm chuck diameter 250 mm turning speeds 0-3700 U/min transmission ratio 2 tool numbers 12 feed speeds X/Z 15/20 mm/min quill stroke 100 mm diameter of quill 110 mm tool adaptor MK 4 coolant tank 130 l Gijdsucgxuopfx Abdjl weight - pallet system 5500 kg

Condition: ready for operation (used), Year of construction: 2012, functionality: fully functional, machine/vehicle number: 1097415, travel distance X-axis: 508 mm, travel distance Y-axis: 356 mm, travel distance Z-axis: 508 mm, workpiece weight (max.): 318 kg, table width: 508 mm, table height: 324 mm, overall weight: 6,350 kg, spindle speed (min.): 10,000 rpm, Technical Data BRAND: Haas MODEL: MDC-500 SERIAL NUMBER: 1097415 Year: 2012 Numerical Control: Haas Location: Tabaza (Asturias- Spain) TABLE DIMENSIONS Table surface: 508x324 mm. Number of tables: 2 Maximum weight on the table: 318 kg. RANGE Longitudinal travel X: 508 mm. Transversal travel Y: 356 mm. Vertical travel Z: 508mm. SPINDLE Cone: BT40 Spindle speed: 10.000 r.p.m. 22.4 Kw 122 Nm ATC Capacity: 24 Station Tool change time: 4.8s ADVANCES Working feeds: 21.2 m/min Rapid feeds: 25.4 m/min WEIGHT AND DIMENSIONS Machine dimensions: 3.632x3.404x2.870 mm. Machine weight: 6.350Kg. ACCESSORIES Giodpfx Ajtr Uflobdsl Programmable coolant Chip conveyor Renishaw T527R probe

Condition: used, TECHNICAL DETAILS - Number of axes : 7 MILLING SPINDLE - Tool holder type : HSK40 - Spindle speeds : 30.000 [rpm] LINEAR AXES - Travels on X/Y/Z axes : 450 x 270 x 310 [mm] - Rapid traverses rates (X/Y/Z) : 75 [m/min] B ROTARY AXIS - Travel : -20/+115 [°] - Indexing precision : 0,001 [°] TOOL CHANGER - Auto. Tool Changer type : Parapluie - Tool magazine capacity : 20 A ROTARY AXIS - Max. bar diameter : 32 [mm] - Indexing precision : 0,001 [°] - Travel : 360 [°] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 17 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 1.500 x 2.600 [mm] - Machine height : 2.300 [mm] - Machine weight : 5.100 [kg] MACHINE HOURS - Number of working hours : 20.749 [h] EQUIPMENT - CNC : Fanuc 31i-A5 - Interface : USB, PCMCIA, RJ45 - Fire extinguisher * : KRAFT&BAUER FB703 * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer. Giodpfx Absuhbtqsdjl - Coolant tank - Spindle cooling unit - Oil mist extractor : HIFI FILTER - Tool probe : Renishaw TS27R - Workpiece probe : Renishaw OMP40 - Unit for 6th face machining - Collet chuck : ORTLIEB KSF 30-50 - Tool recognition through RFID scanning : BALLUFF BIS C-650 - Tool-holders : 30

Condition: like new (used), Year of construction: 2002, Parts shown by hand not come Gedpfxok It Ute Abdoil

Year of construction: 1999, condition: good (used), Product: BMF Year of production: 1999 Gedehq Hz Hepfx Abdsil Metal chain width: 200 mm Long-distance guide lanes: approx. 300 mm Chip outlet length 900/1250 mm Insertion length: approx. 1000 mm Insertion height 260 mm Insertion width 350 mm Total length: 3600 mm Transport height - ejection height: 800 mm Belt speed 26 mm / sec. = 1.6 m / min. Engine power: 0, 25 kW Mains connection was 400 volts, 50 Hz Enclosure size: H x W x D; 8700 x 900 x 1500 mm Weight 400 kg

Condition: used, dimensions 2,000 x 1,290 mm thickness of the plate 95 mm T - slots width 30 mm weight appro. 1,700 kg Gedpfx Aben Tvhbedsil
