Vertical machining center

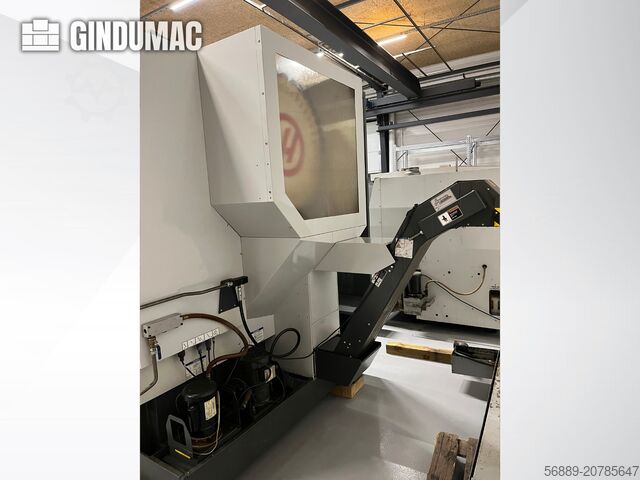

HAAS UMC-750

Condition: ready for operation (used), Year of construction: 2020, operating hours: 5,717 h, travel distance X-axis: 762 mm, travel distance Y-axis: 508 mm, travel distance Z-axis: 508 mm, controller manufacturer: HAAS, total height: 2,565 mm, table load: 300 kg, overall weight: 8,200 kg, number of slots in tool magazine: 40, number of axes: 5, This 5-axis HAAS UMC-750 was manufactured in 2020, featuring a 762 mm X-axis, 508 mm Y-axis, and 508 mm Z-axis. It includes a spindle speed up to 12,000 rpm, ISO 40 taper, and a robust 40-position tool changer. The machine supports a maximum table load of 300 kg and offers advanced features like a wireless probing system, chip conveyor, and through-spindle coolant. Consider the opportunity to buy this HAAS UMC-750 universal machining centre. Contact us for more information. Additional equipment • Wireless Intuitive Probing System • Through-Spindle Coolant Machine Benefits Bwjdpfxox Hbmro Ah Hjh Technical Machine Benefits • B-axis travel: 120° to -35° • C-axis travel: 360° • Spindle nose to table (max/min): 610/102 mm • Table diameter: 500 mm • Tool changer capacity: 40 positions Extra Information Machine still under power Dimensions Machine Depth 3978 mm

Condition: excellent (used), Year of construction: 2016, functionality: fully functional, CNC Control: Professional 5 (FANUC) X travel (mm): 550 Y travel (mm): 1,000 Z travel (mm): 500 B axis (mm): 150 C axis (degrees): 360,000 Number of pallets: - Table dimensions (mm): ø500 Table load capacity (kg): 350 Cutting feedrate X, Y, Z (mm/min): 32,000, 40,000, 40,000 Rapid traverse max. X, Y, Z (m/min): 48, 50, 50 Spindle speed (rpm): 14,000 Spindle power (kW): 18.5 / 15 Taper type: HSK63 Torque (Nm): Magazine type: Chain Magazine capacity (positions): 317 Max. tool diameter (mm): 90 Max. tool diameter with adjacent slots empty (mm): 140 Max. tool length (mm): 300 Bsdpfxsxmgcpe Ah Howh Max. tool weight (kg): 8 Coolant tank capacity (l): - Through spindle coolant (bar): yes Equipment: Rotary table with digital measuring system Work light Through spindle coolant Electronic handwheel Dimensions: Length (mm): 2,771 Width (mm): 3,948 Height (mm): 3,264 Weight (kg): 12,400

Condition: excellent (used), Year of construction: 2015, Machine type: 5-Axis Machining Centre (Simultaneous) Year of manufacture: 2015 Control: HAAS CNC control to DIN 66025 X-axis travel: 762 mm Y-axis travel: 508 mm Z-axis travel: 508 mm Max. spindle speed: 15,000 rpm Spindle motor power: 22.4 kW (vector drive) Spindle taper: SK 40 (DIN 69871) Max. torque: 122 Nm (at 2,000 rpm) Table dimensions: ∅ 630 x 500 mm Max. workpiece weight: 300 kg Number of simultaneously controlled axes: 5 C-axis rotation range: 360° continuous B-axis swivel range: -35° / +110° Rapid traverse rates (X, Y, Z): 30.5 m/min Tool magazine (positions): 40+1 (side-mounted) Coolant system capacity: 284 litres Machine weight: approx. 8.2 t Cooling systems: - Through-Spindle Coolant (TSC), 21 bar - Programmable coolant nozzle (P-COOL) - Additional coolant filtration system (25 μm) Bwedpfx Aheyf H Eve Hjh - Hand rinsing gun with coolant Measuring and probing systems: - RENISHAW probing system (WIPS-R) - Work probe - Tool measurement system Chip management: - Hinged belt chip conveyor Software & Control: - High-Speed Machining (HSM) - Ethernet interface - Macros - Coordinate rotation and scaling

Condition: used, Year of construction: 2018, x-travel 762 mm y-travel 508 mm Bwodpsygm Tpjfx Ah Hoh z-travel 508 mm control Haas

Condition: used, TECHNICAL DETAILS - Number of axes : 5 MILLING SPINDLE - Tool holder type : SK 40 - Spindle power : 12 [kW] - Spindle speeds : 12.000 [rpm] LINEAR AXES - Travels on X/Y/Z axes : 510 x 510 x 460 [mm] A ROTARY AXIS - Travel : [°] - Indexing precision : 0,001 [°] B ROTARY AXIS - Travel : 360 [°] - Indexing precision : 0,001 [°] TOOL CHANGER - Auto. Tool Changer type : Bras chargeur - Tool magazine capacity : 40 TABLE - Table dimensions : 400 x 400 [mm] - Maximum weight upon table : 300 [kg] - Max. turning diameter : 500 [mm] - Max. machining height : 405 [mm] PALLET CHANGER - Pallet size : 400 X 400 [mm] - Pallets number : 2 POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 50 [kVA] WEIGHT & DIMENSIONS - Machine weight : 11500 [kg] MACHINE HOURS - Number of working hours : 32763 [h] EQUIPMENT Bedpfx Ahouhbr Ho Hewh - CNC : Mazatrol PC-Fusion 640 - Interactive programming - Supports : RS232/RJ45/PCMCIA - Rigid tapping - Coolant tank * with high-pressure pump : 15 [bars] - Coolant through spindle - Spindle cooling unit - Chips conveyor : MAYFRAN - Tool probe

Condition: ready for operation (used), Year of construction: 2021, travel distance X-axis: 762 mm, travel distance Y-axis: 508 mm, travel distance Z-axis: 508 mm, controller manufacturer: HAAS, spindle speed (max.): 12,000 rpm, spindle motor power: 22,400 W, number of axes: 5, This 5-axis HAAS UMC-750SS vertical machining center was manufactured in 2021. Consider the opportunity to buy this HAAS UMC-750SS vertical machining center. Contact us for more information. Additional equipment • Coolant tank – 208 liters with mobile cart • Programmable coolant pump (M-code controlled) // Programmable Coolant Nozzle (P-COOL) • Safe Run – crash and overload detection system • Control cabinet surge protection • Voltage fault detection module (EPFDM) • Second Home Position button Bodpfxex U Tizo Ah Howh • Remote Jog Handle with 2m cable (RJH-XL) • Memory lock key-switch • Rotary axis scales • Top cover Machine Benefits Technical Machine Benefits • 30+1 tool side-mount tool changer • Wireless intuitive probing system (wips) • Broken tool detection (btd) Extra Information Media display via M130 (images, videos, PDF on screen) Standard machine memory: 1 GB Control Unit 15" color LCD monitor with USB port Touchscreen control interface Ethernet interface HaasConnect remote monitoring HaasDrop wireless file transfer WiFi connectivity Controller High-speed machining (HSM) Rigid tapping Dynamic Work Offsets / Tool Center Point Control (DWO/TCPC) Macro programming, coordinate rotation & scaling

Condition: excellent (used), Year of construction: 2016, With B + C axis Working travels 762 x 508 x 508 mm Table diameter 500 mm Bsdslhqydopfx Ah Hjwh Spindle taper 40 Spindle speeds -12'000 rpm Tool changer 40 Pos. Control HAAS Coolant through spindle Misc.accessories MARCELS MASCHINEN CH

Condition: good (used), Year of construction: 2000, Machine come without tool holders and any additional equipement. Parts shown by hand not come. Technical details are shown on picture. Bedpjw Tc S Ujfx Ah Hjwh

Condition: excellent (used), Year of construction: 2016, operating hours: 2,153 h, functionality: fully functional, machine/vehicle number: 1125367, spindle speed (min.): 15,000 rpm, Equipment: chip conveyor, rotational speed infinitely variable, Haas UMC-750 SS 5 Axis Vertical Machining Centre with Haas CNC Control, 630mm x 500mm Table, Travels X Axis 762mm, Y Axis 508mm, Z Axis 508mm, Through spindle coolant, High speed rotary's C Axis 360deg Rotation, B Axis -35deg to + 100deg, High speed machining enabled Spindle Speed 15,000rpm, 40 Tool ATC , BT40 Spindle Taper, Swarf Conveyor, Coolant System. S/No. 1125367 (2015). Bodjx Uznfspfx Ah Hswh Wireless probing.

Condition: excellent (used), Year of construction: 2019, operating hours: 5,277 h, functionality: fully functional, travel distance X-axis: 762 mm, travel distance Y-axis: 508 mm, travel distance Z-axis: 508 mm, workpiece weight (max.): 300 kg, table width: 500 mm, table length: 630 mm, overall weight: 8,500 kg, spindle speed (max.): 15,000 rpm, spindle motor power: 22,400 W, spindle nose: CT 40, number of slots in tool magazine: 40, input voltage: 400 V, type of input current: three-phase, Equipment: chip conveyor, documentation/manual, CNC Machining Centre HAAS UMC 750 SS TECHNICAL CHARACTERISTICS: Year of manufacturing: 2019 Number of simultaneous axes: 5 Stroke X axis: 762 [mm] Stroke Y axis: 508 [mm] Stroke Z axis: 508 [mm] Angular C axis stroke: 360 [°] Table dimensions : Ø630 x 500 [mm] Max. load on table: 300 [Kg] B axis swivelling stroke: +110 [°] / 350 [°] Spindle type: CT 40 Max. spindle speed: 15000 [rpm] Spindle power: 22.4 [kW] Tool changer magazin number of stations: 40 Lubrication tank capacity: 284 [l] Number of running hours: 5277 [h] Weight: 8500 [Kg] EQUIPMENT INCLUDED: x1 spindle 15000 [rpm] x1 through-spindle coolant x1 high-pressure coolant pump 21 bar x1 auxiliary coolant filter x1 RENISHAW wireless workpiece probe x1 calibration sphere x1 RENISHAW tool probe x1 HAAS oil mist extractor x1 HAAS remote handwheel x1 HENNIG chip conveyor, type 101435 Machine visible under power in our premises by appointment. Price on request, loading on truck included. Bedpfxox Nf Tbe Ah Hewh Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed. machine similar to Mikron, Hermle, DMG Mori, Mazak, Hedelius, AXA, Chiron, Matec, Reiden, Lagun, Haas, Alzmetall, as well as milling, drilling and tapping machines, and CNC grinding machines

Condition: excellent (used), Year of construction: 2020, Two machines of the same type with automation (linked) HAAS control system Travel paths X/Y/Z: 711 / 406 / 394 mm Spindle speed 12,000 rpm Tool magazine for 20 tools, BT 30 4th axis HRT 210 with counter bearing Spiral conveyor Bwsdpfsv Iypcjx Ah Hsh Schusta automation with YASKAWA robot

Condition: excellent (used), Year of construction: 2016, Used 5-axis universal machining center Year of manufacture: 2016 Working area: X travel: 762 mm Y travel: 508 mm Z travel: 508 mm Spindle nose to table (max): 610 mm Spindle nose to table (min): 102 mm Table / Load capacity: Platter diameter: 500 mm Max. table load: 300 kg 7 T-slots, 63 mm spacing Spindle: Taper: CT40 Max. speed: 12,000 rpm Max. rated power: 22.4 kW (30 hp) Inline direct-drive, liquid cooled 5-axis function: Bedpfx Ahsx Rpbxj Hjwh B-axis (tilt): +120° to -35° C-axis (rotation): 360° Tool changer: SMTC, 40+1 positions Tool change time: approx. 1.8 s (tool-to-tool) Through-spindle coolant 21 bar Chip conveyor Renishaw measuring system Feeds: Rapid traverse: up to 30.5 m/min on all axes Max. cutting feed rate: approx. 21.2 m/min General: Coolant tank: 208 l Air requirement: approx. 113 l/min at 6.9 bar Weight approx. 6,460 kg Machine can be inspected near Heilbronn by appointment. Loading available. Buyer is responsible for transport. Technical data, accessories, and machine description are non-binding.

Condition: ready for operation (used), Year of construction: 2019, General Data Bodpox I S Ntsfx Ah Hjwh Measurements width 2387 mm Measurements depth 3978 mm Measurements height 2565 mm Machine weight 8200 kg Control Unit Brand HAAS Main Drive Spindle speed range 12000 Tool taper ISO 40 Number of axis 5 Movement X-Axis Movement 762 mm Y-Axis Movement 508 mm Z-Axis Movement 508 mm Table Table load 300 kg This 5-axis HAAS UMC-750 was manufactured in 2019, featuring a robust universal machining center with a 500 mm table diameter and a maximum table load of 300 kg. It includes a high-speed spindle up to 12,000 rpm, ISO 40 taper, and a 40-position tool changer. Ideal for complex geometries and diverse machining tasks. Contact us for more information about this machine. Application Types Milling

Condition: excellent (used), Year of construction: 2010, 7 axes Control FANUC 18i-TB Max. bar diameter 16 mm (main spindle) Max. bar diameter 16 mm (sub spindle) Max. spindle stock travel 205 mm Max. spindle speed 10,000 rpm Bjdewnd Dpopfx Ah Howh Tools 5-position turning tool holder on linear slide 4-position drilling unit incl. drill holders (front/rear) 3 driven tools for cross machining on linear slide 4 tools incl. drill holders for rear machining

Condition: ready for operation (used), Year of construction: 2014, operating hours: 60,000 h, Control Unit Brand HAAS Main Drive Number of axis 3 Spindle Speed 12000 RPM Tool taper BT 40 Bwedpfx Ahsx Ixh Nj Hsh This 5-axis HAAS UMC-750 was manufactured in 2014. It features a vertical machining center with a 12000 rpm spindle, BT40 tooling, and a 70-tool holder capacity. Additional highlights include coolant through spindle, a probe, toolsetter, and high-speed machining capabilities. Consider the opportunity to buy this HAAS UMC-750 vertical machining center. Contact us for more information about this machine. Application Types Milling
