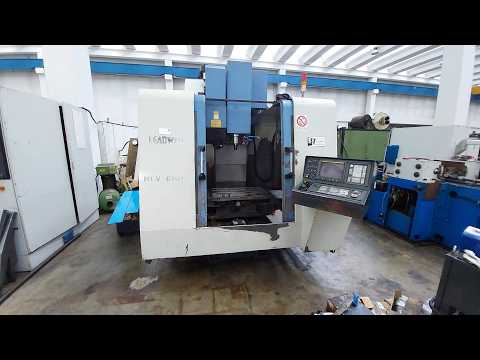

LEADWELL MCV 610 CR

LEADWELL MCV 610 CR

Condition: excellent (used), Year of construction: 2006, Control system: Heidenhain iTNC 530 Travel ranges X/Y/Z: 2200 x 560 x 720 mm Spindle speed: 18,000 min-1 Clamping area: 2600 x 600 mm Max. table load: 2200 kg Isdpfezg Nmkex Afmoig Swiveling head Coolant pressure: 25 bar Tool magazine for 30 tools, SK 40 Optional C or A axis Measuring probe: Heidenhain TS 640 Chip conveyor Paper band filter

Condition: used, Year of construction: 2006, functionality: unexamined, We are offering here a rotary table from the brand Parkson. The model is PAR-251 R. The rotary table has a diameter of just under 250mm. Iedpoxtu Efofx Afmoig Feel free to contact us for a non-binding offer.

Condition: excellent (used), Year of construction: 2013, functionality: fully functional, travel distance X-axis: 4,000 mm, travel distance Y-axis: 2,200 mm, travel distance Z-axis: 1,100 mm, feed rate X-axis: 50 m/min, feed rate Y-axis: 50 m/min, feed rate Z-axis: 50 m/min, table length: 4,000 mm, table width: 2,000 mm, spindle speed (max.): 22,000 rpm, torque: 128 Nm, spindle nose: 63, CNC Heidenhain iTNC 530 S.P. Iiodpfx Afjzb Evljmjg WORKING AREA Longitudinal X-axis travel: mm 4.000 Transversal Y-axis travel: mm 2.200 Vertical Z-axis travel: mm 1.100 Maximum speed with interpolating axes: m/min 50 WORKTABLE Dimensions: mm 4.000 x 2.000 Height: mm 300 Load capacity: T/m² 15 T-slots for workpiece clamping mm 28 DIN 650 (H12), complete with leveling elements. T-slot direction parallel to X-axis movement. AXIS CHARACTERISTICS Axis feed rate: mm/min 50.000 Acceleration: m/s² 4 WORKING AREA (CLEARANCES) Maximum horizontal clearance: mm 3.200 Maximum vertical clearance under crossbeam: mm 1.926 Height of worktable from floor: mm 330 CONTINUOUS POSITIONING UNIVERSAL HEAD WITH ELECTROSPINDLE Automatic universal head indexed to 360,000 positions (every 0.001°). Rotation is driven by direct drive motors and controlled by the CNC as a positioning axis. Automatic tool clamping. Allows 10° undercut machining. Internal cooling system for bearings and axis motors. B-axis rotation range: ± 185° A-axis rotation range: ± 185° Maximum axis rotation speed: rpm 30 Maximum torque available on A/C axes: Nm 450 Axis clamping torque: Nm 1.400 Spindle power (S1/S6): kW 22/33 Spindle torque (S1/S6): Nm 84/128 Maximum spindle speed: rpm 22.000 Tool interface: HSK-A63 DIN 69893 The head is supplied complete with a cradle for handling and storage. The cradle is used outside the working area and therefore does not reduce the machine’s actual working capacity. CHAIN TOOL MAGAZINE – 30 POSITIONS (HSK) 30-position automatic chain tool changer located at the rear side of the working area, fully protected from dust and chips. Tool type: HSK-A63 DIN 69893 Max tool diameter (adjacent pockets occupied): mm 90 Max tool length: mm 300 Max tool weight: kg 10 MEASURING SCALE PRESSURIZATION Pneumatic system complete with control unit for pressurizing the measuring scales. SPRAY-MIST TOOL LUBRICATION/COOLING Mist lubrication system. The mist is generated by mixing air and oil and is controlled via M-function. The spray-mist improves cutting quality, prevents built-up edge formation, keeps the cutting area clean, and provides cooling. Highly effective for improving surface finish quality. EXTERNAL TOOL COOLING Coolant distribution system controlled by the CNC, with nozzles positioned on the flange around the spindle. Complete with a tank (1,200-liter capacity) for coolant collection and filtration. Flow rate: 30 l/min, pressure: 4 bar. REQUIRED CONNECTIONS Maximum installed power: kW 150 Maximum current required: A 235 MACHINE EQUIPPED WITH: • Heidenhain HR550 remote electronic handwheel • Various tooling included with the machine • Renishaw probe • BLUM laser presetting system • AUTOCAL automatic head calibration system • Visormax subscription for remote monitoring • Electrical cabinet air conditioning unit • Cooling system for all axes and the electrospindle • No. 2 chip conveyors positioned on both sides of the worktable • User and maintenance manual and CE declaration of conformity

Condition: used, Year of construction: 2011, Milling machine Quaser MV 184, year 2011. The machine is sold complete, as shown in the pictures. Includes hydraulic vices, power unit, chip conveyor, belt filter system and extraction unit. Ijdpfxeyfm T Hs Afmeig

Condition: used, Year of construction: 2001, functionality: fully functional, Press force 85 t, Bending length 2050 mm, Distance between uprights 1750 mm, Control DELEM, Stroke 215 mm, Throat depth 410 mm, Total power 13 kW, Weight 8,750 kg, Machine dimensions 3190 x 2100 x 2375 mm Iisdpsw Imq Refx Afmjg

Condition: excellent (used), Year of construction: 2006, x-travel 750 mm y-travel 210 mm z-travel 1150 + 100 mm Isdjy Spuujpfx Afmeig control Fanuc MSX-701III Maximum turning diameter 660 mm Max. turning length 1498 mm Diameter over cross slide max. 400 mm number of spindle speeds 3000 U/min tool piece magazine with 40 Plätzen turret 10 Fach total power requirement 90 kVA weight of the machine ca. 26,6 t dimensions of the machine ca. 5301 x 2997 x 2788 mm

Condition: excellent (used), Year of construction: 2004, machine/vehicle number: 0304/5599, functionality: fully functional, controller manufacturer: Delem, controller model: DA-65, working width: 3,000 mm, bending force (max.): 105 t, control type: CNC control, degree of automation: automatic, number of axes: 4, type of crowning: CNC-controlled, actuation type: hydraulic, Equipment: CE marking, documentation/manual, european tool clamping system, Crowning: Reflex - ACSG1 Priključna moč: 11 kW Tools: Possible with agreement. NEW UPPER TOOL HOLDERS. Last service: 05/2025. Iodsxv Eafspfx Afmoig

Condition: excellent (used), Year of construction: 2014, operating hours: 68,000 h, functionality: fully functional, travel distance X-axis: 2,200 mm, travel distance Y-axis: 3,500 mm, travel distance Z-axis: 1,200 mm, feed rate X-axis: 50 m/min, feed rate Y-axis: 50 m/min, feed rate Z-axis: 30 m/min, spindle speed (max.): 15,000 rpm, rapid traverse X-axis: 50 m/min, rapid traverse Y-axis: 50 m/min, rapid traverse Z-axis: 30 m/min, torque: 167 Nm, overall weight: 35,000 kg, Initial commissioning: December 2014 Control system: Fidia X-axis: approx. 2,200 mm Y-axis: approx. 3,500 mm Z-axis: approx. 1,200 mm A-axis: ± 100° C-axis: ± 275° Machine operating hours: approx. 68,000 h Total spindle hours: approx. 26,500 h Clamping table: 2,000 x 3,500 mm with T-slots 2-axis fork milling head Spindle power: 70 kW Spindle speed: max. 15,000 rpm Torque: max. 167 Nm Tool holder: HSK 100A Tool clamping: hydraulic Linear axis drives Feed rate X, Y, and Z axes: up to 50 m/min / 30 m/min Connection data Iiedpoyrc Aksfx Afmeg Voltage: 400 V Frequency: 50 Hz Dimensions, weights Required space for machine without peripherals: approx. 8,000 x 6,000 x 5,000 mm Total weight: approx. 35,000 kg Additional equipment - Coolant system - 26-place tool changer - Work area enclosure - Chip conveyor Available at extra charge: - Wireless touch probe - BLUM laser Condition of the machine Fully operational, very good condition. Can be inspected under power.

Condition: used, Year of construction: 2005, x-travel 600 mm y-travel 500 mm z-travel 600 mm control iTNC 530 Heidenhain table surface area 900 x 500 mm spindle turning speed - stepless 0-12.000 U/min spindle drive 10 kW tool taper SK40 DIN 69871 tool magazin: 24 total power requirement 22 kW weight of the machine ca. 6,4 t dimensions of the machine ca. 5,3 x 3,5 x 3,5 m Chip conveyor scraper belt Coolant system 3 pumps / cartridge filter Iiodpfx Aovxwq Eofmsg Grundfoss high-pressure pump type CRK2-220/22 A-W-A-AUUV

Condition: reconditioned (used), Year of construction: 2008, functionality: fully functional, travel distance X-axis: 1,600 mm, travel distance Y-axis: 1,250 mm, travel distance Z-axis: 1,000 mm, rapid traverse X-axis: 60 m/min, rapid traverse Y-axis: 60 m/min, rapid traverse Z-axis: 60 m/min, feed rate X-axis: 15 m/min, feed rate Y-axis: 15 m/min, feed rate Z-axis: 15 m/min, controller model: HEIDENHAIN TNC 530, workpiece weight (max.): 4,000 kg, overall weight: 35,000 kg, spindle speed (min.): 20 rpm, spindle speed (max.): 12,000 rpm, spindle nose: SK 40 (DIN 69871), number of slots in tool magazine: 60, CNC Machining centre DECKEL MAHO DMU 160 P TECHNICAL CHARACTERISTICS: Year of manufacturing: 2008 CNC control: HEIDENHAIN TNC 530 Number of simultaneous axes: 5 Stroke X axis: 1600 [mm] Stroke Y axis: 1250 [mm] Stroke Z axis: 1000 [mm] Feed rate on X, Y and Z axes: 15000 [mm/min] Traversing feeds X, Y and Z axes: 60000 [mm/min] Table dimensions: Ø1500 x 1250 [mm] Max. load on table: 4000 [Kg] Spindle type: SK 40 (DIN 69871) Min. spindle speed: 20 [rpm] Max. spindle speed 12000: [rpm] Tool changer magazin number of stations: 60 Machine weight: 35000 [Kg] INCLUDED EQUIPMENT: 1 × HEIDENHAIN part probe 1 × laser measuring system for tool setting and tool monitoring Ijdpfx Afjzggmbjmoig 3 × HEIDENHAIN linear glas scales on the X, Y and Z axes 1 × through-spindle coolant system 1 × chip conveyor 1 × paper-band filtration unit (paper filter system) More information upon request.
