Used Fehlmann Picomax 60 for sale (47)

Condition: ready for operation (used), Year of construction: 2008, travel distance X-axis: 500 mm, travel distance Y-axis: 350 mm, travel distance Z-axis: 610 mm, controller manufacturer: HEIDENHAIN, controller model: TNC 530, table width: 380 mm, table length: 920 mm, overall weight: 3,750 kg, spindle speed (max.): 36,000 rpm, spindle motor power: 17,800 W, number of slots in tool magazine: 28, number of axes: 5, This 5s FEHLMANN PICOMAX 60 HSC vertical machining centre was manufactured in 2008. It features a table size of 920x380 mm and offers impressive spindle speeds of up to 36,000 rpm. With a robust weight of 3750 kg, this machine is designed for precision and durability. If you are looking to get high-quality machining capabilities, consider the FEHLMANN PICOMAX 60-HSC machine we have for sale. Contact us for further details. • Table size: 920x380 mm Ndedpfsyizpdox Aazsb • Feed Rate Range: 1 - 20,000 mm/min • Spindle replaced in 2015 • Software Options: Option 1 (Rotary table machining, cylinder contour programming, swiveling plane), Option 2 (3D machining, TCPM, 5-axis linear/spline interpolation) - CNC Dividing Unit: ATS 160 CNC-SDK (automatic CNC dividing and swiveling unit, 2-axis simultaneous interpolation) - Workpiece Loading System: EROWA EasyHand with 60 ITS50 holder capacity (Max workpiece dim: D 172 x 320 mm) - Process Monitoring & Measuring: Renishaw MP 40 3D touch probe, Renishaw NT laser system for tool measuring (D 0.15 to 63 mm) - Dust/Graphite Extraction System: Industrial dust extractor Type 16.2.5 (3.1 kW turbine, 1,680 m³/h capacity, 100 l tank) - Additional Equipment: Enclosure with sliding doors & polycarbonate windows, enclosure top cover, minimal quantity lubrication system, oil mist extraction, switch cabinet cooling device, chip tray, coolant spray gun, handbox Technical Specification Taper Size HSK 50

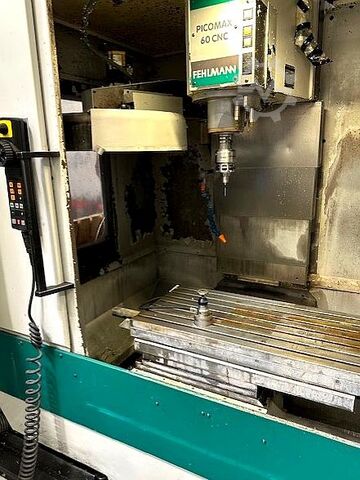

Condition: used, CNC Vertical Machining Center FEHLMANN Type PICOMAX 60 CNC Control System: HEIDENHAIN TNC 426 Serial No.: 14599641 Year of manufacture: 1999 Travel paths X: 500 mm, Y: 350 mm, Z: 610 mm Feed rate: 1 - 20,000 mm/min Rapid traverse: 20 m/min Feed force: 12,000 N Table clamping surface: 920 x 380 mm T-slots: 7 pcs, 12-H8 mm Table load capacity: max. 250 kg Table height: 1004 mm Distance spindle nose - table: 94 - 704 mm Overhang spindle - column: 405 mm Spindle speed: 50 - 18,000 rpm, stepless Spindle drive: 10.2 kW (60% duty cycle) Max. torque: 70 Nm (up to 1240 rpm) Spindle taper: SK 30 / DIN 69871A Ndsdpfsy N Du Djx Aazeb Pull stud: DIN 69872 Drilling capacity in steel: 25 mm Milling capacity in steel / aluminium: 100 / 700 cm³/min Thread cutting in steel / aluminium: M20 / M24 Tool changer: 24 positions Tool change time: approx. 6 sec. Chip-to-chip time: approx. 8 sec. Control: Heidenhain TNC 426 Power supply: 400 Volt, 50 Hz Connected load: 20 kW - Electronic handwheel Heidenhain HR410 - 3D probe Renishaw MP12 - Tool measurement system - TFT display - Direct path measuring system - Coolant system (200 liters, lateral) - Spindle cooling unit (lateral) - Central lubrication Vogel - Air supply: 6 bar, 40 - 200 l/min - Oil mist extraction - Operating hours: - Control on: 97,000 h - Machine on: 80,000 h - Program run: 42,000 h Required space (L x W x H): 2,000 x 1,700 x 3,000 mm Weight: approx. 3.2 t Good condition

Condition: repair required (used), Fehlmann Picomax 60 M (5-axis universal milling machine) with Heidenhain TNC 426 x-axis 500 mm y-axis 350 mm Ndjdpfx Aswmwrdsazjb z-axis 610 mm Motor spindle 18,000 rpm Power 10.2 kW 24-position tool changer Weight 3,200 kg with 4 axes SK 30 tools approx. 40 tool holders The machine has the following problems: - Heidenhain 430 control system is defective (booting up is not always possible, crashes during machining)

Condition: excellent (used), Year of construction: 1999, travel distance X-axis: 500 mm, travel distance Y-axis: 350 mm, travel distance Z-axis: 610 mm, spindle speed (max.): 10,000 rpm, total height: 2,700 mm, total width: 1,700 mm, total length: 2,000 mm, power: 0.01 kW (0.01 HP), CNC-Drilling and Milling machine, Control Heidenhain TNC 426, only 8500 h Njdpfx Aastvmtkjzjdb table size 380x920 mm, travel X/Y/Z/W - 500/350/610 mm, max. table load 250 kg, spindle speed stepless 50-10'000 rpm., spindle performance 10,2 kw, drilling capacity Ø 25 mm, tapping capacity M20, taper SK 30, tool changer 24 places, elektronic handwheel, central lubrication, oil mist filter, coolant refigitor, preparation for spindle coolant + Renishaw, lot of tools and holders, manual

Condition: ready for operation (used), Year of construction: 1999, functionality: fully functional, machine/vehicle number: 14599631, travel distance X-axis: 500 mm, travel distance Y-axis: 350 mm, travel distance Z-axis: 610 mm, spindle speed (max.): 18,000 rpm, number of slots in tool magazine: 24, The tool measurement system and the touch probe were retrofitted in 2022 for a total of EUR 15,000. The machine is prepared for 4th and 5th axis operation! TECHNICAL DETAILS Travel X: 500 mm Travel Y: 350 mm Travel Z: 610 mm Spindle speed: 18,000 rpm Spindle taper: SK30 Tool changer: 24 positions MACHINE DETAILS Operating hours Nsdex Agp Iepfx Aazedb Program run: 13,613 h Machine on-time: 39,034 h Control on-time: 38,758 h EQUIPMENT Connection and drives for 4th/5th axis 3D touch probe Heidenhain TS642 Tool measurement Heidenhain TT140 Spindle chiller unit Heidenhain HR410 electronic handwheel Approx. 30 tool holders Collets Complete documentation 3D touch probe

Condition: used, Year of construction: 2008, Control Heidenhain iTNC 530 x-travel 705 mm y-travel 425 mm z-travel 610 mm Feedrate X-,Y-,Z,- axis 1 - 20.000 mm/min Feed force X-, Y-, Z-axis 12.000 N table surface area 1.260 x 460 mm T-slots (number x width x distance) 9 x 12-H8 x 50 mm Table load max. 400 kg Distance between floor and coordinate table 1.026 mm Distance between coordinate table and spindle nose 92 - 702 mm Horizontal outreach 480 mm spindle tunring speed 50 - 26.000 U/min drive capacity - main spindle 100/40% ED 11,5 / 15,0 kW Nedpfx Aaezq Hkhezodb Max. torque S1/S6 25,2/32,9 tool taper HSK-E50 number of tool places 28 Pos. max. tool diameter 63 mm max. tool-dia with free toolbox 100 mm tool length 260 mm weight of tools 3 kg output 22 kVA weight ca. 5.200 kg In our assessment, the machine is in good used condition and can be inspected under power by appointment. Technical features & accessories: - Erowa automation - FEHLMANN ATS 160 CNC dividing head Accessories, as well as the tools and clamping devices shown in the images, are included in the scope of delivery only if explicitly noted in the additional information. Subject to changes, errors in technical data and specifications, and prior sale!

Condition: excellent (used), Year of construction: 2000, Description to follow! Nodpfx Aoz Ebqpoazjdb

Year of construction: 2007, operating hours: 11,749 h, condition: used, Empty weight: 9.100 kg Serial number: 17006585 Hours: 11749 X-axis travel: 800 mm Y-axis travel: 500 mm Z-axis travel: 610 mm Table size: 1,600 × 550 mm Ndjdpfoz Ep Eusx Aazjb Max. table load: approx. 600 kg Distance table–spindle nose: 160–770 mm Rapid traverse: up to 30,000 mm/min Spindle holder: HSK-A63 Spindle speed: 14,000 rpm Spindle cooling: Active Tool magazine: 46 positions Automatic tool changer: Yes Control: Heidenhain Machine weight: approx. 9100 kg Overall dimensions L×W×H: approx. 3000 × 2200 × 3100 mm Equipped with: Fehlman ATS 160 CNC, Blum P87.0634 laser system, Donaldson oil/mist filer DMC MMA, Fehlmann KM-Anlage HD coolant pump, burn engineering FD 2500-F11 cooling unit, Knoll 300 K-1 scraper belt conveyer Online auction of mold making, die manufacturing machine tools (e.g. CNC surface grinding, turning and milling machines FEHLMAN, HEDELIUS, ABA, G+H, SUNNEN, BIGLIA, OKUMA etc.) due to the full plant closure of metal working company location Meusburger Germany GmbH at Viernheim (near Mannheim) in Germany. The online auction opens Thursday 24 September and closes Tuesday 13 October. Register your account via our website and place your bid. For viewings and inspections check the auction information on the website. Viewing day is on: - Thursday 8 October Pickup day is on: - Monday 19 October Dome Auctions is an innovative auction platform dedicated exclusively to the industrial sector. By focusing on machinery sales from business closures, restructurings, and bankruptcies, we provide a trusted marketplace where buyers and sellers connect with confidence. Unlike general auction houses, Dome Auctions specializes in selling complete industrial assets directly from factories, ensuring quality and reliability. With a commitment to transparency, industry expertise, and tailored service, we streamline the sales process and maximize value for all parties. As online auctions continue to grow in the European industrial market, Dome Auctions offers a professional and efficient solution for companies seeking high-quality machinery at competitive prices.

Condition: ready for operation (used), Year of construction: 1999, x-travel 350 mm y-travel 260 mm w-axis 450 mm z-axis 110 mm tool taper SF 32 Quickchange-System turning speed range - stepless 50-6300 U/min Nodez Dpz Topfx Aazedb table surface area 670 x 320 mm table load 0,2 t feed range - table manuell mm/min feed for quill 1: manuell mm/U total power requirement 2,9 kW weight of the machine ca. 0,9 t dimensions of the machine ca. BTH 1,47 x 1,34 x 2,10 m Infinitely variable electronic spindle speed control: 50–6,300 rpm (with 5 memory presets) Power: 2.9 kW (100%), 40 Nm max. Clockwise/counter-clockwise thread cutting Adjustable quill depth stop Precision height adjustment with fitted column wedge Includes machine base with integrated tool cabinet Fine depth feed via handwheel Precision coordinate table incl. direct measuring system Heidenhain digital position display Swiveling tool rack for 12 SF32 tools Incl. Heidenhain digital readout Incl. coolant pump Incl. electrical schematics; operating manual not included

Condition: good (used), Year of construction: 1995, functionality: fully functional, feed length X-axis: 700 mm, feed length Y-axis: 315 mm, feed length Z-axis: 175 mm, travel distance X-axis: 700 mm, travel distance Y-axis: 315 mm, travel distance Z-axis: 495 mm, feed rate X-axis: 9 m/min, feed rate Y-axis: 9 m/min, feed rate Z-axis: 4 m/min, spindle speed (max.): 9,000 rpm, spindle speed (min.): 50 rpm, quill travel distance: 175 mm, rapid traverse X-axis: 9 m/min, rapid traverse Y-axis: 9 m/min, rapid traverse Z-axis: 4 m/min, total width: 2,480 mm, total length: 1,620 mm, table width: 1,230 mm, table length: 410 mm, position of the milling head: vertikal, type of input current: AC, rotational speed (max.): 9,000 rpm, rotational speed (min.): 50 rpm, overall weight: 3,200 kg, input voltage: 400 V, workpiece weight (max.): 250 kg, space requirement width: 2,500 mm, space requirement length: 2,500 mm, space requirement height: 2,450 mm, input current: 25 A, input frequency: 50 Hz, Equipment: documentation/manual, rotational speed infinitely variable, Due to restructuring measures, we are selling our CNC milling machine – Fehlmann Picomax 80 CNC 2/3 - robust Swiss precision machine Nodpfx Aaszzd Hhjzsdb - year of manufacture 1995 - low operating hours - very good condition considering its age - Heidenhain 315B control system - 4 axes (X, Y, Z + A [rotary axis]) - axes can be moved in parallel - travel distances X700 x Y315 x Z170 (+W495) mm - table 1,320 x 410 mm - 4th axis (rotary axis) AT100 original Fehlmann with 140mm three-jaw chuck and collet chuck - manual control panel - spindle 50 – 9,000 rpm - complete steel sheet enclosure with safety glass - fully functional - complete operating and programming manual - spare parts and service available from Fehlmann - machine can be inspected while powered on Depending on the price, a wired measuring probe (Renishaw), an electric fine milling and grinding spindle from RAY (Switzerland) 10,000 - 40,000 rpm, and various tool holders can be included. This offer is subject to change. Subject to prior sale. No online sales. The sale is only to commercial customers after inspection and acceptance on site. Due to the age of the machine, the sale is made with the exclusion of any warranty. Pick-up only (EXW) - no shipping.

Condition: excellent (used), Year of construction: 2015, operating hours: 1,463 h, functionality: fully functional, travel distance X-axis: 500 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 400 mm, rapid traverse X-axis: 20 m/min, rapid traverse Y-axis: 20 m/min, rapid traverse Z-axis: 20 m/min, controller manufacturer: HEIDENHAIN, controller model: TNC 620, workpiece weight (max.): 250 kg, total length: 908 mm, total width: 480 mm, overall weight: 3,250 kg, spindle speed (max.): 12,000 rpm, spindle nose: ISO 30, number of spindles: 1, number of slots in tool magazine: 20, tool length: 240 mm, tool diameter: 130 mm, tool weight: 3,000 g, input voltage: 400 V, type of input current: three-phase, Equipment: documentation/manual, CNC Machining centre FEHLMANN Picomax 56 TOP TECHNICAL CHARACTERISTICS: Year of manufacturing: 2015 CNC control: HEIDENHAIN TNC 620 Stroke X axis: 500 [mm] Stroke Y axis: 400 [mm] Stroke Z axis: 400 [mm] Feed rate on X, Y and Z axes: 20000 [mm/min] Min. distance spindle nose / table: 120 [mm] Max. distance spindle nose / table: 520 [mm] Table dimensions: 908 x 480 [mm] Max. load on table: 250 [Kg] Ndodpfx Ajzzmmwjazjb Spindle type: ISO 30 Max. spindle speed: 12000 [rpm] Tool changer magazin number of stations: 20 Max. tool lenght: 240 [mm] Max. weight of single tool: 3 [Kg] Max. tool diameter: 130 [mm] Tool change time: 3 [sec] Chip to chip time: 8 [sec] Number of cutting hours: 1463 [h] Rated current: 25 [A] Supply voltage: 400 [V] Machine weight: 3250 [Kg] INCLUDED EQUIPMENT: HEIDENHAIN linear glass scales on the X, Y, and Z axes x1 FRIBOSA Switzerland precision vise x1 RENISHAW TS 440 part probe x1 RENISHAW TT 140 tool probe x3 ISO30 tool holders x1 FEHLMANN GPRPLUS50 toolsetter x1 coolant tank with pumps x1 spindle chiller Various tightening wrenches Axis locking brackets for machine transport Technical and operating manuals Machine visible under power in our premises by appointment. Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed. Machine similar to Mikron, Hermle, DMG Mori, Mazak, Hedelius, AXA, Chiron, Matec, Reiden, Lagun, Haas, and Alzmetall machines, as well as milling, drilling and tapping machines, and CNC grinding machines.

Year of construction: 1991, condition: used, Travel X/Y/Z: 850mm/435mm/210mm, vertical head adjustment: approx. 590mm, table dimensions X/Y: approx. 1570mm/500mm, max. table load: 250kg, spindle taper: Fehlmann SF32, max. spindle speed: 7100rpm, spindle power: approx. 5kW, drilling capacity in steel: 30mm, tapping capacity in steel: M20, control: Mach3 with touchscreen PC, weight: approx. 3000kg. The machine was subsequently retrofitted with a Mach3 control. An on-site inspection is possible. Ndjdpozz Irbefx Aazob

Condition: used, 1 piece drill chuck, ALBRECHT, clamping range up to 10 mm 1 piece drill chuck, RÖHM, clamping range from 3 - 13 mm. For quick-change system SF 32: 1 piece collet chuck with locknut, ER 32 2 pieces collet chuck with locknut, ER 25 Ndsdpszz R Npofx Aazjb 1 piece milling arbor, shank 32 mm

Condition: ready for operation (used), Fehlmann Picomax 50 drilling machine with threading unit Speed: 125 - 4400 RPM Feed: 0.03 - 0.40 mm Drilling capacity in steel: 22 mm Threading unit Spindle stroke: 120 mm Njdpfxozzvxie Aazedb Stroke: 430 mm Accessories: see pictures You are welcome to visit us for an inspection. We can also arrange cost-effective shipping for you! You will receive a proper invoice. For foreign customers, a net invoice can also be issued. A valid VAT identification number is required. Subject to prior sale. Visit our shop and check out our other offers. The company names and trademarks mentioned are the property of their respective owners and are used only for identification and description of the products. Deviations from technical data and errors in the description of the item may occur and are subject to change.

Condition: excellent (used), Heidenhain TNC 124 control system Ndjdjwk Edpopfx Aazsb X/Y/Z travel 450/260/120 mm W travel 450 mm Clamping area (L x W) 770 x 320 mm Permissible table load 100 kg Distance table to spindle nose (min. – max.) 0 – 110 – 560 mm Feed rate X/Y 1 – 2000 mm/min Tool quick-change system SF 32 Speed range continuously variable 100 – 9200 rpm Drive power 5 kW Space requirement (W x D x H) 1500 x 1480 x 2330 mm

Condition: excellent (used), - Digital display Heidenhain - Accessories available Travel paths: X – path 280 mm Y – path 210 mm Cross table KS 255 D Nedpfx Aasv E D Ttezodb Spindle speeds 135 – 4,500 rpm

Condition: excellent (used), Control system: Heidenhain TNC 124 Travel distances X/Y/Z: 450/260/120 mm Travel distance W: 450 mm Clamping area (L x W): 770 x 320 mm Permissible table load: 100 kg Distance table – spindle nose (min. – max.): 0 – 110 – 560 mm Feed rate X/Y: 1 – 2000 mm/min Njdpfxsipmmuo Aazedb Tool – quick-change system: SF 32 Speed range, continuously variable: 100 – 9200 rpm Drive power: 5 kW Space requirement (W x D x H): 1500 x 1480 x 2330 mm

Condition: excellent (used), Heidenhain digital readout. Fehlmann cross table: KS 255. Accessories: available. Working range: Quill stroke Z-axis 110 mm Machine head travel 450 mm Table spindle nose 0 - 527 mm Quick-change systems SF 32 Work spindle 2.9 kW Speed range infinitely variable 50 - 6300 rpm Clamping surface 255 x 550 mm Dimensions and weight: Space requirement W x D x H 1.5 m x 1.35 m x 2.1 m Weight approx. 850 kg Nsdpfx Aaow Hqdmszjdb

Condition: excellent (used), Year of construction: 2005, Heidenhain digital display Fehlmann cross table KS 322 D Nodswkrp Eopfx Aazodb Working area: Z-axis quill stroke 110 mm Machine head travel 450 mm Table spindle nose 0 – 527 mm SF 32 quick-change system Work spindle 2.9 kW Speed range continuously adjustable 50 – 6300 rpm Clamping surface 320 x 670 mm Dimensions and weight: Space required W x D x H 1.5 m x 1.35 m x 2.1 m Weight approx. 850 kg

Condition: excellent (used), Control: Heidenhain TNC 310 With dividing head Travel X/Y/Z 500/250/160 mm Travel W 480 mm Clamping area (L x W) 885 x 320 mm Permissible table load 250 kg Distance table to spindle nose 0 – 605 mm Feed rate X/Y 1 – 2000 mm/min Nedpfxowkrn Ie Aazjdb Feed rate Z 1 – 1200 mm/min Tool quick-change system SF 32 Speed range (infinitely variable): 9200 rpm Drive power 5 kW Space required (W x D x H) 1850 x 2550 x 2400 mm

Condition: used, CNC Universal Coordinate Drilling and Milling Machine FEHLMANN Type PICOMAX 100-CNC 3 CNC Control HEIDENHAIN TNC 155 Ndsdpfohik Ezjx Aazeb Manufacturer's No. 16186651 Year of Manufacture 1986 Spindle Taper FEHLMANN SF32 Drilling Capacity Ø 30 mm in steel Thread Cutting up to M20 in steel Travel X: 850 mm, Y: 435 mm Quill Stroke Z: 210 mm Vertical Movement of Milling Head 580 mm Feed X and Y 1 to 8000 mm/min. Feed Z 1 to 4000 mm/min. Rapid Traverse X and Y 8 m/min. Rapid Traverse Z 4 m/min. Table Clamping Surface 1570 x 500 mm Distance Spindle Nose - Table 130 - 720 mm Overhang Spindle - Column 450 mm Spindle Speed 50 - 7100 RPM, stepless Spindle Drive 10 kW Total Connected Load 20 kW Mains Connection 400 Volt, 50 Hz - CNC Control HEIDENHAIN TNC 155 with TFT monitor - 3 axes controlled, X, Y and Z quill adjustment - hydro-mechanical tool clamping FEHLMANN SF32 - threading device - cable remote control for machine operation and axis movements - motorized vertical movement of the milling head with shutdown via adjustable cams - 3D probe RENISHAW, Type MP 11F with FEHLMANN SF32 mount - 20 tool holders FEHLMANN SF32 - swiveling tool holder with 21 tool positions - coolant system in the machine frame - control cabinet fixed to the machine - documentation: operating manual, control manual and electrical diagrams Space Required L x W x H 2350 x 2000 x 2300 mm Weight 3.2 tons very good condition

Condition: excellent (used), Digital display Heidenhain Type: conventional Ndjdpfxsyv Af Uj Aazsb Table KS 320 D Clamping surface: 530 x 270 mm Speed: 125 - 4400 rpm Feed: 0.03 – 0.40 mm/rev Drilling capacity in steel: 22 mm Thread cutting up to M16 Milling capacity in steel: 25 mm Drill spindle stroke: 120 mm Spindle motor power: 0.51 / 1.47 kW Dimensions: 2000 x 1200 x 1000 mm Weight approx. 900 kg

Condition: ready for operation (used), Year of construction: 2006, Offered is a Fehlmann CNC universal milling machine. Travel X/Y/Z/W: 700mm/315mm/178mm/495mm, feed rate X/Y: 9m/min, feed rate Z/W: 4m/min, rapid traverse X/Y: 9m/min, rapid traverse Z: 4m/min, table dimensions X/Y: 1130mm/350mm, max. table load: 250kg, spindle taper: SK30, tool positions: 32, max. speed: 9200rpm, spindle power: 5kW, drilling capacity in steel: 30mm, reach: 370mm, distance table-spindle: 620mm, control: Heidenhain. Weight: approx. 3400kg. Inspection possible by appointment. Nsdpfxozgwyrj Aazjdb

Condition: ready for operation (used), Year of construction: 2002, A Fehlmann CNC machining center that was used in the ceramics industry is available. Travel X/Y/Z: 700mm/420mm/610mm, speed: 20000rpm, tool holder: SK30, tool positions: 48, spindle power: 9kW, torque: 70Nm, table dimensions X/Y: 1260mm/490mm, weight: approx. 5200kg, control: Heidenhain TNC 430M. The C key has a fault on the ATS swivel apparatus regarding the amplitude. The ball screws of the X and Y axes were recently replaced. Without extraction system. Documentation available. An on-site inspection is possible. Ndedpfjy H I Eusx Aazjb

Condition: used, 1 piece of drill chuck, ALBRECHT, clamping range up to 10 mm 2 pieces of Morse taper with driving lugs, MK 1 Ndsdpfx Aozvypheazsb 2 pieces of collet chuck with cap nut, ER 11, length 70 mm 1 piece of collet chuck with cap nut, ER 11, length 40 mm 1 piece of milling chuck, shank 20 mm
