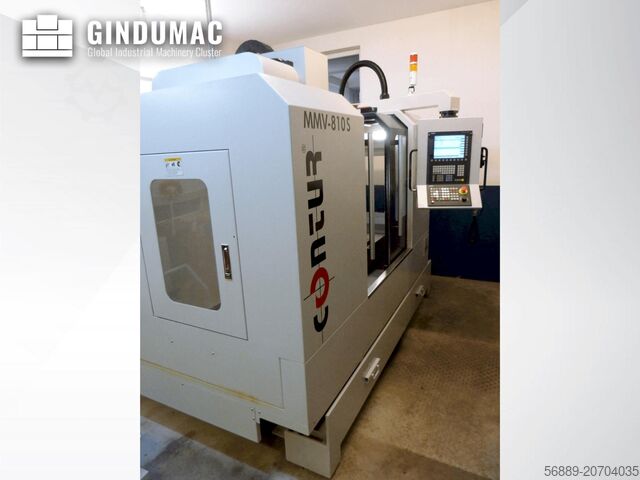

Machining center
Saeilo MMV-810 S

Name: Saeilo MMV-810 S
Brand: Saeilo
Availability: InStock

Year of construction

2012

Condition

Used (fully functional)

Location

Oberösterreich Austria

Observe auction

Machine data

Machine type:: Machining center

Manufacturer:: Saeilo

Model:: MMV-810 S

Machine number:: 12030326

Year of construction:: 2012

Condition:: good (used)

Functionality:: fully functional

Technical details

Travel distance X-axis:: 810 mm

Travel distance Y-axis:: 410 mm

Travel distance Z-axis:: 500 mm

Table width:: 900 mm

Table length:: 400 mm

Spindle speed (max.):: 10,000 rpm

Number of slots in tool magazine:: 24

Provision

Location:: Oberösterreich, Austria – Distance: about 1,389 km

Availability:: as of end of auction

Delivery conditions:: EXW

Costs for dismantling & loading:

Pick up at location:
free

Shipping costs:

Description

No reserve price - guaranteed sale at the highest bid!

2024 service had

TECHNICAL DETAILS
X-axis travel: 810 mm
Y-axis travel: 410 mm
Z-axis travel: 500 mm
spindle tip to table: 115 mm
spindle center to column: 425 mm

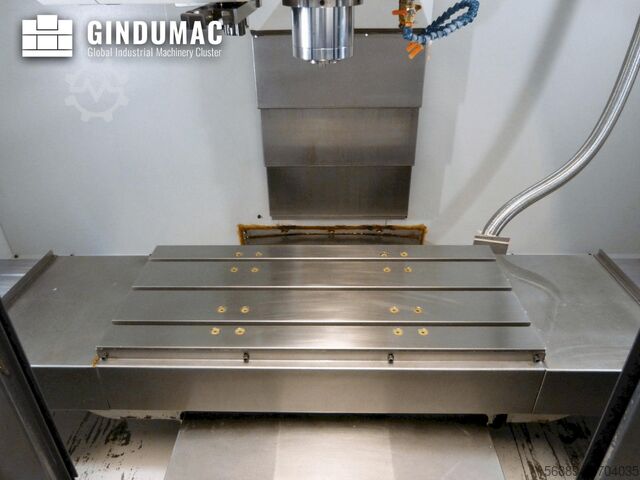

Table
Table size: 900 x 400 mm
T-slots: 14 x 3 x 125 mm
Max. table load: 300 kg
Table height: 815 mm

feed rate
Rapid X,Y axis: 36,000 mm/min
Rapid Z-axis: 30,000 mm/min

spindle
Spindle taper: ISO SK40
Spindle speed: 10,000 rpm

engines
Spindle motor power: 10 kW
Servo motor power X,Y,Z: 2.3 / 2.3 / 3.3 kW

tool changer (ATC)
Type: Arm
Tool capacity: 24 tools
Max. tool diameter: Ø 150 mm (with free adjacent spaces)
Max. tool weight: 7 kg
Max. tool length: 300 mm

machine precision
Positioning accuracy: ±0.005 / 1000 mm
Repeatability: ±0.003 / 1000 mm

MACHINE DETAILS
Air pressure: 7 kg/cm²
Energy requirement: 20 kW
Machine dimensions (LxWxH): 3600 x 2000 x 2500 mm
Machine weight: 3,500 kg

tension and energy
Voltage: 3-phase, 380-400 V AC
Frequency: 50/60 Hz
Total power: 20 kW
Cable specifications: Main voltage and earth cable min. 8 mm²

EQUIPMENT

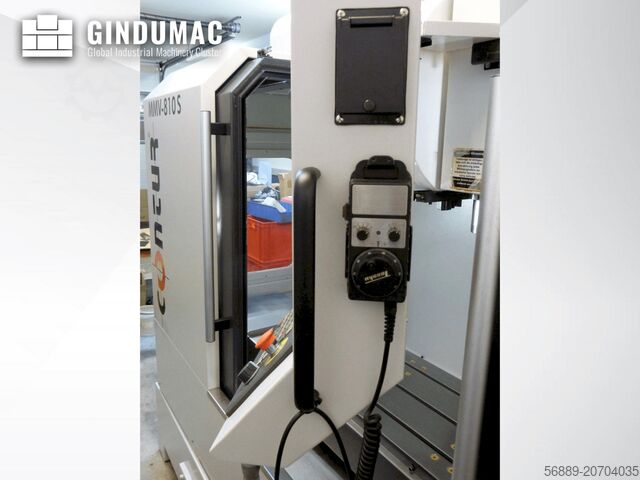

- Electronic handwheel
- Fully enclosed splash guard
- Powerful AC spindle motor
- Steel telescopic covers for X, Y and Z axes
- Halogen work lamp
- Automatic central lubrication system
- control lamp
- spindle blow-out device
- Screws and feet for leveling
- Manual and parts list
- Machine is sold without vice and tools
