Used Horizontal band saws - automatic - cutting range from 400mm for sale (75)

Condition: new, capacity 90 degrees: round 510 mm capacity 90 degrees: square 480 mm 610 x 450 Lajdpfx Agofu Nbbs Noh saw band length 5320 x 34 x 1,1 mm band speed 15 - 100 m/min table height 820 mm total power requirement 3,0 kW weight of the machine ca. 2,3 t dimensions of the machine ca. 2,65 x 2,8 x 2,2 m For miter cuts up to 45° left in fully automatic Operation and up to 60° left in semi-automatic operation Material height sensor (automatic cut start detection) Automatic feed unit via ball screw with incremental feed automatic length compensation Button on the saw band for automatic adjustment of the saw stroke Fully automatic control of the saw frame and clamping device Hydraulic unit with automatic pressure shut-off when idling Mechanical chip clearing brush feed vice opening on both sides Remaining piece length 100 mm Modern CNC control freely programmable for multiple sawing jobs with various Cutting lengths and quantities. Automatic feed unit 500 mm via ball screw incremental feed with automatic length compensation. Adjustable for section lengths of 25 – 9,999mm. Fully hydraulic control of saw frames and clamping devices Preselection of 3 different material feed speeds Visualization of the entire workflow with simple data entry

Condition: used, Year of construction: 2007, Behringer HBM 540 A automatic band saw year of construction 2007 Working area flat 630x540 Round 540mm Motor power saw drive 11KW Cutting speed 20-200m/min 2x infeed roller conveyor driven 6200mm width 1200mm each with cross feed Discharge roller conveyor 5030mm driven chip conveyor The offer is aimed exclusively at traders within the meaning of §14 BGB Lasdpfewi Ii Sex Ag Nsh No sale to private individuals

Condition: used, Year of construction: 2008, functionality: fully functional, Used fully automatic band saw from premium manufacturer Behringer. The saw was only recently purchased, but unfortunately is far too large for our applications. Description of Behringer HBP 413A Machine Description: Behringer HBP413A High-Performance Band Saw The Behringer band saw HBP413A is an economical, fully automatic metal cutting band saw designed for automated 90° cuts in professional industrial and manufacturing environments. The HBP413A offers a cutting capacity for round material from 10 mm to 410 mm and for flat material from 10 x 8 mm up to 500 x 400 mm, using a saw blade dimension of 5,800 x 41 x 1.3 mm. The frequency-controlled saw drive delivers 4 kW drive power and continuously adjustable cutting speeds from 20 to 140 m/min (66 to 459 ft/min). Cutting speed can be set and read at the control panel. The total drive power is approx. 7 kW. Laodpfx Agoxdc Sne Njh Weight: 2,350 kg Dimensions (LxWxH): 1,950 x 2,950 x 2,550 mm Saw blade dimensions: 5,800 x 41 x 1.3 mm Cutting range round: 10 - 410 mm Cutting range flat: 500 x 400 mm Cutting speed: 20 - 140 m/min Saw feed control Saw frame adjustment Weight: 2,350 kg Dimensions (LxWxH): 1,950 x 2,950 x 2,550 mm Saw blade dimensions: 5,800 x 41 x 1.3 mm Cutting range round: 10 - 410 mm Cutting range flat: 500 x 400 mm Cutting speed: 20 - 140 m/min The machine is available immediately. Exchange for a smaller band saw with a maximum round cutting capacity of 280 mm, as well as a trade-in, is also possible (with value adjustment).

Condition: good (used), Year of construction: 2002, machine/vehicle number: 6428 104 014, Offer 25258 Technical data: - Cutting range at 90° round: 400 mm - Cutting range at 90° flat: W 400 x H 400 mm Lodpfx Ajxc Hinsg Neah - Shortest cut-off length: 6 mm - Smallest diameter to be sawn: 10 mm - Minimum remnant length for single cut: 15 mm - Minimum remnant length in automatic mode: 80 mm - Material feed length, single stroke: 750 mm - Material feed length, multiple strokes: 20,000 mm - Saw band dimensions: 5700 x 41 x 1.3 mm - Cutting speed, stepless: 20 - 110 m/min - Hydraulic lifting/lowering of saw frame - Cutting pressure steplessly adjustable: 0 - 10 m/min - Total drive power: 400 V / 8.0 kW - Bundle clamping device - Coolant system - Chip conveyor - Required space approx.: W 3000 x H 2200 x D 2300 mm - Weight approx.: 2,800 kg

Condition: new, Year of construction: 2022, cutting diameter 570 mm saw band length 7250 x 41 mm cutting width 1,3 mm capacity 90 degrees: square 550 x 550 mm capacity 90 degrees: flat 550 x 700 mm total power requirement 4 kW weight of the machine ca. 6050 kg required space 2600 x 1300 x 3700 m The KLS 550 x 700 is a semi-automatic and column guided horizontal bandsaw. Standard specifications - Swarf Brush Laedpougnyujfx Ag Njh - Hydraulic Blade Guide - Hydraulic Vice - Hydraulic Blade Tension - Blade Breakage Switch - Stop System - Automatic Ball Screw Lubrication - Led Lighting - Swarf Conveyor - Swarf Carrying - 1400 mm Feeding Drive - Double Roller Table - Material End Detector - Program Saving System - USB Connection Output - PLC Control & Touch Screen - Inverter Optional specifications - Laser Line - Lubrication Mist - V Shape Vice - Extra Double Roller Table - Upper Clamp System - Curve Cutting Detecting Sensor The pictures are for orientation only and do not represent a true-to-scale image of the machine.

Condition: used, Automatic band saw, used but technically in good condition. Maximum capacity: Ø 260 mm Lajdew N Iw Ispfx Ag Neh

Condition: new, capacity 90 degrees: round 680 mm capacity 90 degrees: square 640 mm 820x610 saw band length 5850 x 41 x 1,3 mm band speed 15 - 100 m/min table height 800 mm total power requirement 5,5 kW weight of the machine ca. 4,45 t dimensions of the machine ca. 5,85 x 3,6 x 2,7 m 2-column band saw for quick cutting, K-tech 800H with pusher system P 15. P 30 (option), Fast, quiet and ergonomic cutting Special development for cutting profiles and beams as well as solid material. The material is fixed vertically on and section sides. The machine is from K-tech 800 H Ledpfxefgyifj Ag Noah standard with an additional horizontal vice equipped. The interaction of the hydraulic Saw frame lowering, material positioning and the Pusher system is CNC controlled. The machines come standard with the environmentally friendly “B&S-Clean Cut cutting system” with minimal quantity lubrication equipped. This saves cleaning effort and is gentle Resources. CNC Control A CNC control allows programming of up to up to 90 cutting programs with different cut lengths, Quantities and mitres. The B&S pusher system, feeding and positioning system, is marked “on both sides “Opening gripping tongs” which are hydraulically controlled. This ensures safe gripping and transport of materials and Bundles that deviate slightly from the ideal shape. The pusher system is separate constructed and ground using ball-bearing linear guides Rack and guided by a frequency-driven, robust geared motor.

Condition: ready for operation (used), Behringer automatic metal bandsaw, electrically controlled stop, infeed side 15 m, outfeed side 7.5 m Laodpfxow Tri As Ag Njh

Condition: ready for operation (used), Year of construction: 1986, Behringer 2-column bandsaw semi-automatic HBP 430, year of manufacture 1986, fully operational. Cutting capacity for round material: 430 mm, 90° cuts, hydraulic material clamping and sawing, coolant pump, 2-speed motor with stepless speed control. Roller conveyor 1400 mm with end stop. Space requirement for saw approx. 2700x1100 mm, height 1700 mm. Ljdpfx Aew Thv Sog Noah

Condition: good (used), Year of construction: 2011, machine/vehicle number: 152855, Item 25078 Technical specifications: - Cutting area at 90°: round 550 mm - flat 570 x 550 mm - Cutting speed continuously adjustable from 20 to 100 m/min - Hydraulic raising and lowering of the saw frame - Cutting pressure continuously adjustable from 0 to 10 m/min - Automatic material feeder - Stop length 500 mm - Total drive power approx. 400 V / 5.7 kW Ljdpfx Agev Say As Njah - Stop - 2 x roller conveyors 1000 + 3000 mm - Space requirement approx. W 3400 x H 2100 x D 1300 mm - Weight approx. 2100 kg

Condition: new, Year of construction: 2025, cutting diameter 1100 mm Laedjuddc Hepfx Ag Nsh saw band length 12000 x 67 mm cutting width 1,6 mm Capacity 90° - round 1100 mm Capacity 90° - rectangle 1100 x 1100 mm Capacity 90° - square 1100 x 1300 mm total power requirement 7,5 kW / 3100 Nm weight of the machine ca. 12.000 kg dimensions of the machine ca. 3300 x 3000 x 5300 mm The KSS 1100 X 1300 is a semi-automatic and column-guided horizontal bandsaw. In addition, the machine has a driven roller table, which is 1 metre long.

Condition: ready for operation (used), functionality: fully functional, cutting width (max.): 1,100 mm, cutting height (max.): 1,200 mm, Danobat CP 1211T Large Capacity Bandsaw Cutting Capacity Dia / Square 1100mm Lodpfxjtv Nado Ag Noah Cutting capacity rectangle 1200mm wide x 1100mm high Fully automatic

Condition: new, 1000 mm 1000 mm 1200x1000 mm saw band length 11300 x 80 x 1,3 mm table height 790 mm band speed 14 - 60 m/min total power requirement 18 kW weight of the machine ca. 9,0 t dimensions 5,0 x 1,68 x 3,15 m The semi-automatic, hydraulic saws from the X-tech line offer the best Saw technology and best performance when cutting special steels • The electro-welded machine frame and the steel saw frame meet requirements all cutting needs and eliminate vibration and noise. • The chip conveyor is hydraulically driven and the speed is adjustable • All movements of the machine (saw frame, vice, feed, Saw band guides) are carried out thanks to modern linear guides with high static and dynamic load performance, which also has very low sliding friction to guarantee. • Another characteristic feature is the roles for the Positioning of the material by a hydraulic motor are driven. They move at right angles to the material, and thus allowing optimal clamping of the material. Ljdpfot Eacgox Ag Neah • Thanks to the height control of the saw band position, the operator can place the band in place near the top edge of the material. After the cut is finished, the tape automatically raised back to the previous position. Alternatively you can also “Remain” can be selected in the lower position. During the The software compares the cutting load with the cutting cycle Default. This means that the sawing system can be stopped in the event of irregularities become. • The saw band is cleaned by two adjustable steel brushes. The drive takes place hydraulically. • The hydraulic unit including filter and pressure gauge guarantees one particularly quiet operation at constant pressure. • Finely ground carbide inserts that clamp the saw blade, complete with lateral, hardened and adjustable guide rollers. The adjustable one The tape guide automatically moves as close as possible to the material. • The saw band is tensioned via a hydraulic cylinder, which is carried out by the Machine software is controlled. The voltage is set according to a given Time automatically delimbed when the machine is idle or after a cycle has been carried out. • Automatic version with CNC control in the X-TECH 900 / 1200 models a feed length of 500 mm for the series for high production rates. • The material is carried by a table with seven rollers. These will driven by a hydraulic orbital motor through which the material can be placed precisely even under maximum load. • All guided movements are carried out by four recirculating ball guides with one high capacity for static and dynamic loading; strong reduced feed friction. Tempered and ground prismatic Guides. Price on request.

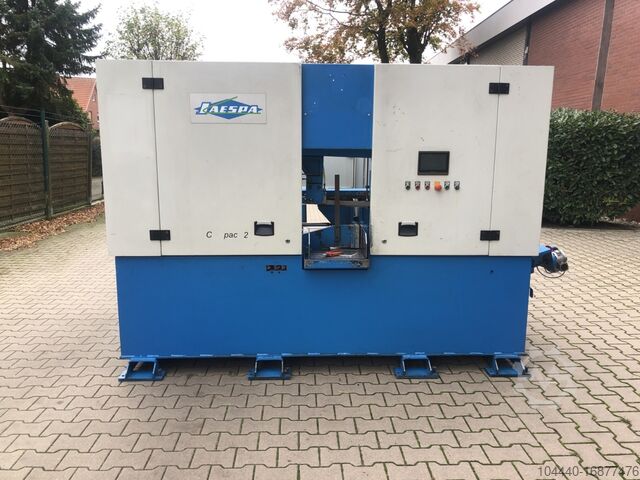

Condition: used, Year of construction: 2018, Horizontal bandsawing machine Make: JAESPA Model: Compact 2.8 Year of construction: 2018 TECHNICAL DETAILS: Automatic band saw - horizontal Cutting diameter 280 mm Saw blade length 5080 x 34 x 1.1 mm Cutting area flat 330 x 280 mm Cutting width 330 mm NC control Feed 460 mm Cut-off lengths 9999.9 mm Speed 15 - 120 m/min Machine weight approx. 2.3 t Dimensions approx. 3250 x 1580 x 2050 mm Laodpfx Ajudb Sfog Noh Column design for heavy-duty, industrial use o Intuitive NC control of the machine via PLC WAGO and 7" color touchscreen. Frequency-controlled, infinitely variable belt drive Saw arm with highly sensitive feed movement via servo motor and ball screw ball screw Backlash-free linear guides in both columns Hydraulic material clamping with long-stroke cylinder in front of and behind the saw blade saw band Clamping vice and lifting jaws open on both sides with infinitely adjustable clamping pressure clamping pressure Material feed via servo motor and ball screw drive in chain dimension the repeating operation is clocked. Unlimited material feed length Fully hydraulic saw blade tensioning Automatic saw blade guide arm adjustment Fully equipped with chip conveyor

Condition: good (used), Capacities: Capacity 360 mm diameter , Rectangular 704 x 360 mm at 90 degrees or 340 mm diameter , Lodsig T Abopfx Ag Nsah Rectangular 400 mm x 340 mm at 45 degrees. Input 415/3/50 4kw approx. Speeds 20-120 meters per min. Swivel frame 0-45 degrees. Vice opens 710 mm. Measuring Head. Infeed / Outfeed powered rollers. Infeed / Outfeed Cross transfers

Condition: excellent (used), Year of construction: 1993, Behringer sawing machine, type: HBP 530 A Ljdpfew Iwrxox Ag Noah

Condition: excellent (used), Year of construction: 2014, Very nice Behringer HBE 411 A from year 2014. The machine comes from a mechanical engineering company and is currently being overhauled by us. 3334 sawing hours – 333.4 hours per year! Lsdewzx Dkopfx Ag Neah

Condition: new, Year of construction: 2025, OSTERBERGER DGB 500 Supremus Brand new CNC-controlled double mitre precision bandsaw of very high quality – designed for demanding metal and steel fabrication as well as industrial cutting in multi-shift operation. Mitre adjustment range steplessly electronically controlled by servomotor: -60° / +45° Cutting capacity at 90°: 500 x H 400 mm Saw drive power: 4 kW Saw blade speeds: steplessly adjustable from 10 to 70 m/min Saw blade dimensions: 5,600 x 34 x 1.1 mm Maximum material feed per stroke via servomotor and ball screw: 1,300 mm Lajdpoxc Uk Tefx Ag Noh Base machine dimensions approx. 3.5 x 2.5 m x H 2.1 m Base machine weight approx. 2,000 kg CNC control with touchscreen and color graphics Software for automatic pushing and pulling of the profile bar Extremely simple programming and operation Cutting lists can be loaded as CSV files Optional: - Loading magazine

Condition: excellent (used), Year of construction: 2012, Cutting range round: max. 530 mm Cutting range square: max. 530 x 520 mm Ljdpfjwvtckex Ag Noah Saw band dimensions: 7,000 x 54 x 1.6 mm Cutting speed: 10 - 110 m/min Drive power: 7.5 kW Weight: approx. 4.5 tons

Condition: good (used), Year of construction: 2001, Manufacturer: BEHRINGER Type: HBP 530 A Year of construction: 2001 Specifications: Metric Lodpfx Agou U Nare Nsah Metric US Standard Capacity 90° 530 x 530 ° Min, saw length 40 mm Max. Saw length 17 - 110 Saw power 12 kW Chip conveyor Yes Dimensions (estimate) length 4000 mm width 2250 mm height 3270 mm weight 4400 kg Please note: The information on this page has been obtained from the manufacturer to the best of our knowledge and belief, and where possible, the information is given in good faith but accuracy cannot be guaranteed. Accordingly, it does not constitute a representation or contract and we recommend that you check all relevant details.

Condition: new, Year of construction: 2025, CORMAK HR500SA is an advanced automatic band saw designed for cutting solid materials, pipes and steel profiles with large cross-sections. Thanks to its two-column design and reinforced frame, the machine provides the highest stability, precision and repeatability of cutting - even in continuous operation. Technical data: automatic band saw HR500SA Cutting range Ø500 mm or 650 x 500 mm Band dimensions 6600 x 41 x 1.3 mm Band speeds 27 / 45 / 69 m/min Total power 6.5 kW Band tensioning manual Feeder stroke 500 mm Table height 715 mm Load capacity 3000 kg Dimensions (L x W x H) 3200 x 3050 x 2115 mm Weight 3200 kg Lsdpfoi Ab Dljx Ag Njah Standard equipment touch control panel with settings memory, automatic work cycle, top package pressure, hydraulic material feeding system, three-speed cutting gear, cooling system and cleaning brush, bimetallic cutting band, declaration of conformity CE, DTR instruction.

Year of construction: 1989, condition: used, cutting diameter 420 mm saw band length 6300 mm table height 700 mm 0 5,5 kW cutting speed 20-130 m/min min. cut-off length 6 mm min. dia. 10 mm weight of the machine ca. 2,9 t dimensions of the machine ca. 2,4x3,3x2,4 m Fully automatic band saw, saw band tension hydraulic, cutting feed continuously variable, material feed hydraulic, automatic feed with horizontal vice. Clamping force: approx. 400-2000 daN Lasdpfx Agerc I H Ee Noh Coolant supply via three coolant nozzles, approx. 135 l, approx. 30 l/min.

Condition: used, Year of construction: 2001, Wheel diameter 680 mm sawblade length 8550 mm Sawblade width max. 1,3 mm Cutting height mm Motor output 20 kW Table dimensions 600 x 620 mm Feed speed m/min. Machine height mm Weight 10.000 kg Bandsaw horizontal, Precision-Saw for Silicon (Solar industry) Lsdpfjt Hw Uiox Ag Neah

Condition: used, Year of construction: 1994, cutting diameter 520 mm Ledjwm Rm Iepfx Ag Neah saw band length 7239 mm cutting width 1,3 mm Control POSIMOD cutting range - square - 520 x 520 mm feed length 500 mm feed length: multiple 4500 mm min. cut-off length 6 mm length of rest piece min/max 10 / 100 mm cutting speed 20 - 130 m/min dimensions of saw-band 7239 x 50 x 1,3 mm sawing motor 5,5 kW total power requirement 10,0 kW weight of the machine ca. 3,8 t dimensions of machine L x W x H 3,42 x 2,30 x 2,40 m - 2 column guided - Accessories: roller track 2500 mm length, chip conveyor, coolant

Year of construction: 1976, condition: used, cutting diameter 460 mm saw band length 4623 mm table height mm 0 4 kW cutting speed 8-80 m/min weight of the machine ca. 2,5 t dimensions of the machine ca. 2,3y2,7x2 m Laodpfsrc I Htex Ag Neh
