Vertical Machining Centre

DMG MORI DMU 40 eVo

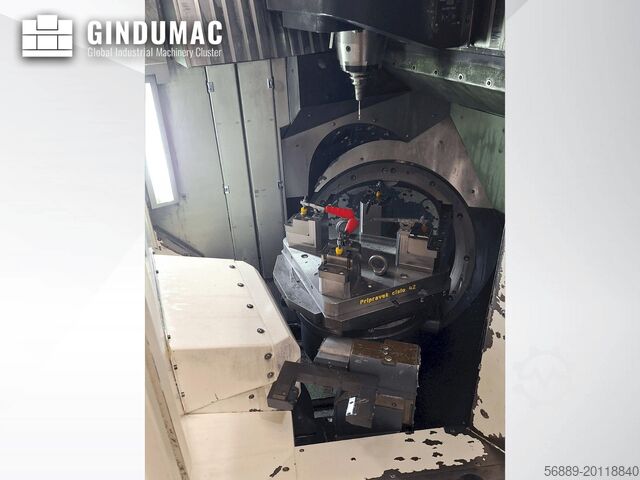

Condition: ready for operation (used), Year of construction: 2012, Axes: 5, travel X/Y/Z: 400mm/400mm/375mm, spindle speed: 18000rpm, power: 35kW, tool holder: HSK-A63, tool positions: 60, rapid traverse: 30m/min, table dimensions X/Y: 480mm/480mm, max. workpiece weight: 250kg, machine weight: approx. 8150kg, operating hours: approx. 50950h, spindle hours: approx. 20200h. The lifting and swivel unit of the pallet changer are defective. Documentation available. An on-site inspection is possible. Todpfx Adswwvw Hjljf

Condition: ready for operation (used), Year of construction: 2017, General Data Measurements width 3000 mm Measurements depth 2300 mm Measurements height 2700 mm Tsdpfx Aew S N Igedljf Machine weight 9600 kg Control Unit Brand HEIDENHAIN Model TNC 640 Main Drive Number of spindles 1 Spindle speed range 20000 rpm Tool taper SK40 Number of axis 5 Movement X-Axis Movement 600 mm Y-Axis Movement 500 mm Z-Axis Movement 500 mm Media Chip conveyor Yes Additional Equipment Chip conveyor, coolant system, tool chain magazine, internal coolant supply, extended chip flushing, rotating viewing window, mist separator, blast air, optical measuring probe, tool breakage control, flushing gun, 3D control, NC swivel rotary table, preparation for handling system, signal light, electronic handwheel, screen display. Optional accessories for sale: 48x aluminum clamping plates (own construction); 48x vices HSG5 from Ceratizit (WNT), 5x shelves (own construction), tools and holders This 5-axis DMG MORI DMU 60 EVO was manufactured in 2016. It features a Heidenhain iTNC 640 control, a spindle speed of 20000 rpm and 120-fold tool change. The machine includes a chip conveyor, coolant system, and an internal coolant supply of 40 bar. Ideal for complex machining tasks, the DMU 60 EVO represents a robust addition to any workshop. For more information about this vertical machining centre, please reach out to us. Application Types Milling

Condition: ready for operation (used), Year of construction: 2012, operating hours: 22,398 h, Control Unit Brand HEIDENHAIN Model 530 Main Drive Spindle speed range 18000 Number of axis 5 Tedswtivujpfx Adlof Movement X-Axis Movement 400 mm Y-Axis Movement 400 mm Z-Axis Movement 375 mm Tools Slots in storage 30 Type of tool holder HSK63 Additional Equipment 30 tools in magazine This DMG DMU 40 evo Vertical Machining centre was made in 2012 in Germany and has 22398 production hours. It is equipped with a HEIDENHAIN 530 control unit and has 5 axis. The machine has a spindle speed of 18000 rpm. It doesn't have internal cooling but has 30 tools in magazine. Application Types Milling

Condition: used, TECHNICAL DETAILS - Number of axes : 8 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 20 [mm] - Max. machining length : 205 [mm] - Spindle speeds : 10000 [rpm] - Spindle power : 3.7 [kW] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Max. bar diameter : 20 [mm] - Spindle speeds : 10000 [rpm] - Spindle power : 3.7 [kW] - C axis indexing precision : 1 [°] - Number of guide bush holders : 1 GUIDE BUSH HOLDER 1 - Number of positions : 12 - Number of motorized positions : 8 - Live tools speed : 7000 [rpm] END ATTACHMENT - Number of positions : 7 SECONDARY OPERATION - Number of positions : 8 - Number of motorized positions : 8 - Live tools speed : 8000 [rpm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 7 [kW] WEIGHT & DIMENSIONS - Machine floor space : 2334 x 1200 [mm] - Machine height : 1700 [mm] - Machine weight : 2600 [kg] MACHINE HOURS - Number of hours under power : 57342 [h] - Number of working hours : 31575 [h] - Number of spindle hours : 24829 [h] Tedpfx Adswcg Tiolof EQUIPMENT - CNC : Fanuc 31i-B - Rotating guide bush - Chips conveyor - Parts catcher - Parts conveying strip - Ejection of workpiece - Coolant tank - Bar loader : FMB turbo 3-26 - Electric transformer

Condition: good (used), Year of construction: 2007, - SIEMENS 840 D control - Bar capacity 65 mm - Main and sub spindle with speed 5,000 rpm - C-axis, Y-axis - 3 turrets, each with 12 stations (all driven) - Driven tool speed 4,000 rpm - Tool holder VDI 30 with drive according to DIN 5480 TRAVELS X1= 165, Z1= 220 mm Todpfx Adjuw Izveljf X2= 165, Z2= 150 mm X3= 165, Z3= 650, Y3= 80 (+50/-30) mm ACCESSORIES Coolant system Chip conveyor Bar loader TOP Automazioni XF 375

Condition: good (used), Year of construction: 2012, 900mm Swing, 650mm max. machining diameter, Tedpfxswnfzco Adlef 992 mm maximum turning length, 1500rpm spindle, 165mm bar capacity, 10 station turret 45kW spindle motor, FANUC control, 3 Jaw Power Chuck, Tailstock, Swarf Conveyor, Coolant,

Condition: good (used), Year of construction: 2015, Control Heidenhain Siemens 840 D SL Working area: 700 mm x 420 mm x 380 mm (x/y/z) Table size 840 x 420 mm BBT 30 Max. speed 10,000 rpm Direct position measuring system X,Y,Z External blown air Handwheel Nano package (increase in temperature stability) Renishaw measuring probe OMP 40-2 Automation interface incl. automation door on the left and preparation for hydraulic interface Chip conveyor (increased discharge height 1050 mm) IKZ 40 bar Additional coolant tank 400 l Coolant-blown air switchover Additional nozzles on the headstock and in the magazine Flushing in the work area via additional nozzles Flushing gun Oil and emulsion mist separator PROGRESSline Tropical package (active cooling unit for Control cabinet, spindle and spindle motor) 2-circuit clamping hydraulics with control panel Control cabinet lighting PLC project file Single load detection E1 closure BDE interface Electronic key system Max. table load 300 kg Tool changer: Number of tool positions 15 pos. Tjdpfsvzahxox Adlof Max. tool diameter 80 mm Max. tool length 250 mm Max. tool weight 3 kg Change time chip - chip 1.5 sec Feeds: Feed speed 1 - 60,000 mm/min. Rapid traverse 60 / 60 / 60 m/min Max. feed force 5,000 N Total power requirement 25 kVA Machine weight approx. 4.1 t Space requirement approx. 3.0 x 3.0 x 2.8 m

Condition: good (used), functionality: fully functional, Year of construction: 2003, working width: 4,300 mm, throat depth: 450 mm, distance between stands: 3,700 mm, operating speed: 120 mm/s, reverse speed: 120 mm/s, back gauge: 550 mm, overall weight: 21,500 kg, total length: 5,100 mm, total width: 2,000 mm, total height: 3,300 mm, pressing force: 300 t, Equipment: safety light barrier, Bending capacity: 300 Ton Bending length: 4.300 mm Distance between columns: 3.700 mm Back gauge: 550 mm Stroke length: 300 mm Throat: 450 mm Rapid approach speed: 120 mm/sec. Bending speed: 10 mm/sec. Return speed: 120 mm/sec. Controller: Delem DA65 Featured with: - Y1, Y2, X & R-axis controlled - CNC Hydraulic crowning - Various sets of bending tools - Laser safe curtain Lazer Safe - Machine manual and documentation Tjdpowc Sbrjfx Adlsf Country of origin: The Netherlands Motor power: 30 kW Machine LxWxH: 510 x 200 x 330 cm Machine weight: 21.500 kg

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, A used, overhauled Niles ZSTZ 630 C3P. Max. gear diameter: 630 mm Gear width: 215 mm Max. module: 12 Min. module: 1 Tedpfxjxaptke Adljf Stroke length: 225 mm Table diameter: 500 mm

Condition: good (used), Year of construction: 2018, swing dia. 600 mm turning diameter 310 mm turning diameter over slide 355 mm spindle bore 53 mm bar capacity 45 mm turning speed range 6000 U/min turning length 388 mm travel -z axis 400 mm travel -x axis 220 mm turret (x-stations) 12 control SIEMENS 828D (Touch) c-axis 0,001° 0 total power requirement 20 kVA weight of the machine ca. 4,5 t dimensions of the machine ca. LTH 3,7 x 2,0 x 2,0 m Includes preparation for automation (loading robot) Year of manufacture: 11/2017, delivery: 2018 - Automatic door - 12-station tool turret, driven at 5,000 rpm - Workpiece catcher - RENISHAW touch probe, automatically retractable - Tailstock - Chip conveyor - Coolant pump Accessories: Including collet chuck Including 2 x driven tool holders (radial + axial) Including 9 x fixed tool holders Including USB & LAN interface Todowgi Hyjpfx Adlef Including manuals
