CNC lathe

Haas ST-15

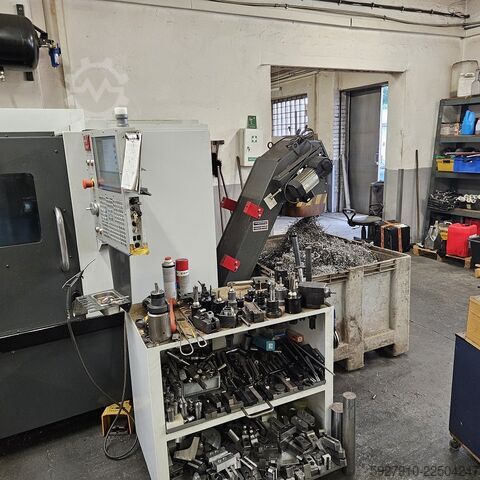

Condition: ready for operation (used), Year of construction: 2019, This 4-axis HAAS ST-15Y was manufactured in 2019 and features Y and C axes with driven tools, D210 hydraulic chuck, 65 mm spindle bore, hydraulic programmable tailstock, 12-station VDI-40 turret, and chip conveyor. If you are looking to get high quality turning capabilities consider the HAAS ST-15Y machine we have for sale. Reach out for more information. Additional equipment • Driven tools Machine Benefits Technical Machine Benefits • D210 hydraulic chuck. • D65mm main spindle bore. • Hydraulic programmable tailstock. Nlsdpfx Afjzvbppswjf • 12 pcs turret head. Vdi-40 • X, Z, Y, C-axis. • C-axis with hydraulic brake.

Condition: used, Year of construction: 1998, Turning length 322 mm Max. swing over bed ways 510 mm Max. turning dia. 279 mm Spindle speeds 60-6000 rpm Spindle bore 53 mm Turret w/12 stations Control: Fanuc 21 T Equipped with: Magazine bar feeder Hatec Rapid Load 12 Tail stock Njdpfxsx N A N Hs Afwslf Various tool holders & collets 3-jaw chuck

Condition: excellent (used), Year of construction: 2019, operating hours: 5,045 h, functionality: fully functional, machine/vehicle number: 3116946, turning diameter over cross slide: 279 mm, turning length: 406 mm, turning diameter: 279 mm, spindle bore: 64 mm, spindle speed (max.): 4,000 rpm, travel distance X-axis: 200 mm, travel distance Y-axis: 50 mm, travel distance Z-axis: 406 mm, spindle motor power: 15 W, rotational speed (min.): 4,000 rpm, rotational speed (max.): 6,000 rpm, total height: 2,167 mm, total length: 3,395 mm, total width: 1,612 mm, feed rate X-axis: 12 m/min, feed rate Y-axis: 12 m/min, feed rate Z-axis: 30 m/min, workpiece weight (max.): 3,583 kg, type of input current: three-phase, overall weight: 3,583 kg, spindle nose: -, Equipment: documentation/manual, Used turning center for sale – CNC lathe with Y-axis and driven tools, in very good condition. Contact us for further details. Model: HAAS ST-15Y Year of manufacture: 2019 Maximum turning diameter: 305 mm Maximum turning length: 406 mm Y-axis travel: 102 mm Bar capacity: 64 mm Chuck size: 8 inches Maximum spindle speed: 4000 rpm Nledpfozr E H Djx Afwef Number of controlled axes: 4 Spindle motor power: 14.9 kW Tool size: BOT 6/12 VDI40 Controls: HAAS 2019 Voltage: 440V AC Weight: 3583 kg Dimensions (L x W x H): 3030 x 1550 x 1810 mm Additional Equipment: VPS Programming System, Hydraulic Tailstock, HAAS Auto-door, Chip conveyor, 6000 rpm Live Tools Resale capability included. The center is in very good condition. It is currently in continuous operation and connected to power. The machine operated in one shift.

Condition: ready for operation (used), Year of construction: 2020, spindle speed (max.): 4,000 rpm, travel distance X-axis: 200 mm, travel distance Y-axis: 102 mm, travel distance Z-axis: 406 mm, spindle motor power: 14,900 W, number of axes: 4, This 4-axis HAAS ST-15Y was manufactured in 2020. It features a maximum spindle speed of 4000 rpm and a spindle power of 14.9 kW. The machine has a workpiece diameter over the bed of 419 mm and a maximum cutting length of 406 mm. If you are looking to get high-quality turning capabilities, consider the HAAS ST-15Y horizontal turning machine we have for sale. Contact us for further details. • Capacities • Chuck size: 210 mm • Max part swing: 419 mm • Max cutting diameter (BOT or VDI turret): 305 mm • Max cutting length: 406 mm • Bar capacity: 64 mm • Feedrates (rapid) • X-axis: 12.0 m/min • Y-axis: 12.0 m/min • Z-axis: 30.5 m/min • Axis motors (max thrust) • X-axis: 10,676 N • Y-axis: 10,231 N • Z-axis: 16,458 N • Spindle • Spindle nose: A2-6 • Spindle bore: 88.9 mm • Max spindle torque: 203 Nm at 500 rpm • Main spindle C-axis Nodpfx Aezlr I Iefwjlf • C-axis power: 3.7 kW • Max speed: 60 rpm • Positioning accuracy: ±0.02° • Brake clamp force: 4448 N • Brake diameter: 366 mm • Brake holding torque: 190 Nm • Control: Interpolated motion and positioning • Turret and tooling • Turret: 12-station hybrid (6 VDI / 6 BOT) • Tool taper: VDI40 • Live/rotating tools: Yes, max speed 4000 rpm • Boring bar rear clearance: 19.1 mm • Tool stations: 12 • Tailstock • Type: Hydraulic tailstock • Quill travel: 95 mm • Manual body positioning: 508 mm • Thrust range: 623–5027 N • Coolant and air • Coolant capacity: 114 L • Air required: 113 L/min at 6.9 bar • Electrical • Input AC voltage (3-phase high): 440 VAC • Full load amps (3-phase high): 20 A • Full load amps (3-phase low): 40 A • Configuration notes • C-axis: Yes • Y-axis: Yes • Driven tools: Yes • Counter spindle: No Technical Specification Counter Spindle No Driven Tools Yes

Condition: good (used), Year of construction: 2005, Parts shown by hand not come. Nljdpfx Aevf D Anjfwjf

Condition: ready for operation (used), Year of construction: 2023, operating hours: 208 h, spindle speed (max.): 4,000 rpm, travel distance X-axis: 200 mm, travel distance Z-axis: 406 mm, number of axes: 2, Horizontal turning machine manufactured in 2023. This HAAS ST-15 features a maximum spindle speed of 4000 RPM and includes a 12-station bolt-on turret. It comes equipped with a Haas Bar Feeder and a hinged belt chip conveyor for efficient operation. If you are looking to get high-quality turning capabilities, consider the HAAS ST-15 machine we have for sale. Contact us for further details regarding this machine. • Condition: very good • Power on time: 1369:37:08 h • Cycle start time: 373:45:41 h • Feed cutting time: 208:26:21 h • Finished parts counter: 250 • M30 counter 1: 1577 • M30 counter 2: 14238 • Electrical: 440 V, 3-phase, 50/60 Hz • Full load amps: 20 A Nsdpfx Ajy R Dh Tsfwjlf • Largest load: 18 A • Sub-spindle: not equipped (max speed 0 rpm) • LT-spindle: not equipped (max speed 0 rpm) • Memory: 1 GB Technical Specification Counter Spindle No Driven Tools No

Condition: ready for operation (used), Year of construction: 2019, spindle speed (max.): 4,000 rpm, travel distance X-axis: 200 mm, travel distance Z-axis: 406 mm, spindle motor power: 14,900 W, number of axes: 2, Horizontal turning machine manufactured in 2019. This HAAS ST 15 features a maximum cutting diameter of 356 mm and a cutting length of 406 mm. It includes a 12-station VDI turret and a hydraulic chuck diameter of 210 mm. If you are looking to get high-quality turning capabilities, consider the HAAS ST 15 machine we have for sale. Contact us for further details. • CNC Control: HAAS Next Generation Control (NGC) • Max cutting diameter: 356 mm • Max cutting length: 406 mm • Max bar capacity: 63.5 mm • Max swing diameter: 419 mm • Max spindle speed: 4,000 rpm • Spindle nose: A2-6 • Hydraulic chuck diameter: 210 mm • Spindle motor power: 14.9 kW (20 hp) • Turret type: 12-station VDI • X/Z axis rapids: 30.5 m/min Additional equipment • Automatic tool probe (tool setter) • Tailstock with hydraulic quill • Belt-type chip conveyor • Coolant system with tank and pump Technical Specification Counter Spindle No Driven Tools No Nedpfx Afszdrhlowelf

Condition: ready for operation (used), Year of construction: 2005, spindle speed (max.): 6,000 rpm, travel distance X-axis: 260 mm, travel distance Z-axis: 590 mm, number of axes: 6, This 6-axis MORI SEIKI NL2000SY/500 was manufactured in 2005, featuring X-axis travel of 260 mm, Z-axis travel of 590 mm, spindle power of 5.5 kW, and a spindle speed of 6,000 rpm. It includes a 12-position tool turret. If you are looking to get high-quality turning capabilities, consider the MORI SEIKI NL2000SY/500 machine we have for sale.Contact us for more information. Nlsdpfx Aex D R Auofwsf • Tool turret: 12 positions

Condition: excellent (used), Year of construction: 2020, operating hours: 7,320 h, machine/vehicle number: 3119208, turning length: 406 mm, turning diameter: 305 mm, spindle motor power: 14,900 W, spindle speed (max.): 4,000 rpm, spindle bore: 64 mm, travel distance X-axis: 200 mm, travel distance Z-axis: 406 mm, For sale: Used CNC lathe HAAS ST15 in very good technical condition. Operating hours: 7,320. Reason for sale: Standardization of machinery for compatibility with the rest of the machine park. Key features: Nledpfx Afsy A I Nxjwef • Automatic Door • Renishaw WIPS Probing System • Hybrid BOT/BMT Turret (Dual Mount Tooling) • Live Tooling (Driven Tools – milling option) • Sub-Spindle (6,000 RPM) • Parts Catcher (if installed) • Chip Conveyor • Control Cabinet Cooler • Wireless Networking (WiFi) • Rigid Tapping • Extended Program Memory (1GB) • VPS Programming (Visual Programming System) For more information, please contact us by phone or email.

Condition: good (used), Year of construction: 2007, travel distance X-axis: 1,060 mm, travel distance Y-axis: 510 mm, travel distance Z-axis: 635 mm, table width: 500 mm, table length: 1,200 mm, Spindle speed 10.000 Rpm Coolant tank with IKZ 20 bar Chip conveyor X - Travel: 1060mm Y - Travel: 510mm Z - Travel: 635mm Table Length: 1200mm Table Width: 500mm Feed rate X-Axis: 20000mm/min. Feed rate Y-Axis: 20000mm/min. Feed rate Z-Axis: 20000mm/min. Spindle Taper: 40ISO/Bt/Mk Power on spindle: 15kW Njdpfexdxhrsx Afwslf Speeds / ranges: 10000Rpm ATC / revolver: 24 Coolant through spindle / Bar:20 Number of controlled axis: 3 Chip conveyor: Yes Coolantsystem: Yes Length: 2915mm Width: 2361mm Height: 2800mm Weight: 7000kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
