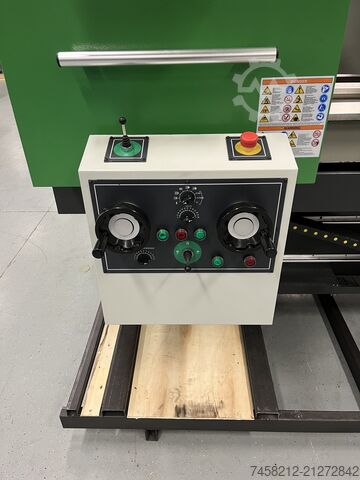

CNC lathe 400x750 with Siemens 828D

Huvema HU 400x750

Condition: excellent (used), Year of construction: 2014, turning length: 700 mm, travel distance X-axis: 205 mm, travel distance Z-axis: 700 mm, spindle motor power: 22,000 W, total height: 2,800 mm, total length: 6,000 mm, total width: 3,900 mm, overall weight: 9,800 kg, Complete machining with twin spindel, upper and lower turrets Kitagawa 3 chuck left and right Tool holders with driven tools axial and radial Large jaws cabinet with inserts OGL Gantry loader with ca 10 Kg load capacity Chip conveyor Paper Filtration Pressure Tank Max. turning Ø: 400mm X-Axis: 205mm Z-Axis: 700mm Spindle bore: 62mm Speedrange: 6000Rpm Spindle power: 22kW Subspindle speeds: 6000Rpm Subspindle bore: 62mm Subspindle power: 15kW ATC / revolver: 16 Hodpfx Aasyn Em Rjzju Speed live tools: 6000Rpm Positions lower revolver:16 Speed live tools: 6000Rpm Power live tools: 7kW Chip conveyor: yes Tool eye: yes Length: 6000mm Width: 3900mm Height: 2800mm Weight: 9800kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: used, Year of construction: 2018, operating hours: 10,347 h, total height: 2,400 mm, total length: 7,000 mm, total width: 2,400 mm, Colour: Grey Empty weight: 3.450 kg - Year: 2018 - Documentation available: Yes - CE marking present: Yes - CE certificate present: Yes - Operating hours: 10347 - Number of milling spindles [pcs.]: 1 - └ Milling spindle 1: - - Number of controlled axes [pcs.]: 5 - - Min. spindle speed [rpm]: 600 - - Max. spindle speed [rpm]: 24000 - - Main motor power [kW]: 8.5 - - C-axis present: Yes - Type milling table: Beam table - Tool holder: HSK-F63 - Material clamp system: Pneumatic - Drilling unit present: Yes Hedpfx Aasxtbgpozju - └ Motor power [kW]: 2.64 - └ Horizontal drill spindles [pcs.]: 10 - └ Vertical drilling spindles [pcs.]: 24 - Saw unit present: Yes - Tool changer positions [pcs.]: 25 - System/software: Xilog plus - Safety feature: Bumper guard - Vacuum pump present: Yes - └ Number [pcs.]: 1 - └ Brand: Becker - └ Type: Picchio - └ Year of manufacture: 2018 - └ Main motor power [kW]: 2.5 - └ Capacity [m³/h]: 108 - └ Connection diameter [mm]: 80 - └ Oil free: Yes - CNC options: Laser for vacuum pod positioning, Offcut conveyor, Barcode reader - Working range X [mm]: 3110 - Working range Y [mm]: 1320 - Z-axis working range [mm]: 180 - Voltage [V]: 400 - Current consumption [A]: 47.2 - Fuse [A]: 63 - Power [kW]: 10.0 - Transport dimensions: 7000mm x 2400mm x 2400mm (l x w x h) - Transport weight [kg]: 3450kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels

Year of construction: 1982, condition: used, In Good Condition Hodpfxjdq Ug Ij Aazsu

Condition: good (used), Year of construction: 2011, machine/vehicle number: 2212.287, Automatic panelsaw Schelling Typ:FH 6 430 Maskin nr:221.287 År:2011 Panel beam saw Schelling with automatic, rear-feed,lifting table. For sawing board material, chipboard, MDF, Plywood, Board, Laminate etc. Techn info: Software MCS Evolution 2.0, SPS, Soft-SPS-Siemens WinAC Operating system WINDOWS XP PC with keyboard and mouse TFT monitor 17" Cutting length 4300mm, automatic detection of the start of the plate Cutting width 4300mm Machine accuracy of the cut length 3m +-0.1mm Positioning accuracy measured at input +-0.1mm Max diameter saw blade 460mm, spindle 30mm Pre-scoring blade 200mm, spindle 20mm motor operation is set from the control console Max panel thickness 120mm Panel stack aligner Main saw blade motor 27kw Saw blade over table 135mm Hodpfotk It Sjx Aazeu Safety curtain Air cushion table with 3pcs air ball nozzles, radial ventilator fan Table sizes 2650x850mm 620x850mm 2650x2550mm Pressure beam with automatic adjustment of pressure to cut length and package height Package straightener before and after the pressure beam Max package height 120mm (incl. sum of curvature and board thickness tolerance) Pusher with 12 grippers Max clamp opening (gripper) 133mm Min-max force package straightener 400/2000N Speed saw carriage forward 6-150m/min Speed saw carriage back 150m/min Forward feed speed (pusher) up to 25m/min (according to EC Europa EN1870-13) other countries 80m/min Speed feeding back up to 80m/min Push-off device 3 pcs Lift table length x width 4350x2550mm Hydraulic unit Standard version 1600mm lifting height 1.25/2.5m/min raising speed, 1.25/5m/min lowering speed Maximum load 1200 kg/m2 total 9 tons Roller track driven rollers, frequency controlled for stack on lifting table 4100x2600mm Max stack weight 6500 kg Max stack length 1060mm Slots for forklift 4 pcs, distance in the middle 1200mm, slot width 300mm Light curtain for personal protection Roller conveyor driven for package frequency controlled input to lifting table left 5600x2600mm max load 6500kg Roller conveyor driven for packages frequency controlled input to lifting table right 5600x2600mm max load 6500kg Slots for forklift 2 pcs, center distance 900mm, slot width 400mm 2 positioning stops with roller for stack alignment Light curtain (double beam) for personal protection Roller table after saw depth 4300mm, free-running ployamide rollers Angle stop at the rolling table Infeed guide two-lane (beam length 7200mm) 2-sided hardened precision guides rack and pinion drive, two-sided Input carriage (pusher) gear rack servo drive, non-contact measuring system Gripper, (scissor clamps) in pusher 12 pcs Automatic adaptation of the clamping force to the package height (progressive clamping force) can be set to 0 Pusher for panels thickness greater than 6mm,material thinner than 6mm is fed manually Central cleaning system feed trough (pusher) Compressed air 6-8 bar, approx. 1600l/min Power 38 kw, 70 A. 3x400 volts, 50 Hz, operating voltage 24 VDC Dust extraction 4000m/h, air speed 30m/s Diameter connection 80mm (angle connection), 120mm /pressure beam), 150mm (sawdust channel) Total setup area without driven roller conveyors including protective grid approx: 11650x7300mm Driven roller tracks left-right 5500+5500mm Stock no: 2002125BXACEO Subject to incorrect technical data presented

Condition: excellent (used), Year of construction: 2020, travel distance X-axis: 8,000 mm, travel distance Y-axis: 1,300 mm, travel distance Z-axis: 2,500 mm, rapid traverse X-axis: 35,000 m/min, rapid traverse Y-axis: 40,000 m/min, rapid traverse Z-axis: 40,000 m/min, total width: 5,800 mm, total height: 4,500 mm, total length: 13,500 mm, table length: 10,000 mm, table width: 1,250 mm, Travelling Column High performance, precision and machining power Linear guiding of RAM combined with Hydrostatic Guiding HDS ACD2 Milling head with 5000 Rpm and 1400 Nm torq Aitek ATC chain 60 position with L=400 and 250 diameter x 35 Kg Filtration with IKZ 15 Bar Chip conveyor BLUM 3D Measuring probe Wide bed linear guided in X-Travel W=930 mm Rotary table driver prepared in E-Cabinet X-Axis: 8000mm Y-Axis: 1300mm Z-Axis: 2500mm Table Length: 10000mm Table Width: 1250mm Power on spindle: 40kW Spindle speeds: 5000Rpm Spindle Taper: 40ISO/Bt/Mk Feed rate X-Axis: 35000mm/min. Feed rate Y-Axis: 40000mm/min. Feed rate Z-Axis: 40000mm/min. Millinghead auto-index:0.001 x 0.001 Gr° Working hours: 3800H Length: 13500mm Width: 5800mm Hodpfx Ajyr Dmdeazju Height: 4500mm Weight: 45000kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: used, TECHNICAL DETAILS - Number of axes : 5 MILLING SPINDLE - Tool holder type : HSK63 - Spindle speeds : 18000 [rpm] - Spindle power : 25 [kW] LINEAR AXES - Travels on X/Y/Z axes : 760 / 510 / 520 [mm] - Rapid traverses rates (X/Y/Z) : 45 / 45 / 40 [mm/min] A ROTARY AXIS - Travel : -110 / +30 [°] - C ROTARY AXIS - Travel : 360 [°] - Rapid traverse rate : 25 [rpm] TOOL CHANGER - Auto. Tool Changer type : Bras chargeur - Tool magazine capacity : 40 TABLE - Table dimensions : Ø248 [mm] Hedpfsy Tzctsx Aazeu - Maximum weight upon table : 200 [kg] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 48 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 3.940 x 4.060 [mm] - Machine height : 2.865 [mm] - Machine weight : 6000 [kg] EQUIPMENT - CNC : Hurco WinMax / MAX5 - Interactive programming - Electronic handwheel - Coolant tank * with high-pressure pump - Coolant through spindle - Chips conveyor - Spindle cooling unit

Condition: excellent (used), Year of construction: 2014, operating hours: 21,200 h, functionality: fully functional, machine/vehicle number: 256316, turning length: 1,000 mm, turning diameter: 730 mm, spindle motor power: 18,500 W, spindle speed (min.): 35 rpm, spindle speed (max.): 12,000 rpm, travel distance X-axis: 1,100 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 900 mm, rapid traverse X-axis: 50,000 m/min, rapid traverse Y-axis: 50,000 m/min, rapid traverse Z-axis: 50,000 m/min, rotational speed (max.): 1,000 rpm, rotational speed (min.): 35 rpm, type of input current: three-phase, torque: 160 Nm, workpiece weight (max.): 680 kg, spindle nose: Cône 7/24, N°40, table load: 880 kg, number of slots in tool magazine: 120, pallet changer: automatic, Equipment: CE marking, chip conveyor, documentation/manual, Secondhand Mazal Integrex i500V Hodpfxjyymrme Aazou

Condition: good (used), Year of construction: 2008, turning length: 12,000 mm, spindle motor power: 60,000 W, total height: 3,800 mm, total length: 23,000 mm, total width: 7,600 mm, swing diameter over cross slide: 1,520 mm, turning diameter over bed slide: 1,140 mm, workpiece weight (max.): 20,000 kg, overall weight: 58,000 kg, Equipment: documentation/manual, CNC Lathe Giuseppe Giana - GGH 1100/760 x 12.000 CNC MACH-ID 9439 Make: Giuseppe Giana Type: GGH 1100/760 x 12.000 CNC Control: Siemens 840 D-SL Hedpfoyl Uh Sjx Aazju Year: 2008 3 bed way construction Bed width 1100 mm 3 x C-Type Steady rest on lower base with in feed 2 x Fixed steady rest 300 - 800 mm with 5 ton 2 x Chip conveyor 4 Chuck 1000 mm Barafuldi 4 way turret head Swing over bed Ø: 1520mm Swing over cross slide Ø:1140mm DBC Turning Length: 12000mm Spindle bore: 155mm Spindle power: 60kW Bed width: 1100mm Tailstock spindle Ø: 310Ø Stroke pinole: 300mm Spindle taper: 1:4 taperMk Workpiece weight: 20000 Power: 80A Speeds / ranges: 0-800Rpm Feed rate X-Axis: 0-8000mm/min. Feed rate Z-Axis: 0-8000mm/min. Length: 23000mm Width: 7600mm Height: 3800mm Weight: 58000kg

Condition: excellent (used), Year of construction: 2008, HYPERTURN 665 MCplus - B-PowerMill Multi-Axis CNC Turning Center with automatic tool changer, Y-axis and B-axis, for complete machining of turned-milled parts. Integrated spindle motors (ISM) on main and sub-spindle with thermocompensation system (liquid cooled). Drive power: Main spindle - 29 kW Sub-spindle - 22 kW Speed range: Main spindle 0-5000 rpm Sub-spindle 0-7000 rpm Spindle interface (DIN 55026): Main spindle KK 6 (bore 65 mm) Hedpfsxz Ab Rjx Aazsu Sub-spindle KK 6 Y-axis: travel range +/- 50 mm The Y-axis is designed so that the resulting cutting forces are distributed over two axes, providing extremely high rigidity for all machining operations. B-PowerMill: For machining inclined surfaces and bores, a motor-driven milling spindle with a 24-position tool magazine is integrated into the upper slide system. The swivel range of 210° is infinitely adjustable and can be interpolated. Preloaded roller guides in all linear axes, digital drive system, integrated spindle encoder, state-of-the-art SINUMERIK 840D control technology, includes: * Hollow clamping cylinder incl. draw tube * Part ejector and coolant supply through the sub-spindle * 12-position VDI 30 radial tool turret with directional logic for up to 12 driven tool stations Swivel speed adjustable with feed switch. Performance data: Max. 6.7 kW at 2650 rpm Constant torque 25 Nm Speed range 0-5000 rpm - C-axis for main and sub-spindle - TRANSMIT software for easy C-axis programming * Parts catcher for finished parts * Sinumerik 840D * Chip conveyor with a programmable discharge height of 1200 mm (hinged belt type) * Coolant system integrated in the chip conveyor: 1 high-pressure pump with 14 bar 1 high-pressure pump with 14 bar incl. 20 µm fine filter 2 flushing pumps with 3.7 bar * Control cabinet air conditioning unit * Electrostatic oil mist separator * Hydraulic unit * Machine lamp * Interface for foot switch * Documentation Included: - Handwheel - PC keyboard - Network preparation - Tool monitoring - Swing-out window - Cleaning gun - Signal lamp Year of manufacture: 2008 Machine No.: R7AW0401

Condition: good (used), Year of construction: 2018, functionality: fully functional, machine/vehicle number: 10000241, workpiece height (max.): 160 mm, workpiece width (max.): 310 mm, number of spindles: 4, WEINIG POWERMAT 1500 - SPECIAL MACHINE CONFIGURED FOR MILLING WOODEN DOOR FRAME PANELS Working width 30 - 310mm (with tool flight circle 93-125mm) Working height 10 - 160mm (with tool flight circle 93-163 mm)Description of machine parameters Hedouygcwopfx Aazou Number of spindles 4 Spindles bottom 1 Spindles right 1 Spindles left 1 Spindles top 1 Separate motor for each spindle Electronic feed incl. brake, infinitely variable 5-40 m/min. Short infeed table 1.2 m long with 2 driven rollers above the table Hard-coated machine table surface Manual lubricant pump WEINIG Comfort Set Control system WEINIG MEMORY PLUS-SYSTEM CE mark Declaration of Conformity
