Lead-/feed-screw lathe WEILER 230

WEILER COMMODOR 230

Condition: excellent (used), Year of construction: 1992, functionality: fully functional, Weiler Commodor 230 Lead and Feed Spindle Lathe with 3-Axis Digital Readout K&C NEW Excellent Condition Bledpjxdi Shofx Aczsr Technical Data: - Year of manufacture: 1992, Machine No. 239 - Centre height: 230 mm - Centre distance: 1000 mm - Spindle speeds: from 13 to 2000 rpm - Spindle bore: 56 mm - Short-taper spindle nose DIN 55027 size 6 with bayonet lock - Tailstock: MT 4 - Feeds from 0.026 to 0.888 mm/rev - Possible threads: Metric, Inch, Module, and Diametral Pitch - Metric thread pitches from 0.35 to 12 mm - Weight approx. 2000 kg - Spindle brake engageable - Drive power: 7.5 kW - Length 2.2 m, Height 1.5 m, Depth 1 m Accessories and Equipment: - 3-axis digital readout by K&C, new, 12 months manufacturer warranty with user manual Functions: mm/inch toggle, coordinate selection ABS/INC, value halving, reference mark, tool programming for 200 tools, taper calculation, radius/diameter, rapid zeroing, counting direction selection - NEW 200 mm 3-jaw chuck, 2 sets of jaws - Multifix size B with 2 tool holders - Bed stop - Machine lamp - Coolant system About the Machine: Offered is a Weiler Commodor 230 lathe in excellent condition. The Commodor 230 is one of the largest manual lathes manufactured by Weiler—a very robust and powerful machine. The new K&C 3-axis digital readout makes operation even easier and more precise. The machine has been electrically and mechanically tested by us and a complete oil change has been performed. This newer generation of Weiler lathes is very user-friendly. Take the opportunity to inspect and test the machine under power at our location.

Condition: reconditioned (used), Year of construction: 2001, functionality: fully functional, machine/vehicle number: 3595, Ladies and Gentlemen, We are selling a Weiler Commodor B lathe built in 2001 with Heidenhain 3-axis digital readout. The machine has been extensively overhauled in our workshop. Among other things, the main spindle bearing and the lead/traction spindle bearing were completely renewed! Technically, geometrically and visually, the machine is in excellent condition, which you are welcome to see for yourself on site. Availability: on request Machine no. 3595 Year of construction: 2001 Center height: 180mm Center width: 1000mm Bsdothd Shopfx Aczjlr spindle passage: Ø 56mm max. spindle speed: 2000 rpm Tailstock taper mount: MK4 Feed range: 0.026 - 0.888 mm/rev Possible thread types: Metric, inch, module, diametral pitch Metric thread pitches: 0.35 - 12 mm Spindle brake: switchable Connected load: 4kW Dimensions: approx. 2.2x1.5x1m (LxHxW) Weight: approx. 1.8t Further equipment and accessories: 3-axis digital display, coolant device, chuck guard, pull-out chip tray, 3-jaw chuck Röhm, 4-jaw chuck Röhm, various clamping jaws... Our service promise to you: - We are a certified master company in the field of mechanical engineering - All machines are thoroughly checked - All lubricants and any worn parts are replaced in advance - On request, we can completely or partially overhaul your chosen machine - On request, we can repaint the selected machine in the color of your choice E00f3g2rl - On request, you can also order additional accessories such as tools etc. directly - On request, we can install additional accessories such as safety devices etc. - We are happy to take care of shipping and/or installation

Condition: new, turning diameter 560 mm turning length 1910 mm swing diameter over bed slide 355 mm Swingdiameter in the bed bridge 790 mm centre height 280 mm Turning length in the bed bridge 170 mm reus 12 (25-1600) U/min tail stock MK 5 quill stroke 180 mm diameter of quill 75 mm spindle taper DIN ISO 702-2 Nr. 8 spindle bore 80 mm Bledpfx Acsucgr Iezor spindle cone MK 7 feed längs 35 / 0,059 - 1,646 m/min feed plan 35 / 0,020 - 0,573 m/min total power requirement 8,5 kW weight of the machine ca. 2560 kg dimensions of the machine ca. 3450 x 1150 x 1650 mm Fully equipped master and feed spindle lathes. TH 4215 with digital position indicator DPA 21 / 3462070 - Hardened and ground Z-axis guideway - Spindle mount Camlock DIN ISO 702-2 No. 6 - Precisely crafted slide - Hand wheels with adjustable fine scaling 0.04 / 0.02 mm - Quadruple steel holder - All guides can be adjusted using V-ledges - Adjustment range top slide ± 90° - Guaranteed concentricity of the spindle nose better than 0.015 mm - Main spindle running in oil bath - Smooth-running gear wheels, hardened and ground with 2 adjustable Precision tapered roller bearings - Hand wheels decoupled and tested according to EN 23125 - Two-channel right-left switch tested according to EN 23125 - Switch with life cycle calculation, tested according to EN ISO 13849 - All metric pitches in the range 0.2 to 14mm/rev and all Inch threads in the range of 72 - 2 threads per inch without changing the Change gears adjustable by shift lever in the control panel - Clockwise/counterclockwise rotation can be switched on the bed slide via the switching spindle - Central lubrication in bed slide - Meehanite cast base and machine bed in one piece - Lead screw cover - Emergency stop device with foot control - Safety handwheels with snap-out function in the X and Z axes - Tailstock for taper turning adjustable ± 10 mm - Tailstock quill and hand wheel with adjustable fine scaling 0.025 mm - Quick, easy and tool-free adjustment using a clamping lever - Heavily ribbed prism bed, induction hardened and precision ground cast iron - Coolant device with separate coolant tank with level indicator and oil separator; easy and complete emptying and cleaning according to DIN - LED machine lamp in the chip guard Models TH 4210D and TH 4215D with digital readout DPA21 - User-friendly membrane keyboard, splash-proof, closed andglare-free - Glass scales scope of delivery - Fixed bezel passage Ø 15 - 145 mm - Revolving bezel passage Ø 10 - 75 mm - LED machine light - Reducing sleeve MT 6 / MT 4 - Fixed center MK 4 - Change gear set - Position stop with fine adjustment - Initial filling of the machine with quality oil - Operating tool Incl. special accessory OPTIMUM three-jaw lathe chuck centrically clamping Ø 250 mm Quick change holder SWH5-B set

Condition: excellent (used), Year of construction: 1990, functionality: fully functional, Weiler Commodor – Lead and Feed Screw Lathe (partially overhauled, year approx. 1990) Condition: Partially overhauled, very good overall condition Year of manufacture: approx. 1990 Manufacturer: Weiler Model: Commodor Machine type: Lead and feed screw lathe Technical specifications (approx.): Max. turning diameter over bed: 380 mm Max. turning diameter over carriage: 190 mm Max. turning length: 1000 mm Bsdpfx Ajxv Sucoczjlr Bar capacity: 56 mm Spindle speed range: 25 – 2000 rpm Spindle nose: A2-6 Drive power: 4.0 kW Tailstock: MT4 Automatic longitudinal & cross feeds: 0.011 – 0.80 mm/rev Thread cutting range: • Metric: 0.3 – 10 mm • Inch: 80 – 2 ¾ TPI • Diametral pitch: 80 – 5.5 Dp • Module: 0.2 – 5 Dimensions (L x W x H): 2200 × 1200 × 1800 mm Weight: approx. 1500 kg ⚙️ Equipment & accessories: • 3-axis digital readout SINO (new) • 200 mm 3-jaw chuck (new) • Quick-change tool post size B + 1 insert • Bed stop • Work lamp (new) • Coolant system (new) • Complete documentation • Electrical chuck guard (new) • Emergency STOP switch • Various chuck keys Optional accessories: • Drill chuck • Live center • Lead and feed screw guard • Collet system 173E + collet set • Additional quick-change tool posts ✅ Special features: The machine has been partially overhauled and is in very good technical and visual condition. Ideal for workshops, training, single-part production, or maintenance. Delivery time: On order / on request – Subject to prior sale.

Condition: as good as new (ex-display), Year of construction: 2021, functionality: fully functional, machine/vehicle number: 22012101118, spindle bore: 21 mm, center height: 100 mm, turning diameter: 200 mm, type of input current: AC, turning diameter over bed slide: 110 mm, input voltage: 230 V, spindle speed (max.): 2,500 rpm, rotational speed (max.): 2,500 rpm, rotational speed (min.): 150 rpm, spindle speed (min.): 150 rpm, tailstock quill mount: MK 2, spindle mount: MK 3, total width: 425 mm, total length: 830 mm, total height: 360 mm, tailstock quill stroke: 65 mm, Equipment: rotational speed infinitely variable, Working Ranges Center Height: 100mm Center Distance: 300mm Swing Diameter over Cross Slide: 110mm Bed Width: 100mm Speed Range Speed Control: electronically adjustable Number of Speed Ranges: 2 Speed Range: 150 – 2500 rpm Electrical Data Drive Motor Power: 0.6kW Connection Voltage: 230V Mains Frequency: 50Hz Standards and Approvals Standard: DIN EN 55011 EMC Class: C1 Spindle Spindle Bore: 21mm Tool Holder Maximum Mounting Height: 12mm Chuck Passage Diameter: 20mm Spindle Taper: MT 3 Bledpsw Imhvjfx Aczor Tailstock Tailstock Taper: MT 2 Tailstock Quill Travel: 65mm Leadscrews Metric Pitch: 0.25 – 3mm/rev Number of Metric Pitches: 14 Inch Pitch: 44 – 8 TPI Number of Inch Pitches: 12 Travel Cross Slide Travel: 55mm Compound Slide Travel: 75mm Carriage Travel: 300mm Feed Longitudinal Feed Range: 0.1 – 0.2mm/rev Number of Longitudinal Feeds: 2

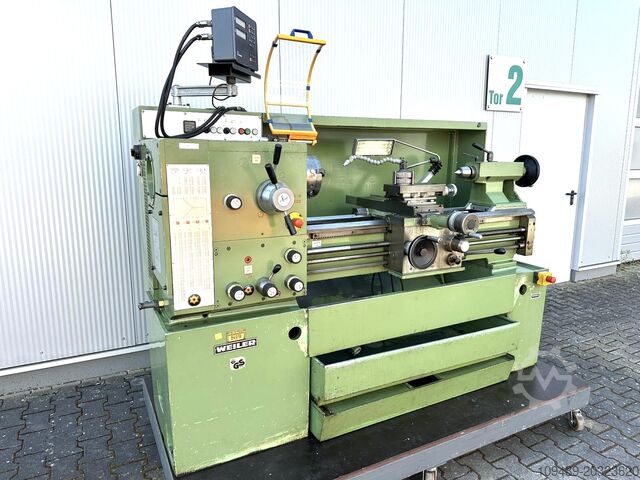

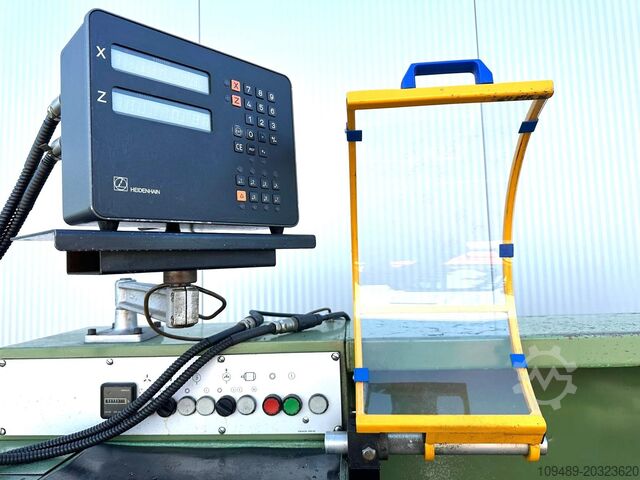

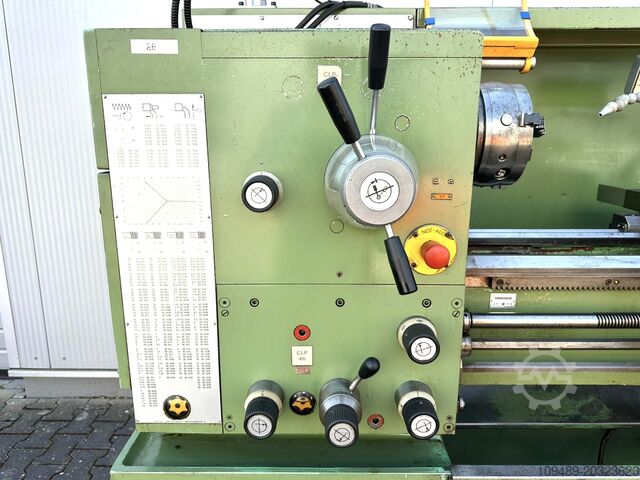

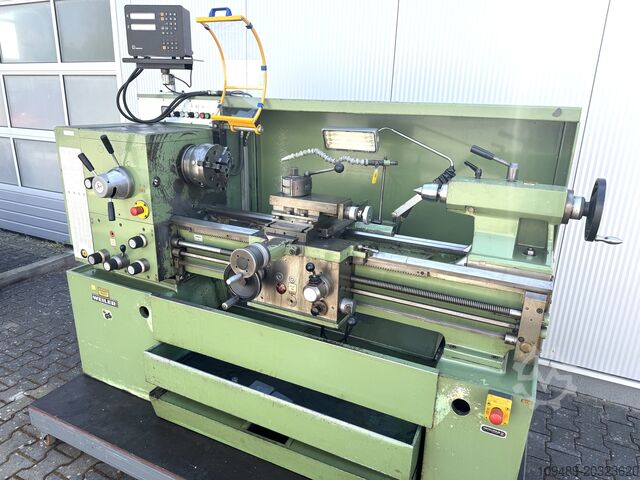

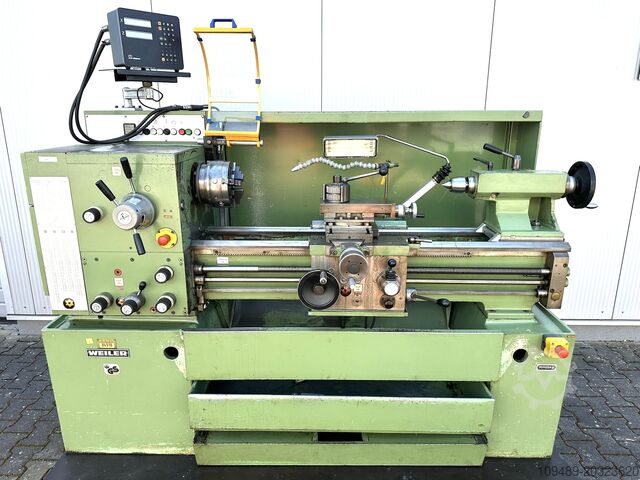

Condition: good (used), WEILER Commodor B Lathe Bljdpfx Asxz Rc Nsczjr Year of manufacture: 1987 with HEIDENHAIN 3-axis digital readout Centre height: 190 mm Centre distance: 950 mm Swing diameter over cross slide: 190 mm Spindle bore: 56 mm Spindle speeds: 25–2,000 rpm Number of speed steps: 18 Motor power: 2/4 kW Longitudinal feeds: 0.022–0.8 mm/rev Cross feeds: 0.011–0.4 mm/rev Number of feeds: 200 Metric thread pitches: 0.3–10 mm Weight: approx. 1,500 kg Dimensions: 2,350 x 1,000 x 1,450 mm Technical data subject to change! This machine is ideal for users who require a large spindle bore. Accessories/Equipment: - HEIDENHAIN 3-axis digital readout - Independently adjustable faceplate - Electrically interlocked chuck guard - Multifix toolpost size "B" - Machine lamp - Coolant system - Rear chip guard - 2 emergency stop buttons - Bed stop - Additional accessories as available (drill chuck, rotating centres, tool holder cassettes, etc.) Available from March 2026 from vocational training centre Condition: good to very good

Condition: used, Year of construction: 1961, functionality: fully functional, turning diameter over cross slide: 300 mm, turning diameter: 500 mm, center width: 1,600 mm, spindle speed (max.): 1,400 rpm, spindle speed (min.): 28 rpm, WMW heavy-duty lathe DFU 500 Year of manufacture: 1961 Fully functional Distance between centers: 1600 mm Max. diameter on the table: 500 mm Max. diameter over saddle: 300 mm Spindle diameter: Ø 50 mm Spindle speed: from 28 to 1400 RPM 3-jaw chuck Ø 200 mm Tailstock CM4 Automatic feeds cross + longitudinal + rapid traverse Lubrication pump The machine was used as a lathe for model making. Collection must absolutely take place in December 2025 at the latest. The lathe and additional woodworking machines can be inspected and tested at any time. Location: Leipzig. Bledpexzr Sxefx Aczor

Condition: not inspected (used), Year of construction: 1991, Lead and feed screw lathe Weiler Commodor Manufacturer: Weiler Delivery time: Immediate - Subject to prior sale Machine is untested Year of manufacture: 1991 L x W x H: approx. 2200 x 1200 x 1800 mm Weight: approx. 1500 kg Dimensions: Swing over bed: approx. Ø380 mm Swing over cross slide: approx. Ø190 mm Turning length: approx. 1000 mm Bar capacity: approx. Ø56 mm Spindle: Speed range: approx. 25-2000 rpm Spindle nose: A 2-6 Drive power: approx. 3.8 kW Automatic longitudinal and facing feeds: Feed range: approx. 0.011–0.80 mm/rev Suitable for threads: Metric 0.30-10 mm Inch 80 – 2 3/4 TPI Diametral Pitch 80 – 5.5 DP Module 0.2 – 5 Tailstock: MT4 Bsdpfexvpapjx Aczslr

Condition: used, Year of construction: 2025, The ZX7045 BXL DRO milling/drilling machine is an advanced tool ideal for drilling, reaming, hole expansion, screw threading, milling, and rebating. It offers versatile use in cast iron machining, enabling precise operations on holes up to 32/45 mm and screw threading up to M12 mm. In addition, with the ability to mill up to 80 mm wide and notch up to 22 mm, it provides a wide range of functions. The ZX7045 BXL DRO version is distinguished by its large 1000 x 240 mm work table and also by its innovative digital readout, increasing precision and operating convenience. Off-the-shelf availability makes it ready for immediate use. It is the perfect tool for professionals who expect high productivity and precision in metalworking. Product features Bsdsxzrz Hjpfx Aczslr HEAVY, STABLE CAST IRON DIGITAL READOUT INCLUDED AUTOMATIC SPINDLE FEED HEIGHT OF THE MILLING MACHINE IS ADJUSTABLE ON THE SLIDE AND NOT ON THE COLUMN SOLID CROSS TABLE WITH PRECISION GROUND SURFACE DOVETAIL GUIDES, QUIET OPERATION THANKS TO GROUND GEARS LEFT AND RIGHT ROTATION HEAD ROTATABLE +/- 900 ADJUSTABLE HEAD HEIGHT *base available as an optional extra TECHNICAL DATA Max. drilling diameter in steel/cast iron 32/45 mm Max. face milling cutter diameter 80 mm Max. end mill diameter 32 mm Table dimensions 1000x240 mm Table travel X/Y/Z 700/210/380 mm Distance from spindle face to table 80 - 460 mm Spindle pin protrusion 120 mm Spindle axis distance from column 290 (to guard 230) mm Spindle rotation angle +/- 90º T-slot width 14 mm Spindle speeds 75/ 150/ 180/ 280/ 360/ 560/ 600/ 1000/ 1200/ 1600/ 2000/ 3200 rpm Spindle feed rates 0.1; 0.18; 0.26 mm/rev. Spindle taper MK4 Supply voltage 400 V Motor power 1.8 kW 2.5 hp External dimensions 1300x820x1460 mm WEIGHT 360 kg Available accessories Drill chuck B16-13mm Arbor MK4/B16 Shank MK4/D27 Reduction bush MK4/MK3 Reduction bush MK3/MK2 ATTENTION!! The machine is a return item. No packaging, traces of paint, paint chips.

Condition: excellent (used), functionality: fully functional, Distance between centers: 1500 mm Center height: 220 mm Spindle bore: 52 mm Bedpfx Ajxu Hixjczolr Tailstock quill: MK 4 18 speeds: 25 - 2000 rpm Pole-change motor: 2.9 / 5.9 kW with gap bed bridge
