Eccentric Press - Single Column

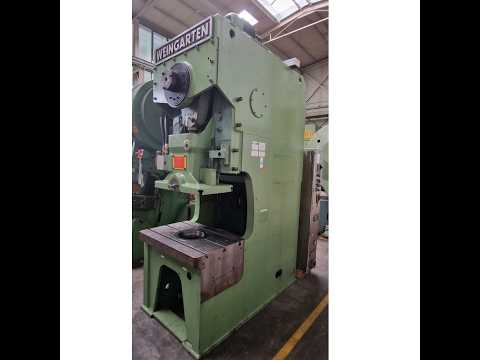

WEINGARTEN ARP 80 (UVV)

Condition: used, Year of construction: 1977, pressure 80 t stroke 8 - 112 mm no. of strokes 65 /min throat 345 mm passage to the back 500 mm dayligth 472 mm table surface area 840 x 610 mm hole in the table 280 / 315 mm table height over floor 800 mm ram surface 650 x 410 mm Kodpfx Agevut Npsnjdl ram adjustment 71 mm power requirement 13,5 kW Weight 6,10 t dimensions of the machine ca. 1,5 x 1,9 x 3,0 m x m x m with motor with two speeds, pneumatic clutch/brake combination (Ortlinghaus), mechanical overload protection in ram, manual stroke adjustment, motoric ram adjustment, fix table, motoric centralized lubrication, two-hand operation

Condition: new, Year of construction: 2025, Single band console decoiler 500 mm - Loading capacity 1.500 kg - Inner φ 480-530 mm - with 4 clamping arms, ball bearings and with disc brakes - max coil width: 500 mm Kodpfx Aefvbxqegnodl

Condition: new, Year of construction: 2025, Pressure blasting cabin DSK 11.11.30. Blasting chamber W=1050 D=1050 H=955mm. 1 TÜV-tested pressure vessel 30l with conical outlet funnel. 1 blasting medium dosing valve with blasting medium quantity regulation pneumatically controlled. 1 built-in closing cone with guide tube. 1 compressed air connection with pneumat. Shut-off valve and branch for control air. 1 pressure regulator to adjust the blasting pressure. 1 blasting hose DN19. 1 handpiece with boron carbide blasting nozzle Venturi 8mm. 1 pair of blasting gloves. Electrical height adjustment of the cabin for body-friendly posture. Memory position storage for 3 heights. Dust extraction filter 2000m³/h 2,2kW. Ksdpjga Ehbjfx Agnodl

Year of construction: 1965, condition: used, pressure 150 t throat 550 mm stroke 10 - 140 mm table surface area 1180 x 980 mm no. of strokes 40 Hub/min dayligth 500 mm ram surface 1040 x 800 mm ram adjustment 70 - 150 mm tool shank hole (depth x diameter) 435 x 55 mm required power 15 kW weight of the machine ca. 12 t dimensions of the machine ca. 3 x 1,7 x 3 m - with additional brake - slide weight compensation - motorized slide adjustment - central grease lubrication (manual) - table mounting plate Kdjdscubatspfx Agnjl - safe for manual inlay work

Condition: like new (used), Year of construction: 2023, operating hours: 800 h, functionality: fully functional, total length: 1,400 mm, total height: 2,300 mm, total width: 250 mm, workpiece weight (max.): 72 kg, For sale: Nearly new automatic powder coating line, installed in 2023, with approximately 800 operating hours. Current layout footprint: approx. 12 x 28 m, H 5 m. Price and dismantling timeline subject to individual agreements. Layout modifications available: pre-treatment tunnels can be added, and the curing oven can be reconfigured as a straight-through tunnel suitable for parts exceeding 6 meters in length. We can provide a complete quotation including dismantling and international relocation upon separate arrangement. Excellent opportunity to acquire an almost-new line at a lower price and with much shorter lead times compared to a new installation. Monorail conveyor: - Speed: 0.9 – 3.3 m/min - Automatic lubrication - Automatic chain tensioning unit - Chain pitch: 270 mm - Total length: 131 m - Total load capacity: 9500 kg - Steel supports between the floor and conveyor Automatic powder coating booth Gema: - PVC booth: MagicCompact EquiFlow BA04 - MagicControl 4.0 control panel - Photo-cell frame for automatic gun control - 16 x OptiGun GA03-P automatic guns - 1 x OptiSelect GM04 manual gun - 17 x OptiSpray AP01.1 powder feed pumps - OptiCenter OC07 powder feeding system - Ultrasonic sieve US07 for OptiCenter - 2 x ZA07-23 reciprocators with X-axis automatic control - MonoCyclone EZ05-16, 16,000 m³/h - Powder filter: 16,000 m³/h, 30 kW - Big-Bag system for waste powder collection - CO₂ explosion protection system - Manual spray wall / trolley unit shown in pictures NOT INCLUDED Powder curing oven: - Hybrid heating (electricity or gas) — offers unique flexibility to choose the most economical energy source - Installed capacity: 300 kW Kdodsx H Tadspfx Agnsl - Max. temperature: 220°C - Siemens PLC control panel

Condition: used, Year of construction: 2003, operating hours: 4,428 h, Price: On request - Year: 2003 - Documentation available: Yes - CE marking present: Yes - CE certificate present: No - Operating hours: 4428 - Drive system: CNC - Control system brand: Siemens - Power [kW]: 37.0 - Operating pressure [bar]: 4137 - X-axis travel [mm]: 6500 - Y-axis travel [mm]: 3300 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Kedpfx Agownidhsnsdl Lukas van Rossum

Condition: good (used), Year of construction: 1962, High speed radial drilling machine, radial drilling machine, drilling machine, boom drilling machine, high speed radial drilling machine -Clamping table: 400 x 1100 mm Kedpfxjirax Ue Agnjdl -Projection: 930 mm -Taper mount: MK4 -Engine power: 1.35/1.8 kW -Speed: 41-1700 rpm -Columns: Ø 200 mm -Spindle stroke: 125 mm -Thread cutting device: YES -Feed: 0.075 - 0.3 mm/rev -Dimensions: 1800/1235/H2240 mm -Weight: 1500kg

Condition: used, Year of construction: 1970, machine/vehicle number: 120895, pressure:63 t throat:250 mm stroke:8 - 100 mm no. of strokes:120 Hub/min table::715 x 500 mm Kdsdpfx Agjfx Hv Hsnsl dayligth:330 mm ram adjustment:63 mm clamping plate:700 x 480 mm hole in the table:240 mm Hole in clamping plate:110 mm dimension of ram:450 x 280 mm weight of the machine ca.:5,5 t dimensions of the machine ca.:1,2 x 1,7 x 2,7 m hydraulic tilting single column eccentric press, tilting in 4 steps, opening to rear (325 x 500mm) and below (360x160mm) with central lubrication via hand pump, additional clamping plate 700 x 480 x 850 mm, two-hand operation, foot-trip operation possible, operating-mode selector for adjustment of continuous or single stroke, emergency cut-off, piece counter, various accessories

Condition: new, capacity 90 degrees: round 305 mm Ksdpfx Aged Iipxonodl capacity 90 degrees: square 260 mm 350x200 saw band length 3375x27x0,9 mm band speed 37 + 74 m/min table height 940 mm total power requirement 1,5/1,8 kW weight of the machine ca. 0,65 t dimensions of the machine ca. 1,5 x 1,75 x 1,9 m SPECIAL PRICE!!! Double miter metal band saw, hydraulic semi-automatic GBS 305 HA-I Easy - Miter cuts up to 60° left and 45° right - Material height button - Ball bearing turntable - hydraulic Vice, laterally displaceable - Massive, large material support - Automatic cooling

Condition: used, functionality: fully functional, Year of construction: 2008, Used RAS 86.33 swing-beam guillotine shear with newly ground upper and lower blades, always serviced and rarely used. Technical specifications: Year of manufacture: 2008 Weight: 6,800 kg Max. sheet thickness at 400 N/mm²: 6.3 mm Working length: 3,190 mm Ksdpov Tk Exjfx Agnedl Stop depth: 5-1,000 mm Working height: 800 mm Stroke rate per minute: 30-64 N/min Connections: 400 V / 50 Hz / 40 A 3 PE / three-phase AC Power consumption: 18.5 kW Machine width: 3,830 mm Machine depth without angle stop: 2,195 mm Machine depth with angle stop: 3,275 mm Machine height: 1,725 mm Air pressure: 5 bar Frame overhang: 100 mm Tank capacity: 150 l
