Used Broaching & slotting & drawing machines for sale (176)

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2007, workpiece diameter (max.): 900 mm, stroke length: 2,000 mm, control type: PLC-controlled, TECHNICAL DETAILS Lrjdpfxjwx Ifxe Ah Eeu General Data Towing force: max. 9 t Total power requirement: 25 kW MACHINE DETAILS Machine type: Electromechanically driven internal vertical broaching machine FSR Features: Designed bridge for use with standard broaching tool holders Drive: Ball screw drives and hardened, ground round guides with regulated three-phase motors for smooth operation EQUIPMENT Feeds available Shim control available Sliding tables available Prepared for automation and integration into linked systems

Year of construction: 2003, condition: ready for operation (used), Max. operating pressure: 70bar, hydraulic fluid filling quantity: 630l, with loading portal and sliding guide with carriage. Lsdpfxolbmtcj Ah Eeru

Condition: used, Multi-wedge broach, hexagonal broaching tool, broaching tool, broach, special tool, grooving tool, grooving machine, slotting machine, slotting machine, slotting tool, slotting broach -Manufacturer: SWZ, broach, impact broach -Type: SW 19 1TGL 29-16600/02 20/50 HSS -Item no.: 440 0432 08 102 04708 -Width: Hexagonal 19 mm wrench width, see photos -Quantity: 1 piece available -Total dimensions: 950/22/22 mm -Weight: 1.7kg Lodpfx Ahjitt R Sj Esru

Condition: new, functionality: fully functional, Year of construction: 2025, overall weight: 480 kg, input voltage: 400 V, input frequency: 50 Hz, broaching length: 1,000 mm, number of broaching positions: 1, broaching speed: 3 m/min, reverse speed: 100 mm/s, workpiece diameter (max.): 800 mm, total height: 1,680 mm, Manufacturer: Wiemers AG Model: SR 30 /1000 Machine No.: WAG 3104 Year of manufacture: 2025 Weight: 480kg General / Technical Data: New vertical broaching machine by Wiemers SR 30 (100% compatible with Rausch RS 3) Lredpew D E Twofx Ah Eju Tensile force: 30 kN (3,000kg) Broaching speeds: 3m/min & 6m/min Return speed: 6m/min Maximum stroke: 1000mm Maximum tool length: 1200mm Table size / Working area: 430mm x 320mm / 340mm x 220mm Table aperture: Ø 90mm for standard broaching arbors "System Rausch" Workpiece diameter: unlimited (removable coolant swivel system) Broaching capacity / keyway width: up to 20mm in steel (from 16mm broaching tool width only with stepped tool shank) Dimensions (h x w x d): 1370mm x 680mm x 750mm (h = table height from floor without attachments) Motor: 2.5kW/3.0kW, 2-stage for 2 working speeds Power supply: 400 Volt / 50 Hz Equipment: - Gear motor drive with 2 working speeds - Reinforced draw bridge made from tool steel for higher tensile forces - Safety door with door interlock, safety interrogation and safety monitoring - Easily removable chip chute with tool extraction protection and parking facility - Externally adjustable tool length setting system (reproducible across machines) - Protective covers for stroke adjustment and electrical switching units - Oil-tight tray on the control cabinet - Electrical sensing of clamping jaws (tool extraction monitoring prevents unintentional retraction of the draw bridge – extra safety for operator and tool) - Integrated coolant system with electrically switched solenoid valve and drain tap - Coolant swivel system with automatic coolant switching via the swivel system - Extra reinforced chip basket and chip screen with magnetic insert - Stainless steel control panel with permanent labelling - 4 central lubrication points for trapezoidal spindle drive with manual grease gun - Electrical preparation for external control element (16-pin connector) - Provision for automatic clamping jaw opening during profile broaching with roller lever - Machine documentation with “CE” declaration of conformity Optional extras: - Automatic clamping jaw opener for easier tool extraction during profile broaching - Open 3-sided splash guard cabin (w x d x h) 700 x 350 x 600mm - External electrical operating unit for broaching and return stroke, as well as emergency stop functionality Note: The machine is 100% compatible with Rausch broaching machines of the same performance class in the RS 3, RS 4, and RS 6 series available on the market. All fixtures, tools or arbors can be used 100% interchangeably. General information: The double spindle drive ensures a smooth and centered pulling force as well as a constant broaching speed. The machine is primarily designed for the production of keyways up to 20mm. (From 16mm keyway tool width only with stepped tool shanks) The design of the machine allows for fast and easy setup for broaching with flat broaching tools for keyways. Thanks to the universally constructed drawbridge and machine table, broaching with both profile and flat broaching tools is possible. Profile broaching can be performed without the use of additional pull heads, by using simple centering bushings. Suitable broaching tools and arbors for the machine are available on request.

Condition: excellent (used), Habegger ( Burri / Petermann) Ledpewwmr Isfx Ah Eeru Can & Spline Slotting Machine Swiss made

Condition: used, slot-milling length 300 mm Lredpsd Ih Uiofx Ah Eju groove width 34 mm flute depth mm cutting speed 6 m/min return speed 6 mm/min clamping plate 380 x 300 mm weight of the machine ca. 285 kg dimensions of the machine ca. 590 x 1150 mm Bore-Ø min.: - with spezial knifes: 6 mm - with ram inserts: 20 mm - with normal bumper: 40 mm Electromagnetic Brake with various accesssories (see pictures)

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2000, machine/vehicle number: 25, workpiece diameter (max.): 40 mm, total length: 1,700 mm, total width: 2,400 mm, total height: 4,770 mm, cutting speed: 60,000 mm/min, TECHNICAL DETAILS Performance Data Maximum pulling force: 25 kN Maximum stroke: 1,000 mm Return stroke speed: 20 m/min Maximum shank diameter: 40 mm Clamping plate: 320 mm MACHINE DETAILS Machine weight: approx. 6,000 kg Control cabinet Lredpfowx Ibmex Ah Eju Weight: approx. 800 kg Total installed power: 24 kW Coolant system Net weight: approx. 1,300 kg Tank capacity: 630 l Hydraulic unit Net weight: approx. 2,000 kg Tank capacity: 800 l

Condition: good (used), functionality: fully functional, Chain drawing bench for sharpening and drawing metal wires. Was used in profile wire production. Motor power 1.5 KW. Drawing length approx. 2 meters. Total length of the machine 2.70 meters. The electrical wiring is quite old, but the machine works well. The machine is mechanically in good order and has even been partially overhauled. Ljdpery T E Ujfx Ah Ejru

Condition: used, Broaching tool, broaching needle, special tool, grooving tool, keyway machine, keyway machine, keyway tool, keyway broaching needle -Manufacturer: SWZ, broaching needle -Type: SW 22 F8x28,35 RL 20-50 mm -Article No.: 24 3039 174 208 020 TKO -Width: square 22 mm / see photos -Quantity: 2 pieces available -Price per piece -Dimensions total: 920/22/22 mm -Weight: 2.5 kg/piece Ledpeitt Rgefx Ah Eoru

Condition: good (used), 1 used vertical shaping machine make Behr ST 150 machine no.: 096, gr. stroke: 150 / 175 mm inclined adjustment of the ram in both directions: 5 / 8 degrees Table height / bottom ram guide: 260 mm Rotary table diameter: 340 mm Lsdsu Ub Uzspfx Ah Eeru Longitudinal displacement of the table: 320 mm 3 stroke speeds: 17 / 54 / 108 H/min. gr. groove width: 16 / 26 mm External dimensions approx.: 960 x 1530 x 2030 mm with - feeds in X and Y (forwards and backwards) Adjustable speed - Manual rotary table adjustment

Condition: excellent (used), Stroke: 320mm; Table dimensions: 630mm Lredpexn Iimofx Ah Eeu

Condition: not inspected (used), functionality: unexamined, machine/vehicle number: 5756, travel distance X-axis: 350 mm, travel distance Y-axis: 450 mm, stroke length: 200 mm, table diameter: 500 mm, No minimum price – guaranteed sale to the highest bidder! Placing a bid obliges timely collection between 28.07.2025 and 31.07.2025. TECHNICAL DETAILS Worktable diameter: 500 mm Ram stroke: 200 mm Average working stroke speed: 1.94 - 20.8 m/min Double strokes per minute: 40 to 163 m/min Cross slide adjustment X-axis: 350 mm Y-axis: 450 mm Lrodpfxewvh Nxs Ah Eeu MACHINE DETAILS Dimensions: 2,100 mm x 1,200 mm x 2,100 mm Weight: 3,000 kg

Year of construction: 1987, condition: used, machine/vehicle number: 34, gr. tractive force: 10 to gr. stroke 1000 mm cutting speed: 7,5 m/min return speed: 24 m/min weight: 6,2 to Machine is suitable for tube clearing Lrjdpfx Ahjnd Dme Eju

Condition: used, Broaching tool, broaching needle, special tool, grooving tool, keyseating machine, keyway broaching machine, keyway broaching machine, keyway broaching tool, broaching needle -Manufacturer: Planeta Coswig, broach push broach -Type: 16D11x2.7 34-120inSt 34-165inGG - Width: 16mm -Number: 1x available Lrjdpoitt Saofx Ah Esu -Total dimensions: 1250/16/H30 mm -Weight: 4.2kg

Year of construction: 1972, condition: used, max. tractive force: 10 to, Lsdpfx Ajcdtnhoh Eoru max. stroke: 1250 mm max. cutting speed: 10 m/min. max. return speed: 25 m/min. clearing: 3 pieces passage width: 470 mm spacing of the raumstellen: 125 mm table: 400 x 400 mm special equipment: Discharge of spares by permanent magnetic spares conveyor 1 hydraulics, 1 working platform, el. hydr. shaft and end piece holder fixing, automatic loading device

Year of construction: 1956, condition: used, Slotting machine, slotting machine, high-speed planer, keyseating machine, keyway broaching machine, keyway broaching machine, keyway tool, broaching machine, slotting machine, horizontal slotting machine, planing machine, power high-speed planer -Manufacturer: Lange & Geilen, horizontal slotting machine Kraft-Schnellhobler -Stroke: 350mm -Stroke rate: 20 - 110 1/min -Clamping table: 380 x 280 mm Ledpfxolzmxyj Ah Eoru -Travel: X 410 mm Z 320 mm -T-Slot: 14mm -Propulsion: AEG 3 kW -Dimensions: 1460/1170/H1350 mm -Weight: 1140 kg

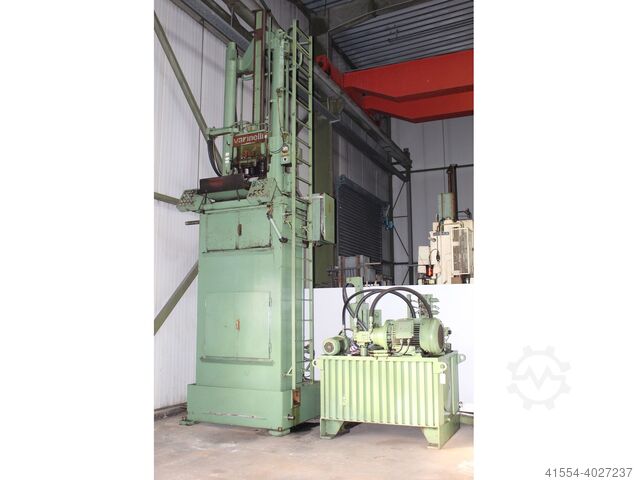

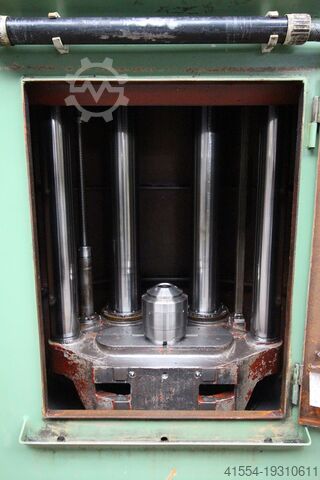

Condition: used, Year of construction: 1986, overall weight: 6,500 kg, power: 42 kW (57.10 HP), input voltage: 380 V, broaching length: 1,600 mm, number of broaching positions: 1, workpiece diameter (max.): 500 mm, Manufacturer: Varinelli Milano Italy Model: BV 25 x 1600 x 500 Year of manufacture: 1986 Weight: 6,500kg Mach. No.: 3269 Ledpjwqmaxsfx Ah Ejru General / technical data: Vertical hydraulic internal broaching machine with one broaching station Pulling force: 25,000 kg Broaching stroke: 1,600mm Broaching stations: 1 piece! Passage width between the cylinders: max. 540mm Cutting speed: hydraulically stepless adjustable from 1 m/min up to max. 8 m/min Return speed: hydraulically stepless adjustable up to max. 18 m/min Required space for the machine: see image of machine layout plan Power supply / connection value: 380 Volts 50 Hz / 42 kW Accessories / special equipment: The machine is equipped with a workpiece table for 3 broaching stations. The tool clamping system is equipped with a spring-mechanical locking (DIN 1417) in the pulling bridge. The tool feeder system is hydraulically-mechanically locked. The machine has a coolant system with integrated chip conveyor for installation in a pit. Remarks: The machine is still in its original paint. It is designed for use in mass production for medium and large batches; for optimal use, a foundation (pit) is ideally required. Pulling heads and needle pushers are available on request. The machine can be inspected at our warehouse. General information We constantly have a large selection of about 80 used broaching machines with pulling forces from 3,000 kg to 63,000 kg in horizontal as well as vertical design in stock. A large part of the broaching machines in stock is ready for demonstration and inspection. If required, we can offer you used equipment such as pulling heads, needle pushers, broaching tools, and other specific accessories. We are also a contract broaching company and can assist you with technical questions from 50 years of experience in broaching technology.

Condition: good (used), Slotting machine, slotting machine, high-speed planer, keywayseating machine, keyways slotting machine, keyways slotting tool, broaching machine, slotting machine, horizontal slotting machine, planing machine, high-power high-speed planer, metal planer/slotting machine Ljdpswck I Dofx Ah Esru -Manufacturer: Klopp, horizontal slotting machine, power planer type DP AP -Stroke: 525 mm -Stroke rate: 16 - 164 1/min -Travel: X 500 mm Z 290 mm -Drive: 2.2 kW -Dimensions: 1810/1160/H1420 mm -Weight: 1130 kg

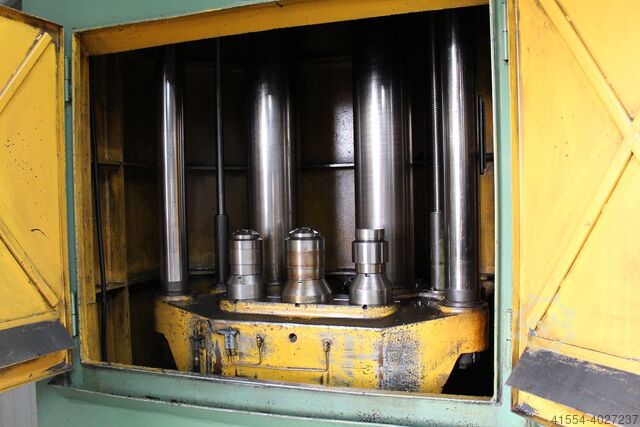

Condition: used, functionality: fully functional, Year of construction: 1966, overall weight: 7,000 kg, input voltage: 380 V, broaching length: 1,500 mm, number of broaching positions: 3, workpiece diameter (max.): 575 mm, total height: 5,100 mm, Manufacturer: Karl Klink Model: RSI 20x1500 Year of manufacture: 1966 Weight: approx. 6,700kg Machine No.: 2455 General / technical data: Used vertical hydraulic internal broaching machine with 3 broaching stations Pulling force: 20,000 kg Lsdpswql Rvsfx Ah Eeru Broaching stroke: 1,500 mm Broaching stations: 3 units Distance between broaching stations: 2 x 145mm Mounting diameter of the draw heads: 3 x Ø 85mm Passage width between the columns: max. 580 mm Cutting speed: hydraulically steplessly adjustable from 1 m/min up to max. 7 m/min Return speed: hydraulically steplessly adjustable from 7 up to max. 25 m/min Machine space requirement: (w x d x h) approx. 1,500 x 2,100 x 4,600 (h max. 5100 with raised tool feeder) Power supply / Connected load: 380Volt 50 HZ / 14kw Accessories / special features: The machine is equipped with a workpiece table with 3 holes for 3 broaching stations. The tool clamping system is designed for spring-mechanical locking in the drawbridge and in the feeder. The machine has an integrated coolant system. Remarks: The machine is designed for use in series production, for optimal use, ideally a foundation (pit) is required or optionally a platform. Draw heads and ejector needles are available on request. The machine can be inspected under power at our warehouse. General information: We constantly have a large selection of approx. 80 used broaching machines with pulling forces from 3,000 kg to 63,000 kg in horizontal as well as vertical design in stock. A large part of the broaching machines in stock are ready for demonstration and can be inspected. If required, we can offer you used equipment such as draw heads, ejector needles, broaching tools and other specific accessories. We operate as a contract broaching company and can also assist you with technical questions based on 50 years of experience in broaching technology.

Condition: excellent (used), Grooving tool, special tool, grooving tool, keyway machine, keyway machine, keyway machine, keyway tool -Special tool for grooving blind holes Lrsdpfx Aheb A I Ufs Eju -leadership recording grooving tool -Weight: 80 kg

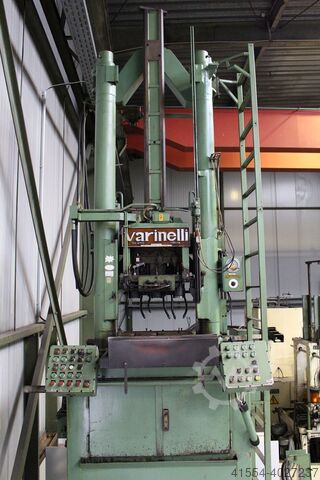

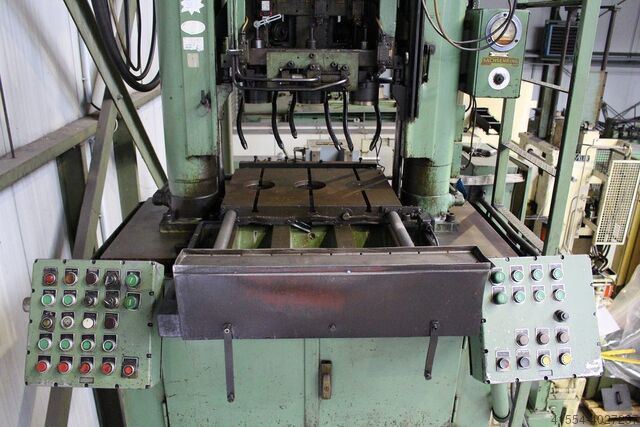

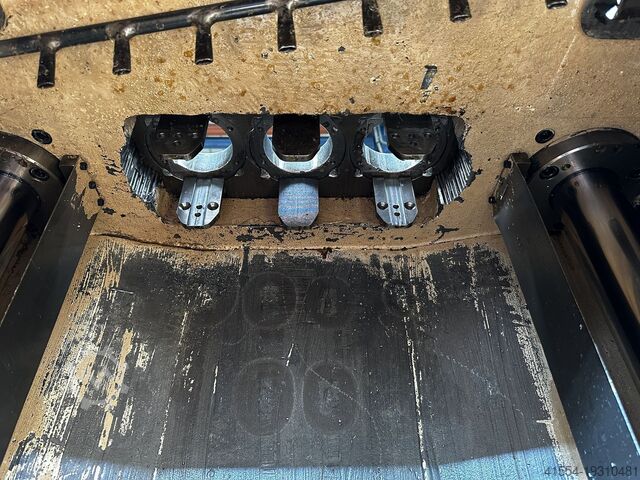

Year of construction: 1982, condition: good (used), machine/vehicle number: 3120, Varinelli - internal broaching machine 25.000 kg (our Ref. No. WAG 729) machine type: internal horizontal hydraulic broaching machine Ljdpfjd I R Ngex Ah Ejru manufacturer: Varinelli type: BV 25 x 2000 x 630 built in: 1982 stroke: 2000mm pulling force: 25.000KG working stations: 3 PCs drive: hydraulic system equipment: coolant system, chip conveyer remark: machine in stock, moving workpiece table Optional accessories available on request: tools, workpiece holder Information about us: we are specialized for second hand broaching machine and still have anytime about 80 pcs of used broaching machines in our stock, vertical and horizontal machines from 3000kg up 63.000kg pulling force and from 1000mm stroke up to 3500mm stroke

Year of construction: 1956, condition: used, Slotting machine, slotting machine, quick planer, keyseating machine, slotting machine, slotting machine, slotting tool, broaching machine, slotting machine, horizontal slotting machine, planing machine, schepping -Manufacturer: Elliott, horizontal shaping machine type 24M SHAPER -Stroke: 610mm -Stroke rate: 8 - 74 1/min -Clamping table: 580 x 330 mm Lodpfx Ahoh Nvy Eo Ejru -Travel: X/Y/Z 375/755/292 mm -T-Slot: 20mm -Drive: 3.7 kW -Dimensions: 2080/1120/H1550 mm -Weight: 1520 kg

Condition: used, Broaching tool, broaching needle, special tool, grooving tool, keyway machine, keyway machine, keyway tool, keyway broaching needle -Manufacturer: SWZ, broaching needle -Type: SW 22 F8x28,35 RL 20-50 mm -Article No.: 24 3039 174 208 020 TKC -Width: Square 22 mm -Quantity: 3 pieces available Lrjdpeitt R Ijfx Ah Eeu -Price per piece -Total dimensions: Ø 22 x 925 mm -Weight: 2.1 kg/piece

Condition: used, Multi-wedge broach, broaching tool, broach, special tool, grooving tool, grooving machine, slotting machine, slotting machine, slotting tool -Quantity: 2x tools available -Price: complete 2 pieces -1x tool: Ø 16 0.056 Ledpfsb A I Upjx Ah Esru -1x tool: Ø 15.75 x 16Ø S8 -Weight: 2kg

Condition: used, Square broaching tool, multi-wedge broaching needle, broaching tool, broaching needle, special tool, grooving tool, keyway machine, keyway machine, keyway tool, keyway broaching needle -Manufacturer: SWZ, broaching needle -Width: Square 17 mm wrench size, see photos -Type: unfortunately no longer readable -Size: see photos Ledpfx Aokkzymoh Eoru -Quantity: 1 piece available -Total dimensions: Ø 19 x 955 mm -Weight: 1.3kg
