Used Broaching & slotting & drawing machines for sale (176)

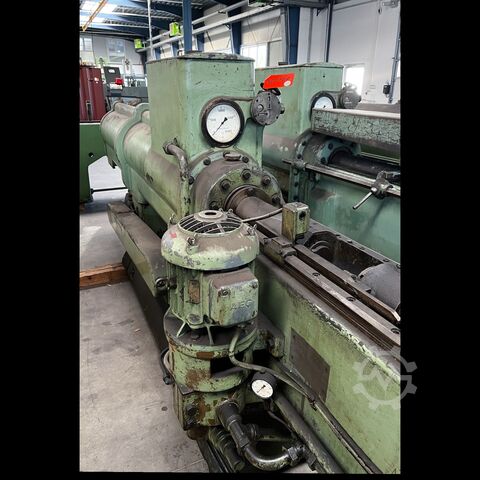

Year of construction: 1955, condition: used, machine/vehicle number: 1331, Manufacturer: Karl Klink Model: RW 10 Year of manufacture: 1955 Weight: approx. 2950 KG Machine. No.: 1331 General / technical data: hydraulic horizontal internal broaching machine in a good working condition Ljdpfedbr H Tjx Ah Esru clearing length: 1500mm turning: 1 piece pulling force: 10000 KG at 3m/min (5000KG at 7m/min) Clamping tool: universal pulling head for flats up to 26mm width Through hole in clamping table: Ø 100mm Workpiece diameter: max. 420mm (due to the oil and oil sump) cutting speed: hydraulically infinitely variable from 1m/min to 7m/min Return speed: hydraulically infinitely variable from 7m/min to 25m/min Dimensions of the machine: (w x d x h) approx. 6200mm x 700mm x 1900mm (without working area) Power supply / connected load: 380Volt 50 HZ / 8 KW hydraulic motor: 7,5 KW Accessories / special equipment: - the machine is equipped with a universal drawing head for flat sheets - the machine has a movable coolant cutting unit for 2 media - the machine has an oil and oil tank with a tool feeder slide Remarks: The machine is ideal for the production of keyways and profiles. The machine runs smoothly and is very clean in the area of the guides and the cylinder. Broaches and mandrels can be supplied on request. The machine is ready for inspection under power in our warehouse.

Year of construction: 1958, condition: used, machine/vehicle number: 1545, Manufacturer: Karl Klink Model: RIS 6 x 1000 Year of manufacture: 1958 Lrsdpfx Ajda Ugijh Eeu Weight: 2500 KG General / technical data: used vertical hydraulic indoor rasping machine with 1 rasping point in a working condition tractive force: 6000 KG clearing length: 1000mm diameter of the pulling head: Ø 85 mm passage width between the cylinders: max. 280 mm Cutting speed: hydraulically infinitely variable from 1 m/min to max. 7 m/min Return speed: hydraulically infinitely variable from 7 m/min to max. 25 m/min Space requirement of the machine: (w x d x h) approx. 1000 x 1200 x 2800mm Power supply / connected load: 380Volt 50 HZ / 4KW Accessories / special equipment: The machine is equipped with a workpiece table for 1 rearrangement. The tool clamping system is provided for a spring-mechanical locking (DIN 1415). The machine has an integrated cooling system. There is a double pulling head for 2 flat broaching tools with tool support plate. Remarks: The machine is in a good condition according to its age and is ready for immediate use. It is designed for manual production use with medium batch sizes. For the use ideally a machine pit or alternatively a platform is needed. Drawing heads are available on request. The machine has no tool feeder. The machine can be inspected in our warehouse under power.

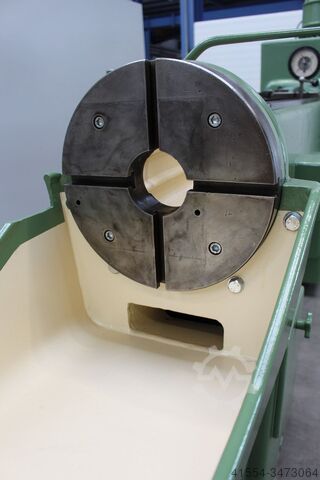

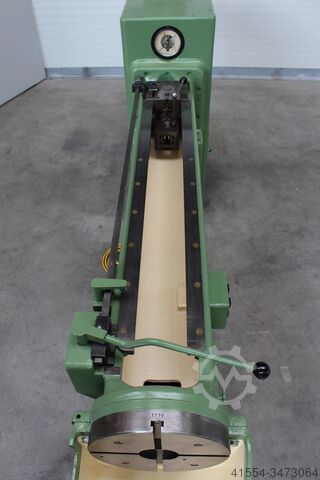

Year of construction: 1962, condition: used, machine/vehicle number: 1790, creator: Karl Klink Model: RW 5 year of construction: 1962 weight: ca. 2500 KG machine. No.:1790 General / technical data: hydraulic horizontal internal broaching machine in a good working condition clearing stroke: 1320mm turning: 1 piece pulling force: 5000 KG at 3m/min (3000KG at 7m/min) Clamping tool: universal drawing head for flat shafts Through hole in clamping table: Ø 100mm Workpiece diameter: max. 420mm (due to the oil and spit trough) cutting speed: hydraulically infinitely variable from 1m/min to 7m/min Return speed: hydraulically infinitely variable from 7m/min to 25m/min Dimensions of the machine: (w x d x h) approx. 4600mm x 600mm x 1900mm (without working area) Power supply: 380Volt / 50 HZ / 15A hydraulic motor: 4 KW Accessories / special equipment: - the machine is equipped with a universal pulling head for flat shafts - Coolant / lubricant system Lodpfxsdl Uzke Ah Esru - without tool feeder - short oil and oil sump (approx. 900mm) Remarks: The machine is ideal for the production of keyways. On request broaches and mandrels can be supplied. The machine is ready to run under power in our warehouse.

Year of construction: 1980, condition: good (used), machine/vehicle number: 03.2123, Manufacturer: Arthur Klink Model: RISZ 25x 2500 x 500 Year of manufacture: 1980 Machine No.: 03.2123 General / technical data: used vertical hydraulic indoor rasping machine with 3 rasping points in a very good condition tractive force: 25000 KG clearing length: 2000mm wheel positions: 3 pieces Distance between the wheels: 160mm diameter of the drawing heads: 3 x Ø 100mm Clearance width between the cylinders: Nominal size 500mm passage width between the cylinders measured: max. 590mm Cutting speed: hydraulically infinitely variable from 1m/min to max. 10m/min Return speed: hydraulically infinitely variable from 5 to max. 25m/min Space requirement of the machine: (w x d x h) approx. 3400mm x 3400mm x 6900 mm (without pit) Ljdpfx Aedffzfeh Eoru Power supply / connected load: 380Volt 50 HZ / 22 KW Accessories / special equipment: The machine is currently without work table. On the machine was a workpiece sliding table mounted with a special workpiece clamping device for external broaching. (The workpiece sliding table is changeable). The tool clamping system is equipped with a hydraulic lock in the draw bridge as well as in the feeder. The machine has a coolant system with integrated chip conveyor. Remarks: The machine is in very good condition and is still in its original paint. It is designed for serial production, for optimal use a foundation (pit) is ideally needed. Drawing heads and needles

Year of construction: 1951, condition: good (used), machine/vehicle number: 1133, horizontal hydraulic broaching machine Karl Klink (our Ref No. WKG 1678) machine type: horizontal internal hydraulic broaching machine manufacturer: Karl Klink type: RW 10 built in: 1951 stroke 1500mm pulling force: 10.000KG working stations: 1PCs drive: hydraulic system equipment: coolant system Ledpfxedcdrpj Ah Eoru Optional accessories available on request: Information about us: we are specialized for second hand broaching machine and still have anytime about 80 pcs of used broaching machines in our stock, vertical and horizontal machines from 3.000kg up 63.000kg pulling force and from 1000mm stroke up to 3500mm stroke

Year of construction: 1956, condition: used, machine/vehicle number: 1413, Manufacturer: Karl Klink Model: RISZ 10x 1200 Year of manufacture: 1956 Weight: 3450 KG Machine. No.: 1413 General / technical data: used vertical hydraulic indoor rasping machine with up to 3 rasping points in a ready to use condition tractive force: 13000 KG (maximum) room length: 1200mm Raeumstellen: 3 pieces Lrjdpfxjdbmgmj Ah Eeu Spacing between the racks: 100mm Diameter of the pulling head: Ø 85mm passage width between the cylinders: max. 390 mm Cutting speed: hydraulically infinitely variable from 1 m/min to max. 7 m/min Return speed: hydraulically infinitely variable from 7 m/min to max. 25 m/min Space requirement of the machine: (w x d x h) approx. 1150 x 1500 x 3725mm (tool feeder extended) Power supply / connected load: 380Volt 50HZ / 7,5KW Accessories / special equipment: The drawbridge of the machine has 3 space tool holders, the tool table has 1 space (changeable). The tool clamping system as well as the tool feeder is provided for a spring-mechanical locking (DIN 1415). The machine has an automatic tool feeder, the existing tool feeder is also available for only 1 tool (middle space). The machine has an integrated coolant system for cutting oil. Remarks: The machine is in a good condition according to its age and is ready for immediate use. It is designed for manual production with medium batch sizes. The machine has

Year of construction: 1959, condition: used, gr. tractive force: 16 to. gr. stroke: 1250 mm Lrodj Rwa Uopfx Ah Eju cutting speed: 5,6 m/min return speed: 30 m/min

Year of construction: 1960, condition: used, max. tractive force: 20.000KG max. stroke: 1250 mm max. cutting speed: from 1 m/min to 7 m/min max. return speed: from 5 m/min to 25 m/min max. workpiece Ø: approx. 140 mm max. tool Ø: approx. 50 mm, tool changeover: 2 pieces, The machine is equipped with a 2 station rotary indexing table. Lredpfx Aheui Sbe Esu The machine is equipped with an automatic tool feeder, and is designed for manual series production. The tool locking in the draw bridge as well as in the tool feeder is spring-mechanical (drawing head DIN 1417).

Year of construction: 1980, condition: used, max. tractive force: 10 to max. stroke: 1250 mm max. cutting speed: 10 m/min max. return speed: 27 m/min max. workpiece diameter: 320 mm turning: 3 pieces weight: 4,8 to automatic tool feeder hydraulic drawing head and end piece holder locking device automatic loading device for workpiece diameter up to 100mm magnetic belt conveyor Lodpfocdtpljx Ah Esru

Year of construction: 1965, condition: good (used), functionality: fully functional, machine/vehicle number: 2549, General / technical data: used horizontal hydraulic internal broaching machine in a good condition according to age with manual tool feeder in heavy design clearing stroke: 2.000mm Tractive force: 25,000 kg (250KN) Mounting in the drawbridge: Ø 105mm Cylindrical Through-hole in the clamping table: Ø 125mm Workpiece clamping surface: 440mm x 440mm Workpiece diameter: max. approx. 800mm (due to the tool trough of the tool feeder) Cutting speed: hydraulically infinitely variable from 1.5 m/min to 7 m/min Return speed: hydraulically infinitely variable from 7 m/min to 25 m/min Oil volume: hydraulics approx. 450L / coolant approx. 100L Space requirement of the machine: (w x d x h) approx. 8,400 mm x 1,350 mm x 1,800 mm (without working area) Power supply: 380Volt 50 HZ Connected load: 19kw Equipment: - the machine has a mechanical hydraulic control for the clearing & return stroke - the machine has an integrated coolant system - the machine has a manually operated tool feed system - The broaching carriage with the pulling head holder is guided flat on both sides. - The machine has an adjustable tractive force limiter - Tractive force display Accessories - 1 universal pulling head for flat shafts up to a maximum width of approx. 40 mm - dividing head (see pictures) - Various special fixtures and clamping devices - Machine documentation Remarks: The machine can be used for the production of keyways with flat broaching tools, as well as for profile broaching. In combination with the machine bed of the machine and the stable broaching tool feeder, the machine is very well suited for heavy profile broaching tools. The machine is used and is in good condition for its age. The machine is available for inspection in our warehouse. The machine is new in our stock and is currently not technically or visually refurbished. Ljdpfx Aotuuvzsh Ejru Pulling heads for profile broaching are available on request, depending on DIN standard, dimensions and stock.

Year of construction: 1978, condition: excellent (used), machine/vehicle number: 2751, General / technical data: Hydraulic horizontal internal broaching machine in in good technical condition Manufacturer: Karl Klink Model: RIW 6,3 Machine No: 2751 Year of manufacture: 1978 Weight: 2,3to tractive force: 6,3t broaching speed: hydraulically infinitely variable from 1m/min to 7m/min Return speed: hydraulically stepless adjustable from 7m/min to 25m/min maximum stroke: 1320mm maximum workpiece diameter: max. 420mm table opening: Ø 80mm dimensions: (w x d x h) approx. 5.700mm x 600mm x 1.900mm power supply: 380 Volt / 50 Hz / 4kW Accessories/ optional equipment: - Coolant / lubricant system - without tool feeder - Oil and chip tray (approx. 2,000mm) Lredpfeiw Dlksx Ah Esu Remark: The machine is ideal for the production of keyways. Broaches as well as broaching mandrels can be supplied on request. The machine is ready for demonstration under power in our warehouse.

Year of construction: 1990, condition: excellent (used), Manufacturer: Arthur Klink Year of manufacture: 1990 Model: RISZ 16 x 1250 x 400 / HG Technical data: Vertical internal broaching machine in technically very good condition tractive force: 16.000kg clearing speed: up to 27,5 m/min infinitely variable return speed: up to 34 m/min infinitely variable maximum stroke: 1250mm broaching units: 4 pieces accessories: Lredpfxjlpadye Ah Eou - automatic tool changer - automatic part feeding (part specific) - hydraulic tool clamping device (part specific) Remark: High performance production broaching machine for high volume production with high cutting speed!

Condition: not inspected (used), Forst RF 16 internal broaching machine -WKG 1371- Technical data: Manufacturer: Forst Type: RF 16 Max. Tractive force: 16t Max. Stroke: 1200mm Lodpfx Ajhu E N Djh Ejru Max. Cutting speed: 5,6m/min Max. Workpiece diameter: Ø 700mm Max. Tool diameter: Ø 120mm Workpiece seat: Ø 70mm Note: control valve missing

Year of construction: 1960, condition: not inspected (used), Forst RF 20x2000 internal broaching machine -WKG 189- Data: Manufacturer: Forst Type: RF 20x2000 Year of manufacture: 1959 Max. Tractive force: 20t Lsdpfx Ahehu E Ege Eeru Max. Stroke: 2000mm Max. Cutting speed: 5,6m/min Max. Return speed: 30m/min Max. Workpiece diameter: Ø 300mm Max. Tool diameter: Ø 90mm Weight: 3,5t Remark: without tub

Year of construction: 2000, condition: excellent (used), machine/vehicle number: 60305, General / technical data: Manufacturer: Rausch Type: RS6 / 1000 Year of manufacture: 07/2000 Lodpfxoiqkb Re Ah Esru Machine-No.: 60305 weight: approx. 750kg Tractive force: 60kN (80kN) clearing speed: 4m/min return speed: 8m/min max. stroke: 1000mm maximum tool length: 1200mm maximum workpiece diameter: Ø approx. 900mm table opening: Ø 90mm for standard broaching mandrels Dimensions (h x w x d): 1600mm x 850mm x 1000mm (h=table height to floor without superstructure). type of power: 400 Volt / 50Hz - 6 / 7,5kW Accessories/ optional equipment: - electrical scanning of the clamping jaws (tool removal control to prevent against unintentional retraction of the drawbridge) - integrated coolant system with check valve and drain cock - patented coolant/lubricant swivel system (retrofitted) Remark: The machine has the manufacturer CE marking. The machine is under power in our warehouse and can be inspected.

Year of construction: 1964, condition: refurbished (used), machine/vehicle number: 2041, Vertical internal broaching machine with switching plate of the company Karl Klink Type: RSI8DT1 Machine No.: 2041 Ljdegyd S Dspfx Ah Esru Year of manufacture: 1964 weight: 3,2 to broaching force: 8.000kg With switch plate ( 2 stations ) Power supply: 380V / 50Hz Rated current: 25 A Connected load: 5,5 kW The machine is completely revised and is therefore in a very good condition.

Year of construction: 1960, condition: refurbished (used), machine/vehicle number: 1732, Vertical internal broaching machine with switching plate of the company Karl Klink Type: RSI6DT Machine No.: 1732 Year of manufacture: 1960 weight: 3,2 to broaching force: 6.000kg With switch plate ( 2 stations ) Power supply: 380V / 50Hz Rated current: 15 A Lrjdpfogyd Svex Ah Eou Connected load: 4kW The machine is completely revised and is therefore in a very good condition.

Year of construction: 1989, condition: used, Manufacturer: Hönnema Model: KAT 63/1250 Year of manufacture: 1989 General / technical data: CNC grooving machine with partial or rotary table for twist grooving. Max. stroke: 1250mm Cutting speed: stepless from 0 to 16m/min Max. Return speed: 16m/min Max. Groove width: 63mm Lrjdjlu D Hkspfx Ah Eeu Fully automatic twist dividing attachment: RA 450 AUDR Remark: The feed is made by stepping motor and ball screw through the machine table. The machine table has a stable and smooth-running linear guide. The machine is approx. 1.500mm under floor! The machine is under power in our warehouse and can be inspected.

Year of construction: 1966, condition: used, max. tractive force 5 t, max. stroke 850 mm, max. cutting speed 12m/min, max. return speed: 25m/min, clamping surface 410x575 mm, groove width 3 - 90 mm, bore 13 - 500 mm, workpiece weight: 6000 kg, depth of machine base under floor 1.400 mm Lodpfjcm Elnox Ah Eeru

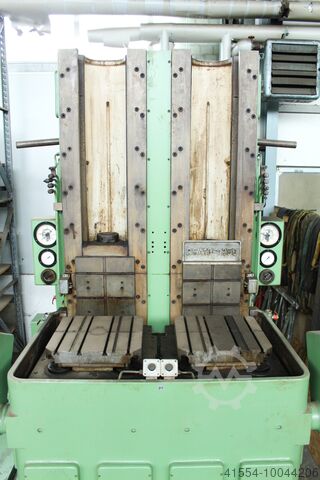

Year of construction: 1961, condition: used, General / technical data: Vertical duplex external broaching machine with two tables Manufacturer: Karl Klink Model: RSA 10 T/Zw. Lrjdpfx Aolwu Hrsh Eju Year of manufacture: 1961 weight: approx. 6.500kg tractive force: 10t clearing speeds: 1 - 11m/min return speeds: 7 - 25m/min maximum stroke: per machine unit 1250mm clamping area: 500 x 500mm passage width: 380mm power supply: 380 Volt / 50 Hz Remark: The machine is under power in our warehouse and can be inspected.

Year of construction: 1985, condition: good (used), machine/vehicle number: 04.2187, Hydraulic indoor broaching machine in technically good condition Lredpfoixntwex Ah Eou Manufacturer: Arthur Klink Year of manufacture: 1985 reconditioned Weight: 2t Model: RIW 10 x 1200 x 400 Machine No: 04.2187 Tractive force: 10.000kg at 3m/min clearing speed: hydraulically stepless adjustable from 1m/min to 7m/min return speed: hydraulically stepless adjustable from 7m/min to 30m/min maximum stroke: 1200mm Broaching tool clamping: universal drawing head for flat shanks up to 26mm width maximum workpiece diameter: Ø max. 480mm (due to oil and chip tray) table opening: Ø 70mm power supply: 380 Volt / 50 Hz / 5kW

Year of construction: 1964, condition: good (used), functionality: fully functional, machine/vehicle number: 2016, Used vertical hydraulic internal broaching machine with 3 broaching points Tractive force: 16,000 kg clearing length: 1.250 mm Broaching points: 3 pieces Lsdpfx Aet Dv I Ajh Esru Distance between the broaching points: 380 mm Mounting diameter of the broaching heads 3 x Ø ___mm Cutting speed: hydraulically infinitely variable from 1 m/min to max. 7 m/min Return speed: hydraulically infinitely variable from 7 to max. 25 m/min Space requirement of the machine: (w x d x h) approx. 2,200 x 1,550 x 4,200 (without pit) Power supply / connected load: 380Volt 50 HZ Accessories / special equipment: The machine is equipped with a workpiece table with 3 holes for 3 broaching positions. The tool clamping system is provided for spring-mechanical locking in the drawbridge and hydraulically mechanical in the feeder. The machine has been electrically (PLC Siemens S7) and mechanically modernized in 2004. The machine has an integrated coolant system. Remarks: The machine is designed for use in series production, ideally a foundation (pit) or optionally a platform is required for optimum use. Drawing heads and needle lifters are available on request. The machine can be viewed in our warehouse.

Condition: used, functionality: fully functional, Manufacturer: Arthur Klink Year of construction: ca.1960 Type: horizontal broaching machine Model: RH 10-50 Machine. No.: 241 Weight: 3.700 KG General / technical data: used horizontal hydraulic internal broaching machine in a good condition according to age with manual tool feeder in heavy design Clearing stroke: 1,500 mm Tractive force: 10,000 kg (100KN) Mounting in the drawbridge: Ø 85mm Cylindrical Through-hole in the clamping table: Ø 100mm Workpiece clamping surface: Ø 460mm Workpiece diameter: max. approx. 750mm (due to the tool trough of the tool feeder) Cutting speed: hydraulically infinitely variable from 1.0 m/min to 7 m/min Return speed: hydraulically infinitely variable from 5 m/min to 30 m/min Space requirement of the machine: (w x d x h) approx. 6500mm x 950 mm x 1,400 mm (without working area) Power supply: 380Volt 50 HZ Connected load: 8kw Equipment: - the machine has a mechanical hydraulic control for the clearing & return stroke - the machine has an integrated coolant system - the machine has a manually operated tool feed system - The broaching carriage with the pulling head holder is guided flat on both sides. - The machine has an adjustable tractive force limiter Accessories - 1 universal pulling head for flat shafts from 3mm to max. 25mm wide - Adapter sleeve for drawbridge from Ø 85mm to Ø 63mm Ljdpfx Asr A Hdgeh Esru Remarks: The machine can be used for the production of keyways with flat broaching tools, as well as for profile broaching. In combination with the machine bed of the machine and the stable broaching tool feeder, the machine is well suited for heavy profile broaching tools. The machine is used and is in very good condition for its age. The machine is in our warehouse and can be inspected under power. The machine is currently not technically and visually refurbished, but can be used immediately. Pulling heads for profile broaching are mostly available used on request depending on DIN standard, dimensions and stock. Direct contact details and further information can be found in the attached PDF document

Year of construction: 1971, condition: used, General / technical data: Manufacturer: Varinelli Model: BVE-S-25-2000 Year of manufacture: 1971 Weight: 12to tractive force: 25to maximum stroke: 2000mm clamping surface: 500 x 500 table opening: 550mm power supply: 380 Volt / 50 Hz Accessories/ special equipment: - tilting table Ledslwvm Aopfx Ah Ejru Remark: The machine is under power in our warehouse and can be inspected.

Year of construction: 1977, condition: excellent (used), machine/vehicle number: 3273, Neff - internal broaching press Lrodpfsd N Rl Njx Ah Eou machine type: vertical hydraulic broaching press manufacturer: Neff Germany type: 16 SRKA built in: 1977 stroke: 1300 pulling force: 16.000KG working stations: 1 PCs drive: hydraulic system equipment: coolant system remark: machine under power in stock Information about us: we are specialized for second hand broaching machine and still have anytime about 80 pcs of used broaching machines in our stock, vertical and horizontal machines from 3000kg up 63.000kg pulling force and from 1000mm stroke up to 3500mm stroke
