Used Broaching & slotting & drawing machines for sale (176)

Condition: ready for operation (used), A used broaching machine Rausch RS 6/1300 with accessories Ljdpfev Ulhdox Ah Eeru For technical data see PDF.

Condition: used, functionality: fully functional, Year of construction: 2000, Internal broaching machine Make: Arthur Klink Type: RISH 10x1000x400 Year of construction: 2000 Ledpfx Aetpmnrjh Eoru

Condition: new, Year of construction: 2025, Brand new NC-controlled precision vertical slotting machine for efficient production of keyways. Menu-guided program control for slot depth, slot width, cutting depth, tool width, and number of finishing strokes. Lsdpfxsxdi D Dj Ah Eeru Optionally available with a rotary indexing table. Rotary table diameter Ø 320 mm – up to three CNC axes possible. Stroke range of the slotting ram: 0 to 200 mm. Table size: 280 x 500 mm. Clamping table bore: Ø 80 mm. Throat depth: 350 mm. Maximum workpiece height: 400 mm. Continuously variable ram speeds: 30 to 120 mm/min. Dimensions approx. 1.2 x 1.2 m x height 2.3 m. Drive power: 2.2 kW. Weight approx. 2,200 kg.

Condition: used, Year of construction: 1990, max.: tractive force 25.000 KG max.: tool length 3520 mm Lrjdpfecm Eiwex Ah Eeu max.: cutting speed 9,6 m/min passage width 520 mm The machine has machined connecting rods and con rod caps. The machine is designed for mass production (output 400 pieces/hour).

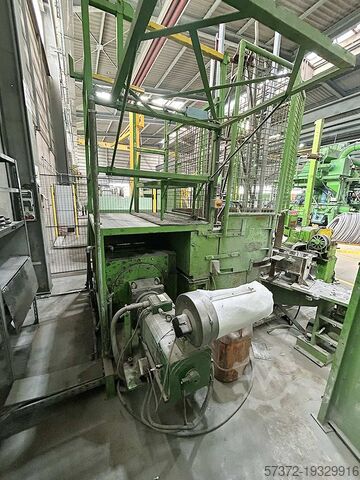

Year of construction: 1987, condition: ready for operation (used), An old Schumag Aachen drawing machine without control is available. Drawing force: 100kN, drawing speed: 80m/min, material diameter range: 25mm-43mm. On-site inspection is possible. Lodpfx Asv Tctuoh Esru

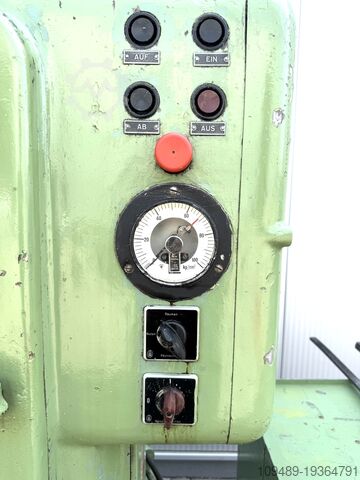

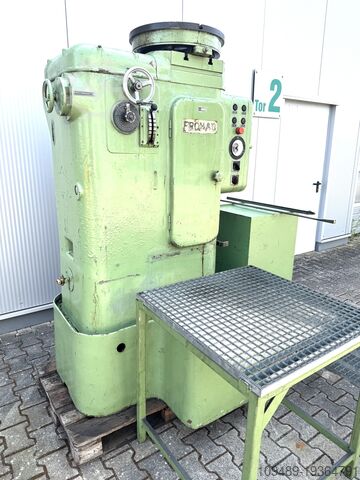

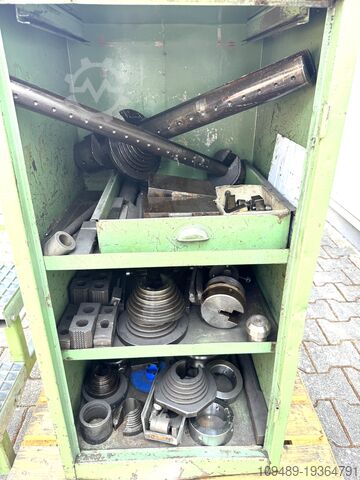

Condition: good (used), Keyway broaching machine FRÖMAG RAPIDA 463 incl. indexing table and additional accessories - Achievable keyway widths: 3 - 63 mm - Maximum keyway length: 600 mm - Indexing table - For bores from 10-500 mm - Feed size: 0.01-0.25 mm - Cutting speed infinitely adjustable: 2-22 m/min Lrodpfx Ahjwr T S Do Esu - Return speed - constant: 50 m/min - Load capacity: 3000 kg - Connected load: 4.6 kW - Incl. working platform - Various broaching needles and matching accessories in tool cabinet Dimensions: LxWxH (machine): 1.6x1.5x2.3 m / Weight: 3500 kg Errors and omissions excepted.

Condition: good (used), Square broaching tool, multi-wedge broach, broaching tool, broaching needle, grooving tool, keyway broaching tool, keyway broaching needle -Manufacturer: HS Hasseay Savage, broach push broach -Type: 11622 J9 HSS M-2 -Keyway width: 22 mm Lrodpfjwt N H Tox Ah Eou -Quantity: 1 piece available -Dimensions box: 495/50/H50 mm -Weight: 2.8 kg

Condition: excellent (used), Year of construction: 2000, machine/vehicle number: 03.2456, CNC Ibroching machine Arthur Klink RISH 6.3X1000X400 Lrsdpsirwiqofx Ah Eou Renewed in 2016

Condition: used, TECHNICAL DETAILS - Pulling force : 80 [kN] Ledpfxou E U R Ts Ah Esru - Max. broaching stroke : 1250 [mm] - Max. feed stroke : 500 [mm] - Spindle lengths : 650 - 1400 [mm] - Table width : 400 [mm] - Broaching speed : 1 - 10 [m/min] - Return stroke speed : 1 - 15 [m/min] - Installed power : 25 [kW] - Machine weight : 4300 [kg]

Condition: refurbished (used), functionality: fully functional, Year of construction: 2024, broaching length: 1,000 mm, number of broaching positions: 1, broaching speed: 3 m/min, Manufacturer: Rausch (Haan/Rhld) Model: RS 6/1000 Machine No.: 51261 Year of Manufacture: 1978 Weight: 680 kg Overhauled: 11/2024 by Wiemers AG General Information / Technical Data: Overhauled mechanical vertical broaching machine Rausch RS 6 G Pulling force: 60 kN Broaching speeds: 3 m/min and 6 m/min Return speed: 6 m/min Maximum stroke: 1000 mm Maximum tool length: 1200 mm Table dimensions / Working area: 610 x 470 mm / 520 x 320 mm Table aperture: Ø90 mm for standard broaching mandrels Ljdpfjw Ighiex Ah Eeru Workpiece diameter: unlimited Dimensions (H x W x D): 2,250 mm x 850 mm x 1,200 mm (H = table height from floor, without attachments) Motor: 4.4 kW / 5.5 kW Power supply: 400 Volt / 50 Hz Additional modifications/upgrades to the original machine performed: - External stroke adjustment - New, machine-independent, reproducible tool length adjustment system - Additional limit switches for end position monitoring - Safety door with monitoring (integrated in the emergency circuit) - Machine enclosure below safety door with chip protection and tool storage area - Electrical sensing of clamping jaws (tool removal monitoring to prevent unintended retraction of the broaching bridge) - Coolant swing system with solenoid valve operated during swing motion (for switching on coolant before broaching stroke – optical flow control ensures lubrication, no dry cutting!) - Routing of electrical cables in protective steel conduits - Heavy-duty control cabinet mounting for machine components - Additional oil-proof drip tray on the control cabinet - Three-sided closed splash guard cabin (W = 960 x D = 450 x H = 590 mm) - Reinforced chip screen with magnetic separator - Control panel made of stainless steel with durable labeling - 4 central lubrication points for trapezoidal spindle drive Remarks: The machine has been completely overhauled, the machine body fully refurbished. All wear parts have been replaced. - New trapezoidal spindles and spindle nuts made from cast wear-resistant bronze - All bearings and seals renewed - The coolant system (pump, solenoid valve, and drain tap), including the coolant/lubrication swing system, is new - The clamping jaws are new - Complete electrical system (control cabinet) is new - All sheet metal and enclosures are new - The following components have been overhauled and re-used: - Machine base - Machine column - Machine table with table insert - Broaching bridge (clamping jaws new) - Gear wheels - Electric motor (new brake, new bearings) The machine is stored in our warehouse and can be inspected under power. The attached images are original photos of the machine. The machine is CE marked. The CE marking corresponds to the status as of 1998 (first overhaul).

Condition: ready for operation (used), Year of construction: 1961, A Niehoff slide-free drawing machine is available. Processing diameter: 5mm-15mm, drawing speed range: 6m/min-24m/min, gearbox: manual gearbox, machine dimensions X/Y/Z: approx. 2600mm/2200mm/4000mm, weight: approx. 6500kg. The gearbox was completely overhauled in 2019 with new gears and new bearings. A new external lubricating oil pump was also installed in the same year. Documentation available. On-site inspection is possible. Lsdpfxewq R N Rs Ah Ejru

Condition: good (used), Vertical slotting machine VS 600 -Rotary table - diameter 600mm -Stroke range approx. 360mm -Three-jaw chuck - diameter 325mm -Good general condition Dimensions: LxWxH 1.9x1.2x2.2 meters / Weight approx. 1700kg Lredpfxowptl Eo Ah Eou Errors / input mistakes excepted

Condition: good (used), Square broaching tool, multi-wedge broach, broaching tool, broaching needle, grooving tool, keyway broaching tool, keyway broaching needle -Manufacturer: HS Hasseay Savage, broach push broach -Type: 11518 18MM V -Keyway width: 18 mm -Quantity: 1 piece available -Dimensions box: 395/40/H40 mm -Weight: 1.3 kg Ledpfx Aowt N Hyeh Ejru

Condition: excellent (used), functionality: fully functional, Year of construction: 1999, machine/vehicle number: 20, Used CNC internal broaching machine Make: FORST Type: RISH 63X1000X320 Year of manufacture: 1999/ Reconditioned Lrodpfx Asv Htlujh Esu Mach. No.: 20

Condition: used, TECHNICAL DETAILS - max. force : 63 [kN] - broaching stroke : 1000 [mm] Lodpfoug U H Uex Ah Ejru - spindle stroke : 400 [mm] - 3 cutting feeds : 2,5 - 5 - 7,5 [m/min] - return speed : 24 [m/min] - broaching positions : 1 - hydraulic motor : 9 [kW] - capacity of hydraulic tank : 600 [l] - capacity of cooling tank : 150 [l] - main voltage : 400 [V] - total power : 10,5 [kW] - floor space : 3.700 x 3.000 [mm] - total height : 3.200 [mm] - weight : 3.500 [kg]

Condition: used, Year of construction: 1990, machine/vehicle number: 3048 & 3047, Manufacturer: Karl Klink Model: RKW 25-3800-520 Weight: 50t Year of manufacture: 1990 Machine No.: 3048 & 3047 General / technical data: Chain broaching machine for continuous outside broaching tractive force: 25.000kg cutting speed: 7,2 / 8,1 / 9,6m/min maximum tool length: 3520mm passage width: 520mm clamping area of the tool carrier: 3520 x 460 mm dimension: 12.300 x 6.400 x 4650mm power supply: 380V 50Hz / 110kW Accessories/ special equipment: - 6 tool carriers for tool change - machine documentation Remark / General The machines are in a good condition. The machines are dismantled and stored in our warehouse. The total volume of the plant is several trucks (approx. 70to per machine). The machines have produced connecting rods for passenger car diesel engines. Chain broaching machines are designed for mass production. The continuous (backstroke-free) working process in chain broaching is designed for maximum achievable productivity in external broaching. The chain broaching process is the only broaching process without a backstroke of the tools or workpieces. In chain broaching, the workpiece is continuously moved past the tool and thus performs the feed movement. and thus carries out the feed motion. This unique broaching process is only used for very large quantities in series production. Lrodpfxoinim Tj Ah Eou

Year of construction: 1991, condition: ready for operation (used), Groove width range: 2mm-32mm, max. ram stroke: 300mm, stroke rate: 300 strokes/min, max. installation height: 450mm, feed: 0.01mm-0.15mm, working speed: 30m/min, return speed: 30m/min, machine dimensions X/Y/Z: approx. 2500mm/1500mm/2200mm, weight: approx. 2200kg, control: fk electronic Dialog CNC. On-site inspection is possible. Lrsdpeu D Aagofx Ah Eou

Year of construction: 1965, condition: used, groove width 3 - 90 mm drawing length 430 mm Lodpotv Iatefx Ah Ejru working speed 4 - 12 m/min slot-milling length 400 mm return speed 15 m/min total power requirement 5,5 kW weight of the machine ca. 1,4 t dimensions of the machine ca. 1,3 x 1,7 x 1,5 m • with various honing needles and guidances

Condition: good (used), Square broaching tool, multi-wedge broach, broaching tool, broaching needle, grooving tool, keyway broaching tool, keyway broaching needle Lrjdpfx Ahswt N E Ae Eeu -Manufacturer: HS Hasseay Savage, broach push broach -Type: 11620 J9 HSS M-2 -Keyway width: 20 mm -Quantity: 1 piece available -Dimensions box: 495/50/H50 mm -Weight: 2.8 kg

Condition: used, functionality: fully functional, Type: Hydraulic Guillotine Manufacturer: HJO, Sweden Year: 1984 Max. plate thickness 4 mm Max. plate length 2500 mm Max. operating pressure 21.0 MPa V 3 x 380 Hz 50 Lrodpfxoxgcz Io Ah Eju Weight 3700 kg Quick action blade clearance adjustment, floor pedal control.

Condition: excellent (used), For sale: Professional dot peen marking machine PRO PEN P5000 (GravoTech Marking SAS), distributed by HAHN+KOLB Gruppe. This is a fully industrial-grade device designed for permanent marking of metal and plastic parts—serial numbers, logos, codes, and production markings. Specifications: • Model: Propen P5000 Pn/d • Year of manufacture: 2010 • Power supply: 100–240 V, 50/60 Hz • Power: 150 W • Operating pressure: 5.5 bar (pneumatic supply) • Manufacturer: GravoTech Marking SAS, France • Operator panel with touchscreen + HP keyboard • Robust worktable with guides. The machine is complete, fully functional, and ready for operation. Ideal for workshops, production plants, tool rooms, and wherever quick and precise permanent marking is required. Very good condition—well-maintained unit with minimal signs of use. Lrodpfsw R Spqjx Ah Eeu

Condition: refurbished (used), functionality: fully functional, Year of construction: 2023, input voltage: 400 V, broaching length: 1,000 mm, number of broaching positions: 1, broaching speed: 3 m/min, Manufacturer: Rausch (Haan/ Rhld) Model: RS 4/1000 Machine No.: 5027 Year of manufacture: 2001/2023 Weight: 580 kg Overhauled: 3/2023 by Wiemers AG General / Technical Data: Unused, overhauled mechanical vertical broaching machine Rausch RS 4, with current “CE” certification Pulling force: 40 kN (4,000 kg) Broaching speeds: 3 m/min and 6 m/min Return speed: 6 m/min Maximum stroke: 1,000 mm Maximum tool length: 1,200 mm Table dimensions / Working area: 540 x 340 mm / 450 x 250 mm Table opening: Ø 90 mm for standard broaching mandrels Workpiece diameter: unlimited Dimensions (H x W x D): 2,350 mm x 900 mm x 1,000 mm (with splash-guard cabin) Ljdpfxow H Dgnj Ah Ejru Motor: 4.4 kW / 5.5 kW Power supply: 400 Volt / 50 Hz Accessories / Special equipment: - Drive with 2 speeds - Safety door with interlock and chip chute - Chip chute with tool storage - Electric clamp jaw sensing (tool removal monitoring to prevent unintentional retraction of the drawbridge) - Integrated coolant system with solenoid valve (controlled via swing system) - Patented coolant/lubricant swiveling system - Externally adjustable tool length setting system (reproducible across multiple machines) - 4 central lubrication points for the trapezoidal spindle drive - Closed centering plate for profile tools with additional protection plate for flat broaching tools (keyway tools) - 3-sided enclosed splash guard cabin with tool storage (ideal for profile broaching) - External control panel (connected via Harting plug connector) Remarks: The machine has been completely overhauled, the machine body thoroughly reconditioned. The following wear parts have been replaced: - New trapezoidal spindles and spindle nuts made from cast, wear-resistant bronze - All bearings and seals replaced The coolant system (pump, check valve, and drain valve) including coolant/lubricant swing system is new - Coolant supply is controlled via a solenoid valve, which can be switched over by the swing system - The drawbridge as well as the clamping jaws and rack segments are new - A deactivatable clamping jaw detection system has been installed (additional safety for operator & to prevent tool breakage) - A safety door with interlock, signal display, and door lock - The tool length adjustment system has been relocated outside the machine compartment - Additional end-position limit switches have been installed - Complete new electrical system (control cabinet) - No PLC installed, machine is electrically maintenance-friendly - New drive motor (SEW Germany) with brake - The machine has been freshly painted with 2-component structural paint General The dual spindle drive ensures smooth, centralized pulling force and consistent broaching speed (broaching speed selectable: 3 m/min or 6 m/min). By design, the machine is quick and simple to set up for broaching with flat broaching tools for keyway cutting. Thanks to the universally constructed design of the drawbridge and machine table, operation with both profile and flat broaching tools is possible without the need for additional drawheads.

Condition: good (used), Year of construction: 1991, Manufacturer: Urpe Type: M200G Year of construction: 1991 Stroke 0-200 mm Table 650 x 220 mm Tilting ram 0-30 deg. Specifications Metric US Standard There are (as yet) no specifications for this machine. Lsdswp Nfnspfx Ah Esru Dimensions (Estimate) There are (as yet) no dimensions for this machine. Please note: The information on this page has been provided to the best of our knowledge and, as far as possible, obtained from the manufacturer. The information is given in good faith, but accuracy cannot be guaranteed. Accordingly, they do not constitute representations and contractual conditions. We recommend that you check all important details.

Condition: refurbished (used), functionality: fully functional, Year of construction: 2025, overall weight: 400 kg, input voltage: 400 V, broaching length: 1,000 mm, Manufacturer: Rausch Model: RS3 /1000 Machine No.: 3714/1070 Year of Manufacture: 1995 Weight: 400 kg Overhaul Due: 04/2025 by Wiemers AG Lodpfow Huh Njx Ah Esru General / Technical Data: Unused, fully overhauled mechanical vertical broaching machine Rausch RS 3, with CE marking Pulling force: 3,000 kg Broaching speeds: 3 m/min & 6 m/min Return speed: 6 m/min Maximum stroke: 1,000 mm Maximum tool length: 1,200 mm Table size / workspace: 430 mm x 320 mm / 340 mm x 220 mm Table opening: Ø 90 mm for standard keyway broaches "Rausch system" Workpiece diameter: unlimited (removable coolant swiveling system) Broaching capacity / slot width: up to 18 mm in steel (from 16 mm slot width only with stepped tool shank) Dimensions (H x W x D): 2,250 mm x 800 mm x 750 mm (H = including 3-sided safety enclosure) Motor: 2.5 kW / 3.0 kW Power supply: 400 Volt / 50 Hz Features: - Gear motor drive with 2 working speeds - Safety door with interlock system (emergency stop circuit) - Easily removable chip chute with tool rest - Externally adjustable tool length setting system (Rausch system) - Protective covers for stroke adjustment and electrical switch gear - Electrical sensing of clamping jaws (tool removal check prevents unintentional return of the pull bridge, adding extra safety for operator and tool) - Integrated coolant system - Coolant swiveling system (without electrical switching function) - Three-sided splash guard enclosure with wide front opening for working area - Extra reinforced chip basket and chip screen with magnet feature - Stainless steel operator panel with permanent labeling - 4 central lubrication points for leadscrew drive with manual grease gun - New machine documentation - CE marking by manufacturer (1995) Remarks: The machine is overhauled and the machine body has been fully refurbished. The following wear parts were replaced or renewed: - New trapezoidal screws and nuts made of cast wear-resistant bronze - All bearings and seals replaced - The entire coolant system incl. coolant/lubricant swiveling system is new - New two-speed SEW gear motor - New electrical system (Siemens) - New safety door replacing the old light barrier - New clamping jaws - All sheet metal parts such as covers, chip chute, basket, screen, and spindle guard are new - Stainless steel operator panel with permanent labeling - Machine has been newly painted with 2-component structural lacquer This machine carries the manufacturer’s CE marking. General Information: The twin-spindle drive ensures quiet, centrally aligned pull and constant broaching speed. The machine is primarily designed to cut keyways up to 18 mm wide (from 16 mm tool width only with stepped tool shanks). The design allows for quick and easy setup for broaching with flat broaches for keyway slots. Thanks to the universally designed pull bridge and machine table, broaching with both profile and flat broaches is possible without requiring additional pull heads.

Condition: good (used), Manufacturer: STANKO Type: 7D430 Year of manufacture: 1994 Table rotation 360° Head tilting possible up to 10° Big cabinet with slotting key way tools Lubrication Completely overhauled in 1994 Specifications Metric US Standard Table diameter Ø 630 mm Table load 1000 Ram displacement 320 mm X - Axis 650 mm Y - Axis 510 mm Outreach 500 mm Number of strokes 3 - 38 m/min min. Lodpfx Aowpud Aoh Eoru Power 12 kW Dimensions (estimated) Length 3000 mm Width 2200 mm Height 3000 mm Weight 6150 kg Please note: The information on this page was provided to the best of our knowledge and ability by us, and, where possible, obtained from the manufacturer. The information is given in good faith, but accuracy cannot be guaranteed. Accordingly, they do not constitute representation and contractual terms. We recommend that you verify all important details.
