Used Broaching & slotting & drawing machines for sale (176)

Year of construction: 1962, condition: good (used), machine/vehicle number: 1886, Used vertical hydraulic internal broaching machine with 3 broaching points Tractive force: 10.000 kg clearing length: 1.200 mm Broaching points: 3 pieces Distance between the broaching points: 380 mm Mounting diameter of the broaching heads 3 x Ø ___mm Passage width between the cylinders: max. XXX mm Cutting speed: hydraulically infinitely variable from 1 m/min to max. 7 m/min Return speed: hydraulically infinitely variable from 7 to max. 25 m/min Space requirement of the machine: (w x d x h) approx. 1,300 x 1,450 x 3,350 mm (without pit) Power supply / connected load: 380Volt 50 HZ / 8.0 KW Accessories / special equipment: The machine is equipped with a workpiece table with 3 holes for 3 broaching positions. The tool clamping system is provided for spring-mechanical locking in the drawbridge and in the feeder. The machine has an integrated coolant system. Lrsdpfxot Dwb De Ah Eeu Remarks: The machine is designed for use in series production, ideally a foundation (pit) or optionally a platform is required for optimum use. Drawing heads and needle lifters are available on request. The machine can be viewed in our warehouse.

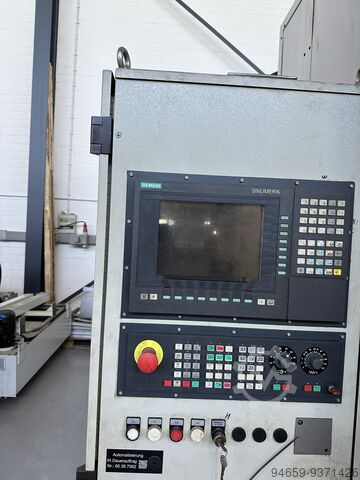

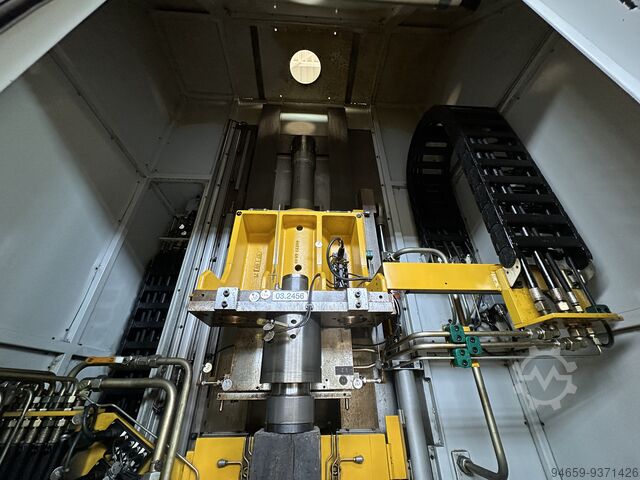

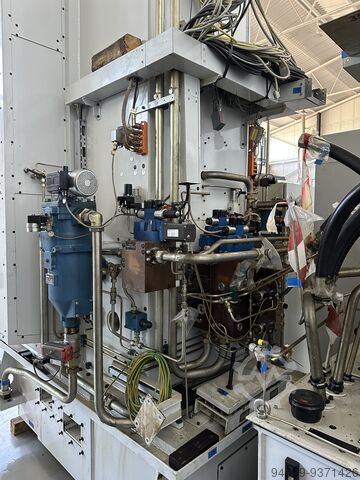

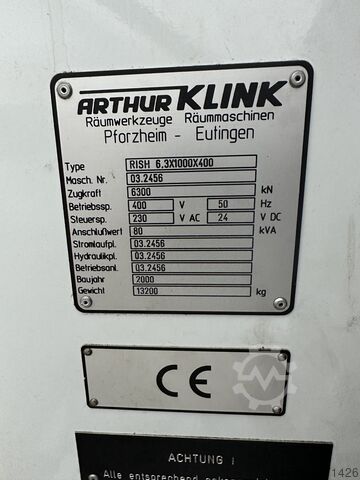

Condition: excellent (used), Year of construction: 2000, Arthur Klink RISH 6.3 × 1000 × 400 – Technical Specifications Machine type: horizontal internal broaching machine Lodok S U Hcspfx Ah Ejru Manufacturer: Arthur Klink Model: RISH 6.3 × 1000 × 400 Year of manufacture: 2000 Tractive (broaching) force: 6.3 tonnes (approx. 63 kN) Maximum broaching length (stroke): 1,000 mm Maximum workpiece diameter: approx. 420 mm Table opening bore diameter: approx. 80 mm Broaching speed: hydraulically infinitely variable from 1 m/min to 7 m/min Return speed: hydraulically infinitely variable from 7 m/min to 25 m/min Overall dimensions (width × depth × height): approx. 5,700 × 600 × 1,900 mm Power supply: 380 V, 50 Hz, total connected power approx. 4 kW Machine weight: approx. 2,300 kg Coolant and lubricant system: integrated coolant/lubricant facility Oil and chip tray length: approx. 2,000 mm

Condition: excellent (used), Broaching tool, broaching needle, special tool, grooving tool, keyseating machine, keyway broaching machine, keyway broaching machine, keyway broaching tool, broaching needle Ljdpfxsitt Rys Ah Ejru -Manufacturer: SWZ, broach push broach -Type: B 6 J9x1.8 RL 24-72mm -Item no.: 45 0014 -Width: 6mm -Number: 2x broach available -Price per piece -Total dimensions: 900/6/H13 mm -Weight: 0.5 kg/pc.

Condition: good (used), Year of construction: 1971, machine/vehicle number: 170119003210A0, Offer 25217 Technical data: - Groove width: 3 to 36 mm - Max. groove length: 340 mm - Bore diameter: 10 to 350 mm - Feed rate: 0.01 - 0.22 mm - Cutting speed: 2 - 10 m/min - Return speed: 20 m/min Lrsdowu Suvopfx Ah Esu - Max. pulling force: 1.5 t - Max. workpiece weight: 3 t - Table size: 350 x 450 mm - Working / operating height: 1050 mm - Drive: 400 V / 3 kW - Space requirement: approx. W 900 x H 1250 x D 700 mm - Weight: approx. 900 kg - Extensive accessories as shown

Condition: good (used), max. ram stroke 230 mm throat 230 mm table diameter 0 mm are offered : 2 pieces of shaping spindle for Lorenz gear shaping machines type LS 630 to LS 1250 1x overhauled new Lrodpsw Ny S Rsfx Ah Esu 1x has to be overhauled. Year of manufacture: unknown

Condition: used, functionality: fully functional, Lifting height: 350 mm Rotary table diameter: 800 mm Table cross travel: 600 mm Table longitudinal travel: 650 mm Lrsdpfxsxk T Rhj Ah Eou Adjustable travel: 400 mm

Condition: used, Year of construction: 1979, functionality: fully functional, machine/vehicle number: 17065, Manufacturer: henning Model: U6/1000 Machine no.: 17065 Year of construction: 1979 Weight: 1.100 kg General / technical data: used mechanical vertical broaching machine Henning, in working condition Tractive force: 6,000kg (60KN) Clearing speeds: 3m/min and 6m/min Return speed: 6m/min maximum stroke: 1,000mm maximum tool length: 1,200mm table size / work surface: 600x460mm / 480 x340mm Table aperture: Ø 170mm with eccentric table insert with Ø 90mm bore for standard broaching mandrels (Rausch system) Lsdpjup Uzfefx Ah Eeru Workpiece diameter: any Dimensions (h x w x d): 1,650mm x 1,200mm x 700mm (h= table height to floor without superstructure) Motor: 7.4 /10kw Power supply: 380 Volt / 50 HZ Accessories / special equipment: - Integrated coolant system - Return circuit with double actuation mode - Machine documentation - Automatic clamping jaw opener in the lower drawbridge position (tool removal) - Tool clamping with universal clamping jaws for flat shanks DIN 1416 BL 6 Remark: The machine is in original condition, the function has been tested. The machine is mechanically driven by a trapezoidal threaded spindle and a geared motor. In contrast to most mechanically driven broaching machines in which the trapezoidal spindle forms the drive and guide element, this machine has additional guide columns. The machine is therefore additionally column-guided and very stable. The double spindle drive is ideal for a continuously constant cutting speed, even with higher tensile forces. The machine is in our warehouse and can be inspected under power.

Condition: ready for operation (used), Year of construction: 1970, stroke 300MM max width 32MM Ljdpfx Asv D Dxtjh Ejru tooling

Condition: excellent (used), functionality: fully functional, Tool stroke: mm 50-250 Distance between tool and column: mm 450 Ram registration: mm 230 Workpiece holder table: mm 500 x 400 Dividing table diameter: mm 400 Longitudinal stroke: mm 320 Transversal stroke: mm 300 Lrodpfowq Iatox Ah Esu Head tilt: 45° Strokes per minute: 17 - 80 Net weight: kg 1.500 Overall dimensions: mm 1.050 x 1.950 x 1.450

Condition: good (used), pulling force - max. 6 t max. ram stroke 800 mm max. workpiece diameter 40 mm Lrjdpfow Saihox Ah Eeu weight of the machine ca. 1,2 t dimensions of the machine ca. 2,0 x 0,8 x 1,4 m

Condition: good (used), Year of construction: 2000, max. ram stroke 2 - 300 mm groove width 2 - 32 mm power capacity 8 kW no. of strokes 2 - 300 Hub/min throat ca. 300 mm Max. installation height ca. 450 mm automatic feeds 0,01 - 0,15 mm work speed 0 - 30 m/min return speed 30 m/min weight of the machine ca. 2,2 t dimensions of the machine ca. 2,5 x 1,5 x 2,2 m The BALZAT keyway jointing machine is characterised by the following advantages: - Infinitely variable adjustment of the jointing speed with constant return, even during the work process - Simple clamping of the workpieces with standard clamping devices, without additional tool holders - Extreme dimensional accuracy thanks to self-centring, centrally arranged blade holders - Feed rate can be changed during the programme sequence - Machine base is also a container for cutting oil Ljdpeuayibsfx Ah Eoru - all components are easily accessible and replaceable

Condition: used, Year of construction: 1964, serial number 23046 stroke 320 mm +++++ Lodjfgpdrspfx Ah Eoru Please note: The machine is dismantled and ready for loading. It is not possible to show it under power or make a video. Our offer includes already the best pictures. So we don’t have and won’t send additional pictures. +++++

Condition: ready for operation (used), Year of construction: 2001, A horizontal external broaching machine Hoffmann is available. Traction force: 25t, broaching stroke: 4000mm, stroke length: 400mm, broaching speed: 40m/min, return speed: 45m/min, max. operating pressure: 70bar, hydraulic oil volume: 630l, cycle time at 25m/min: approx. 50s, output in continuous operation: approx. 72 parts/h. Machine dimensions X/Y/Z: approx. 10000mm/7700mm/5000mm, weight: approx. 50000kg. Includes workpiece loader and automation, 3-piece tool broaching bar package. Various spare parts (motors, gearboxes, etc.) available on request. Documentation available. An on-site inspection is possible. Ljdpfjxa Ei Ijx Ah Ejru

Year of construction: 1986, condition: like new (used), More information on request Lredehmfnhspfx Ah Eeu

Condition: used, Hydraulic Keyseating Machine FRÖMAG Type RA D 63/425 Serial No. AKK 10102 ASK 2191 Year of manufacture 1981 Max. keyway width: 63 mm Max. working stroke: 425 mm Table size: 460 x 680 mm Working height - table height: 1320 mm Keyway depth feed: 0.01 to 0.25 mm/stroke (feed per stroke) Bore diameter: 10 to 400 mm Cutting speed: 2 to 22 m/min Motor power (hydraulics): 4 kW Power supply: 380 Volt, 50 Hz - Feed control for the rack from 0.01 to 0.25 mm per stroke - Manual and automatic operation - Control with digital selector and digital display - Automatic feed with cut-off - Hydraulic working stroke with adjustable overload cut-off - Stroke preselection 1 to 9 - Centralised oil lubrication - Hydraulic cylinder equipped with new sealing elements (1/2025) - Operating manual, hydraulic diagram, and electrical schematic - The machine comes without tooling Lredsvvwxdjpfx Ah Eou Weight: 1600 kg Space required L x W x H: 1100 x 800 x 1400 mm In good condition

Condition: good (used), Year of construction: 1980, Info: Machine was embedded in a pit! - Tractive force: max. 25,000 kg Lsdow R Sz Tjpfx Ah Esru - Clearing stroke: max. 630 mm - Clearing speed: 1 - 10 m/min - Return speed: 7 - 25 m/min - Total connection requirement: 45 kW - Machine weight: 5,500 kg

Condition: used, Year of construction: 1959, pulling force - max. 10 t max. ram stroke 1300 mm voltage 380 V weight 1400 kg Broaching machine RAUSCH RS10/1300 Year of construction: 1959 Stroke: 1,800 mm Lrsdpsvh Nd Aefx Ah Eeu Tractive force: 10 tonnes

Condition: excellent (used), Punch St 225 Hydropneumatic, air consumption 9l/per stroke Ledpfot Sigzox Ah Eeru Ram stroke 30 mm Punch pressure 3600 Kp at 6 bar 6000 Kp at 10 bar Pressure ratio 1:6 Foot switch Projection 100 mm, table surface 280 x 200 mm Weight 60 kg

Condition: excellent (used), functionality: fully functional, Year of construction: 2005, Vertical Notch Broaching Machine Manufacturer: Blacks Model: 1 W-CNB 34 Machine No.: S05035C Year of manufacture: 4/2005 Weight: 95kg General / Technical Data: Very well-maintained broaching machine for external notching of samples for tensile testing Broaching speeds: variable from 0.43 to 2.27 m/min Dimensions (H x W x D): 1370mm x 600mm x 450mm Power supply: 400V / 50 Hz Equipment: - Variable speed control via adjustable mechanical gearbox (manufacturer: Lenze); no electronic control! - Clamping fixture for tensile specimens Ledpew Rpvzsfx Ah Ejru - 3 used broaching tools - Machine documentation in German and English - Machine documentation including “CE” declaration of conformity in English General Information The dual spindle drive ensures smooth operation and a centrally aligned pull point, as well as a consistently uniform broaching speed. The broaching machine is a specially designed unit for machining V- and U-notches according to Charpy and Izod standards in pre-machined, square 10-mm standard test specimens. The CNB-34 produces a consistent notch of higher quality than what is achievable by milling. The machine is easy to operate and features a robust construction with removable maintenance panels for convenient routine servicing. Its design provides a comfortable working height. During the cutting process, a specially designed broaching tool is drawn over the specimen. The broaching tool is pulled downward into the machine via a gearbox and a dual spindle drive. The specimen is secured in the machine using the special clamping fixture. The broaching tool is lubricated with cutting oil. By pressing the broaching cycle button, the notch tool is forcibly guided down through the specimen, producing an accurate notch profile. After cutting the notch, the specimen must be removed before returning the tool. The tool is then returned without a workpiece and cleaned of any chips. Only after this cleaning step is the machine ready for further operation.

Year of construction: 2004, condition: excellent (used), Type: HRA4/80-4 Lsdehmfh Hepfx Ah Ejru Pipes: Ø 6 ÷ 24 mm, wall thickness = 1 ÷ 2,5 mm • Point: Ø3 ÷ 12 mm

Condition: new, Year of construction: 2019, machine/vehicle number: 3813, overall weight: 600 kg, power: 7 kW (9.52 HP), input voltage: 400 V, input frequency: 50 Hz, broaching length: 1,000 mm, workpiece diameter (max.): 300 mm, Designation: Vertical Broaching Machine Manufacturer: Rausch GmbH & Co. KG Model: RS 30/1000 Machine No.: 3813 Year of manufacture: 2019 Never commissioned Complete documentation Without broaching tools (broaches) Working Area Max. stroke: 1000 mm Max. pulling force: 30 kN Min./max. cutting speed: 1.0 – 7.5 m/min Min./max. return speed: 1.0 – 7.5 m/min Lredjw Evkiopfx Ah Eou Internal Broaching: Tool feed: manual/automatic Max. workpiece diameter: 300 mm External Broaching: Fixed/movable/rotatable workpiece clamping plate Clamping plate area: 255 mm x 400 mm T-slots: 2 units, 14 mm wide, parallel/perpendicular to the mounting surface of the tool slide Accessories/Special Equipment: Coolant system Broaching tool safety device Machine cover for workspace protection Footprint: 0.72 m x 1.3 m x 2.67 m (LxWxH) Weight: 600 kg Voltage: 400 V Current type: Three-phase Y/Δ 50 Hz Connected load: 12 kVA Max. fuse: 25 A Motor: Main drive: 7 kW / 2000 rpm Coolant pump: 0.12 kW / 2700 rpm Broaching Tool Holder: Clamping jaws for flat and profile tools up to 18 mm shank width Coolant supply: ½" Please submit inquiries only via email. All information is provided to the best of our knowledge. Subject to errors. This offer is directed exclusively at businesses as defined by § 14 BGB. Sale is made without any warranty. The exclusion does not apply to claims for damages arising from grossly negligent or intentional breach of the seller's obligations or for any injury to life, limb, or health. For further information, please visit the website of Witzenmann GmbH under the headings "Imprint", "General Terms and Conditions", and "Data Protection".

Condition: good (used), Year of construction: 2004, - Tractive force: max. 160 kN - Clearing stroke: max. 1000 mm - Truck feed stroke: max. 630 mm Lsdpjw R Szmsfx Ah Eeru - Table top width: 630 mm - Broaching speed: 10 m/min - Return speed: 23 m/min - Installed power: max. 88 kW - Machine weight: 12,410 kg

Condition: used, Year of construction: 2001, dimensions of the machine ca. 1450 x 1560 x 2620 mm weight of the machine ca. 1,8 t The machine frame is a solid welded construction. The cooling oil tank is located in the machine bed. The cross table is made of cast iron, guideways are ground and scraped with adjustment strips. The shaper head is also made of cast iron, the guides are ground and scraped, with lubrication grooves. The push head can be swiveled +/- 20 degrees. Stroke adjustable through side opening. Tool is positioned at the longitudinal stop. The machine has a mechanical stroke drive. The control for the CNC dividing head is housed in the control panel. The zero point can be set in any position of the dividing head and with the division options of 2-999 symmetrically and 99 divisions asymmetrically. Machine color: Green Color dividing head: red --> Digital operating instructions available in German + English Ledpfxowbi Aws Ah Eeru

Condition: ready for operation (used), Year of construction: 1975, A used Henning R1200 broaching machine with accessories Ledpsv Ulh Dsfx Ah Esru

Year of construction: 2000, condition: excellent (used), SMS MEER CNC DOUBLE SIDED CHAMFERING MACHINE Manufacturer: SMS MEER Type: RFA 14 Yom: 2000 Working range: tube Ø 21,3 – 114,3 mm Wall thickness 2,3 - 11 mm Ledpfx Asghrguoh Eoru Length: 6-12m Composed of two RFA14 chamfering machines with transport devices between the machines. The task of machines is to chamfer inside and outside both ends of the tubes. The range of diameters of chamfered tubes 21.3-114,3mm and wall thickness of 2.3-11mm in the length range of 6-12m. The task of transport in the area of the chamfering machines is to collect the tubes from the roller table and move them between the chamfering machines.
