Used Broaching & slotting & drawing machines for sale (176)

Year of construction: 1994, condition: excellent (used), machine/vehicle number: 04.2398, Manufacturer: Arthur Klink Type: RIW 10 x 1500 x 500 Machine No.: 04.2398 Year of construction: overhauled by manufacturer 1994 weight: 3700kg tractive force: 10.000kg (100kN) Lrsdpjgyd T Esfx Ah Eeu max. stroke: 1500mm max. workpiece diameter: Ø 500mm clearing speed: infinitely variable from 1m/min to 6m/min return speed: stepless adjustable up to 20m/min power supply: 400V / 50Hz

Year of construction: 1999, condition: used, pulling force - max. 6,0 t max. ram stroke 1250 mm dimensions of the machine ca. 1,20 x 1,20 x 3,25 m Lrjdod Il A Nspfx Ah Eju

Condition: like new (used), functionality: fully functional, Year of construction: 2021, Information on request Lredpfx Aewbudgoh Eeu

Year of construction: 1969, condition: used, machine/vehicle number: 6.223.0085, Force:10 to Stroke: 1250 mm Ljdpfjbrcl Iox Ah Eeru 3 Broaching stations Area required: appr. 140 x 120 cm

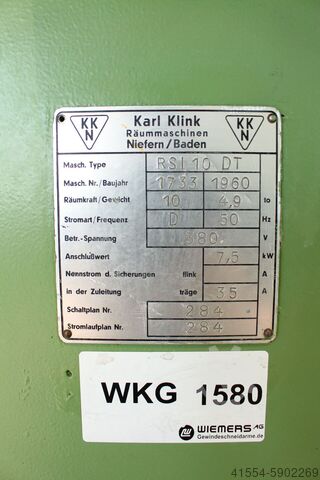

Year of construction: 1960, condition: refurbished (used), machine/vehicle number: 1733, Vertical internal broaching machine with switching plate of the company Karl Klink Type: RSI10DT Machine No.: 1733 Year of manufacture: 1960 weight: 4,9 to broaching force: 10.000kg With switch plate ( 2 stations ) Power supply: 380V / 50Hz Rated current: 35 A Connected load: 7,5 kW The machine is completely revised and is therefore in a very good condition. Ljdpogyd S Sjfx Ah Eeru

Year of construction: 2001, condition: used, machine/vehicle number: 29, Manufacturer FORST Machinenumber: 29 Year of Manufacturing: 2001 Force max.: 63 kN Lrsdpsdnk Ukofx Ah Eju Stroke max.: 1000 mm Weight: 7 tons (machine + control cabinet + coolant system) Broaching Stations: 1 Cycle Time: 28 sec. Cutting Speed max.: 8 m/sec back hub: 16 m/sec Shank Ø: 32 mm Endfitting Ø: 25 mm

Year of construction: 1971, condition: used, General / technical data: Manufacturer: Forst Model: RSIA-20-1320 Year of manufacture: 1971 Weight: 6.000kg Tractive force: 20t clearing speed: 5m/min return speed: 16m/min maximum stroke: 1320 broaching positions: 3 Lrsdpfolwu Spjx Ah Eou clamping area: 370 x 620 x 105mm Remark: The machine is under power in our warehouse and can be inspected.

Year of construction: 1986, condition: used, machine/vehicle number: 133, Force: 25 to Stroke: 1600mm Lodpfx Ahsbrcmls Eoru 1 broaching station, system 1417 Helical function defeatable, so machine can be used conventionally also!

Year of construction: 2024, condition: new, functionality: fully functional, machine/vehicle number: WAG 3102, Rausch/Wiemers SR 30 (WAG 3102) Vertical Internal Broaching Machine Lsdpfx Asv Rpnmeh Ejru Manufacturer: Rausch/Wiemers Model: RS 3/1000 Machine No.: WAG 3102 Year of manufacture: 2024 Weight: 480 kg Revision: 11/2024 by Wiemers AG General / Technical Specifications: Completely overhauled, mechanical vertical broaching machine Rausch SR 30, unused with "CE" marking Tensile force: 30 kN (3,000 kg) Broaching speeds: 3 m/min & 6 m/min Return speed: 6 m/min Maximum stroke: 1,000 mm Maximum tool length: 1,200 mm Table dimensions / work surface: 430 mm x 320 mm / 340 mm x 220 mm Table opening: Ø 90mm for standard broaching mandrels "Rausch System" Workpiece diameter: any (removable coolant swivel system) Broaching capacity / groove width: up to 20mm in steel (from 16mm broaching tool width only with offset tool shank) Dimensions (h x w x d): 1370mm x 680mm x 750mm (h = table height to floor without attachments) Motor: 2.5kW/3.0kW 2-stage for 2 working speeds Power supply: 400V / 50Hz Equipment: - Gear motor drive with 2 working speeds - Modified Wiemers "SR" drive system - Reinforced drawbridge made of tool steel for greater pulling forces - Safety door with door lock, safety query, and safety monitoring - Easily removable chip chute with tool storage option - Externally adjustable tool length adjustment system (across all machines) reproducible) - Protective cover for the stroke adjustment and electrical switching units - Oil-tight storage on the control cabinet - Electrical scanning of the clamping jaws (Tool removal control prevents accidental retraction of the drawbridge, providing additional safety for the operator and tool) - Integrated coolant system with electrically switched solenoid valve and drain cock - Coolant swivel system, with automatic coolant switching via the swivel system - Extra-reinforced chip basket and chip sieve with magnetic insert - Stainless steel control panel with durable markings - 4 central lubrication points for the trapezoidal spindle drive with manual grease gun - Electrical preparation for an external control element (16-pin connector) - Preparation for automatic clamping jaw opening during profile broaching via roller lever - Machine documentation with "CE" confirmation declaration Optional additional options: - Automatic clamping jaw opener for easier tool removal during profile broaching - Open 3-sided splash guard cabin (w x d x h) 700 x 350 x 600 mm - External electrical control unit for broaching and return stroke, as well as emergency stop operation Note: The machine has been completely overhauled. During the overhaul, the machine base, machine body, and machine table were completely refurbished. All other components have been replaced. The drive system has been modified. The machine has been updated to the state of the art and complies with current CE regulations (as of 2024). General The dual-spindle drive ensures a smooth and central pull point and a constant broaching speed. The machine is primarily designed for the production of keyways up to 20 mm. (From 16 mm keyways, only with stepped tool shanks). Due to its design, the machine is quick and easy to set up for broaching with flat broaching tools for keyways.

Year of construction: 1978, condition: good (used), machine/vehicle number: 6006/478, Broaching Machine - Vertical Lodpfxsfc T E Aj Ah Eoru Manufacturer: Rausch Type: RS8/1300 Year of manufacturing: 1978 Force: 8 Tons Stroke: 1.300 mm Weight: 0,92 Tons

Year of construction: 1968, condition: refurbished (used), functionality: fully functional, machine/vehicle number: 51039/373, Rausch RS 6G (WAG 855) Vertical Internal Broaching Machine Manufacturer: Rausch (Haan/Rhineland) Model: RS 6G / 1000 Machine No.: 51039/373 Year of manufacture: 1968 Weight: 800 kg Revision: December 2024 by Wiemers AG General / Technical Specifications: Completely overhauled, mechanical vertical broaching machine Rausch RS 6G, unused with "CE" marking Tensile force: 60 kN (6,000 kg) Broaching speeds: 3 m/min and 6 m/min Return speed: 6 m/min Max. stroke: 1000 mm Max. tool length: 1200 mm Table dimensions / work surface: 610 x 470 mm / 520 x 320 mm Table opening: Ø 90mm for standard broaching mandrels Workpiece diameter: any Dimensions (h x w x d): 1600mm x 850mm x 1000mm (h = table height to floor without attachments) Motor power: 4.4kW / 5.5kW Power supply: 400V / 50Hz Features: Lrjdpjv Rmvzsfx Ah Eju - Geared motor drive with 2 working speeds - Reinforced drawbridge made of tool steel for greater pulling forces - Safety door with automatic door locking and safety interlock - New chip chute with tool storage option - Protective cover for the stroke adjustment - Oil-tight storage on the control cabinet - Electrical scanning of the clamping jaws (tool removal control to prevent unintentional retraction of the drawbridge, providing additional safety for the operator and tools) - Integrated coolant system with electrically switched solenoid valve and drain cock - Coolant swivel system, with automatic coolant switching via the swivel system - Chip sieve with magnet - Externally adjustable tool length adjustment system (reproducible across all machines) - Stainless steel control panel with durable markings - 4 central lubrication points for the trapezoidal spindle drive with manual grease gun Note: The machine has been completely overhauled. During the overhaul, the machine base, machine body, and machine table were completely reconditioned. All wear parts have been replaced. The machine has been updated to the state of the art and complies with current CE regulations. The machine is marked with a CE certificate. General The double spindle drive ensures a smooth and central pull point and a constant broaching speed (broaching speed optionally at 3 m/min or 6 m/min). Due to its design, the machine can be quickly and easily set up for broaching with flat broaching tools for keyways. The universal design of the drawbar and machine table allows broaching with profile and flat broaching tools without the use of additional drawing heads. Broaching tools and broaching mandrels suitable for the machine are available on request.

Year of construction: 1992, condition: good (used), machine/vehicle number: 662681751, Broaching Machine - Vertical Manufacturer: Rausch Type: RS6 / 1300 Machine number: 662681751 Year of manufacturing: 1992 Type of current: 3N ~ 380 Volt/50 Hz Connected value: 7,1 KW Ampacity: 17 Ampere Weight: 810 kg Circuit diagram number: RS6 – 39 With aggregate Size table: 520mm x 320mm Ledpfxefc T Edj Ah Ejru

Year of construction: 1999, condition: like new (used), functionality: fully functional, Manufacturer: Arthur Klink Year of construction: 1999 Type: horizontal broaching machine Model: RIW 10x1600x400 Weight: 2.700 KG General / technical data: horizontal hydraulic internal broaching machine in mint condition with tool holding system ideal for the use of flat broaching tools. Broaching stroke: 1.600mm Tractive force: 10,000 kg (100kN) Mounting in the drawbridge: Ø 85mm Cylindrical Through-hole in the clamping table: Ø 100mm Workpiece diameter: max. 400mm (due to the machine body of the tool trough) Cutting speed: hydraulically infinitely variable from 1.0 m/min to 9 m/min Return speed: hydraulically infinitely variable from 1 m/min to 24 m/min Space requirement of the machine: (w x d x h) approx. 6,400 mm x 1,450 mm x 1,600 mm (without working area) Power supply: 400Volt 50 HZ Connected load: 9kw Equipment: - the machine has an electric control for the clearing stroke movement with manual operation and automatic sequence - the machine has an integrated coolant system - the machine has a tool holding system for flat broaching tools (no feed) - The broaching carriage with the pulling head holder is equipped with a flat guide on both sides Ledpfxer A Hcbj Ah Esru Accessories - 1 universal pulling head for flat shanks from 3mm to max. 25mm wide and a maximum pulling force of 10kN (10,000kg) - Complete machine documentation and CE declaration of conformity Remarks: The machine is ideal for the production of keyways. Due to the connection with the stable machine bed of the machine and the broaching tool holding system, the machine is particularly suitable for quick and easy use of flat broaching tools. The machine has been used very little and is in mint condition. The machine is available for inspection in our warehouse and is ready for demonstration under power. Our direct contact details and further information about the machine can be found in the attached PDF document

Year of construction: 1962, condition: good (used), machine/vehicle number: 1083, Broaching Machine - Vertical Lsdpfx Ajfc T Eueh Eoru Manufacturer: Rausch Type: RS10/915 Machine number: 1083 Year of manufacturing: 1962 Force: 10 Tons Stroke: 915 mm System DIN 1415 With pedestal for upper-floor positioning

Year of construction: 1974, condition: excellent (used), machine/vehicle number: AKK60945ASK8560, Manufacturer: Frömag Model: KZH 90 x 1500 Year of manufacture: 1974 Machine No.: AKK60945ASK8560 Weight: 1,35 t Technical data: max. tractive force: 7.000kg max. stroke: 1565 mm max. cutting speed: 2-6 m/min (infinitely variable) max. return speed: 2-6 m/min clamping area: 410 x 610 mm passage width: 0 open table groove width: 3 - 100 mm in bores from: Ø13 - 500 mm depth of machine base under floor: 2500mm footprint (l x w x h): approx. 800 x 1.100 x 1.100 mm power supply: 380V / 50Hz / 4,73kW Accessories: Dividing head-TA Twist groove drawing device for the production of twist grooves Lrsdpfx Ahjlp Im He Eju Serrations internal splines div. tools for the production of internal splines and grooves Remark: Optional: machine can also be used for profile broaching.

Year of construction: 1965, condition: used, machine/vehicle number: 2112, Color: green Lodobrclvepfx Ah Esru Force: 2,5 to Stroke: 1000mm Weight: 1,2 to 3 KW Area required: appr. 140 x 130 cm

Year of construction: 1971, condition: excellent (used), Horizontal internal broaching machine Arthur Klink RIW 16x1800 -WAG 718- Lrsdpfx Ahohpqqus Eju Manufacturer: Arthur Klink Type: RIW 16 x 1800 Year of manufacture: 1971 Max. Tractive force: 16t Max. Stroke: 1800mm Max. Cutting speed: 7m/min Max. Return speed: 25m/min Max. Tool diameter: Ø 95mm Weight: 4,8to

Year of construction: 1960, condition: good (used), machine/vehicle number: 758, refitted Force: 2 to Lrsdpsbrcmhofx Ah Eju Stroke: 1000mm

Year of construction: 1995, condition: used, machine/vehicle number: 18891, Force: 10 to. Lrjdpfxsbrcmkj Ah Eou Stroke: 1000mm 3 Broaching-stations With chip-conveyor + platform and safety door

Year of construction: 1985, condition: good (used), machine/vehicle number: 20236, Pulling-force: 10 to Stroke: 1500 mm 1 Broaching Station Ledpfx Ahebrcmre Ejru Weight: ca. 1800 kg Power-Input: 9,5 kw/380V With part and chip-convejor (mechanical)

Year of construction: 1984, condition: used, machine/vehicle number: 16700, Color: White With magnetic chip-conveyor Automatic lead Force: 10 to Lrsdpobrclqofx Ah Eou Stroke: 1200mm Weight: 6 to Area required: appr. 160 x 140 cm

Year of construction: 1971, condition: used, machine/vehicle number: 51, Color: yellow Force: 6,3 to Stroke: 1000 mm Lrjdpfxjbrclze Ah Esu Weight: 3.300kg

Year of construction: 2000, condition: used, machine/vehicle number: 3167, Broaching-force: 16 t Stroke: 16 t Lrodpfoccxqtox Ah Eju Weight: 8,5 t

Year of construction: 1991, condition: good (used), machine/vehicle number: nn, Broaching Machine – Vertical Manufacturer: Locher Model: RWIL 10 x 1250 Year of manufacturing: 1991 Force: 10 Tons Lrjdpfx Ahofc T Ewe Eeu Stroke: 1.250 mm Area required: approx. 170 x 150 cm With automatic lead Magnetic chip-conveyor

Year of construction: 1981, condition: used, machine/vehicle number: 142, Aumat M320 14873 Kst. 204/52 Operating voltage: 380 Voltage / 50 Hz Control voltage: 220 Voltage / 50 Hz Signalisation: 24 Voltage Perfomance: 15 KW / I: 40 A Circuit diagram: No. 142.006.3 Counter-pressure broaching slide: 20 - 30 bar Guide carriage: 40 - 45 bar Broaching compression: 13 - 90 Bar Counter-pressure guide carriage: 20 - 25 bar Vickers unit Order number: 626376 Wiring diagram number: 1420032 With chip conveyor Broaching stations: 3 With accessories Ljdsc Swchepfx Ah Eeru
