Used machining centers (vertical) X-axis travel 1700mm for sale (163)

Condition: ready for operation (used), Year of construction: 2012, functionality: fully functional, travel distance X-axis: 2,100 mm, travel distance Y-axis: 1,020 mm, travel distance Z-axis: 762 mm, controller model: Fanuc MXP-200FP, spindle speed (max.): 6,000 rpm, TECHNICAL DETAILS Travel Axes X-axis travel: 2,100 mm Y-axis travel: 1,020 mm Z-axis travel: 762 mm Spindle Spindle speed: 6,000 rpm Spindle power: approx. 22 kW Spindle torque: approx. 550 Nm Spindle taper: SK 50 Max. tool diameter: 120/240 mm Max. tool length: 350 mm Table Table clamping surface: 2,300 x 1,020 mm Table load capacity: max. 3,000 kg Number of T-slots: 6 x 22 mm T-slot spacing: 150 mm MACHINE DETAILS Control: Fanuc MXP-200FP EQUIPMENT Tool changer with chain magazine, 40 stations Coolant unit with through-spindle coolant pump and filter Fpodpfow Nv I Ijx Aa Ejd Emulsion mist extraction Electronic handwheel 2 pcs. magnetic clamping plates 800 x 400 mm Various SK50 tool holders Chip conveyor Note: Oversized load transportation is required for this machine.

Condition: good (used), Year of construction: 2001, operating hours: 26,385 h, functionality: fully functional, travel distance X-axis: 1,740 mm, travel distance Y-axis: 760 mm, travel distance Z-axis: 660 mm, rotational speed (max.): 10,000 rpm, number of slots in tool magazine: 30, TECHNICAL DETAILS X-axis: 1,740 mm Y-axis: 760 mm Z-axis: 660 mm Table size: 905 x 2,000 mm Max. table load: 1,400 kg Rapid traverse X/Y/Z-axis: 30 m/min Feed rate: 1 - 8,000 mm/min Main spindle Speed range: 10,000 rpm Spindle taper: SK 40 Main drive power: 18.5 kW Tool magazine Number of tool pockets: 30 Max. tool diameter: 80 mm Max. tool diameter with adjacent slot empty: 110 mm Max. tool length: 350 mm Max. tool weight: 8 kg MACHINE DETAILS Total connected load: 22 kVA Machine weight: approx. 10,500 kg Machine dimensions (L x W x H): approx. 4.50 x 3.50 x 3.10 m EQUIPMENT - ICS (internal coolant supply) - Manuals SOFTWARE - EIA - Spiral - Eia 3D comp. - Rotation - Geometric - Scaling - Ext-Data i/O - Shape comp. - Thread - Inverse Time - Auto TLM - Comparison Stop Fsdpfx Ajwtfv Dea Ejpd - G54.1 - Sync. Tap - Gebn Dsv R Ezceztw Tebn (original, unable to translate, probably software module code) - G00 Slope Const. - Variable 600 Sets - Navigation - Eia Helical Tap Cycle - Mazatrol Helical - Mazatrol Planet Tap

Condition: defective spare-parts repository (used), Year of construction: 2003, functionality: not functional, travel distance X-axis: 430 mm, travel distance Y-axis: 300 mm, travel distance Z-axis: 250 mm, rapid traverse X-axis: 24 m/min, rapid traverse Y-axis: 24 m/min, rapid traverse Z-axis: 24 m/min, feed rate X-axis: 12 m/min, feed rate Y-axis: 12 m/min, feed rate Z-axis: 12 m/min, nominal power (apparent): 15 kVA, torque: 9 Nm, controller manufacturer: MAZAK, controller model: IMAC-TP, total height: 2,400 mm, total length: 1,744 mm, total width: 1,350 mm, rotational speed (min.): 30 rpm, rotational speed (max.): 10,000 rpm, overall weight: 2,000 kg, number of slots in tool magazine: 10, Equipment: documentation/manual, rotational speed infinitely variable, Mazak IMPULSE 30H CNC Milling Machine – Defective For sale is a Mazak IMPULSE 30H CNC milling machine. The machine is defective and is expressly being sold as non-operational. Ideal for repair, parts recovery, or export. _____ Technical Specifications: • Manufacturer: Mazak Fpodpfex H Auwex Aa Ejd • Model: IMPULSE 30H • Type: CNC machining center • Spindle speed range: 30 – 10,000 rpm • Spindle taper: BT30 • Tool changer: 10 positions • Rapid traverse: 24 m/min Travel distances: • X-Axis: 430 mm • Y-Axis: 300 mm • Z-Axis: 250 mm Dimensions & Weight: • Dimensions (L × W × H): 1350 × 1744 × 2400 mm • Machine weight: approx. 2,000 kg _____ Condition / Fault Description: • Controller powers up • An error message appears afterward • Machine cannot be started / cannot be operated • Cause of defect unknown, no further diagnosis carried out _____ Sales Information: • Sale as-is, without vise, holders, or tools • No warranty or guarantee • Inspection by appointment possible and recommended • Collection and transportation by the buyer Price: Negotiable If interested or if you have any questions, please get in touch.

Condition: ready for operation (used), Year of construction: 2000, functionality: fully functional, machine/vehicle number: B8193, travel distance X-axis: 2,500 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 610 mm, spindle speed (max.): 6,000 rpm, number of slots in tool magazine: 30, TECHNICAL DETAILS Travel X: 2,500 mm Travel Y: 500 mm Travel Z: 610 mm Control: Heidenhain TNC 426 Spindle speed up to: 6,000 rpm Tool changer: 30 positions Internal coolant supply: 20 bar Fpsdpfxswrr Ukj Aa Ejd MACHINE DETAILS Machine weight: 13,000 kg Dimensions length: 5,000 mm Dimensions width: 2,400 mm Dimensions height: 2,700 mm Connected load: 14 kW EQUIPMENT Hydraulic unit with 6 ports – electrically operated Chip conveyor

Condition: ready for operation (used), Year of construction: 2002, functionality: fully functional, machine/vehicle number: 026375, travel distance X-axis: 2,000 mm, travel distance Y-axis: 620 mm, travel distance Z-axis: 520 mm, workpiece weight (max.): 2,000 kg, TECHNICAL DETAILS X-axis travel: 2,000 mm Fpedjwtq Tujpfx Aa Esd Y-axis travel: 620 mm Z-axis travel: 520 mm Rapid traverse X-Y-Z: 30 - 30 - 30 m/min Table size: 2,500 x 600 mm Maximum load capacity: 2,000 kg MACHINE DETAILS Weight: 10,500 kg Voltage: 400 V Frequency: 50 Hz Total connected load: 25 kVA

Condition: excellent (used), Year of construction: 2000, x-travel 2500 mm y-travel 800 mm z-travel 750 mm Control HEIDENHAIN TNC430i table dimension - longitudinal 3220 mm table dimension - cross 800 mm tool taper ISO SK40 spindle turning speed range 15000 U/min connected load 25 kVA Fpedpoxa Hl Defx Aa Eed tool change unit 40 Pos. weight of the machine ca. 20 t dimensions of the machine ca. 6,5 x 3,8 x 3,7 m This HEDELIUS BC80 is in good condition and can be viewed under power by arrangement with the seller. Description: Designation: Hedelius BC80 Type: 4-axis machining centre Control: Heidenhain TNC430i Year of manufacture: 2000 Travel distance X: 2500 mm Travel distance Y: 800 mm Travel distance Z: 750 mm Table clamping surface: 3220 x 800 mm Tool holder: SK40 Tool changer: 40-fold Spindle power: 10 kW S1 / 15 kW S6 Spindle speed: 50 to 15,000 rpm Total connected load: 25 kVA Special equipment: - Partition wall for pendulum machining - Internal coolant supply - 4th axis Hoffmann with counter bearing, hydraulically clamped - Belt filter - Scraper belt chip conveyor - Flushing guns - Renishaw TS27R tool measuring system - Renishaw infrared workpiece measuring system - Ethernet connection - Hand-held control module Other: - Ball screw drive in X and Y replaced in 2018 - Complete documentation available Machine weight: Approx. 20 t Space requirement: 6.5 (width) x 3.8 (depth) x 3.7 m (height)

Condition: excellent (used), Year of construction: 2005, operating hours: 71,034 h, functionality: fully functional, High-quality 5-axis machining center CHIRON MILL 2000 immediately available. Including rotary table. The machine has a particularly demanding maintenance history and operated in a two-shift system. X / Y / Z travel: 2,000 / 500 / 550 mm Max. pendulum operation: 2 × 750 mm Rapid traverse: 40 m/min Feed force X/Y: 5,000 N Feed force Z: 10,000 N Working area with NC-swivel head B-axis ±100° Resolution: 0.001° Repeatability: ±10'' Drive torque: 280 Nm Clamping holding torque: 1,400 Nm Travel X: 2,000 mm Travel Y: 480 mm Travel Z vertical/horizontal: 630 / 715 mm Distance spindle taper – swivel axis: 185 mm Distance spindle taper – table surface: 90 mm Distance spindle axis – table surface: 190 mm Distance reference point – table center: 230 mm Distance table center – end of travel: 250 mm Spindle Tool holder: HSK 63 Power: 22 kW Speed range: 20–12,000 rpm Max. torque: 140 Nm Front spindle bearing Ø: 70 mm Tool clamping force: 6,500 N Projection spindle to cover: 220–720 mm Distance spindle taper – table surface: 90–640 mm Tool system Tool stations: 20 (option 40) Max. tool Ø: 75 mm Max. tool Ø with free adjacent positions: 125 mm Max. tool length: 280 mm Max. tool weight: 8 kg Tool change time: 1.5 s Chip-to-chip time: 5 s Machining capacity Drilling capacity in ST60 (carbide): 42 mm Tapping: M30 Milling capacity in ST60: 600 cm³/min Clamping area / base table Length: 2,600 mm Width: 550 mm T-slots: 2 × 18 H12 Reference slot: 18 H8 Table height: 900 mm Supply / Dimensions Coolant tank: 200 l Total power consumption: 20 kVA Machine weight approx.: 9.5 t Compressed air connection: 6 bar Total length: 5,159 mm Cabin width: 2,495 mm Overall height: 2,500 mm Control panel width: 2,870 mm Control panel height: 1,830 mm Option High-Speed Package Rapid traverse: 60 m/min Chip-to-chip time: approx. 4 s Tool stations: 40 Y travel: 630 mm Fedpfx Aoxiwf Hoa Ejpd Accessories: No tools or tool holders included. Mecatool included. Clamping devices and fixturing system only available upon separate request.

Condition: ready for operation (used), Year of construction: 2004, functionality: fully functional, machine/vehicle number: B02208348000, travel distance X-axis: 2,000 mm, travel distance Y-axis: 610 mm, travel distance Z-axis: 630 mm, spindle speed (max.): 20,000 rpm, number of slots in tool magazine: 92, TECHNICAL DETAILS Travel Paths X-axis travel: 2,000 mm Y-axis travel: 610 mm Z-axis travel: 630 mm Tool Magazine Positions: 92 Performance Data Axis acceleration: up to 17 m/s² Rapid traverse: up to 75 m/min Fpedjw Nhxxopfx Aa Eod Spindle Specifications Torque: up to 280 Nm for heavy-duty machining Speed: up to 20,000 rpm for aluminum parts MACHINE DETAILS CNC control: Siemens 840 D EQUIPMENT Direct drives for rotary axes NC swivel head Hydraulically optimized clamping devices Note: The machine is currently not under power. An inspection under power can be arranged upon request.

Condition: ready for operation (used), Year of construction: 2008, operating hours: 687 h, functionality: fully functional, machine/vehicle number: A.1002669.01, travel distance X-axis: 1,800 mm, travel distance Y-axis: 840 mm, travel distance Z-axis: 800 mm, controller model: HEIDENHAIN iTNC 530 CNC, spindle speed (max.): 6,000 rpm, number of slots in tool magazine: 56, No reserve price - guaranteed sale at the highest bid! TECHNICAL DETAILS X-axis travel: 1,800 mm Y-axis travel: 840 mm Z-axis travel: 800 mm Fodpfjwu Ecyex Aa Eopd Table Table length: 2,430 mm Table width: 815 mm Spindle Spindle speed: max. 6,000 rpm Spindle mount: SK 40 Tool holder: 40 mm Tool magazine Number of tool positions: 56 Tool holders included: 30 Control Control model: HEIDENHAIN iTNC 530 CNC MACHINE DETAILS Overall length: 10,700 mm Overall width: 3,300 mm Overall height: 3,900 mm Weight: 15 t Connected load: 60 kVA Control power-on time: 27,210 h Machine operating time: 687 h Spindle run: 304 h EQUIPMENT - Machine vices not included - Mounted machine tool not included Transportation on trucks up to 3,000 mm wide possible

Condition: good (used), Year of construction: 2004, operating hours: 5,012 h, functionality: limited functionality, machine/vehicle number: 15115221654, travel distance X-axis: 2,200 mm, travel distance Y-axis: 560 mm, travel distance Z-axis: 720 mm, spindle speed (max.): 6,300 rpm, number of slots in tool magazine: 100, swivel angle B-axis (min.): -90 °, swivel angle B-axis (max.): 90 °, swivel angle C-axis (max.): 360 °, Note: Minor relay error. TECHNICAL DETAILS X-axis travel: 2,200 mm Y-axis travel: 560 mm Z-axis travel: 720 mm Rapid traverse X-axis rapid traverse: 100 m/min Y-axis rapid traverse: 50 m/min Z-axis rapid traverse: 50 m/min Feed rate X-axis feed rate: 20 m/min Y-axis feed rate: 20 m/min Z-axis feed rate: 20 m/min Table Table length: 2,600 mm Table width: 560 mm T-slots: 6 x 18H7 Table load: 2,200 kg Spindle Spindle speed: 20 - 6,300 rpm Spindle torque: 350 Nm Spindle power: 14,000 W Tool holder: 40 mm (SK 40 DIN69871 A) Max. tool weight: 6,000 g Tool magazine Number of magazine positions: 100 Rotary and swivel axes Fpjdpfxswd N D To Aa Esd Rotary table diameter (C-axis): 500 mm Max. rotation speed (C-axis): 10 rpm Rotation range (C-axis): 360° (hydraulically clamped) Swivel range of swivel spindle (B-axis): +90° to -90° Tilt-action of swivel spindle (B-axis): 2.5° Accuracy Position tolerance (X, Y, Z): 0.010 mm Resolution: 0.001 mm Control system Control system manufacturer: SIEMENS Control system model: Sinumerik 840D MACHINE DETAILS Spindle hours: 5,012 h On-time: 17,969 h Connected load: 60 kVA Total length: 6,800 mm Total width: 3,900 mm Total height: 2,750 mm Total weight: 16,000 kg Transport dimensions: 2.78 x 4.47 x 2.56 m Transport weight: 14 t EQUIPMENT - Chip conveyor - Continuously adjustable speed - Technical documentation and manual - Hydraulically clamped rotary axis - Tilting spindle with 2.5° indexing

Condition: like new (used), Year of construction: 2007, Table size 2200 x 1000 mm Longitudinal travel 2050 mm Cross travel 1150 mm Vertical travel 760 mm Spindle speeds 12.000 rpm Spindle taper ISA 40 Power feed 1 - 8.000 mm/min Rapid speed Z-axe 15 m/min Fpsdpog Tdavsfx Aa Eed Rapid speed X - Y axis 20 m/min Control Heidenhain IT 530 NC Tool change 40 pcs

Condition: excellent (used), Year of construction: 2020, operating hours: 8,052 h, functionality: fully functional, travel distance X-axis: 1,875 mm, travel distance Y-axis: 1,250 mm, travel distance Z-axis: 1,345 mm, rapid traverse X-axis: 24 m/min, rapid traverse Y-axis: 24 m/min, rapid traverse Z-axis: 24 m/min, feed length X-axis: 1,875 mm, feed length Y-axis: 1,250 mm, feed length Z-axis: 1,345 mm, feed rate X-axis: 24,000 m/min, feed rate Y-axis: 24,000 m/min, feed rate Z-axis: 24,000 m/min, torque: 3,430 Nm, workpiece weight (max.): 4,000 kg, total height: 4,950 mm, total length: 7,029 mm, total width: 5,200 mm, rotational speed (min.): 10 rpm, rotational speed (max.): 10,000 rpm, overall weight: 51,200 kg, spindle speed (min.): 1 rpm, spindle speed (max.): 500 rpm, distance table center to spindle nose: 1,600 mm, spindle motor power: 37,000 W, spindle nose: A2-11, tool length: 300 mm, type of input current: AC, turning diameter: 1,450 mm, turning diameter over cross slide: 1,250 mm, spindle diameter: 160 mm, bar passage: 160 mm, chuck outer diameter: 500 mm, collet bore: 160 mm, feed force X-axis: 20,000 N, feed force Y-axis: 20,000 N, feed force Z-axis: 25,000 N, milling spindle length: 300 mm, quill diameter: 160 mm, quill stroke: 250 mm, quill travel distance: 250 mm, spindle bore: 160 mm, swing diameter over bed slide: 1,450 mm, swing diameter over cross slide: 1,250 mm, swing diameter over top slide: 1,100 mm, turning diameter over bed slide: 1,300 mm, turning length: 1,600 mm, Equipment: chip conveyor, documentation/manual, For sale: Mazak Integrex e-1250 V/8 mill-turn center complete with extensive accessories and a Mazak Palletech High Rise (800B) automation system. The system combines milling, turning, and automated pallet handling – ideal for complex workpieces in a single setup. _____ Technical Specifications – Integrex e-1250 V/8 • Travel: X = 1,875 mm, Y = 1,250 mm, Z = 1,345 mm • Rotary table: Ø 800 mm, 500 rpm • Tool magazine: 120 positions (CAPTO) • Control: Mazak SmoothX with 5-axis functionality • Operations: Milling, turning, drilling, tapping, 5-axis simultaneous machining • Coolant system: High-pressure system up to 70 bar, Mayfran belt filter system, oil separator, coolant guns • Accessories: Tool Eye, Renishaw touch probe, HD camera system, overload monitoring _____ Software & Control Package • Synchronous tapping (G84.2 / G84.3) • Engraving and re-cutting functions • Cylindrical & polar interpolation (EIA) • Tool length & radius compensation (5-axis) • Fine spline interpolation (EIA) • Mazatrol turning/milling function • MT Connect adapter for networking _____ Automation – Palletech High Rise (800B) • Pallet transport system (mixed type) • Expandable high-bay racking solution for flexible manufacturing Fodpexgu E Eofx Aa Eepd • Ideal for both series and mixed production • Note: Pallets to be procured separately _____ Special Features • Complete documentation (digital & print) • Full package: machine + automation + accessories _____ Your Advantage • “Done in One®” concept: all machining in a single setup • Productivity: 5-axis machining + turning + pallet automation • Flexibility: From single parts to series production • Efficiency: Automatic pallet change & integrated measurement technology 📍 Location: Southern Germany 👉 Price and delivery terms upon request

Condition: good (used), Year of construction: 2003, X 1740mm, Y 766mm, Z 660mm 10000 rpm Fjdpowyblzofx Aa Ejpd Parts shown by hand not come.

Year of construction: 2006, condition: excellent (used), Control system Siemens 840D –Chop Mill—Carte Eternet Spindle recently changed Fpjdol Dr D Uspfx Aa Esd stroke X axis 2000 stroke Y axis 800 stroke Z axis 700 rotation speed range 30 000 tr/min coolant through spindle (CTS) 30 bars with 2 metal filters 60 microns Electronic handwheel Linear scales Pressurized optical rulers for X and Y axis motion control Chip conveyor Coolant gun

Condition: used, Year of construction: 2006, functionality: fully functional, travel distance X-axis: 2,000 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 550 mm, Chiron MILL 2000 Machining Center For sale is a Chiron MILL 2000 machining center from 2006. The machine is in good condition and ideally suited for the machining of large and long workpieces. Manufacturer: Chiron Model: Mill 2000 Year of manufacture: 2006 Technical specifications: • Travel: X 2000 mm / Y 500 mm / Z 550 mm • Spindle: 12,000 rpm HSK 63 • NC swivel head Fedpfxsxcpy No Aa Ejpd • Tool magazine: 40 positions (chain magazine) • Control: Siemens • Machine weight: approx. 9,600 kg Equipment: • 40-position tool magazine • Chip conveyor and coolant system • NC swivel head • High-pressure system Condition & Service: The machine is fully operational and available immediately. Loading and transport can be arranged. Location: Germany (Stuttgart area) Price: negotiable

Condition: excellent (used), Year of construction: 2016, travel distance X-axis: 2,000 mm, travel distance Y-axis: 1,500 mm, tool weight: 20,000 g, We offer a 2016 VTEC SF 2116 vertical machining center in very good condition. Fpsdpfxoytfh So Aa Eod

Condition: excellent (used), Year of construction: 2010, functionality: fully functional, travel distance X-axis: 2,200 mm, travel distance Y-axis: 1,200 mm, tool weight: 19,000 g, We offer this Pinnacle DV1422 vertical machining center in very good condition, year 2010. Manufacturer: Pinnacle Model: DV1422 Year of Manufacture: 2010 Condition: very good Fjdjytcvtjpfx Aa Eepd Category ID: 1453 Type ID: 4156 Type: vertical machining center If you have any questions or need more information, you can send us a message or call us.

Condition: used, Year of construction: 2000, functionality: fully functional, machine/vehicle number: 002840, travel distance X-axis: 1,800 mm, travel distance Y-axis: 520 mm, travel distance Z-axis: 520 mm, overall weight: 9,000 kg, - Year of manufacture: 2000 - Single owner, used in own operation - Fully functional, powered up, ready for demonstration - Control system: Heidenhain TNC 426 - Tool magazine: 30 positions - X-axis travel: 1800 mm - Y-axis travel: 520 mm - Z-axis travel: 520 mm - Pendulum operation: 2 x 700 x 520 mm - High-pressure band filter system / ICS - Coolant supply through spindle: 20 bar - Cross belt conveyor: 50 x 1800 Fodpfx Aoxgq A Tsa Eepd Net price ex location Luckenwalde (Germany), unloaded, excluding transport

Condition: used, Year of construction: 2010, x-travel 2.600 mm y-travel 700 mm z-travel 700 mm control SIN 840 D Siemens B - axis +/- 110 x 0,001 ° C-axis 360 x 0,001 ° feed X/Y/Z-axis 1 - 20.000 mm/min rapid traverse X/Y/Z 40,00 m/min spindle turning speed - stepless 20 - 8.000 U/min tool taper SK40 power capacity at 100 % load 13,50 kW power capacity at 25 % load 23,50 kW max. torque at 10% load 85,00 Nm max. torque at 25% load 150,00 Nm table surface area 2.920 x 740 mm number of T-slots 7 T-slot - distance 100 mm T-slots 1x 18H7 / 6x 18H12 integrated rotary-table 750 mm table load of rotary table max. 500 kg Fpjdpfow E Nnuox Aa Eod tool magazin: 60 tool diameter 80,00 mm wotkpiece diameter with 2 vacant positions 130 mm tool length - max. 300 mm weight of tools max. 6,00 kg total power requirement 57 kW weight of the machine ca. 15,5 t dimensions of the machine ca. 10,50 x 6,60 x H2,70 m 5-axis simultaneous machining center with SIEMENS SINUMERIK 840D control, ShopMill user interface, chip conveyor, coolant system, exhauster, coolant through the spindle, twin table machining possible – partition wall, electron. handwheel, TS649 measuring probe, Renishaw TRS2 tool breakage detection, swivel milling head B-axis, NC rotary table C-axis. Milling spindle new in 10/2019 Guides and ball screws new in 01/2023

Condition: good (used), Year of construction: 2018, operating hours: 7,819 h, functionality: fully functional, travel distance X-axis: 2,000 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 720 mm, rapid traverse X-axis: 50 m/min, rapid traverse Y-axis: 50 m/min, rapid traverse Z-axis: 50 m/min, STANDARD TECHNICAL SPECIFICATION – MAZAK CAPABILITIES Table work surface (length): 2,500 mm Table work surface (width): 820 mm Longitudinal (crosswise) X-axis travel: 2,000 mm Column (crosswise) Y-axis travel: 800 mm Spindle head (vertical movement) Z-axis: 720 mm Minimum distance from spindle nose to top of table: 140 mm Maximum distance from spindle nose to top of table: 860 mm Table load capacity (uniform load): 1,700 kgf Spindle head rotation (B-axis): ± 110° SPINDLE HEAD Spindle taper: 7/24 taper, No. 40 Maximum spindle speed (standard): 18,000 min⁻¹ Minimum spindle speed (standard): 35 min⁻¹ Main spindle motor output (continuous rating): 26.0 kW FEED RATES Rapid traverse (X-axis): 50 m/min Rapid traverse (Y-axis): 50 m/min Rapid traverse (Z-axis): 50 m/min TABLE Table length: 2,500 mm Table width: 820 mm T-slot width: 18 mm Number of T-slots: 7 Distance between T-slot centers: 100 mm Height from machine base to table surface: 870 mm AUTOMATIC TOOL CHANGER Tool storage capacity (standard): 30 Tool storage capacity (optional): 48 Tool selection: Mazatrol memory random access type Tool shank: CAT-40 / MAS BT-40 Max. tool diameter with adjacent tools: 80 mm Max. tool diameter without adjacent tools: 130 mm Max. tool weight (with holder & taper pin): 8 kgf Max. total tool magazine weight: 150 kgf Max. tool length (from gauge line): 350 mm Tool change time (chip-to-chip): 4.7 s MACHINE DIMENSIONS Machine height (from floor): 3,355 mm Machine width: 4,250 mm Machine depth: 4,046 mm Machine weight: 14,000 kg OTHER Power supply voltage: AC380/400/415V ±10% Power supply frequency: 50/60 Hz ±1 Compressed air pressure: 0.5–0.9 MPa Compressed air capacity: 260 l/min Coolant tank capacity: 450 L STANDARD MACHINE EQUIPMENT – MAZAK GENERAL MACHINE OPTIONS Foundation kit (base bolts & plates) Fedpfoya Hngsx Aa Eopd One set of adjusting tools Work area lighting Power transformer for European market USB I/F (1 port) MANUALS, DOCUMENTATION One set of documentation (CD) SPINDLE SPEED Spindle speed: 18,000 rpm (#40) MACHINE FRAME COLOR Mazak standard color (F white / S black) SAFETY, HEALTH Global safety measures Work area door interlock with locking switch Full machine enclosure Full-cover chip and coolant protection TOOL MAGAZINE 30-position tool magazine COOLING SYSTEMS Complete cooling system HIGH PERFORMANCE/HIGH PRESSURE COOLANT Through-spindle coolant (5 bar, 71 PSI) PRODUCTION AUTOMATION SYSTEMS Automatic ON/OFF + warm-up MEASURING SYSTEMS Automatic tool length measurement & tool breakage detection POSITIONING SYSTEM Absolute positioning system CHIP CONVEYOR Preparation for chip conveyor (left side) NC CONTROL UNIT – 15 Functions 19" color LCD (touch screen) 3-D coordinate conversion Position sensor B) Shape compensation for rotary axes EIA/ISO code input function (standard) Background tool path check LAN connection High smoothing control Mazak 2D software (shape compensation) Mazak 3D high-speed software package Mazak thread tapping / pre-tapping Tornado (Mazatrol) Mazatrol SmoothX CNC Movable control panel SD memory I/F (1 slot) + USB I/F (1 slot) Smooth standard software

Condition: excellent (used), Year of construction: 1999, Technical data: see photos Fpodpfx Aaetn Rave Eed

Condition: ready for operation (used), Year of construction: 2008, Specifications : Travel X/Y/Z : 4200 x 1300 x 800 mm Table size : 4000 x 1100 mm Distance between columns : 1300 mm Spindle to table min / max : 150 – 950 mm Max table load : 6 000 kg Rapid traverse X/Y/Z : 12 / 15/ 12 m/min Spindle speed : 6 000 RPM Spindle taper : BT 50 Fpodpjnacqgsfx Aa Eed Spindle power : 18.5 kw Max tool Ø : 125 mm Opposite pockets empty : 200 mm Max tool length : 400 mm Max tool weight : 15 kg ATC : 24 Options: CNC: FANUC OiMC + manual guide 24 ATC BT50 Swarf conveyor Handwheel Through spindle coolant 20 bar

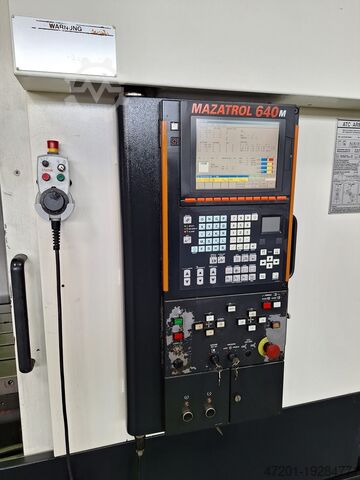

Condition: used, Year of construction: 2005, functionality: fully functional, machine/vehicle number: 175849, travel distance X-axis: 1,740 mm, travel distance Y-axis: 760 mm, travel distance Z-axis: 840 mm, controller model: PC Fusion 640 M, total height: 4,450 mm, total length: 3,300 mm, total width: 2,900 mm, overall weight: 11,500 kg, spindle speed (max.): 12,000 rpm, 3-Axis Machining Center MAZAK - VTC 300C-II Manufacturer: MAZAK Model: VTC 300C-II Control: PC Fusion 640M Year of manufacture: 2005 Internal coolant supply (IKZ): 15 bar Table length: 2000 mm Table width: 760 mm Feed rate X-axis: 36,000 mm/min Feed rate Y-axis: 36,000 mm/min Feed rate Z-axis: 36,000 mm/min Tool holder: SK 40 Spindle power: 15 kW Spindle speed: 12,000 rpm Tool changer: 30 positions Internal coolant: Yes Number of controlled axes: 3 Fpedoyanuhopfx Aa Esd Chip conveyor: Yes Cooling unit: Yes Length: 4450 mm Width: 3300 mm Height: 2900 mm Can be inspected under power.

Condition: excellent (used), Year of construction: 2002, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, The used IBARMIA ZV 35 L1600 vertical machining center with moving column is a medium/large sized numerically controlled vertical center with HEIDENHAIN 430 CNC, 1600 x 500 x 500 mm strokes, ISO-40 spindle (DIN 69871) 10,000 rpm, 40-position random tool changer, through-spindle coolant, carpet chip evacuator, optical scales, remote handwheel and bulkhead for pendulum machining. Fpodpfswqxnbjx Aa Ejd year of construction 2002, CE compliant, in excellent general condition.

Condition: as good as new (ex-display), Year of construction: 2024, operating hours: 50 h, functionality: fully functional, travel distance X-axis: 3,200 mm, travel distance Y-axis: 620 mm, travel distance Z-axis: 600 mm, rapid traverse X-axis: 24 m/min, rapid traverse Y-axis: 7 m/min, rapid traverse Z-axis: 7 m/min, table length: 3,000 mm, spindle speed (min.): 4,000 rpm, spindle motor power: 7,500 W, number of slots in tool magazine: 10, Equipment: rotational speed infinitely variable, CNC drilling/milling machine with Mitsubishi CNC control, but with the BAUER user interface, no CNC knowledge is required. SK 40 tool holder, Automatic tool changer for 10 tools, Fedewhftropfx Aa Ejpd Automatic tool length measurement, DXF and DSTV data import, Handwheel, Pendulum machining (but without light barrier protection), Light barrier on the operator side, Spindle motor 7.5 kW, Spindle speed 200-4000 rpm, 21.5" touchscreen, Additional office software license, Retractable protective hood
