Used eccentric presses single column 55-99t for sale (103)

Condition: good (used), functionality: fully functional, tested machine : Power 75 tons Stroke rate 90 strokes throat depth 300 mm ram stroke 16 - 140 mm ram adjustment 80 mm with shield , Dkodpfezq Sp Asx Aggst . new UVV-tested .

Condition: excellent (used), Used Amada 60ton C frame press for sale SPECIFICATION MODEL TP -60 CAPACITY 60 ton NUMBER OF SLIDE STROKES 50 Hz 45-80 strokes/ minute STROKE LENGTH 120 mm SLIDE ADJUSTMENT 70 mm SLIDE AREA (R-L x F-B) 500 x 400 mm BOLSTER AREA & THICKNESS (R-L x F-B x thickness) 900 x 550 x 80 mm Dkjdpfxoyk D Dtj Agget SHUTHEIGHT 370 mm MAIN MOTOR 5.5 x 4 kWXP AIR PRESSURE REQUIRMENT 5.0 kgf/cm2 MAXIMUM NUMBER OF FLYWHEEL ROTATIONS 1170 r.p.m. MINIMUM AIR PRESSURE FOR CLUTCH ON STOPPING TIME 165 msec BRAKE MONITOR SETTING, DEGREES BEYOND T.D.C. 15 degree SERIAL NO. 07312665 MANUFACTURE DATE 1992.4 MANUFACTURED BY AMADA CO., LTD.

Condition: excellent (used), Year of construction: 2002, machine/vehicle number: 65/2/158/02, functionality: fully functional, pressing force: 65 t, stroke length: 120 mm, table length: 580 mm, throat depth: 280 mm, total width: 820 mm, punching force: 65 t, Used 65ton mechanical power press for sale Video at the bottom of this listing MODEL 65 CNR 4 SERIAL N° 65/2/158/02 NOMINAL FORCE (Max stroke) 650 [ KN] MACHINE WEIGHT 5000 [ daN] NOMINAL SPEED 73 [ C/min ] VARIABLE SPEED MIN/MAX [ C/min ] Dkjdpjxqn Unofx Aggot MAXIMUM CLUTCH ENGAGEMENTS 36 [ C/min ] CLUTCH PRESSURE MIN/MAX 4 / 5,5 [ bar) MAXIMUM STOPPING TIME 0,154 SAFETY DISTANCE 246 [ mm ] FLYWHEEL ENERGY 3440 [ KJ] STROKE LENGTH MIN/MAX 10 / 120 [ mm ] RAM ADJUSTMENT 100 [ mm ] SHUT HEIGHT S.D.A.U. 320 [ mm ] MAXIMUM EJECTOR STROKE 40 [ mm] TABLE SIZE 68 / 580 / 820 [ mm ] RAM SIZE 340/ 470 [mm] TOOL SPIGOT DIA 45 [ mm ] THROAT DEPTH 280 [ mm ] MAX TOOL SIZE 340 / 470 [ mm ] MAX TOP TOOL WEIGHT 136 [ daN]

Condition: good (used), Year of construction: 1960, functionality: fully functional, Weingarten Eccentric Press ER 80 – 80 tons – Year of manufacture 1960 For sale is a robust WEINGARTEN eccentric press, type ER 80, manufactured in Germany. Technical specifications: Manufacturer: Maschinenfabrik Weingarten A.-G. Type: ER 80 Pressing force: 80 tons Stroke rate: 60 strokes/min Adjustable ram stroke: 8–112 mm Ram adjustment: 80 mm Year of manufacture: 1960 Dkjdpfxozkhnno Aggot The machine is in used condition, commensurate with its age. Ideal for metalworking, stamping, and forming operations. Inspection possible by arrangement. Sale from the current location; the seller will handle loading, and the buyer will organize transport.

Condition: used, Single-column – Eccentric press RICHTER Type PEKRS 80 Year of manufacture 1970 – Overhauled in 2024 Clamping force 80 tons Reach 350 mm Table size 900 x 650 mm Through-hole in the mounting table Ø 200 mm Ram area 700 x 500 mm Stroke rate 70 strokes/min Stroke adjustment 6 – 100 mm Ram adjustment 85 mm Installation height max. 400 mm Arbor hole Ø 50 mm Table height above floor 810 mm Djdji Db Ibepfx Aggekt Motor power 8 kW Power connection 400 volts, 50 Hz - Pneumatic clutch-brake combination ORTLINGHAUS - Press safety valve HERION XSz 32 - Pneumatic ram balancing cylinders - Overload protection with shear plate in the ram - Grease central lubrication with hand pump Space requirement L x W x H 1800 x 1250 x 2830 mm Weight 5.7 tons Very good condition Technically overhauled and converted to the latest safety standards with new electrical system Control system rebuilt in 05/2024 – suitable for manual feeding operations – in accordance with DGUV Information 209-030 Press Inspection and Machinery Directive 2006/42/EC Low Voltage Directive 2014/35/EU EN ISO 16092-1: Safety of machinery - Presses - Part 1: General safety requirements EN ISO 16092-2: Machinery - Safety of presses - Part 2: Mechanical presses - Control system with plain text error messages and diagnostic screen for quick fault localization - New electrical cabinet, mounted on the side of the machine - Completely based on SIEMENS, with S7-1200 PROFIsafe PLC and 7" TFT touch display - Two-hand control panel with emergency stop and interlocking - Electric foot switch - Cam mechanism with run-on monitoring - Stroke release via press safety valve HERION XSz 32 with pneumatic pressure gauge - Rewiring of the machine - Updated operating manual The machine is equipped with 6 operating modes: 1 = Setup 2 = Single stroke, two-hand 3 = Single stroke, foot 4 = Continuous operation, foot 5 = Automatic continuous operation 6 = Reverse operation

Condition: used, Technical details: pressure: 63 t distance between columns: 900 mm no. of strokes: ca. 75 Hub/min ram adjustment: 80 mm stroke adjustable from - to: 3-100 mm Table dimensions: 900 x 600 mm throat: 310 mm dayligth: max. 350 mm Dkjdpfx Asu Nfnkoggst drive power: 11 kW voltage: 380/220/24 V frequency: 50 Hz operating pressure: ca. 150 bar oil volume: 500 l safety distance: 150 mm passage opening in table: 200 mm total power requirement: 11 kW weight of the machine ca.: 4,0 t space requirements of the machine approx.: L:1,8 x B:1,8 x H:3,7 m DIFFERENTIAL PATH PRESS HIGH SPEED PRESS - High-speed press, C-stand - Compressed air connection: approx. 5 bar Condition. Press is not under power, without switch cabinet, sale as is. - Documentation available i.D. *

Condition: used, Year of construction: 1969, Technical details: pressure: 55 t throat: 250 mm no. of strokes: 120 Hub/min daylight dimension : table/slide up: 380 mm ram adjustment: 55 mm sheet thickness continuous stroke : 2,25 mm ram stroke range: 6 - 90 mm total power requirement: 8,8 kW Djdpfx Aexu Dwmsggokt weight of the machine approx.: 2,75 t dimensions L x W x H: 1,4 x 1,2 x 2,2 m

Condition: used, Technical details: pressure: 90 t throat: 320 mm no. of strokes: 90 Hub/min daylight dimension : table/slide up: ca. 380 mm ram adjustment: max. 65 mm ram surface area: 600x55 mm clamping plate on table: 800x640x80 mm passage: 260x160 mm adjustment of stroke: 60 fest/fixed mm total power requirement: 5,5 kW weight of the machine approx.: 4500 kg space requirement approx.:: L:1,8xB:0,82xH:2,42 m - single / continous stroke - manual not available - normal maintennance has been executed, overhauled 2010 - at the moment without electric cabinet, without control, without air pressure tank i.D. * Dkedpfxju Nfg Hj Aggjt

Condition: used, Year of construction: 1970, ja weight of the machine ca. 9,5 t serial number 10457/2 160000 KG stroke of worktool slide 41 Hub/min +++++ Please note: Dsdpfxjvvx Exe Aggekt The machine is dismantled and ready for loading. It is not possible to show it under power or make a video. Our offer includes already the best pictures. So we don’t have and won’t send additional pictures. +++++

Condition: good (used), Year of construction: 1977, 1 used eccentric press Make: Helmerding Model: EL 35 B Year of manufacture: 1977 Machine no.: 5182 Pressing force: 350 kN Adjustable stroke: 12 - 80 mm Adjustable slide: 70 mm Slide strokes per minute: 110 Adjustable table: 150 mm Safety distance: 150 mm Overrun: 50 mm Weight: 2050 kg Djdpswxxr Ajfx Aggokt Equipped with press safety valve

Condition: used, Year of construction: 2000, machine/vehicle number: 510565, functionality: fully functional, operating hours: 5,840 h, Offered for sale is an eccentric press. Make: Müller Weingarten Type: C40.2.2 Rated force: 40t Two-hand / foot control Safety light curtain by Sick Used, fully functional condition. Collection by buyer; support for disassembly/transport can be organized if needed. If you are interested or have any questions, please feel free to send me a message. On-site inspection available by appointment. Further metalworking machinery available, such as bench drills, press brakes, pillar drills, eccentric presses, heavy-duty racks, welding tables, MIG/MAG welding machines, compressors, etc. – please see my other listings. Dkjdpfx Aexvqnbeggst Collection only – disassembly and transport by the buyer or by agreement. If you are interested or have any questions, please send me a message. Further photos and technical details available on request. All information provided without guarantee or warranty; errors and prior sale excepted. For more inquiries, please call. Nous parlons Francais / Мы говорим по русски We speak English / Noi vorbim românește Viber / WhatsApp / Skype We can arrange all customs and registration formalities for an additional fee. We can also deliver vehicles to the port for an additional fee.

Condition: used, Year of construction: 2000, machine/vehicle number: 309661, functionality: fully functional, operating hours: 6,750 h, Offered for sale is an eccentric press Manufacturer: SCHULER / Römer GmbH Type: PN 63-250 Rated force: 630 kN Ram stroke: 8–100 mm Stroke rate: 140 strokes/min Two-hand and foot operation Separate control cabinet Used, fully functional condition. Collection by the buyer; assistance with dismantling/transport can be arranged if required. If interested or if you have any questions, please feel free to send me a message. On-site inspection by appointment is possible. Further metalworking machinery such as bench drilling machines, press brakes, pillar drills, eccentric presses, heavy-duty shelving, welding tables, MIG/MAG welding machines, compressors, etc. – please see my other listings. Collection only – dismantling and transport by the buyer or by arrangement. If you are interested or have questions, feel free to send me a message. Further photos and technical details available on request. All information subject to change and without guarantee. Errors and prior sale reserved. Nous parlons Français / Мы говорим по-русски We speak English / Noi vorbim românește Viber / WhatsApp Dedpfx Agsxvqmkegekt We handle all customs and registration matters for a fee. We can deliver vehicles to the port for an additional charge.

Condition: new, Year of construction: 2025, functionality: fully functional, pressing force: 60 t, table width: 850 mm, table length: 570 mm, total width: 1,265 mm, overall weight: 5,500 kg, C-frame eccentric press 60 t. NEW Press force: 60 t Rated capacity point: 4 mm Max. closed die height: 310 mm Stroke adjustment (semi-automatic): 20/100 mm Speed: 60 SPM Die fastening hole diameter: 50 mm Throat depth (centre of hole to back): 275 mm Ram stroke adjustment: 80 mm Ram dimensions: 580 x 350 mm Dkodpfx Agoxtplteget Table dimensions: 850 x 570 mm Table hole diameter: 150 mm Table height above floor: 795 mm Weight approx. 5,000 kg Height: 2,430 mm Depth: 1,370 mm Width: 1,265 mm Motor: 5.5 kW

Condition: good (used), DIGÉP SD63 Eccentric press, 63 ton eccentric press for sale manufacturer: DIGÉP type: SD63 Dksdpfoiukrrjx Aggot year of manufacture: 1975 – pressing force: 63 t – slider stroke: 10-110 mm – slider adjustment: 70 mm – stroke rate max: 60 1/min. - table size: 740x560 – main motor power: 5.5kw 400V 50Hz – total weight: approx. 4200 kg

Condition: excellent (used), Year of construction: 1983, functionality: fully functional, input voltage: 200 V, pressing force: 80 t, stroke length: 100 mm, table width: 1,000 mm, table length: 600 mm, overall weight: 8,160 kg, year of last overhaul: 2021, Amada TP 80C-X2 Eccentric press with air clutch for sale in new condition Year of manufacture: 1983 pressing force 80t stroke length: 100mm number of strokes: 60-100/min table-bear distance: 310mm stroke adjustability: 80mm table size: 1000x600mm Dodpfou E U Nijx Aggskt bear size: 590x450mm sudden stop time: 195 ms maximum downtime 215ms machine weight: 8160 kg

Condition: excellent (used), Year of construction: 1983, functionality: fully functional, power: 5.5 kW (7.48 HP), input voltage: 200 V, type of input current: three-phase, pressing force: 60 t, table width: 900 mm, table length: 550 mm, overall weight: 6,150 kg, year of last overhaul: 2021, compressed air connection: 5 bar, ram adjustment: 90 mm, warranty duration: 5 months, Equipment: documentation/manual, Amada TP 60C-X2 Eccentric press with air clutch for sale in new condition Year of manufacture: 1983 pressing force 60t two-handed operation central fattening stroke length: 90mm number of strokes: 65-100/min table-bear distance: 275mm stroke adjustability: 80mm table size: 900x550mm bear size: 500x400mm total response time: 175ms voltage: 200v 50Hz 5.5kw machine weight: 6350 kg Dkedpfxju Haqhj Aggjt

Condition: like new (used), Year of construction: 2017, functionality: fully functional, power: 5.5 kW (7.48 HP), input voltage: 380 V, pressing force: 60 t, stroke length: 150 mm, table width: 500 mm, table length: 900 mm, overall weight: 5,600 kg, stroke adjustment: 75 mm, Equipment: documentation/manual, safety light barrier, APA 60 ton eccentric press with air clutch for sale in mint condition Manufacturer: HE Shenzhen HONG-ER Machine LTD type: APA 60 Year of manufacture: 2017 pressing force 60t two-handed operation central fattening required air pressure: 6 bar stroke length: 150mm number of strokes: 35-90/min table-bear distance: 300mm stroke adjustability: 75mm table size: 900x500mm bear size: 500x360mm total response time: 170ms Dedpfju Hav Rjx Aggekt voltage: 3x380v 50Hz 5.5kw machine weight: 5600 kg

Condition: like new (used), Year of construction: 2017, functionality: fully functional, power: 5.5 kW (7.48 HP), input voltage: 380 V, pressing force: 60 t, stroke length: 150 mm, table width: 500 mm, table length: 900 mm, overall weight: 5,600 kg, ram adjustment: 75 mm, stroke adjustment: 75 mm, Equipment: safety light barrier, APA 60 ton eccentric press with air clutch for sale in mint condition Manufacturer: HE Shenzhen HONG-ER Machine LTD type: APA 60 Year of manufacture: 2017 pressing force 60t two-handed operation central fattening Inovance IT600 control required air pressure: 6 bar stroke length: 150mm number of strokes: 35-90/min table-bear distance: 300mm Dedpou Hautsfx Aggokt stroke adjustability: 75mm table size: 900x500mm bear size: 500x360mm total response time: 170ms voltage: 3x380v 50Hz 5.5kw machine weight: 5600 kg

Year of construction: 1972, condition: used, machine/vehicle number: 51512/72, pression: 75 t throat: 300 mm table size: 620 x 800 mm Dkodjb Tdquopfx Agget clearance hole in the die: 225 x 325 mm table adjustment: 175 mm tappet area: 180 x 475 mm tappet adjustment: 80 mm stroke adjustment: 16 - 140 mm number of strokes: 90 /min engine: 380 V, 3 kW space needed: 1700 x 1200 x 2500 mm weight: 3,3 t

Condition: used, Single-column – Eccentric press WEINGARTEN Type EV 63 Machine No. 738 / 61 Year of manufacture 1962 Pressing force 63 tons Stroke 260 mm Table area 630 x 530 mm Table opening Ø 210 mm Slide area 315 x 260 mm Adjustable slide stroke 8-100 mm Slide adjustment 63 mm Tool holder bore Ø 40 mm, with clamping piece Installation height max 450 mm Stroke rate 115 strokes / min Compressed air requirement min. 4.5 bar Motor power 4 kW Power connection 380 Volt, 50 Hz Table height above floor approx. 750 to 900 mm - Electrical stroke release via foot switch or two-hand control - Overload protection by shear plate - Clutch-brake combination by WEINGARTEN friction-thread clutch with top dead center through-drive protection - Front crankshaft support bearing - Press table adjustable in height via 2 threaded spindles - Manual centralized lubrication Dodpfx Ask S Htxsggekt - Control cabinet positioned beside the press - UVV (German trade association for accident prevention) for manual feeding operations Space requirement L x W x H 1750 x 1600 x 2430 mm Weight 4.5 tons Good condition

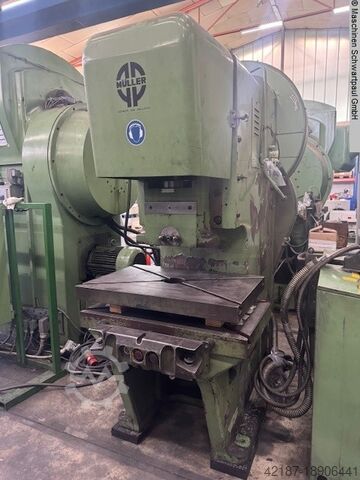

Condition: used, Single-column eccentric press MÜLLER GEFREES Type 60 SV DK (identical to ExP60) Very little used eccentric press in original condition Machine no. 5250686 Year of manufacture 1986, like new condition Pressing force 60 tons Stroke 280 mm Table area 740 x 560 mm Ram area 385 x 200 mm Die opening in the table 300 x 200 mm Table area, table insert plate 740 x 560 mm Die opening in table insert plate Ø 103 mm Dkodpfx Agoi A A Tbegjt Thickness of table insert plate 70 mm Dowel hole 40 mm Table height above floor 815 mm (with table insert plate) Installation height max. 275 (with table insert plate) Installation height max. 345 (without table insert plate) Stroke adjustment 10-90 mm Ram adjustment 60 mm Stroke rate 100 strokes/min Motor power 3 kW Drive power 380 Volt, 50 Hz - mechanical eccentric coupling with pneumatic control - spring-loaded brake controlled via cam - stroke release via pneumatic foot switch - overload protection with shear plate in the ram - table height adjustment via 2 threaded spindles - manual central lubrication system BEKA - operating manual and pneumatic diagram available Space requirement L x W x H 1400 x 1100 x 2200 mm Weight 3.4 tons very good condition, like new

Condition: used, Single-column – Eccentric press EBU, Type 75 SKU Machine No. P 4598462, Year of manufacture 1962 Pressing force 75 tons Reach 300 mm Table area 800 x 620 mm Die opening 325 x 225 mm Slide area 470 x 180 mm Tool holder bore Ø 40 mm Table height above floor 845 mm Stroke adjustment 16 - 140 mm Slide adjustment 80 mm Maximum installation height approx. 420 mm Stroke rate 60 + 105 strokes/min Motor power 4 kW Power supply 380 Volts, 50 Hz - Pneumatic clutch-brake combination EBU - Overload protection with shear plate in the slide - Tool monitoring system UNIDOR, Type APS MINI - Mechanically driven strip feed with strip straightener OSTERKAMP, Type ZPN 200/350 Dkodpfx Agedzqltjget - Strip width: 200 mm, feed length: max. 350 mm - Strip thickness: max. 3 mm or approx. 200 x 1.5 mm - 2 speeds through 2 V-belt stages on the gear pre-stage - Two-hand operation - Simple work area guard that can be swung open - Table height adjustment in the lowest position = threaded spindles for adjustment 50 mm below floor level - Control cabinet and operator panel for tool monitoring located beside the machine - Automatic central lubrication - 4 machine feet Space requirement L x W x H 2600 x 2300 x 2450 mm Weight approx. 5.5 tons Good condition

Year of construction: 1987, condition: used, pressure 63 t throat 300 mm stroke 8-140 mm no. of strokes 70 Hub/min ram - range of adjustment 100 mm table surface area 750x620 mm ram surface 500x340 mm hole in the table Ø 180 mm table height 850 mm tool hole in ram Ø 50 mm Dksdpfxsp Sycwj Aggjt weight of the machine ca. 7,5 t dimensions of the machine ca. BxTxH 2100x1500x3300 mm

Year of construction: 1967, condition: used, pressure 63 t throat 280 mm stroke 8-100 mm no. of strokes 56/84 Hub/min ram - range of adjustment 63 mm Dkedpfxelp U Emj Aggjt table surface area 620x500 mm ram surface 310x260 mm hole in the table Ø 250 mm table height 850 mm tool hole in ram Ø 40 mm weight of the machine ca. 4 t dimensions of the machine ca. 1200x1900x2800 mm

Condition: new, Year of construction: 1984, pressure 80 t throat 280 mm stroke 10-100 mm Djdpfx Aswa Umlsggokt no. of strokes 52/80 Hub/min ram - range of adjustment 60 mm table surface area 850x550mm mm ram surface 420x220 mm hole in the table 300x200 mm table height 780 mm tool hole in ram Ø 45 mm weight of the machine ca. 4,5 t dimensions of the machine ca. 2000x2000x2700mm m
