Used Cnc Turret Punch Press for sale (35,112)

Condition: good (used), AMADA PROMECAM APX 50.20 CNC 7 AXIS PRESS BRAKE MAKE AMADA MODEL PROMCAM APX 50.20 YEAR 1995 Iiedpsuad Nfsfx Ag Neh CONTROL OPERATEUR 2 CAPACITY 50 TONS BENDING LENGTH 2050.0 mm OPEN HEIGHT 370.0 mm STROKE LENGTH 100.0 mm THROAT DEPTH 400.0 mm MOTOR POWER 9 KW TBC WEIGHT 6400 KG PLUS 7 AXIS- Y, R1,R2,X1,X2,Z1,Z2 COLOURED GRAPHIC SCREEN FULL SET OF TOOL CLAMPS SICK OPERATOR SAFETY LIGHT GUARDS

Condition: excellent (used), Year of construction: 2009, functionality: fully functional, Technical details faceplate diameter 1800 mm swing diameter 2000 mm turning height 1270 / 1120 mm Control SIEMENS 840 D workpiece weight max. 5000 kg ram head dimension 250 x 250 mm table turning speeds 1 - 320 U/min cross rail - adjustment 400 mm ram head - cross travel (X) -2770 / +2275 mm ram head - vertical travel (Z) 1250 mm c-axis 360° (0,001°) deg milling drive 37 kW turning speed range - milling 10 - 3000 U/min power capacity - table 100 kW Torque 31784 Nm feed range (X/Z) 0,1 - 15000 mm/min weight of the machine ca. 55 t Additional information Used CNC vertical lathe for turning, drilling and milling First machine installation in the year 2011. Max. workpiece diameter: 2040 mm Max. workpiece height: 1270 mm Ram stroke: 1250 mm Max. workpiece weight: 5000 kg (per pallet/chuck) Table speed range: 1.0 - 320 rpm Table drive motor: 100 kW Drilling and milling spindle: 37 kW Crossbar travel: 2 steps of 200 mm each Total electrical connection value: 218 kVA CNC control: Siemens 840 D Number of NC axes: 4 (X, Z, C, crossbar adjustment) Travels: X-axis: -1650 to + 2165 mm Z-axis: 1250 mm Rapid traverse X- Z-axis: 15 m/min Number of tool magazine spaces: 80 spaces in the chain magazine, of which 60 x HSK 100 and 20 x Capto C6 Disc magazine 12-pos. for rotary holders and attachment heads Coolant system with filter and circulation unit Chip conveyor Oil-mist-extractor 1 pallet with jaws, diameter 1800 mm 1 hydraulic chuck with base jaws, diameter 1800 mm Various drilling and milling heads 2 measuring probes Several turning tool holders Special feature: Pallet changer with two stations, equipped with a face plate Ø1800 mm and a six-jaw lever compensation chuck with mechanical centrifugal force compensation Ø1800 mm. Note: The machine is in a pit. Condition description: The cross roller bearing on the Carnaghi was replaced about half a year ago. The Siemens components in the control cabinet were also completely replaced at the end of 2023. The machine also has a measuring probe for tool measurement and an external Renishaw measuring probe for workpiece measurement. As a special feature, the machine also has a measuring probe installed on the Z-axis (Z1-axis). This brings an advantage in terms of accuracy and time, as the tool does not have to be put down for measuring. However, it is currently shut down and should be overhauled when it is put back into operation. The machine also has a Rotomors six-jaw lever compensating chuck with centrifugal force Iiodew Hyd Ajpfx Ag Noh compensation, which was completely overhauled in 2020/21. If you are interested, the machine can be demonstrated under power/chip.

Year of construction: 2005, condition: excellent (used), machine/vehicle number: 47885/05, pneumatic punching of window profiles Stroke 20 mm Iodpfx Aeff Apijg Noih

Condition: as good as new (ex-display), The AHK V 30175 CNC - Delem DA58 2D TX is a state-of-the-art press brake in the Press Brakes category, designed to meet the highest standards in modern manufacturing. KNUTH's AHK V CNC series excels in delivering superior quality, precision, and reliability, incorporating advanced design technology and robust construction. This machine boasts a steel frame that enhances rigidity and accuracy, precision-engineered components, and a spacious work area for complex bending sequences. The DELEM graphical touchscreen provides efficient CNC programming tools for seamless control over the bending process. Features like motorized lower crowning and a safety-focused design ensure optimal performance when working with thicker sheet metals. Additionally, the press brake includes robust hydraulic systems and premium components, promising long-lasting reliability. As you consider your options in Press Brakes, you'll find that the AHK V 30175 excels, making it an ideal choice for any shop focusing on sheet metal processing. Request a quote today to learn more about this adaptable and powerful machine tool. Iijdpfx Agsv Rbxde Njh

Condition: ready for operation (used), Year of construction: 2004, Immediately available from Swiss operation: CNC Punch – Nibbling Machine Boschert Type TWIN 750 CNC/Z Iijdpsxn R Avofx Ag Njh Year of manufacture: 2004 Working area: 810 x 1500 mm Sheet length with repositioning up to 9999 mm Table: 750 x 3500 mm Revotol 6 Hydraulic punching force: 28 tons Max. workpiece weight: 200 kg Strokes/min: 250 Strokes/min with fast cycling: 800 X-axis speed: 60 m/min Y-axis speed: 30 m/min Simultaneous X & Y-axis speed: 67 m/min Trumpf tooling Accuracy: plus/minus 0.05 mm Connection: 4.8 / 11 kW Complete tooling included Weight: 11.5 tons Price: EUR 9,000.– plus VAT ex location

Condition: new, Year of construction: 2025, sheet thickness - max. 8 mm pressure 200 t chamfer lenght 3200 mm engine output 15 kW return speed 105 mm/min working feed 9 mm/sec x-travel 600 mm Max. opening height 570 mm control DELEM DA53T GERD WOLFF KANTO 200T CNC Electro-Hydraulic Press Brake CNC axis accuracy 1) Machine sliders (Y1, Y2) – synchronisation precision: The slider movement axes control the bending depth and bending angle. The system consists of the control unit, two glass scales (Y1, Y2) installed on the work table, electro-hydraulic proportional valves and an amplifier. A closed control loop detects and controls the relative position of the slide and table as well as the speed and position of the slide. This ensures the synchronisation of the slide and maintains the bending depth and angle with high precision. Positioning accuracy: ±0.02 mm Repeatability: ±0.02 mm 2) Machine backgauge (X axis): The forward/backward movement of the X-axis controls the dimensions of the sheet metal cut. The stop bar is driven by a servo motor and moves the crossbeam via a ball screw and linear guide. Operation is stable and precise. Positioning accuracy: ±0.10 mm Repeatability: ±0.03 mm Iiodpfexf Na Uox Ag Nsh 3) Mechanical compensation system (V axis): The pull plate of the mechanical compensation is moved by a motor so that the compensation points are formed in an arc shape. The points perfectly compensate for the elastic deformation of the work table and slide to ensure angular constancy and straightness of the workpiece. Position sensors and CNC control ensure precise regulation.

Year of construction: 2007, condition: good (used), MAKE - LVD, Made in USA/BELGIUM Iijdpfx Agsiab Epe Neh MODEL - GLOBAL 20 1225 YEAR - 2007 CONTROL - FANUC 180I - PB CAPACITY - 20 Tons THROAT DEPTH - 1250.0 mm SHEET SIZE MAX. - 2500.0 x 1250.0 mm (1250.0 x 5000.0 mm) MAXIMUM WORK PIECE WEIGHT - 150 Kg MAXIMUM MATERIAL THICKNESS - 6.0 mm MAXIMUM TABLE SPEED - 0 – 4330.0 TURRET - 30 STATIONS, 4 AUTO-INDEXING MAXIMUM PUNCHING DIAMETER - 89.0 mm PUNCHING SPEED - 350 STROKES/MIN NIBBLING SPEED - 900 STROKES/MIN PRESS MOTOR POWER RATING - 460V 3 Phase Motor DIMENSIONS - 5560.0 x 5560.0 x 2400.0 mm WEIGHT - 16,000 Kg PLUS BRUSH TABLE VERY LOW HOURS GOOD RANGE OF TOOLING

Condition: excellent (used), Year of construction: 2014, Operating hours: 78,000 hours 5 kW resonator Iisdpfx Ajwd Ng Uog Neh Annual maintenance by Trumpf

Condition: good (used), functionality: fully functional, Year of construction: 2010, operating hours: 49,000 h, laser power: 2,000 W, punching force: 165 t, punching diameter: 76 mm, sheet thickness (max.): 4 mm, sheet thickness steel (max.): 4 mm, sheet thickness aluminum (max.): 4 mm, workpiece weight (max.): 120 kg, overall weight: 13,000 kg, workpiece length (max.): 2,500 mm, space requirement length: 6,800 mm, space requirement width: 6,150 mm, working range: 2,500 mm, Equipment: cooling unit, safety light barrier, Special Equipment: + Thread forming function + Softpunch function + Height-adjustable clamping shoe + Follow-up cylinder + Vibration-damped installation + Sensor for part chute + Die spray lubrication Iedpfxsw Au Eaj Ag Nsih + Loading and unloading aid with brush Standard Equipment: - Robust C-frame - Coordinate guide with integrated linear magazine - 21 stations for tools and clamping shoes - 2 clamping shoes - Drives: maintenance-free three-phase servo motors - Brush tables - Laser TCF1 (2000W) - HI-LAS high-pressure cutting - High-speed processing with SprintLas - Programmable cutting gas selection/pressure adjustment - Laser cutting head with 5" lens - Quick-change device for cutting head - APC capacitive height control - Lens monitoring sensors - Laser logbook function - Compact dust extractor - Rotatable tool holder - Automatic follow-up device with hold-down - Automatic part chute for parts 300x500 mm - Automatic tool changer with 19 stations - 2 clamping shoes - Good parts container - Punch spray lubrication - 2nd lubricant container - Punch slug extraction - Chip bin - Hydraulic quick shutdown - External control panel - TFT color touch screen 15" - Interface for USB stick - 3.5" disk drive - Safety devices - RJ45 network connection - Network connectivity - Comprehensive operating manual - Remote diagnosis system

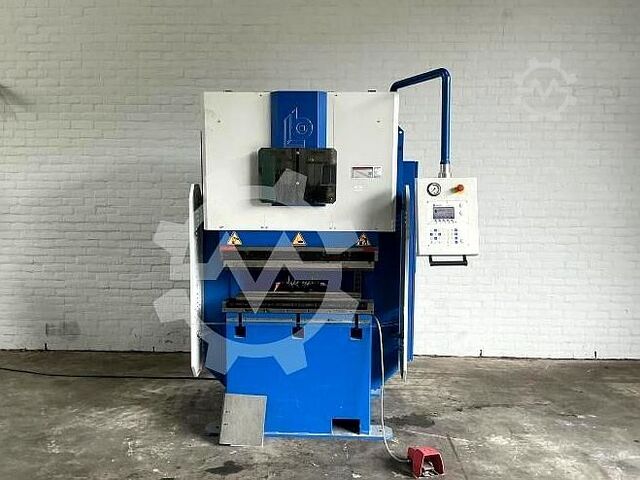

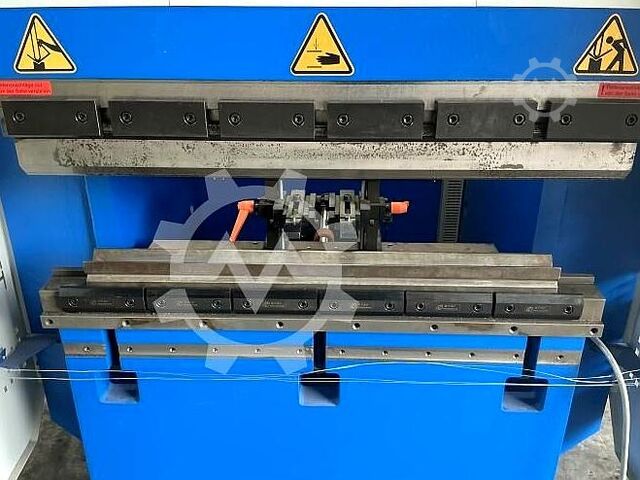

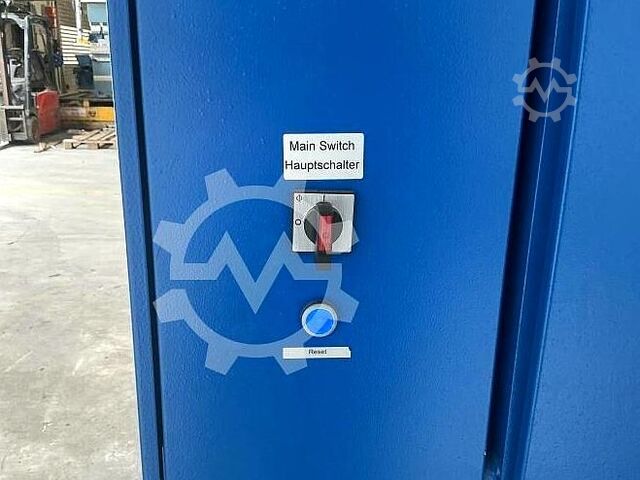

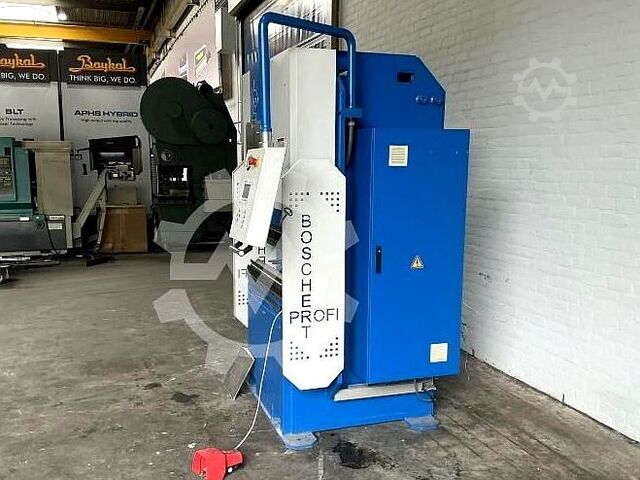

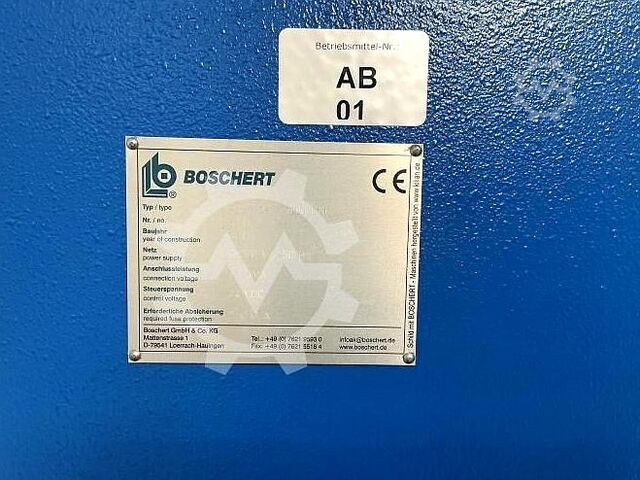

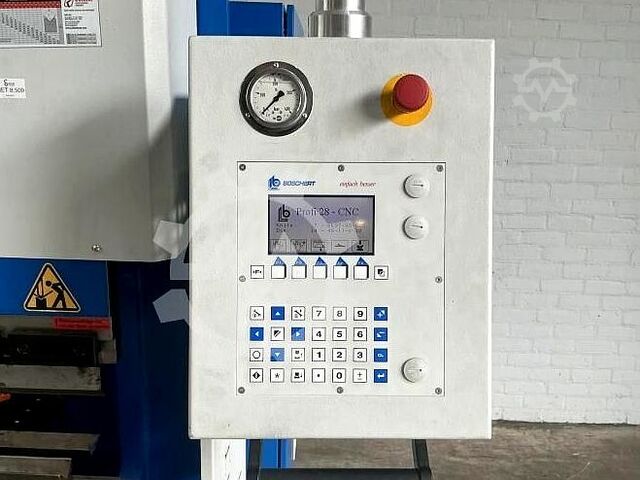

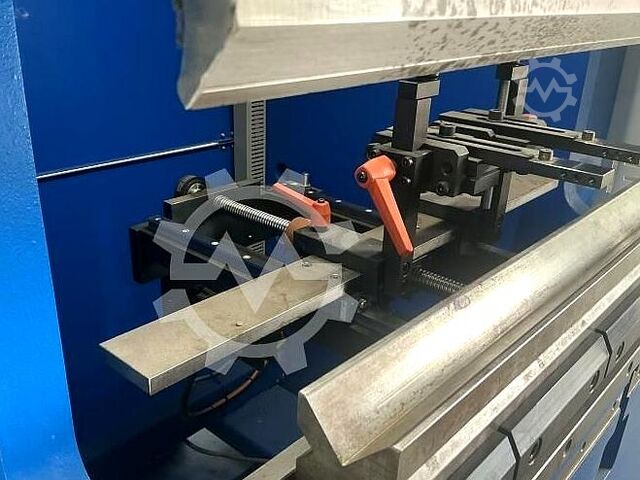

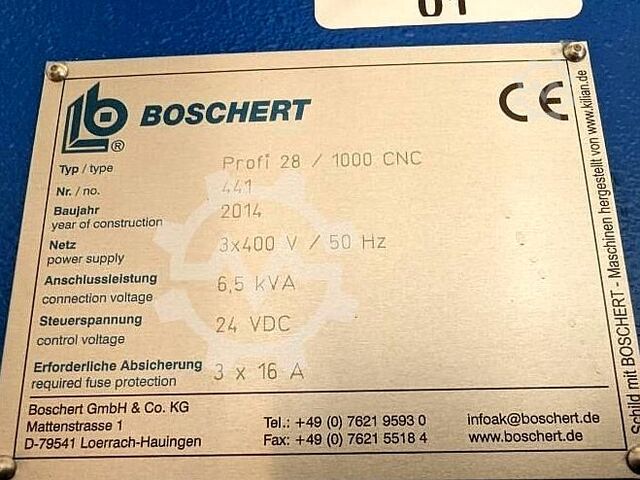

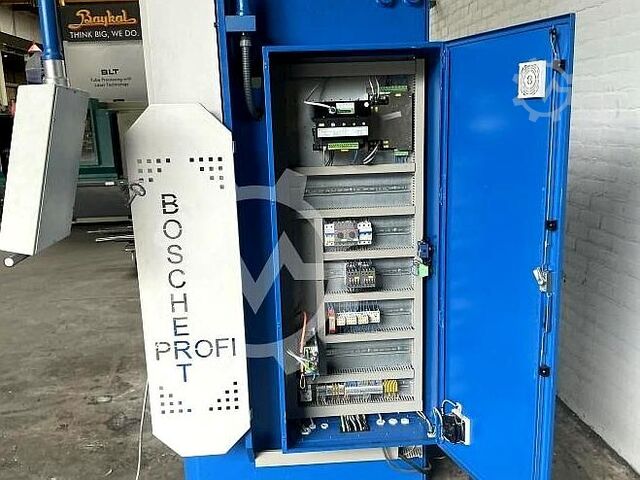

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2014, machine/vehicle number: 441, bending force (max.): 28 t, working width: 1,000 mm, throat depth: 220 mm, clearance between the columns: 950 mm, Equipment: CE marking, TECHNICAL DETAILS Capacity: 28 t Max. working width: 1,000 mm Distance between columns: 950 mm Throat depth: 220 mm Backgauge: 415 mm Motor power: 3.0 kW MACHINE DETAILS Dimensions & Weight Dimensions: 1,500 x 1,150 x 2,400 mm Weight: 3,600 kg EQUIPMENT Documentation Iiedpjxcn Ewsfx Ag Noh CE marking

Condition: good (used), Year of construction: 2000, Used punching and cutting line from Voortman | CNC FLAT BAR PUNCH & SHEAR LINE Iisdpfxov Rhabo Ag Neh Capacity: flat 500 x 22mm square 150 x 150 x 15 mm Including numerator Video available on request

Condition: good (used), Year of construction: 1992, Ref. -No.: 10578 Manufacturer: UNION Type: BFT 130 NC Year of construction: 1992 Type of control: CNC Control: Heidenhain 430 Storage location: Halberstadt Country of origin: Germany X-Travel: 2000 mm Y-Travel: 1600 mm Z-Travel: 1600 mm W-Axis: 600 mm Spindle Diameter: 130 mm W-Travel (Boring Spindle): 900 mm Table Load: 8000 kg Clamping Area: 1800 x 2000 mm T - groove width: 28 mm T - slot spacing: 160 mm Tool Taper: ISO 50 Spindle Turning Speed - Stepless: 1000 RPM Spindle Speed: 10 - 2000 RPM Max. Torque On The Boring Spindle: 3150 Nm Rapid Traverse X-Axis: 2500 m / min Rapid Traverse Z-Axis: 2500 m / min Drive Capacity - Spindle Motor: 15 - 30 kW Borehole Diameter: 800 mm W-axis feed: 2500 mm / min Y-axis feed: 2500 mm / min Table size: 2000 x 1600 mm Rapid adjustments W-axis: 3150 mm/min. Rapid adjustment Y-axis: 5000 mm / min Cross slide movement: 320 mm Torque max. face support: 5300 Nm Tarpaulin diameter max.: 1400 mm Machine length: 6000 mm Machine width: 4000 mm Machine Height: 4000 mm Weight Of The Machine Ca.: 40 t Further information: Iodpjxc Tuqofx Ag Noih The machine can be viewed under power by arrangement.

Condition: used, CNC Press Brake COLLY 502/A Numerical Command: CYBELEC type DNC 32 P-CM Iisdsxnilvepfx Ag Nsh Capacity: Maxi length 2000 mm x 50 T Throat depth: 200 mm Distance between uprights: 1600 mm Back Gear Gauge 1 axe Defective cylinder Right cylinder joint to change Machine functional (only right cylinder joint to change) Voltage: 380 V Length: 2500 mm Depth: 2100 mm Total height: 2400 mm Weight: approx 4 T

Condition: excellent (used), Year of construction: 2008, Amada EMK 3510NT electric punch, 45 Station Turret with 4 Auto indexing units 2008 Year of manufacture Country of Manufacture: Japan Bridge Type 30 tonnes (196kN) High speed AC servo direct twin drive 1270 x 2500mm 1270 x 5000mm ( ONE REPOSITION) 34.5 mm mild steel 150Kg max sheet weight mm Iisdew Dc Dyopfx Ag Neh 58 Stations Turret Turret Stations: 36 x A (Max. Dia. 12.7mm) 12 x B (Max. Dia. 31.7mm) 4 x C (Max. Dia. 50.8mm) 2 x D (Max. Dia. 88.9mm) Auto Indexing Stations 2 x B (Max Dia 31.7mm) 2 x E (Max. Dia. 114.3mm)

Condition: excellent (used), functionality: fully functional, Year of construction: 2018, operating hours: 21,346 h, laser power: 3,200 W, X working area max.: 3000 mm Y working area max.: 1600 mm Control: Rexroth IndraMotion MTX Laser power: 3000 watts Machine - Enclosed machine frame - Hybrid axis system - Linear magazine with 20 slots for clamps and tools - Hydraulic clamps (3 pieces) - Maintenance-free three-phase motors for drives - Repositioning device with programmable hold-down - Foot pedal for clamp closing - Beam protection with direct access - Parts chute on the right - Parts flap on the left - Sensor for parts flap - Work area illumination - FocusLine - Retrofittable for SortMaster Compact - Protective tool - Transport and installation device TRUMPF Laser - Laser light cable (LLK) according to standard layout (10m) - Laser power control - Laser logbook function - Closed beam guidance via laser light cable (LLK) - Separate power supply for TruDisk Compact Cutting Unit - Solid-state laser compact cutting unit - Protective glass - Collision protection - ControlLine Punching Head - Delta Drive - Rotatable mono-tool adapter Isdpfjxhmtwox Ag Neih - Programmable hold-down position - Tool length compensation - Punch spray lubrication - Punch slug extraction - Forming function - Stroke counter for punch Control - TRUMPF control based on Rexroth IndraMotion MTX - Touch panel with 19'' TFT color screen - Integrated technology data - Programmable cutting gas pressure - Remote support interface - Auto shut-off with wake-up function - Program management - Production plan Data Transmission - USB interface - RJ-45 network interface - Central Link - Online Update Manager Safety - CE marking - Two-beam safety light curtain Extended Standard Equipment - TruDisk 3001 solid-state laser with 1 LLK output - Chiller (water-air) - Compact dust extraction system - 1st locating pin (right inside) - Ball tables - Good parts container for parts chute - Chip container for rear removal Extended Laser Equipment - Copper cutting package - Brass cutting package Extended Punching Equipment - MultiShear function - Multitool function - MultiBend function - Thread forming with thread counter Thread former breakage monitoring Lubricant level monitoring - Marking/fast embossing function - Engraving function - Deburring and roller technology function - Ejecting small parts function Parts Ejection - Integrated sorting function for parts chute • Sensor for parts chute • Tray line for 4 standard trays 300 x 400 mm • Customer-supplied trays Extended Machine Equipment - 1x additional clamp - Machine rated for ambient temperatures up to 43°C Special Sheet Metal Processing - Brush tables - Warping detection Options for Compact Dust Collector - CO2 extinguishing system for the compact dust collector Data Transmission - Wireless Operation Point Machine Accessories - 1 set RTC cassettes incl. die plate SheetMaster Compact - SheetMaster Compact 3000 x 1500 mm (AK05) • Loading station with spreader magnet for sheet separation • Suction frame • Vacuum sensor system • Double sheet detection • Unloading cart for scrap grid and microjoint sheets • 2nd operator's station for loading and unloading.

Condition: new, The AHK V 30175 CNC is a state-of-the-art press brake that exemplifies precision and performance in the realm of Sheet Metal Processing. Designed with advanced technology and built from certified materials, this powerful machine delivers an impressive pressure force of 175 t and a brake length of 3.100 mm, ensuring superior machining quality even under demanding conditions. The robust frame and high-end CNC machining guarantee exceptional rigidity and accuracy, while the DELEM graphical touchscreen facilitates efficient CNC programming, allowing users to oversee the entire bending process with ease. The motorized crowning feature, standard on this model, ensures consistent bending results across various sheet metal thicknesses. Equipped with premium hydraulic components and a laser optical safety system, the AHK V 30175 CNC prioritizes both safety and productivity in your operations. You can easily adapt it to various requirements with its adjustable back gauge and a wide selection of European type bending tools. For those looking for a reliable Press Brake, the AHK V 30175 CNC is an excellent choice. Order online or request a quote today to take your sheet metal processing to the next level. Iedeww T Suepfx Ag Njih

Year of construction: 2000, condition: good (used), Technical Specification Punching/Shearing system Material * flatsteel length : 6.000 mm width : 50-500 mm thicknes : 5-30 mm * angle steel length : 12.000 mm width : 50 x 50 — 150 150 mm thickness : max. 15 mm Punching Machine VPO 1400 Capacity : 1400 kN (140T) Punch diameter/material thickness (max): 32 mm/25 mm Punching in flat- and angle steel : yes Number of punches for flat steel : 4 Number of punches for angle steel : 1 Hydraulic clamping : yes Centring points : yes Mist lubrication system : yes Shear for Flat Steel VPS 1800 Capacity : 1800 kN (180 ton) Width/material thickness (max) : 500 mm/22 mm Hydraulic clamping : yes Mitreshearing : +/- 45° Shear for Angle Steel VHS 1800 Capacity : 1800 kN (180 ton) Iedpoq Hu H Rjfx Ag Noih Suitable for Angle : 50x50x5 up to and included 150x150x15 Hydraulic clamping : yes Punching Unit for Angle Flange Capacity : 600 kN (60 ton) Punchdiameter/material thicknes (max.) : 32 mm / 15 mm Numbering Unit Number of disks : 4 pcs Number of characters : 36 pcs Character hight : 10 mm Number of characters per code : standard max. 16 Inprint : approx 1 mm Electrical power : 3 x 415V AC + N + PE, 50 CPS

Condition: used, Pneumatic toggle press BURGER type D04 No. 4497 Year of construction approx. 1972 Compressive force max. 6 ton. Projection 150 mm ram stroke 39 mm Table size 340 x 270 mm Drop-through opening Ø 46 mm Installation height max. 160 mm Tool holder Ø 25 mm ram plate Ø 90 mm Pneumatic operating pressure 5 bar Mains connection 220 V 50 Hz - Pressure regulator for press force adjustment - stroke height adjustment 7, 21, 40 mm Iedpfovcdvpjx Ag Noih - electric foot switch - Table height adjustment Space requirement L x W x H 700 x 500 x 1300 mm Weight 240 kg good condition

Condition: used, Year of construction: 2022, controller model: Esa S 630, _____ Description: Year of manuf. : 2022 Technical data Year of manufacture:2022 Pressing force:125t Bending length:3050mm Number of axles:3 (Y1-Y2-X) Total power requirement:11kW Oil filling:200l Dimensions:3660x1340x2500 mm Weight:approx. 700 kg Electrical system:380 V - 660 V, 50 - 60 Hz, 3 Ph (IE3) Control & operation CNC control unit:Esa S 630 CNC, 10" 2D graphic display, touchscreen Control panel:Swivel suspension arm Safety PLC:Mcs Plc safety PLC Safety equipment Isdpfexgpryjx Ag Nsih Laser safety system:Dsp-Ap safety block (manual height adjustment) Backgauge X-axis:500 mm reach Brake finger for backgauge:standard Tool clamping & upper tool Clamping upper tool:Manual Tools:Included in the scope of delivery Lower die & die holder Die holder:Mechanical European type, standard width (Promecam) Lower die:Eurostamp 2067 / standard Other Crowning:CNC-motorized crowning (V-axis) Front supports:2 supports, manually adjustable in height and sideways

Condition: used, Year of construction: 2004, machine/vehicle number: P020504, control type: CNC control, degree of automation: semi-automatic, actuation type: hydraulic, controller manufacturer: Delem, controller model: DA-66W, bending force (max.): 130 t, working width: 3,150 mm, stroke length: 350 mm, throat depth: 500 mm, distance between stands: 2,600 mm, installation height: 550 mm, operating speed: 10 mm/s, reverse speed: 115 mm/s, number of axes: 6, table height: 950 mm, type of crowning: CNC-controlled, oil tank capacity: 160 l, travel distance X-axis: 500 mm, back gauge adjustment: CNC-controlled, back gauge speed R-axis: 100 mm/s, back gauge travel distance R-axis: 160 mm, overall weight: 13,500 kg, total length: 2,300 mm, total width: 4,000 mm, total height: 3,100 mm, power: 15 kW (20.39 HP), input voltage: 400 V, input current: 35 A, input frequency: 50 Hz, Equipment: CE marking, documentation/manual, emergency stop, european tool clamping system, lower tooling, safety light barrier, upper tooling, Offered Machine: Used CNC Hydraulic Press Brake Manufacturer: CR Electronic Model: GOLD 130/31 Year of manufacture: 2004 Control: Delem DA-66W (8-axis capable) Condition: used, fully functional (Z-axes currently out of service, see below) Technical Specifications: - Press force: 1,300 kN (130 t) - Bending length: 3,100 mm - Distance between uprights: 2,600 mm - CNC-controlled axes: Y1, Y2, X, R, Z1, Z2 (Note: Z1 and Z2 are currently electronically out of service – new servo drives required. Manual movement possible.) - Stroke: 350 mm - Installation height: 550 mm - Throat depth: 500 mm - Backgauge (X): 600 mm - Table height: 950 mm - Working speed: 10 mm/s - Return speed: 115 mm/s - Motor power: 11 kW - Operating pressure: 275 bar - Weight: approx. 13,500 kg Equipment & Features: - CNC-controlled hydraulic crowning - System tool holders top & bottom - Manual quick clamping of upper tools - Laser optical finger guard (safety light curtain) - PLC-supported diagnostic system Iiodpsw A Rggefx Ag Noh - 2 support arms with quick adjustment - Operating manuals available - CE compliant Including accessories: - Fully equipped tool cabinet - Upper tool 88°, full machine length - Upper tool 35°, full machine length - Round bending upper tool - V8 T-die, full machine length - V12 T-die, full machine length - Flattening die, approx. 2,000 mm length Condition / Remarks: - Machine is in well-maintained condition, currently connected - Inspection and test run under power possible on site - Z1/Z2 currently not operational – new servo drives required - Machine is being replaced due to a planned modernization involving the acquisition of a new press brake. Price: €26,500 net (plus VAT) Negotiable for quick and straightforward purchase.

Condition: excellent (used), Year of construction: 1998, Year of manufacture: 1998 Model: HÄMMERLE BM 200 - 4100 Catalog number: 11803-37 Serial number: 590 097 Ijdpfown Hfijx Ag Njih Pressure: 2000 kN Working length: 4100 mm Max. stroke: 400 mm Reach: 250 mm Weight: 18,900 kg + Tools

Condition: good (used), Year of construction: 2018, CNC press brake Manufacturer: SMD Yawei Model: PBB-630/6200 Year of manufacture: 2018 CNC control: CYBELEC ModEva 15 Pressing force: 6,300 kN Working width: approx. 6,200 mm DSP-Laser-TX Isdperivu Ssfx Ag Njih Connected load: 400 V / 95 kVA

Condition: used, CNC Press Brake AMADA Type HFBO 50 x 2000 Serial No. HFBO 50 20 S60906 Year of manufacture: 1996 Press brake with 8 axes - CNC control Operator II Pressing force: 50 tons Working length: 2090 mm Stroke: 200 mm Frame depth: 420 mm Distance between side frames: 1660 mm Max. tool installation height: 460 mm Table width: 60 mm Table height above floor: 910 mm Isdew Iq Ugspfx Ag Noih Motor power: 4.5 kW Mains connection: 400 Volt, 50 Hz, 20 Amp. - 8-axis CNC control Operator II (Y1-Y2 / X1-X2 / Z1-Z2 / R1-R2) - 2 freely programmable backgauge fingers, movable laterally and in height (Z1+Z2+R1+R2) - Press beam with servo valves and measuring system Y1 and Y2 - Operation via electric foot switch and/or two-hand control panel - Mechanical lever-style tool clamping for the upper tool (5 AMADA Expert, 5 UKB 50.667 H=120 mm) - Tool holder for lower tool, 60 mm wide - 11-piece upper tool set, 30°, total length 1675 mm - consisting of: 1x 835 / 1x 300 / 1x 165 / 1x 50 / 1x 45 / 1x 35 / 1x 20 / 1x 15 / 1x 10 / 2x 100 mm (end pieces) in length - 2-piece lower tool, 88° - V8, total length 1250 mm - consisting of: 1x 835 / 1x 415 mm in length - Indicated operating hours: 30,537 h - Operating manual, electrical diagram, spare parts book included Weight: 4,700 kg Good condition

Condition: used, Hydraulic punch, punch frame for use with JOKA punching units type HP-S Hydraulic hole punch, hydraulic press for punching brackets Year of manufacture: approx. 1995 Pressing force: 5 tons Throat depth: 155 mm Stroke: approx. 20 mm Punching unit width: max. 54 mm Punching unit installation height: max. 220 mm Die holder: Ø 48 mm Motor output: 1.5 kW Power supply: 230 Volt, 50 Hz - Suitable for universal use with JOKA SW 20 or SWD 20 punching units - Throat depth of punching units can be larger, can be pushed through to the rear - Stroke release via electric two-hand control - Hydraulic power pack HAWE, type HCW 4 / 2.5-B 1/400-1 - On subframe, mobile Iijdpfjltrmuex Ag Neh Required space (L x W x H): 1100 x 800 x 1450 mm Weight: approx. 200 kg Good condition

Condition: used, Pneumatic toggle press, pneumatic press SCHMIDT Type 34-12 Manufacturer No. 400160-03 Serial No. 0028 Year of manufacture 2008 Iijdpfjv Srfkox Ag Noh Pressing force 28 kN = 2.8 tons. Throat 130 mm Ram surface 63 x 36 mm Ram stroke 12 mm Clamping pin bore Ø 20 mm with clamping screw Compressed air requirement 2 to 6 bar - Stroke length continuously adjustable via a fixed stop for the upper stroke end position - Fine adjustment for the lower stroke end position with a scale of 1 graduation = 0.05 mm - Stroke triggered via pneumatic valve, triggered by material insertion - 45° press stand made of special aluminum construction - Press tool made of special construction for 3 x Ø 2.5 mm punch holes - Complete unit mounted on an aluminum base plate 600 x 600 x 20 mm Space required L x W x H 720 x 600 x 600 mm Weight 68 kg Very good condition
